NETGEAR ProSafe 802.11g Wireless Access Point WG302 Reference Manual
Number LED
3 Local
Port
4 Internet
Port
5 Wireless

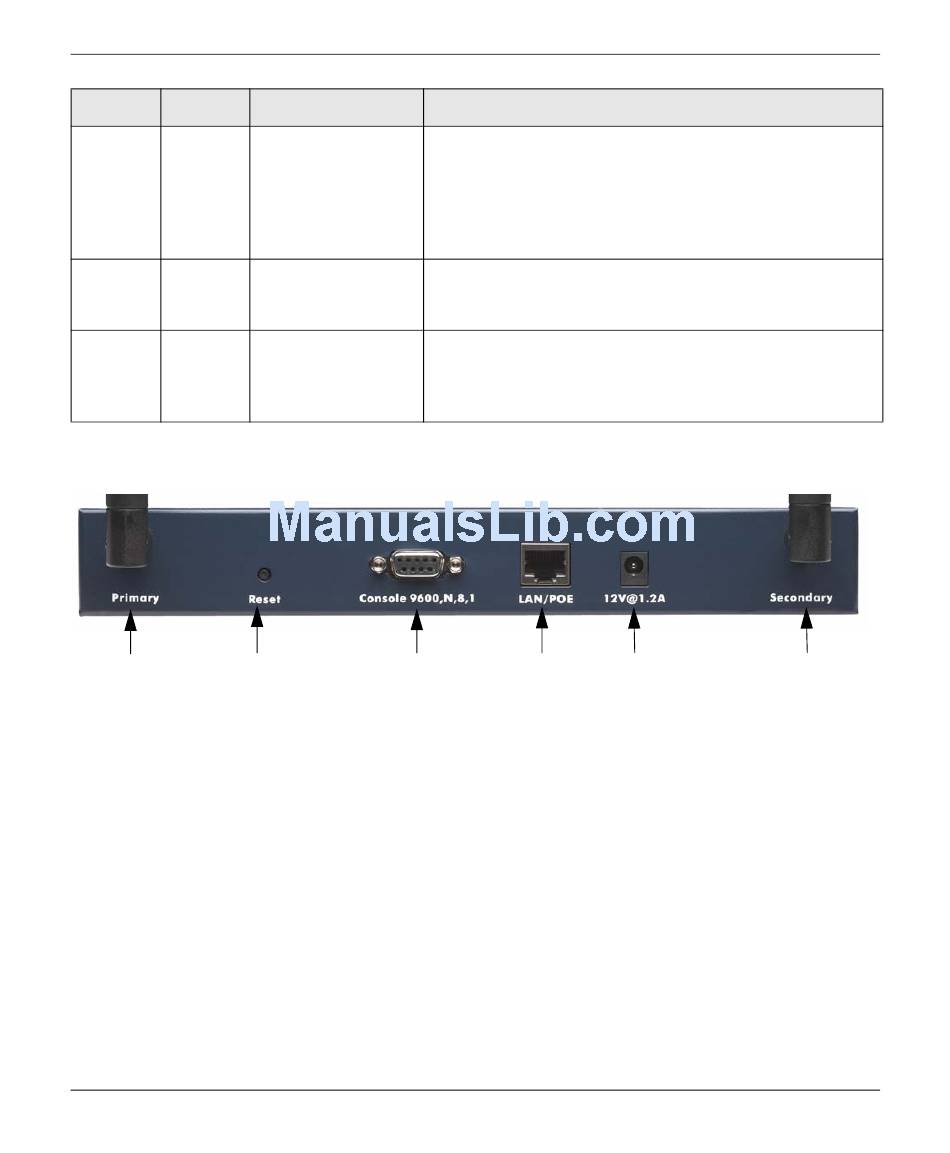

The WG302 rear hardware functions are described below:
1
Figure 1-2
The rear panel contains the following elements:
1. Left and Right Detachable Antenna
The WG302 provides two detachable antenna.
2. Restore to Factory Defaults Button
The restore to default button located between the Ethernet RJ-45 connector and the power
socket restores the WG302 to the factory default settings.
3. Serial Console Port
Male DB-9 serial port for serial DTE connections.
4. RJ-45 Ethernet Port
Introduction
Activity
Link/Act LAN Ethernet LAN Link Activity Indicator
Off
On (Green)
Blink (Green)
On (Amber)
Blink (Amber
100 LED Ethernet LAN Speed Indicator
Off
On (Green)
802.11gWLAN Wireless LAN Link Activity Indicator
Off
On (Green)
Blinking (Green)
2 3
v4.0, April 2006
DESCRIPTION
Indicates no Ethernet link detected.
100 Mbps Fast Ethernet link detected, no activity.
Indicates data traffic on the 100Mbps Ethernet LAN.
10 Mbps Ethernet link detected, no activity.
Indicates data traffic on the 10Mbps Ethernet LAN.
Indicates 10 Mbps Ethernet link detected
100 Mbps Fast Ethernet link detected.
Indicates no wireless link activity.
Wireless link activity.
Data is being transmitted or received.
4
5
1
1-7
