CHAPTER 2 PREPARATIONS

2.1 Setup

J Draw-out
Fixing Screw for
Front Panel
2--2
• On a standard type controller, set up the output units for control out-
puts 1 and 2 before mounting the controller.
• On a position-proportional type controller, the relay output unit is
already mounted. So, this setup operation is unnecessary. (That is, do
not replace the currently mounted unit with other output units.)
• When setting up the output units, draw out the internal mechanism
from the housing, and insert the output units into the sockets for con-
trol outputs 1 and 2.

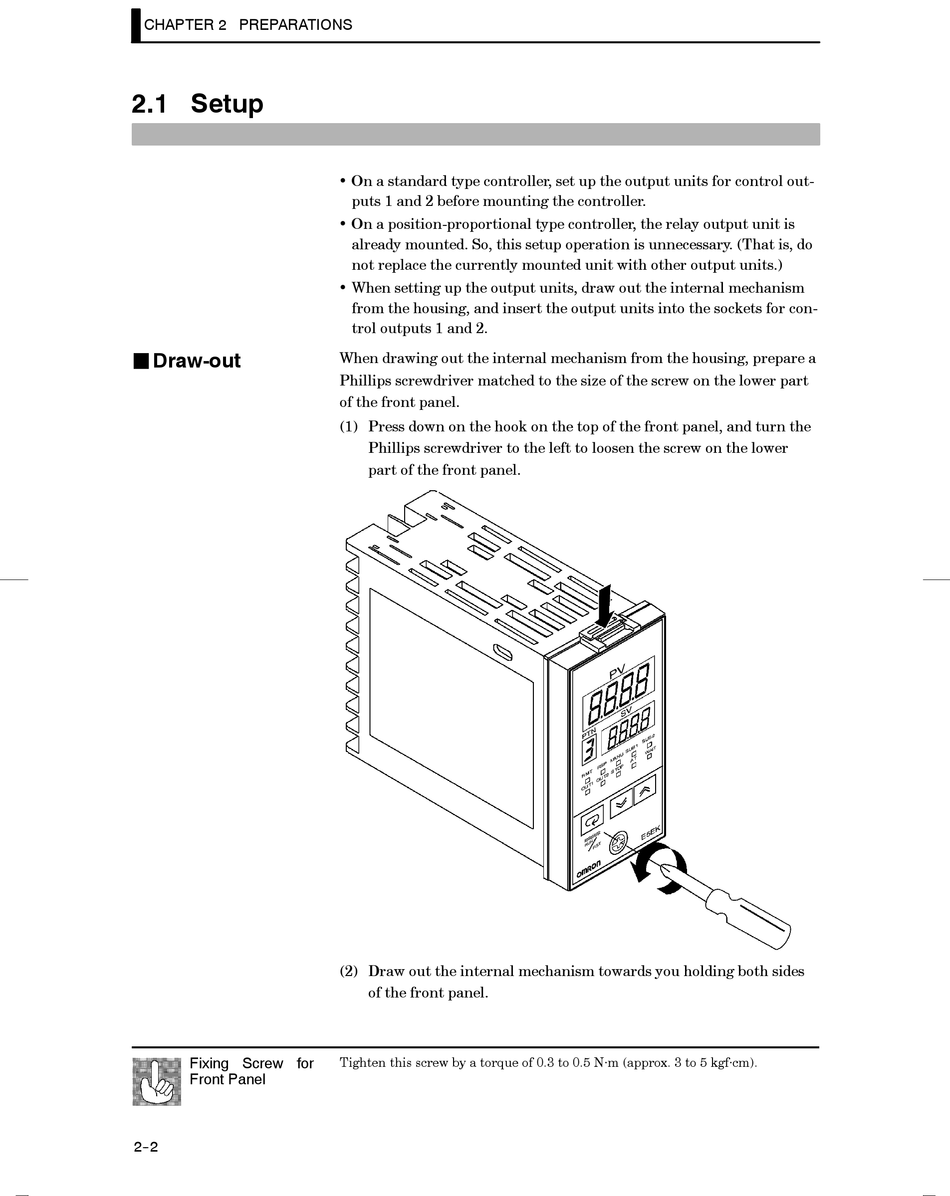

When drawing out the internal mechanism from the housing, prepare a
Phillips screwdriver matched to the size of the screw on the lower part
of the front panel.
(1) Press down on the hook on the top of the front panel, and turn the
Phillips screwdriver to the left to loosen the screw on the lower
part of the front panel.
(2) Draw out the internal mechanism towards you holding both sides
of the front panel.
Tighten this screw by a torque of 0.3 to 0.5 N⋅m (approx. 3 to 5 kgf⋅cm).
