CHAPTER 1 INTRODUCTION

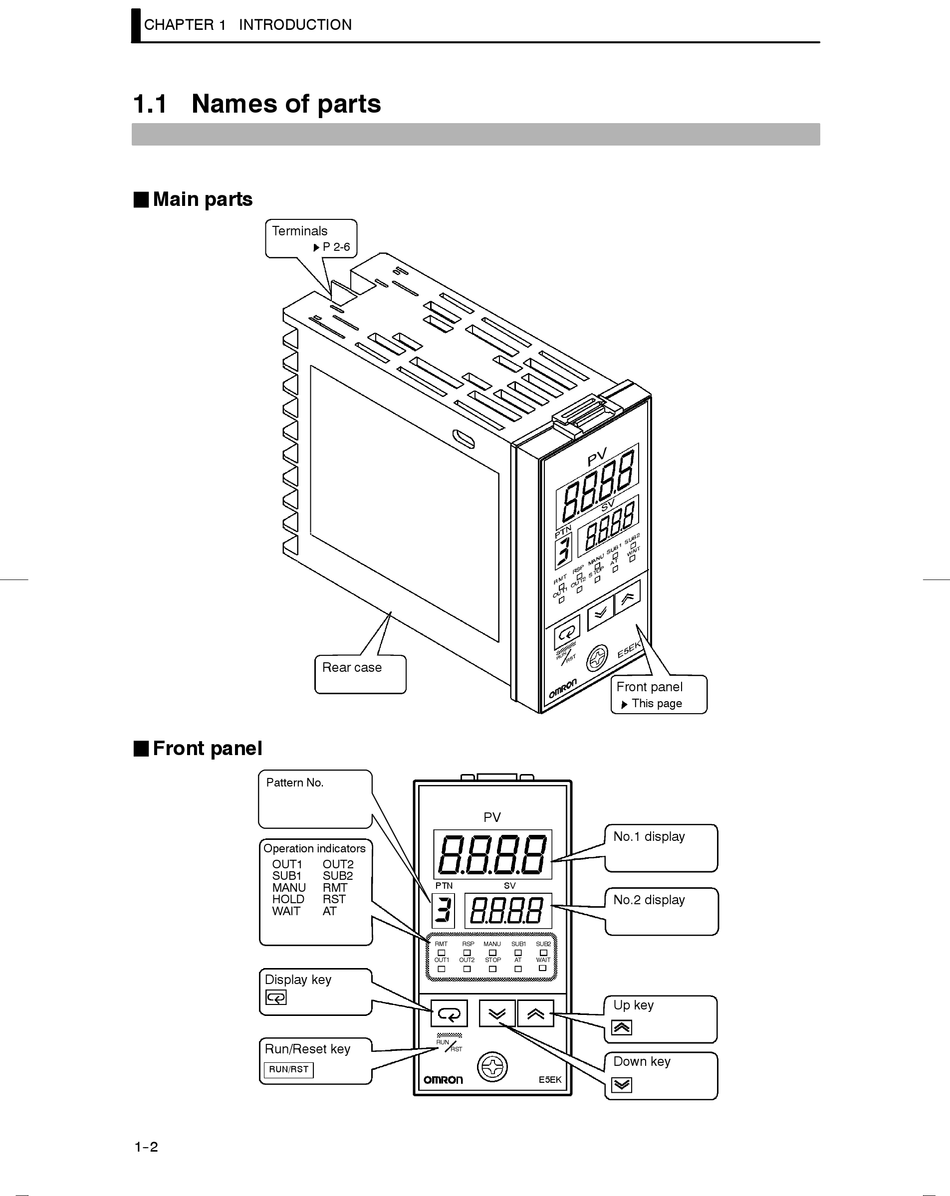

1.1 Names of parts
J Main parts
Terminals
J Front panel
Pattern No.
Operation indicators
OUT1
SUB1
MANU
HOLD
WAIT
Display key
Run/Reset key
RUN/RST
1--2
P 2-6
Rear case
OUT2
SUB2
PTN
RMT
RST
AT
RMT
RSP
OUT1
OUT2
RUN
RST
Front panel
This page
PV
No.1 display
SV
No.2 display
MANU
SUB1
SUB2
STOP
AT
WAIT
Up key
Down key
E5EK
Table of
Contents
Previous
Page
Next
Page
