CHAPTER 3 BASIC OPERATION

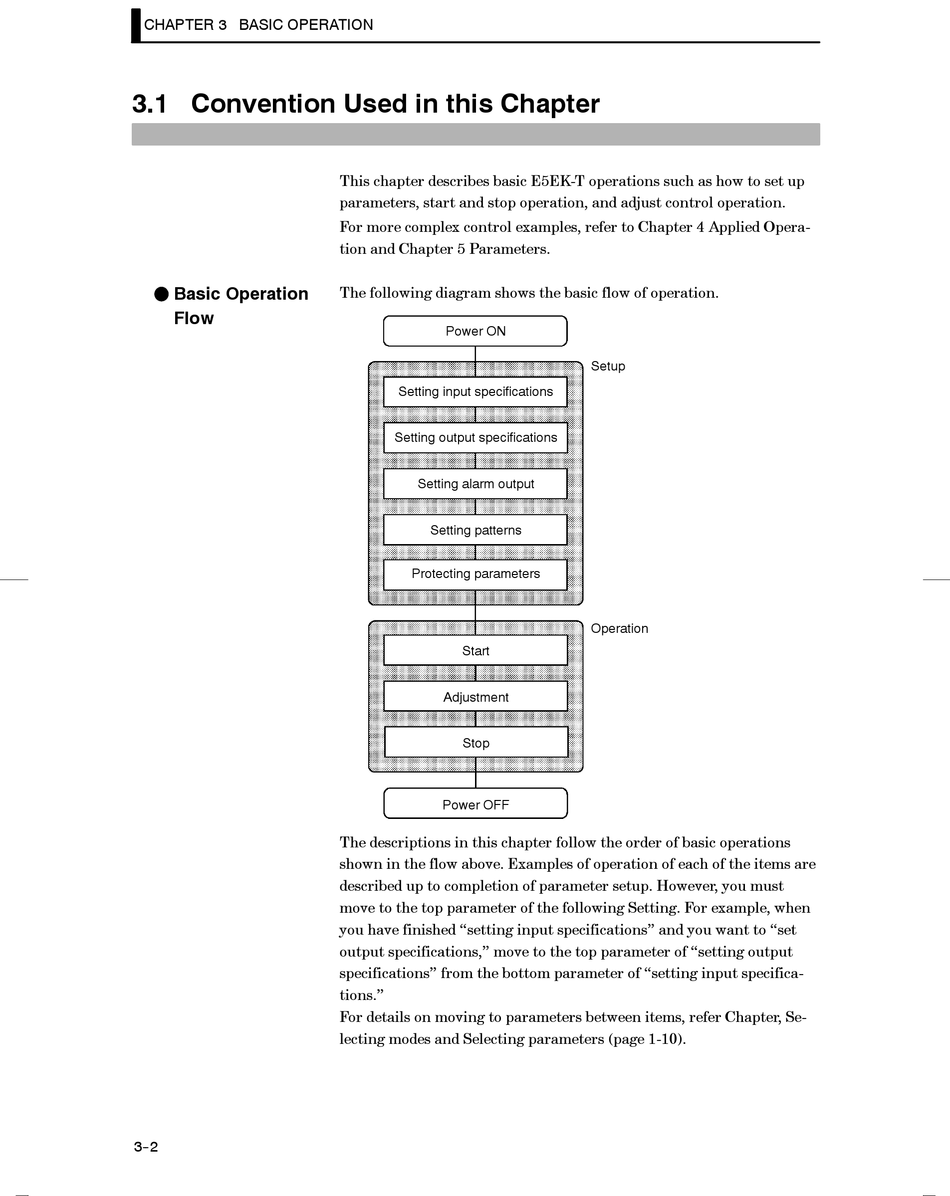

3.1 Convention Used in this Chapter

F Basic Operation

Flow

3--2

This chapter describes basic E5EK-T operations such as how to set up

parameters, start and stop operation, and adjust control operation.

For more complex control examples, refer to Chapter 4 Applied Opera-

tion and Chapter 5 Parameters.

The following diagram shows the basic flow of operation.

Power ON

Setting input specifications

Setting output specifications

Setting alarm output

Setting patterns

Protecting parameters

Start

Adjustment

Stop

Power OFF

The descriptions in this chapter follow the order of basic operations

shown in the flow above. Examples of operation of each of the items are

described up to completion of parameter setup. However, you must

move to the top parameter of the following Setting. For example, when

you have finished "setting input specifications" and you want to "set

output specifications," move to the top parameter of "setting output

specifications" from the bottom parameter of "setting input specifica-

tions."

For details on moving to parameters between items, refer Chapter, Se-

lecting modes and Selecting parameters (page 1-10).

Setup

Operation
