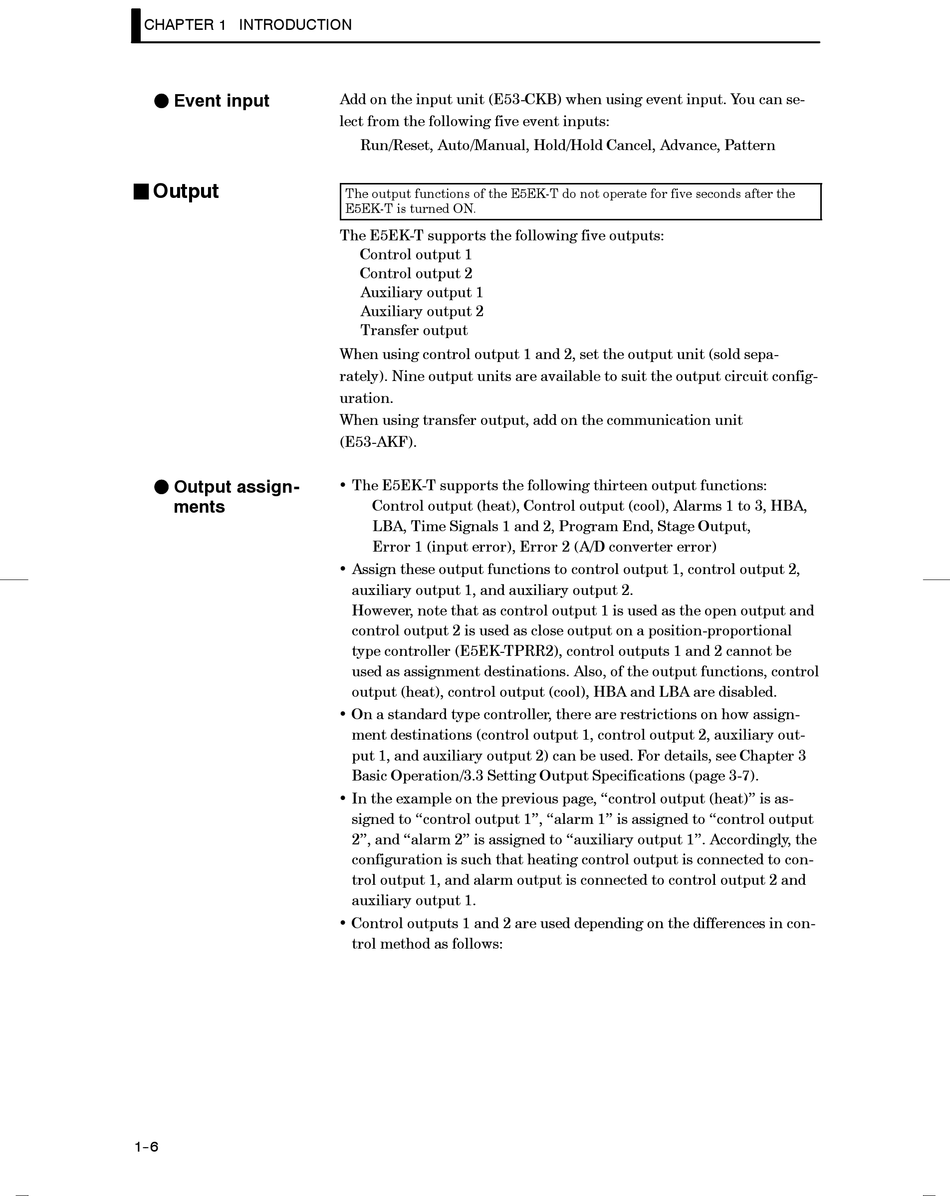

CHAPTER 1 INTRODUCTION
F Event input
J Output
F Output assign-
ments
1--6
Add on the input unit (E53-CKB) when using event input. You can se-
lect from the following five event inputs:
Run/Reset, Auto/Manual, Hold/Hold Cancel, Advance, Pattern
The output functions of the E5EK-T do not operate for five seconds after the
E5EK-T is turned ON.
The E5EK-T supports the following five outputs:
Control output 1
Control output 2
Auxiliary output 1
Auxiliary output 2
Transfer output
When using control output 1 and 2, set the output unit (sold sepa-
rately). Nine output units are available to suit the output circuit config-
uration.
When using transfer output, add on the communication unit
(E53-AKF).
• The E5EK-T supports the following thirteen output functions:
Control output (heat), Control output (cool), Alarms 1 to 3, HBA,
LBA, Time Signals 1 and 2, Program End, Stage Output,
Error 1 (input error), Error 2 (A/D converter error)
• Assign these output functions to control output 1, control output 2,
auxiliary output 1, and auxiliary output 2.
However, note that as control output 1 is used as the open output and
control output 2 is used as close output on a position-proportional
type controller (E5EK-TPRR2), control outputs 1 and 2 cannot be
used as assignment destinations. Also, of the output functions, control
output (heat), control output (cool), HBA and LBA are disabled.
• On a standard type controller, there are restrictions on how assign-
ment destinations (control output 1, control output 2, auxiliary out-
put 1, and auxiliary output 2) can be used. For details, see Chapter 3
Basic Operation/3.3 Setting Output Specifications (page 3-7).
• In the example on the previous page, "control output (heat)" is as-
signed to "control output 1", "alarm 1" is assigned to "control output
2", and "alarm 2" is assigned to "auxiliary output 1". Accordingly, the
configuration is such that heating control output is connected to con-
trol output 1, and alarm output is connected to control output 2 and
auxiliary output 1.
• Control outputs 1 and 2 are used depending on the differences in con-
trol method as follows:
