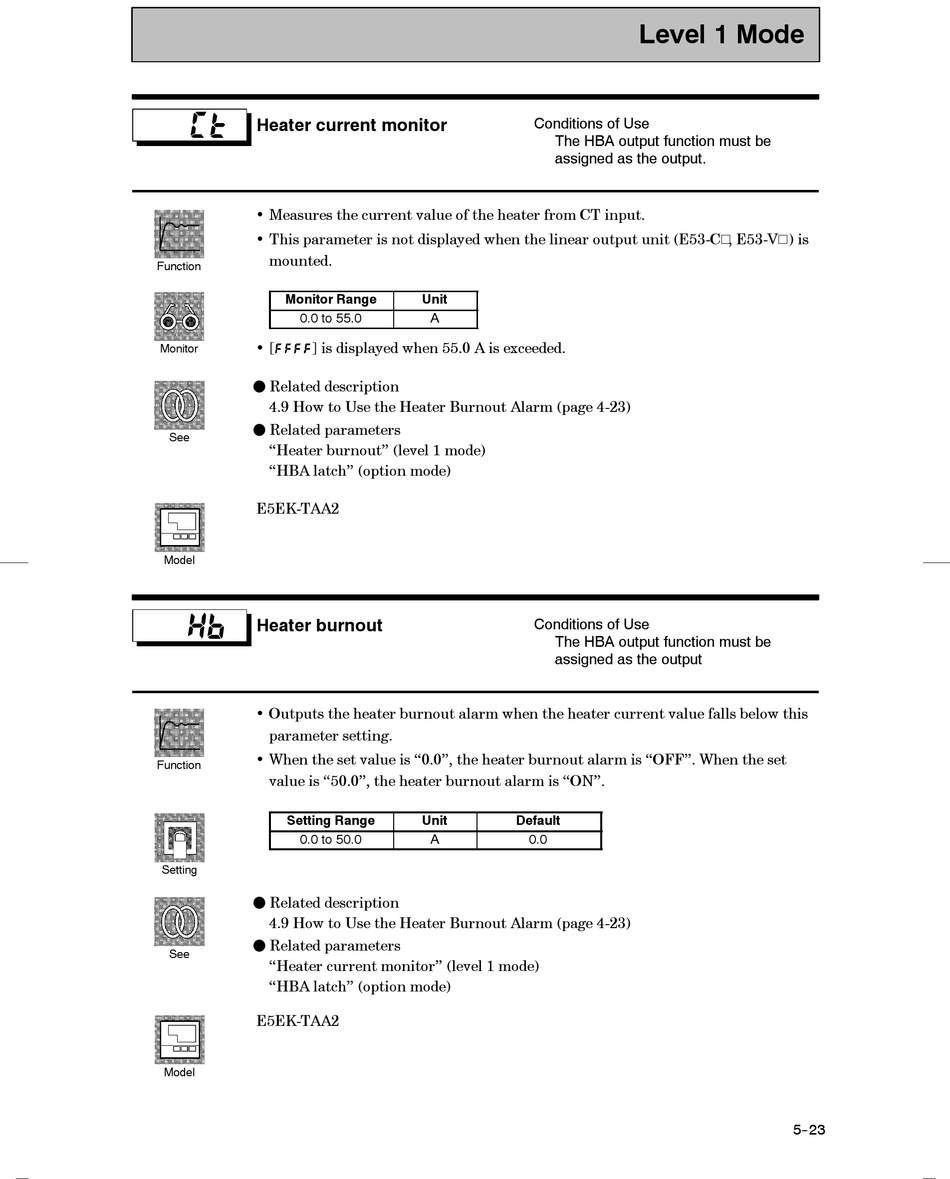

Heater current monitor
• Measures the current value of the heater from CT input.
• This parameter is not displayed when the linear output unit (E53-CV , E53-VV) is
mounted.
Function
Monitor Range
0.0 to 55.0
• [
Monitor
F Related description
4.9 How to Use the Heater Burnout Alarm (page 4-23)
F Related parameters
See
"Heater burnout" (level 1 mode)
"HBA latch" (option mode)
E5EK-TAA2
Model
Heater burnout
• Outputs the heater burnout alarm when the heater current value falls below this
parameter setting.
• When the set value is "0.0", the heater burnout alarm is "OFF". When the set
Function
value is "50.0", the heater burnout alarm is "ON".
Setting Range
0.0 to 50.0
Setting
F Related description
4.9 How to Use the Heater Burnout Alarm (page 4-23)
F Related parameters
See
"Heater current monitor" (level 1 mode)
"HBA latch" (option mode)
E5EK-TAA2
Model
Unit
A
] is displayed when 55.0 A is exceeded.
Unit
A
Level 1 Mode
Conditions of Use
The HBA output function must be
assigned as the output.
Conditions of Use
The HBA output function must be
assigned as the output
Default
0.0
5--23
