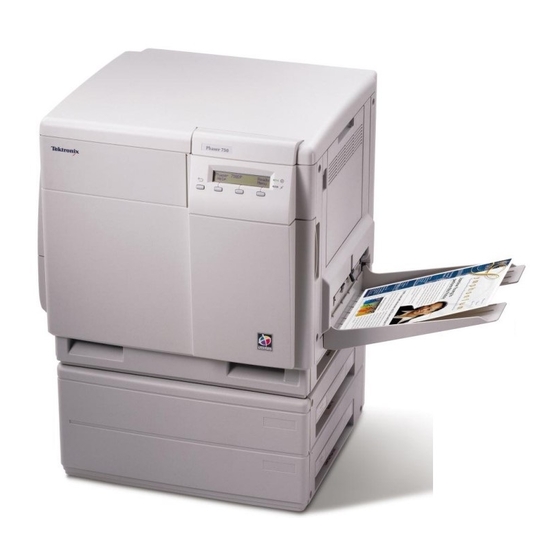

Page 1: Table Of Contents
Contents Tektronix Supplies and Accessories 9 Print Quality Modes 16 TekColor™ Color Corrections 17 Paper Tips 18 Letterhead 19 Supported page sizes and image area 20 Paper and Transparency Trays 21 Paper Tray 21 Transparency Tray 22 Loading Paper or Transparency Tray 23 Multi-Purpose Tray 25 Overview 25 Loading the Multi-Purpose Tray 27...
Page 2 From a Macintosh 74 From a PC or workstation Image Smoothing 75 Quick Collate 76 Requirements 76 Separation Pages 77 PANTONE Colors 78 Methods of printing PANTONE Colors 78 PANTONE Colors from color selection books 78 Phaser 850 Color Printer...
Page 3 Printer-specific PANTONE Colors 78 Installing the PANTONE Color files 79 From the Web 79 Printing the PANTONE Color Chart 80 Macintosh 80 PC 81 PhaserPrint Plug-in for Photoshop 82 Installing the plug-in: Macintosh 82 Installing the plug-in: Windows 83 Using the plug-in 84...
Page 4 Downloading files if your printer is connected through PhaserPort 99 Downloading files if your printer is connected to Windows NT 99 Advanced Printing Features for Phaser 750 Printers 100 Previewing with 1st Page Preview 100 Requirements 100 Use 1st Page Preview 100...
Page 5 Calibrate for Paper 108 Color Sampler Charts for Phaser 750 Printers 109 Overview 109 Color charts 110 Printing a color sampler chart from the Phaser 750 printer’s front panel 111 Selecting a color correction and a print quality mode 111...
Page 6 Fonts printing incorrectly from Windows 145 Sharing the printer on a network 145 Driver, utility files, and front panel interactions If the Apple Printer Utility does not work (AppleTalk) 145 Startup Page prints even though it is disabled 146 PostScript printing errors 146...
Page 7 Transfer Kit 161 Main Charge Grid 162 Supplies life information 162 Using the information on the Supplies Page 163 Regulatory Information for Phaser 750 Printers 164 Canadian EMC (Electromagnetic Compatibility) regulatory standards 164 Declaration of conformity 165 Combined User and Troubleshooting Manuals...
Page 8 220-230 VAC equipment 165 FCC Class B device 167 for 100-120 VAC equipment 167 Material Safety Data Sheets for Phaser 750 Printers 168 MSDS for Toner 169 Environmental Specifications (Temperature/Humidity/Power) 171 Index 173 Phaser 850 Color Printer...
Page 9: Tektronix Supplies And Accessories
& Fuser Roll Note Inside the printer, all handles, knobs, and other features that the user interacts with are blue. When the front panel prompts you that a supply is low or needs to be replaced, make sure that you have replacements on hand. To order...
Page 10 Item Part Number Cyan 016-1800-00 Magenta 016-1801-00 Yellow 016-1802-00 Black 016-1803-00 Standard Toner Cartridges Item Part Number Cyan 016-1804-00 Magenta 016-1805-00 Yellow 016-1806-00 Black 016-1807-00 0236-44 Main Change Grid Item Main Charge Grid Part Number 016-1665-00 Phaser 750 Color Printer...
Page 11 33100-35 Fuser Item 110 volt 220 volt 33100-36 Fuser Roll and Cleaning Pad Item Fuser Roll (with Cleaning Pad) Fuser Cleaning Pad User Guide Part Number 016-1839-00 016-1840-00 Part Number 016-1843-00 116-0329-00...
Page 12 0236-41 Imaging Unit Item Imaging Unit (Color Imaging Kit) 0236-43 Transfer Kit Item Transfer Kit Part Number 016-1841-00 Part Number 016-1842-00 Phaser 750 Color Printer...
Page 13 Tektronix Professional Printing Paper Item Size Premium Color Printing A/Letter (U. S.) Paper 8.5 x 11 in. Premium Color Printing A4 (Metric Letter) Paper 210 x 297 mm Glossy Coated Paper A/Letter (U. S.) 8.5 x 11 in. Glossy Coated Paper A4 (Metric Letter) 210 x 297 mm Premium Cover Paper...
Page 14 Provides storage for supplies Internal Hard Drive Feature Adds collation User documentation on disk Enhanced Job Accounting Enhanced PhaserLink features Part Number 016-1688-00 016-1689-00 Part Number 436-0282-02 436-0283-02 436-0314-02 Part Number 436-0284-02 436-0285-02 Part Number ZCARTA Part Numbers Z750HD Phaser 750 Color Printer...
Page 15 Automatic Duplex/Lower Tray Assembly Features Automatic duplex with the Duplex Unit Lower Tray Assembly with: 1 Paper Tray 1 Transparency Tray Increased paper-printing capacity Increased printing versatility and convenience. PhaserShare® Token Ring Network Card Features Easy to install Token Ring connectivity Additional memory Feature Improved performance...
Page 16: Print Quality Modes
You can select the Print Quality mode in the follow ways: From the software driver. (This always overrides the front panel setting.) From the printer’s front panel. Press Menu, scroll to Print Quality, press Menu, and select a Print Quality Mode. Black and White Converts all colors to black, white, and shades of gray.
Page 17: Tekcolor™ Color Corrections
From the software driver. (This always overrides the front panel setting.) From the printer’s front panel. Press Menu, scroll to Print Quality, press Menu, and select a TekColor™ Color Correction. Automatic Optimizes colors for each element (text and graphics) on the page.
Page 18: Paper Tips
PAPER tray or TRANSPARENCY ) slot. tray only into the middle ( ) tray ) or lower ( ) slot. ) for specialty media. 0236-06 Phaser 750 Color Printer...
Page 19: Letterhead
When you select a media tray by location (Upper, Middle, Lower, Multi-Purpose Tray), the printer picks from that tray, regardless of the tray’s media type or size. Always keep media in a sealed package to avoid the effects of humidity, which can affect print quality.
Page 20: Supported Page Sizes And Image Area
Supported page sizes and image area The printer supports five media sizes, which you select in the Print screen (using a supported printer driver). Media Page size Print area 1 Letter 8.5 x 11 in. 8.21 x 10.56 in. 2 A4...
Page 21: Paper And Transparency Trays
Paper and Transparency Trays Paper Tray PAPER PAPER A/Letter 250-sheet capacity 60 - 90 g/m (16 - 24 lb.) Use Tektronix Premium Color Printing Paper or Premium Laser Bond Paper for best results. Paper only. Do not load transparencies. Note Load only laser paper in the paper trays.
Page 22: Transparency Tray
Tektronix web site: www.tek.com/Color_Printers/products/supplies/trans/index.html Install the transparency tray only in the printer’s upper or middle tray slots. If this tray is installed in the lower tray slot, a front panel error occurs that stops the print job. The transparency tray must then be moved to the upper or middle tray slot.
Page 23: Loading Paper Or Transparency Tray
Loading Paper or Transparency Tray Note Place the side to be printed (for example, letterhead paper) face-down under the hooks. Push down on the tray’s metal plate until it clicks, locking it in place. 0632-08 Fan the media to release sheets that are stuck together. 0632-09 User Guide...
Page 24 Transparencies: Place the Tektronix logo strip face-up under the transparency tray hooks. Use Tektronix transparencies only. Tray capacity: Paper tray 250 sheets Transparency tray 100 sheets Insert the tray. For tray placement guidelines, see page 18. MAXIMUM TRAY LEVEL 0632-10 Phaser 750 Color Printer...
Page 25: Multi-Purpose Tray
Multi-Purpose Tray Overview Always use the Multi-Purpose Tray for speciality media; it supports the following media types: Supported Media Paper and Paper 2nd Side 75-105 g/m , (20-28 lb.) Tektronix Transparency Film Tektronix Glossy Coated Paper Heavy paper: Cover Stock 120-163 g/m ), (40- 60 lb.) Index Stock...
Page 26 Media Thickness Switch to a thinner setting. Thin Thick Normal Note The printer prompts you for the paper type and size. If the wrong media is selected, the printer’s front panel displays a Jam-Wrong Media message. 33100-68 Phaser 750 Color Printer...
Page 27: Loading The Multi-Purpose Tray
Loading the Multi-Purpose Tray Pull out the slide and adjust the guides for the width of the media. 0632-11 Adjust the Media Thickness switch for the media you are using (see page 25). Thin Thick Normal User Guide 33100-68...
Page 28 For envelopes, place face-up and refer to page 33. For letterhead, place face-up and refer to page 19. The front panel prompts you to select the media type and then the media size: Tektronix Transparency Tek Transparency Letter 0632-63 or A4 0632-44 Phaser 750 Color Printer...
Page 29 Tektronix Glossy Coated Paper Tek Glossy Coated Paper Letter Tektronix Premium Cover Paper Heavy Paper Letter Tektronix Color Laser Label Tek Labels Letter Paper Letterhead Office Laser Paper Standard paper and letterhead 75 - 105 g/m Paper Letter User Guide or A4 0632-45 or A4...
Page 30 In the Print screen (using a supported driver), select Multi-Purpose Tray. Send the job to the printer. (20 - 28 lb.) Legal, A4, or Executive 0632-49 (60 lb.) (90 lb.) (40 lb.) Legal, A4, or Executive 0632-50 0632-51 Phaser 750 Color Printer...
Page 31: Loading Special Media
Loading Special Media Tektronix Transparencies Set the Media Thickness Switch to Normal. Thin Thick Normal Adjust the tray’s guides for the width of your Tektronix Transparencies. Insert the transparency with the logo strip face-down, entering the printer first. 0632-16 User Guide 33100-68...
Page 32 Transparency and press OK. Scroll to the media size Letter or A4. Tek Transparency Letter In the application’s Print screen under Tray Selection or Paper Source, depending on the driver, select the Multi-Purpose Tray and send the job to the printer. 0236-13 or A4 0632-44 Phaser 750 Color Printer...
Page 33: Printing #10 Envelopes
Prepare each envelope: tuck in the envelope flap. 0632-22 Adjust the printer’s media thickness switch to Thick. Thin Thick Normal Adjust the printer’s media guides for the width of your envelopes. Insert the envelopes (maximum capacity is 10): Short end enters first. User Guide 33100-69 0632-24...
Page 34 Side to be printed is face-up. The edge where you place the stamp enters the printer first in some applications; make a test print before proceeding. At the front panel prompt, scroll to Envelope then scroll to #10 and press OK.
Page 35 Guidelines for envelope printing: Caution Never use envelopes with windows or metal clasps; they will damage the printer. Use envelopes that are at least #10-size. (4.13 x 9.5 in. /104.8 x 241.3 mm) Do not print on the envelope’s back side.
Page 36: Printing On Tektronix Color Laser Labels
Adjust the printer’s media thickness switch to Thick. Thin Thick Normal Insert the label sheets (maximum capacity is 30 sheets): Side to be printed is face-up. The top of the sheet enters the printer first. 0632-26 33100-69 Phaser 750 Color Printer...
Page 37 016-1688-00 (14 per sheet) L7165 016-1689-00 (8 per sheet) In the Print screen, use the supported print driver, and select: Paper Source: Multi-Purpose Tray and send the job to the printer. User Guide or A4 0632-47 ® labels, use it as a...
Page 38 When selecting Tek Label as the media type, the printer requires that room temperature be cooler than 27 degrees C (81 degrees F). If the temperature is above this, the printer reports an error and stops printing. Phaser 750 Color Printer...
Page 39: Automatic 2-Sided Printing
Manual 2-Sided Printing From the Multi-Purpose Tray on page 43. Automatic two-sided printing requires that the Lower Tray Assembly be installed. Make sure that the Duplex Unit is inserted in the printer’s upper (a) slot. p le e tt...
Page 40 Place the top of the page under the paper tray’s hooks. This example shows letterhead paper. Insert the paper tray in the printer’s middle (b) or lower (c) tray slots. Note For best results with two-sided printing, use 90 g/m laser paper.
Page 41 Click Print on 2-Sides option. Check or uncheck Bind on top edge. Windows NT4 Start/Settings/Printers. Right-mouse-button-click on your printer’s icon. From the pop-up menu, select Document Defaults. Click the Advanced tab. Under Paper/Output, select Print on Both Sides. Select Long Side or Short Side.
Page 42 Select Print on Both Sides. Select a binding preference. LaserWriter 8.3.4 From the File menu, select Print. Click the Options button. Select 2-Sided Printing. Select Short-Edge Binding or Long-Edge Binding. Send the job to the printer. Phaser 750 Color Printer...
Page 43: Manual 2-Sided Printing From The Multi-Purpose Tray
Manual 2-Sided Printing From the Multi-Purpose Tray Side 1 Caution Use only laser bond paper for the automatic two-sided printing in the paper trays. The Multi-Purpose tray should be used for manual two-sided printing on Tektronix Premium Color Printing Paper, Tektronix Glossy Coated Paper, or Heavy Paper.
Page 44 Insert paper with the side to be printed face-up. This example shows letterhead paper. 1 2 3 4 5 6 7 32564-06 In the printer’s front panel, select the media type and size at the prompt. Front Panel Media Type...
Page 45 Side 2. (This selection is application-specific). Insert the paper with the blank side face-up. 1 2 3 4 5 6 7 In the printer’s front panel, select the media type and size at the prompt. In the Print screen (using a supported driver), select Multi-Purpose Tray as the Paper Source or Tray Selection.
Page 46: Troubleshooting Print Quality
Troubleshooting Print Quality For detailed troubleshooting information, refer to the printer’s CD-ROM or the Tektronix Color Printer Knowledge Base web site: www2.tek.com/TekSMART/ If you notice a problem with the quality of your prints, the probable solution is replacing one of the supplies. Keep in mind this basic...
Page 47 Examine the prints for symptoms. User Guide Hi-Capacity Reorder: 0 Standard Reorder: 0 Hi-Capacity Reorder: 0 Standard Reorder: 0 ® Phaser COLOR PRINTER Supplies Usage Toner Black Cyan Pages Remaining: >500 @ 5% coverage Pages Remaining: >500 @ 5% coverage Hi-Capacity Reorder: 016-1803-00...
Page 48: Symptom: Problem In One Color Only
Symptom: Problem in one color only 1 color has many vertical streaks. 1 color has a light vertical streak. 1 color is light or faded. 33100-61 33100-59 33100-58 Phaser 750 Color Printer...
Page 49 Solution: Adjust the color density. Press Help, and scroll to Print Quality, press Menu, scroll to Calibrate Colors. Press Menu, scroll to Adjust Each Color. Press Menu. Adjust the density of the color that has problems. Replace the Toner Cartridge of the color that has problems. User Guide...
Page 50: Symptom: Problem In All Four Colors
Symptom: Problem in all four colors Streak through all 4 colors. Spot in the same place on the page in all 4 colors. Random spots appear on every page. 33100-57 33100-56 33100-55 Phaser 750 Color Printer...
Page 51 Solution: The choice of media; check the following: Use Tektronix media. Use the correct media tray for the media you are using. When using the Multi-Purpose Tray, select the correct media in the front panel. Run Clean for Smudges. Press Help, scroll to Print Quality. Press Menu, scroll to Clean for Smudges.
Page 52: Symptom: All Four Colors Are Solid Black
Symptom: All four colors are solid black Prints are black (edge to edge). 33100-54 Solution: Remove then re-insert the Main Charge Grid. If problem persists, replace the Main Charge Grid. Symptom: All four colors are extremely faded 33100-53 Phaser 750 Color Printer...
Page 53 Relative humidity may be too low (below 30 percent relative humidity). Refer to Calibrate for Paper in the printer’s front panel and run this mode: Press Help, scroll to Print Quality, press Menu, scroll to Calibrate for Paper, press Menu, print the references pages.
Page 54: Symptom: Pieces Of Print Image Missing All Four Colors
Tray and face-up for the Transparency tray. If Jam at C, clear the media jam and run the front panel’s Clean for Smudges cleaning routine (5 blank pages will print to clean the roller). Press OK and then press Confirm. Replace Fuser. Phaser 750 Color Printer...
Page 55: Media Jams
When using the Multi-Purpose Tray, always set the media thickness switch for the media you are using. See page 25. If the printer frequently reports Jam at Multi-Purpose, move the media thickness switch to a thicker setting. Jam-Wrong Media Check the trays to make sure that they contain the proper media.
Page 56: Jam At A
Jam at A Solution 1 Open the left side door; remove the jammed media. 33100-08 Solution 2 Remove the media tray; remove the jammed media from inside the printer. 33100-09 Phaser 750 Color Printer...
Page 57: Jam At B (Lower Tray Assembly Only)
Solution 1 Open the lower left side door and remove the jammed media. Solution 2 Remove the selected media tray (middle or lower tray) and remove the jammed media from inside the printer User Guide 33100-10 e tt A /L...
Page 58: Jam At C
Fuser out of the printer. Remove the Fuser Roll: To unlock the Fuser Roll, press out on the two tabs. Lift the Fuser Roll out of the Fuser and set the roll aside. 0632-31 0632-32 Phaser 750 Color Printer...
Page 59 0632-33 Remove the jammed media from the Fuser. 0632-34 Re-insert the Fuser Roll into the Fuser; re-install the Fuser. The printer automatically prints five blank pages which cleans the fuser and then resumes the current print job. User Guide...
Page 60: Jam At D
Caution If the Fuser knob does not turn, do not force it or you may damage the Fuser. Instead, remove the Fuser and Fuser Roll; then turn the Fuser knob to release the jammed media. 0632-53 Phaser 750 Color Printer...
Page 61 Solution 2 Open the front door and the right side door. 0632-35 Turn the Fuser’s large blue knob counterclockwise. Remove the jammed media. 0632-36 User Guide...
Page 62: Jam At E
Remove the jammed media from the output tray. Solution 2 Pull open the access door (above the plastic output tray) and remove the media. Note Open and close the printer’s front door to clear the error message. e tt A /L 33100-15...
Page 63: Jam At Multi-Purpose Tray
Remove the jammed media from the Multi-Purpose Tray. Set the Media Thickness switch for the media you are using (page 25). Re-insert the media in the Multi-Purpose Tray. Note To clear the error message, open and close the printer’s front door. User Guide 33100-17...
Page 64: Jam At Duplex Unit
Jam at Duplex Unit Remove the Duplex Unit (it is in the printer’s upper slot). 0632-37 Open the Duplex Unit. 0632-38 Note If paper is not in the Duplex Unit, open the right side door; paper may be jammed there.
Page 65 Remove the jammed media. 0632-39 Close the Duplex Unit; press down to make sure that it snaps shut on both sides. Re-insert the Duplex Unit into the printer’s upper slot. 0632-41 User Guide 0632-40...
Page 66: Getting Help
The printer's auto-running CD-ROM guides you to the various resources available for installing and learning more about your Tektronix color printer. Use the CD-ROM to install your printer driver software, view and print user documentation, and watch how-to videos.
Page 67: Tektronix Web Site
Tektronix Customer Support staff Application issues Networking issues Printer errors Print-quality issues Troubleshooting PhaserLink™ Software www.tek.com/Color_Printers/products/phaserlink.html View printer status using any web browser Control printer settings Link to online documentation via the World Wide Web Requires network connection via TCP/IP User Guide...
Page 68: Color Connection
+44 1908 681707 ftp.tek.com/Color_Printers/ www.colorconnection.tektronix.com Outside U.S. and Canada Contact your local Tektronix office for a list of local resellers Spain 900 97 4499 Sweden 020 795 177 Switzerland 155 9493 The Netherlands 06 0221647 0800 558668 Phaser 750 Color Printer...
Page 69: Controlling Color Density
Print and use the Color Reference Page In the printer’s front panel, press Help scroll to Print Quality. Press Menu, scroll to Calibrate Colors. Press Menu, scroll to Adjust Each Color. Press Menu, and print the Color Reference Page.
Page 70 Phaser 750 Color Printer...
Page 71: Fonts
For PCL5C (Printer Command Language) printing, the printer supports Courier, Times, and Universe typefaces in medium, bold, italic medium, and italic bold. In addition, there are 46 PCL fonts. The printer port must be set to AutoSelect (which is the default) for the printer to accept PCL data.
Page 72: Downloading Fonts
Before printing, make sure that the fonts specified in your document are installed in the printer or are set up correctly. If you request a font in an application that is not resident in the printer, or is not correctly installed, the text is printed in Courier typeface.
Page 73: Downloading Fonts From A Macintosh
Downloading fonts from a Macintosh Refer to Downloading files to the printer from a Macintosh on page 95 to locate the Apple Printer Utility on the printer’s CD-ROM. Within the Apple Printer Utility, click Open Printer; a dialog box appears.
Page 74: Printing A List Of Resident Fonts
Printing a list of resident fonts From a Macintosh Refer to Downloading files to the printer from a Macintosh on page 95 to install and use the Apple Printer Utility. Within the Apple Printer Utility, from the File menu, select Print Font Samples.
Page 75: Image Smoothing
Select the Features tab options. Through the printer’s front panel; see the Menu Map for location. Through PhaserLink Printer Management software. Through one of the following PostScript utility files (see Printer Utilities on page 91 for instructions): Macintosh Image Smoothing On Image Smoothing Off SMOOTHON.PS...
Page 76: Quick Collate
The collate function in some software applications repeatedly sends each page in sequence to the printer until the requested number of copies is printed. With the Quick Collate option, the job is sent only once and then multiple collated sets are produced by the printer, allowing much faster processing time.
Page 77: Separation Pages
Separation Pages You can have the printer insert a separation page, or divider page, to separate print jobs, multiple copies of a single print job, or individual pages of a print job. There are two selections to make in your printer driver.
Page 78: Pantone Colors
PANTONE Colors from color selection books In some applications, you can select colors from PANTONE Color selection books. These colors can be proofed on your Phaser printer before final output on a printing press. For this method, the printer-specific PANTONE Color files are not required.
Page 79: Installing The Pantone Color Files
Installing the PANTONE Color files From the Web Download the appropriate PANTONE Color file for your printer from the Tektronix web site: www.tektronix.com/Color_Printers/ Choose a directory location, and extract the file. Advanced Features and Troubleshooting Manual PANTONE Colors...
Page 80: Printing The Pantone Color Chart
PANTONE Colors to print differently than expected. Printing the entire chart Use the Apple Printer Utility to download to the printer the desired PANTONE Color PostScript file, refer to page 91 for instructions. This PostScript file contains necessary color correction and print quality settings.
Page 81 Print only with the None Color Correction setting; other settings cause PANTONE Colors to print differently than expected. Printing the entire chart Print the PANTONE Color chart by sending the PANTONE PostScript file to the printer. Refer to page 91 for downloading instructions. For best results and truest color: Print the chart on paper that is similar to the paper that will be used on the printing press.
Page 82: Phaserprint Plug-In For Photoshop
PhaserPrint software produces correct output only on supported Tektronix printers. Note If you use this plug-in with a printer not listed in the PhaserPrint dialog box, the image may be placed incorrectly on the page, or colors may look incorrect, or your file may not print.
Page 83: Installing The Plug-In: Windows
(optional) TCP/IP support requires proper installation of IP networking software and cards Installing the plug-in Insert the printer’s CD-ROM into the CD-ROM drive. If the Windows autorun feature is enabled, the CD-ROM launches automatically. If the Windows autorun feature is disabled, double-click My Computer, then double-click the CD icon to launch the CD-ROM.
Page 84: Using The Plug-In
If you don’t already have a default printer selected, do the following: Macintosh: Open the Chooser. Select a PostScript driver (such as the Apple LaserWriter 8); select your printer. PhaserPrint software works like a printer driver, and prints to the printer you selected in the Chooser.
Page 85: Selecting Options In The Phaserprint Dialog Box
AppleTalk: Prints the image to the printer currently selected in the Chooser; the currently selected printer name is displayed in the Printer model field. If the selected printer is not a PostScript printer, this option is unavailable (grayed-out).
Page 86: Print Using (Windows)
Add and delete printers in the list, and edit the printer configurations. TCP/IP is the fastest printing method; it prints jobs in much less time than the Local Port or Printer Driver methods, and is the recommended method if it is available for the printer you are using.
Page 87: Media
CIE colors to RGB or CMYK colors before printing. Compress Image Data Compresses image data so that less data is sent to the printer or stored in a file. Useful if your network connection is slow, for example, if you are connected to a busy network or if you are using a parallel port.
Page 88: 1St Page Preview
Available only with the printer’s DP or P, and DX Feature Set options. When sending a multiple-copy print job to the printer through the driver, you can select 1st Page Preview to preview the first page of the job, and determine if the job is printing as expected before proceeding with the remainder of the job.
Page 89: Scaling An Image
Scaling an image Scale to fit Scales an image to the largest size that fits the image area of the currently selected page size or orientation. Automatically updates the Scale field value. Scale Type the percentage the image should be scaled, from 10 percent to 2000 percent.
Page 90: Image Separation
Media size (display) Reflects the dimensions, in inches or millimeters, of the selected media size. Show color preview of image Displays an approximate color image, rather than a black box, in the Stylized representation of the page field. Phaser 750 Color Printer...
Page 91: Printer Utilities
Printer Utilities In addition to using the printer’s front panel or the options in a supported driver, the printer’s utility files offer another method for changing the way the printer operates. In some cases, a selection can only be made with a utility file.
Page 92: Locating The Files On The Printer's Cd-Rom
Select the CD-ROM. Locate the utility files on the CD-ROM in the phsrxxx folder inside the utility folder (where phsrxxx is your printer’s name). Use the files on the CD-ROM or copy the files to your computer’s hard disk. Installing the Sampler (color charts and font sampler) files: Insert the printer’s CD-ROM into the CD-ROM drive.
Page 93: Locating Files On The Tektronix World Wide Web Site
Tektronix has a site on the World Wide Web that you can reach from a web browser, at the following address: www.tek.com/Color_Printers/ At the Tektronix Color Printer home page, explore options such as customer support documents and new product information. New and updated information is always being added, so check the web site frequently.
Page 94: Locating Files On The Tektronix Ftp Server
Printer Utilities Locating files on the Tektronix FTP server Utility files included on the printer’s CD-ROM let you set up the printer from UNIX and VMS workstations to select between media trays, print quality modes, color correction modes and other features. If you don’t have the means to transfer these files from the CD-ROM, you can request files from the Tektronix anonymous ftp server.
Page 95: Downloading Files To The Printer From A Macintosh
At the prompt Save PostScript output as, you are asked for a file name for saving printer output. Use the default name given in the edit box or type a new name. (Printer output includes status messages generated by the printer reporting such conditions as out of paper.)
Page 96: Using The Apple Printer Utility To Perform Other Tasks
In addition to downloading PostScript files and fonts, you can use the Apple Printer Utility to perform the following specialized tasks. Note If your printer is connected through a print server, you can only use the Apple Printer Utility to download PostScript utility files. Turning on/off the Startup Page Double-click Apple Printer Utility.
Page 97: Downloading Files To The Printer From A Pc
From the File menu, select Copy; the Copy dialog box appears with the utility file you selected listed in the From field. In the To field, type the port your printer is connected to. For example, type LPT1: for a parallel port connection. Click OK.
Page 98: Downloading Files If Your Printer Is Connected To A Novell Netware Network
For Windows 95 / 98 environments follow these guidelines: From the Details tab of your printer’s driver, select the Capture Printer Port button. Select the appropriate virtual port under the Device field. For bindery queues, enter the path as \\server_name\queue_name and select OK.
Page 99: Downloading Files If Your Printer Is Connected Through Phaserport
Downloading files if your printer is connected through PhaserPort This procedure lets you create the printer and then redirect the port, turning client #1 into a print server. On Client #1, create a printer using the LPT1 port. Share the printer to the network.
Page 100: Advanced Printing Features For Phaser 750 Printers
You can set the timeout in the printer’s front panel (timeout is the amount of time the printer waits after sending the first page of a file before it continues with the remainder of the job).
Page 101: Reset The Timeout
Install a tray in each of the printer’s tray slots. If you have the Duplex Unit installed in the printer’s upper slot, install the media trays in the middle and lower tray slots.
Page 102: Output Order: Face Up
Intelligent Ready mode is an automated system that monitors the printer’s usage and warms up the printer when you are most likely to need it. You can set Intelligent Ready mode with PhaserLink or the printer’s front panel. The front panel only allows you to turn Intelligent Ready mode On or Off;...
Page 103: Adjusting Margins
In other words, the margins are not even, relative to the outside edge of the paper. In the front panel’s Printer Settings menu, set the Duplex mode to Disable. Print the Margin Adjust page from the front panel.
Page 104: Adjusting Margins For A Duplex Print
Advanced Printing Features for Phaser 750 Printers Adjust the left margin: In the Calibrate Margins menu, scroll to Adjust Left Margin. Press Menu. Enter the amount of adjustment from Step decrease the amount); press OK. Adjust the top margin: Scroll to Adjust Top Margin. Press Menu.
Page 105 Enter the amount of adjustment from Step decrease the amount); press OK. Reprint the calibration page to confirm the adjustment. Advanced Features and Troubleshooting Manual Advanced Printing Features for Phaser 750 Printers Adjust Left Margin:+0 <--- ---> (press <--- or ---> to increase or Adjust Top Margin:+0 <---...
Page 106: Adjusting Color Density
Print and use the Color Reference Page In the printer’s front panel press Help, scroll to Print Quality. Press Menu, scroll to Calibrate Colors, press Menu again and scroll to Adjust each Color. Press Menu again, the Reference Page front panel message appears, and press Print.
Page 107 After changing the density setting for any or all colors, reprint the Color Reference Page: The dashed line reflects the new settings. In this example, the density for each color is set to a different value. This table shows the selections available in the Calibrate Colors menu. Calibrate Colors menu selections Menu item* What it does...
Page 108: Calibrate For Paper
Press Help; and scroll to Print Quality. Press Menu; and scroll to Calibrate for Paper. Press Menu; scroll to Printer Displays Reference Pages, and print this material. There are eleven reference pages for you to calibrate the specific paper you use. Follow the instructions on the page that matches your paper and adjust the Transfer Setting.
Page 109: Color Sampler Charts For Phaser 750 Printers
Color Sampler Charts for Phaser 750 Printers Color Sampler Charts for Phaser 750 Printers Overview Color sampler charts are colored rectangles with each color’s component values; they help you select colors in an application that can be reproduced on your printer.
Page 110: Color Charts
Color Sampler Charts for Phaser 750 Printers Color charts Which color chart you print and use depends on how your application selects color. For information on color selection, refer to the application’s documentation, then print one or more of the color sampler charts.
Page 111: Printing A Color Sampler Chart From The Phaser 750
Printing a color sampler chart from the Phaser 750 printer’s front panel Note Use the same color correction and print quality mode to print the chart and to print from your application. Any other color correction or print quality mode selections in the driver will cause colors to print differently than expected.
Page 112: Printing The Color Sampler Charts With Utility Files
Printing the color sampler charts with utility files From a Macintosh Refer to Downloading files to the printer from a Macintosh on page 95 to install and use the Apple Printer Utility. The color sampler charts are also installed during Easy Install.
Page 113: Troubleshooting Phaser 750 Printers
Color Density Samples Included in the User Guide. Provides samples of standard color density, used to compare to the printer’s current settings that appear on the Color Reference Page. Color Reference Page Found in the front panel’s Calibrate Colors menu. Shows the printer’s current density settings and the ranges for adjustment.
Page 114: Windows Driver Help System
Live links to the Tektronix web site Color Connection www.colorconnection.tektronix.com Color resource for tools and information to help you get the most out of your color printer: Customized support and automatic driver update notification. Color education with interactive tutorials and helpful hints.
Page 115: Teksmart™ Knowledge Base
Troubleshooting Other online services Anonymous ftp server Subscribe to email update notices Internal Printer Pages The printer has several internal help pages available. Refer to the Menu Map for a list and printing instructions. Help Pages Page Description Menu Maps...
Page 116 Troubleshooting Phaser 750 Printers Help Pages Page Description Print-Quality Tips Page Tips to use the Tek Color Corrections and Print-Quality settings to optimize your image type. Paper Tips Page Details which paper (or media) types should be used in each tray.
Page 117: Front Panel Messages
You have entered the menu in the front panel. Power indicator is off The printer is turned off, is not ready, is disabled, or has detected an error. Error indicator is on Attention is required, but not immediately.
Page 118 Troubleshooting Phaser 750 Printers Consumables messages Symptom Possible Causes MPT: <media> The printer detects media in the Multi-Purpose Tray and is waiting for information on the type of media. <color>:low The indicated color Toner Cartridge is almost empty. Stopped: Indicated color Toner Cartridge replace <color>...
Page 119: Maintaining Print Quality
(Toner Cartridges, Imaging Unit, Fuser, Fuser Roll, Transfer Kit, or Main Charge Grid). If the printer’s front panel message indicates replacing one or more consumables, replace it if necessary. To help you diagnose the problem (in the absence of a front panel message), print the Consumables Page and Service Print 1 from the front panel’s Help Pages menu.
Page 120: Print Quality Problems
For information on the drivers, refer to the printer’s CD-ROM or World Wide Web topics. Make sure that you have not selected Black and White in the Tektronix Printer Features dialog box. If you are not using a driver, make sure that you have not set the monochrome mode selection code;...
Page 121 Print shows a single color (a) that is not uniform or print shows a single color (b) with many vertical streaks (both light and dark) of slightly different density and non-uniform color. Replace the color Toner Cartridge. Advanced Features and Troubleshooting Manual Troubleshooting Phaser 750 Printers...
Page 122 Troubleshooting Phaser 750 Printers Print appears faded in a single color Check the density setting: From the front panel, access the Calibrate Colors menu and print the Color Reference Page. Compare the settings to the examples on the Color Density Samples and, if necessary, adjust the density in the front panel. Refer to page 106.
Page 123 Put the old Imaging Unit back into the printer. Repack the new Imaging Unit. Replace the Fuser. Print shows a straight, thin and even, light vertical line in all colors Replace the Imaging Unit. Advanced Features and Troubleshooting Manual Troubleshooting Phaser 750 Printers...
Page 124 Troubleshooting Phaser 750 Printers Each color bleeds into the color band below it (the most visible is magenta in the yellow band) Replace the Imaging Unit. A single white spot appears in approximately the same vertical place on the page Run 20-30 blank pages of paper.
Page 125 Large light spot(s) appear randomly in the print, approximately on the same horizontal and vertical place or they move vertically from one print to another. Print several pages until the artifacts fade. Advanced Features and Troubleshooting Manual Troubleshooting Phaser 750 Printers 9317-45...
Page 126 A piece of the printed image is missing and reappears out of place, approximately 129 mm (5 in.) down the page. Verify correct media settings at the Multi-Purpose Tray. Refer to the Phaser 750 Printer User Guide. For best results use Tektronix media.
Page 127 Dark and wavy vertical streaks appear in all colors The solution is one of the following: Remove and reinsert the Main Charge Grid. Replace the Main Charge Grid. Replace the Imaging Unit. Advanced Features and Troubleshooting Manual Troubleshooting Phaser 750 Printers...
Page 128 Troubleshooting Phaser 750 Printers The print is extremely light with a washed out look The solution is one of the following: If using the Multi-Purpose Tray, make sure you have selected the correct media type at the front panel prompt.
Page 129 Toner Cartridge. Make sure that the Imaging Unit stays covered until immediately before installing it in the printer. Exposure to light can damage the Imaging Unit and will produce light streaks or faded prints. Remove and insert the Toner Cartridges to make sure they are installed correctly.
Page 130 Keep supplies in a covered area or a closed box. Make sure that the Imaging Unit stays covered until immediately before installing it in the printer. Exposure to light for more than 3 minutes can damage the Imaging Unit.
Page 131: Printing Problems
For Parallel Connections: At a DOS prompt, enter: echo show page>lpt1: (The lpt could also be a 2 or 3 depending on the port that your printer is connected through.) If the communication link between your computer and the printer is working, the printer ejects a blank page.
Page 132 Check the termination (refer to the documentation for your network adapter or connector for information on termination). If you have changed the printer’s name, make sure that you have given it a unique name (not the same as any other printer in the zone or on the network).
Page 133 Multi-Purpose Tray. If the printer has frequent paper jams, set the Media Thickness Switch to a thicker setting. Refer to the user guide for details on setting media thickness. If the printer picks multiple sheets of paper at once, set the Media Thickness Switch to a thinner setting.
Page 134 Troubleshooting Phaser 750 Printers Media frequently wraps around the Fuser Use Tektronix media for best results. Do not use any media designed for inkjet printers, especially inkjet coated paper and inkjet transparencies. Inkjet media are coated with a substance that may damage the Fuser;...
Page 135 Image shifts or margins are incorrect (Macintosh) Make sure that you have installed the driver for this printer, or the correct PPD file onto your Macintosh so that you can select the correct page sizes from the driver. If printing on transparencies and your printer has the Automatic Duplex/Lower Tray...
Page 136: Print Quality Hints
Troubleshooting Phaser 750 Printers Print quality hints To ensure the best print quality and the most reliable printer operation, follow these simple guidelines: Use high-quality paper and only Tektronix transparencies and glossy coated paper. Do not use any media designed for inkjet printers, especially inkjet coated paper and inkjet transparencies.
Page 137: Media Hints
Media hints Use high-grade media. For best reliability and image-quality, always use Tektronix media. Refer to the printer’s User Guide for ordering information. Do not use media designed for inkjet printers; it may damage the Fuser. Media handling Make sure that the media is dust-free. Dust and dirt can result in poor print quality.
Page 138: Improving Print Speed
Troubleshooting Phaser 750 Printers Improving print speed Print speed depends on the following criteria: port speed print time driver settings Relative Port Speed The fastest ports, in order, are those listed here: Ethernet Token Ring USB port Parallel port Fastest Print Time...
Page 139 PostScript. Check Printer Properties. Put a check in the Use Automatic Data Format box. This selects the correct data format for the connection method. Windows NT 4.x: In Printer Properties, click the Device Settings tab. Locate the Output Protocol and type Binary for network connections. If connected via parallel, change from ASCII to BCP.
Page 140: Printed Colors Are Not What You Expect
If you use a non-supported driver and share the printer on a network, the printer’s default color correction may have been changed. If you use the driver’s Use Printer Setting option and printed colors are not what you expected, check the following: Check the printer’s color density settings in the front panel Calibrate Colors...
Page 141 Troubleshooting Phaser 750 Printers The inherent difference between these methods of color reproduction can cause discrepancy when you compare this to the printed output from your monitor. For example, combining the additive colors, Red, Green, and Blue, yields white. Combining the subtractive primaries, Cyan, Magenta, and Yellow, yields black.
Page 142 What you actually see on your monitor is not really what you get from the printer. The monitor is able to reproduce millions of colors using RGB in 256 intensities. Printers use CMYK with the same relative saturation to reproduce significantly fewer colors.
Page 143: Printing Pantone Colors
Printing PANTONE Colors If printer-specific PANTONE Colors are not printing as expected, make sure that you are printing without any color corrections selected. Refer to PANTONE Colors on page 78 for more information. There are many variables in process reproduction of colors generated by your printer, any...
Page 144: Selecting Page Sizes In Windows Applications
In some Windows applications, you can select printer page sizes in a Print Setup dialog box accessed from the File menu. If you use a Print Setup dialog box to select the printer from your application, some page sizes may not be visible in the list.
Page 145: Fonts Printing Incorrectly From Windows
Sharing the printer on a network Driver, utility files, and front panel interactions If your printer is shared on a network, you can affect prints made by others when you download a utility file or change the printer’s default settings using the printer’s front panel menus or PhaserLink Printer Management interface.
Page 146: Startup Page Prints Even Though It Is Disabled
PostScript Printer Description File (PPD). Refer to the printer’s Setup Guide for instructions on installing printer description files. Use the most current printer description file. To determine the date of the file you are using, do the following: Macintosh users: Select a printer description file.
Page 147: Enabling The Postscript Error Report
Press Ok. Press until the front panel reads Ready. After turning on the error handler, resend the print job; the printer produces an error page. Note Windows 95/Windows 98 Microsoft Driver users: The Windows error handler overrides the front panel error handler. To use the front panel error handler, you must disable the Windows error handler as well as enable the front panel error handler.
Page 148: Error Codes
Troubleshooting Phaser 750 Printers Error codes If the printer’s front panel displays a message Error XX, find the error code in this table and follow the instructions for resolving the problem. If problems persist, check the Tektronix web site www2.tek.com/TekSMART/ or contact service.
Page 149 Open left door and remove any jammed media. Tun the printer off, then on. Error 60 Remove the media from the Multi-Purpose Tray. Turn the printer off, then on. Reinstall the media. Make sure you do not overfill the tray. Error 61 Remove and re-install each Toner Cartridge.
Page 150: Enabling And Disabling The Startup Page
Enabling and disabling the Startup Page Note: You can choose to have a Startup Page print each time the printer is turned on or reset, or you can disable the Startup Page. There are three methods for enabling/disabling the Startup Page:...
Page 151: Enabling And Disabling The Intelligent Ready Feature
Enabling and disabling the Intelligent Ready feature When the printer is idle for the time set in the Energy Star front panel menu, the printer cools down completely. When the printer exits the Energy Star mode, it is ready to print in about 90 seconds.
Page 152: Protected Mode For The Front Panel Menu
Troubleshooting Phaser 750 Printers Protected mode for the front panel menu System administrators can control user access to the front panel menus with the following utility files (refer to page 97 for instructions on dowloading utility files): Macintosh utility files:...
Page 153: Enabling And Disabling Sysstart Job Execution
You may load a startup (Sys/Start) file onto an optional internal IDE hard disk. The Sys/Start job file is similar to an init file: When you turn on the printer, the file executes — providing that Sys/Start has been enabled through a control file downloaded to the printer.
Page 154: Pc And Workstation Users
NOSYSTRT.PS Disables automatic execution of the SysStart job. Use one of the following methods to send to the printer the desired file: PC users: Use the DOS COPY command. Windows 3.1 users: In the File Manager, use the Copy command.
Page 155: Problems Printing On Labels
For a PC: From the File drop-down menu, select Print, click the Properties button. From the Paper Source drop-down menu, select Multi-Purpose Tray. Click OK, the Print Dialog box returns. Click OK. Advanced Features and Troubleshooting Manual Troubleshooting Phaser 750 Printers tray. PAPER Part Number...
Page 156: Cleaning Phaser 750 Printers
90 percent pure. (Never use rubbing alcohol or alcohol with additives; it can damage the printer.) You can also use pre-soaked alcohol wipes (order number 006-7824-01). Regularly scheduled cleaning is not necessary for this printer. However, if your printer experiences frequent media jams, clean these printer parts: Paper-pick rollers (a) Use a lint-free cloth with 90 percent pure isopropyl alcohol.
Page 157: Cleaning The Sensor
Loosen the two thumbscrews by turning them counterclockwise. Turn the lower lever 180 degrees counterclockwise. Slide the Imaging Unit out of the printer and cover it to protect it from light exposure. Use a dry, lint-free cloth to wipe the sensor (inside the slot).
Page 158: Supplies For Phaser 750 Printers
Supplies for Phaser 750 Printers Supplies for Phaser 750 Printers Average life is based on an average of 5 percent coverage of the printable area for any one color using laser paper. The frequency of replacement varies, depending on the complexity of the prints, the percentage of coverage, and the type of media.
Page 159: Toner Cartridges
016-1807-00 Front panel messages <color> low Stopped: Replace <color> Advanced Features and Troubleshooting Manual Supplies for Phaser 750 Printers Average life (percent of coverage) 5 percent/color 5,000 pages (Black) 4,000 pages (CMY) 10 percent/color 2,500 pages (Black) 2,000 pages (CMY)
Page 160: Imaging Unit
Supplies for Phaser 750 Printers Imaging Unit Order numbers 016-1841-00 Front panel messages Imaging Unit:replace Imaging Unit expired Fuser Order numbers 016-1839-00 110 volt 016-1840-00 220 volt Front panel messages Fuser:replace Fuser expired 0236-41 Average life (percent of coverage) 5 percent/color 60,000 images...
Page 161: Fuser Roll And Cleaning Pad
Stopped: Fuser Roll:replace Transfer Kit Order numbers 016-1842-00 Front panel messages Transfer Kit:replace Advanced Features and Troubleshooting Manual Supplies for Phaser 750 Printers Average life 15,000 pages (Standard mode) 12,000 pages (Enhanced mode) 8-10,000 pages (Special media usage) Change the fuser roll soon.
Page 162: Main Charge Grid
Analysis of usage rates For detailed information on the Usage Profile report, refer to Printer Management on the printer’s CD-ROM or web site. Print from the Help Pages menu in the front panel or set up automatic email notification. Status of each supply Access the Supplies Status menu in the front panel.
Page 163: Using The Information On The Supplies
Sep 1, 1999 Life Remaining Serial #: Avg. Toner Coverage/Page: Date Installed: Sep 1, 1999 Advanced Features and Troubleshooting Manual Supplies for Phaser 750 Printers Hi-Capacity Reorder: 0 Standard Reorder: 0 Hi-Capacity Reorder: 0 Standard Reorder: 0 Phaser ® COLOR PRINTER...
Page 164: Regulatory Information For Phaser 750 Printers
Regulatory Information for Phaser 750 Printers Regulatory Information for Phaser 750 Printers Canadian EMC (Electromagnetic Compatibility) regulatory standards This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Page 165: Declaration Of Conformity
IEC61000-4-4:1995 Transients Line Surge on EC61000-4-5;1995 AC mains Conducted RF, EC61000-4-6;1996 Advanced Features and Troubleshooting Manual Regulatory Information for Phaser 750 Printers Test Specification Performance Level 10 discharges minimum 6kV Contact each polarity per test 12kV Air point 80-100 MHz...
Page 166 Regulatory Information for Phaser 750 Printers Immunity Basic Standard Phenomena Voltage dips and EC61000-4-11;1994 >95 percent voltage interruptions This product, if used properly in accordance with the user’s instructions is neither dangerous for the consumer or the environment. Test Specification Performance Level .5 cycles @ 50Hz...
Page 167: Fcc Class B Device
Changes or modifications not expressly approved by Tektronix can affect emission compliance and could void the user’s authority to operate this product. To ensure emission compliance, use shielded interface cables. Advanced Features and Troubleshooting Manual Regulatory Information for Phaser 750 Printers...
Page 168: Material Safety Data Sheets For Phaser 750 Printers
Material Safety Data Sheets for Phaser 750 Printers Material Safety Data Sheets for Phaser 750 Printers Proper management of environmental resources protects the well-being of our employees, customers, shareholders, and the communities we are a part of worldwide. Tektronix establishes and maintains sound environmental management practices to accomplish this goal and to assure compliance with the laws, regulations, and orders of the responsible governmental authorities wherever Tektronix and its subsidiaries operate.
Page 169: Msds For Toner
SECTION 7 - HANDLING AND STORAGE HANDLING: No special precautions STORAGE: Avoid high temperatures. Advanced Features and Troubleshooting Manual Material Safety Data Sheets for Phaser 750 Printers Tektronix Part Number 016-1803-00, 016-1807-00 016-1800-00, 016-1804-00 016-1801-00, 016-1805-00...
Page 170 Material Safety Data Sheets for Phaser 750 Printers SECTION 8 - EXPOSURE CONTROL - PERSONAL PROTECTION No special protection indicated when used as intended. TLV/PEL: Black toner contains carbon black, which has an OSHA Permissible Exposure Limit (PEL) of 3.5 mg/m3 (milligrams per cubic meter of air), as an 8-hour time-weighted average. The ACGIH Threshold Limit Value (TLV) is also 3.5 mg/m3.
Page 171: Environmental Specifications
Environmental Specifications (Temperature/Humidity/Power) Environmental Specifications (Temperature/Humidity/Power) Operating range: temperature and humidity The operating range is contained within the temperature/humidity space defined by the following points: Celsius: 15 degrees Celsius, 10 percent relative humidity 32 degrees Celsius / 10 percent relative humidity 32 degrees Celsius / 60 percent relative humidity 25.5 degrees Celsius / 80 percent relative humidity 15 degrees Celsius / 80 percent relative humidity...
Page 172 Depth: 501 mm (19.7 in.) Width: 507 mm (20* in.) *782 mm (30.8 in.) with the output tray Dimensions of Lower Tray Assembly Height: 249 mm (9.8 in.) Depth: 405 mm (16.0 in.) Width: 447 mm (17.6 in.) Phaser 750 Color Printer...
Page 173: Index
75 adjusting margins duplex print 104 single-sided print 103 Adobe Photoshop plug-in 82 altitude, operating range 171 Apple Printer Utility using 95 automatic tray switching 101 average life fuser 160 fuser roll 161 imaging unit 160 main charge grid 162...
Page 174 69, 106 color, problems with 140 controlling color density diagnosing 122 instructions 69, 106 using the Color Density Samples card 69, 106 declaration of conformity 165 divider pages 77 downloading files from servers Tektronix ftp server 94 Phaser 750 Color Printer...
Page 175 World Wide Web 93 downloading files to the printer Apple Printer Utility 95 Macintosh 95 PC 97 Windows 3.1 97 Windows 95 97 downloading fonts 72 email notification 68, 115 enabling and disabling the Startup Page 150 energy saving mode 102...
Page 176 143 halftone screens 143 Help Pages Supplies Page 163 help pages, printer 115 hints Output Order 102 HSB Sampler, Macintosh utility file 112 Image Smoothing 75 using with PhaserPrint 88 imaging unit Phaser 750 Color Printer...
Page 177 160 troubleshooting 118 improving print speed 138 indicators blinking 117 error, troubleshooting 117 information resources 66 internal printer pages 115 job collating 76 job separation pages 77 labels printing on wrong side 155 laser paper avoiding media jams 133...
Page 178 68, 115 operating range temperature and humidity 171 ordering information 9 Output Order 101 PANTONE Colors installing printer files 79 methods of printing 78 printer-specific colors 78 printing the color chart from a Macintosh 80 Phaser 750 Color Printer...
Page 179 133 PC utility files FONTS.PS 74 MENULONG.PS 152 MENUSHRT.PS 152 NOSYSTRT.PS 154 SYSTART.PS 154 PhaserLink Printer Management Software brief description 114 PhaserLink Software, description 67 PhaserPrint plug-in compatibility requirements 82 for Photoshop 82 installing for Macintosh 82 installing for Windows 83...
Page 180 164 RGB Sampler, Macintosh utility file 112 scaling images using PhaserPrint 89 selecting page sizes in Windows applications 144 separation pages 77 server, FTP, Tektronix downloading files from 94 Setscreen 143 slip sheet 77 Specifications Phaser 750 Color Printer...
Page 181 Sys/Start Job, enable or disable 153 SYSTART.PS, PC utility file 154 TekSMART Knowledge Base 67, 115 Tektronix Color Printer Information Server 94 FTP server, downloading files from 94 web site 114 Tektronix web site 67 temperature and humidity, operating range 171...
Page 182 Chooser 132 repeating light spot 122 startup page prints when disabled 146 streaks or spots 130 TrueType fonts 72 utility files Macintosh, using 95 PC, using 97 voltage ranges 171 Windows 3.1 driver Phaser 750 Color Printer...
Page 183 145 problems with setting page sizes 144 Windows 95 driver problems with printer fonts 145 World Wide Web downloading files from 93 Combined User and Troubleshooting Manuals...
