System overview
Network PDL printing environment
Customer-
supplied client PC
or workstation
Customer-
supplied network
1-10
•
MO:DCA-P: Mixed Object Document Content Architecture for
Presentation
•
PTOCA PT1, PT2, and PT3: Presentation Text Object
Content Architecture
•
IOCA: Image Object Content Architecture
•
GOCA: Graphics Object Content Architecture
•
BCOCA: Bar code Object Content Architecture
•
OL1: Overlay One
•
PS1: Page Segment One
•
Line mode data streams
Each of the data objects follow the same object rule of containing
delimiting fields with structured fields describing each object.

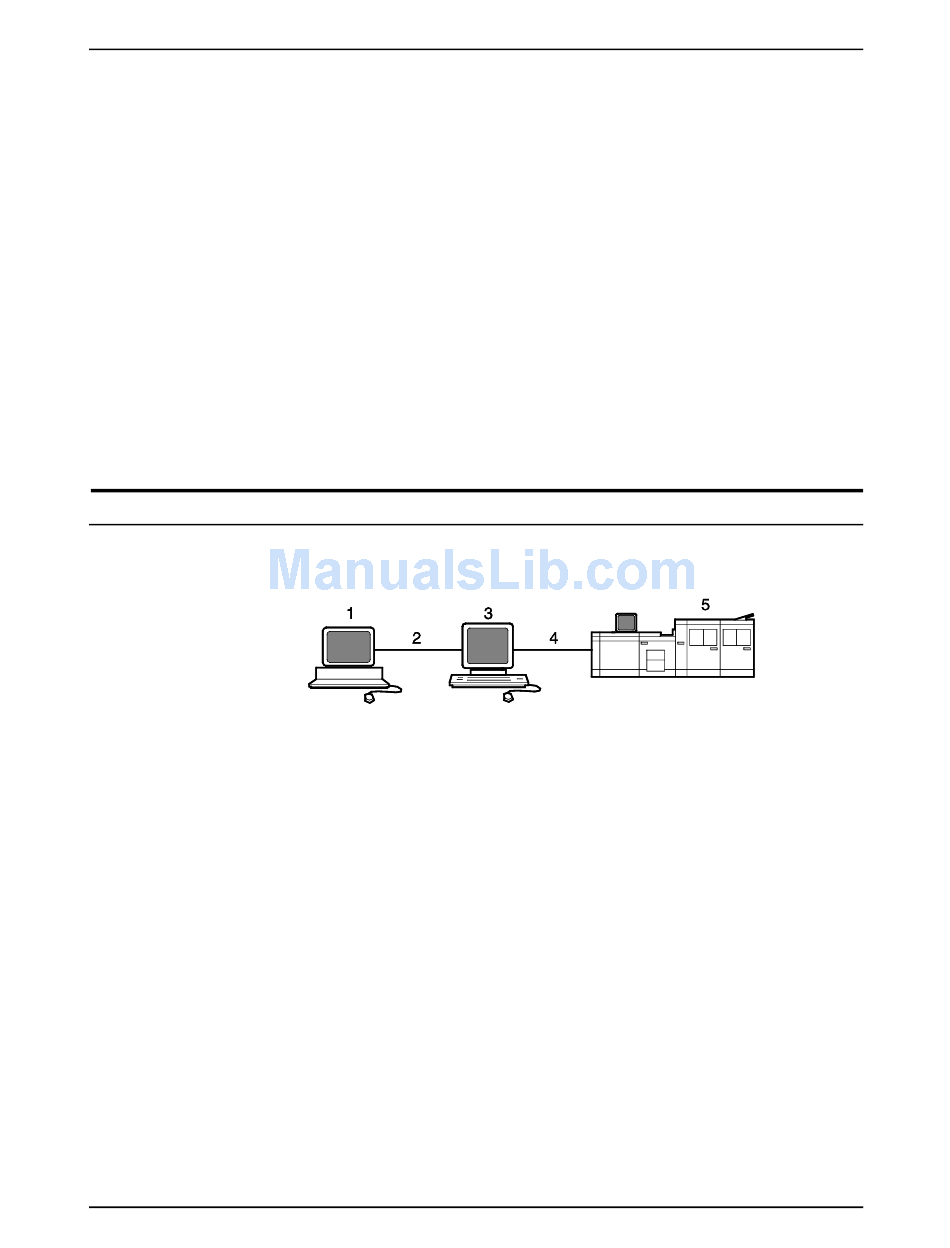

Figure 1-5. DocuPrint printer system components
1. Customer-supplied client PC or workstation
2. Customer-supplied network
3. Xerox-supplied printer controller
4. Xerox-supplied printer interface
5. DocuPrint printer
Users create their documents at the networked client PCs or
workstations using software applications that generate PDL
output. When ready to print, users submit the documents to the
printer controller.
The customer needs to supply one or more of the following
networks:
Installation Planning Guide
