Back-to-back
shared space
Installation Planning Guide
NOTE: Finishers attached to your bypass transport and feeders
attached to your DocuPrint 4635, 96, or 180 printer through the
input enablement device may occupy shared space with Xerox
equipment. However, they must be removable to allow servicing
of the DocuPrint 4635, 96, or 180 printer feeders and stackers.
Consult with your Xerox representative to ensure all the
requirements are met.
The following figures illustrate three possible configurations of
shared space.
The figure below illustrates the two printers placed in a back-to-
back position. This allows them to share the entire 36 inches /
91.4 cm of general service space.

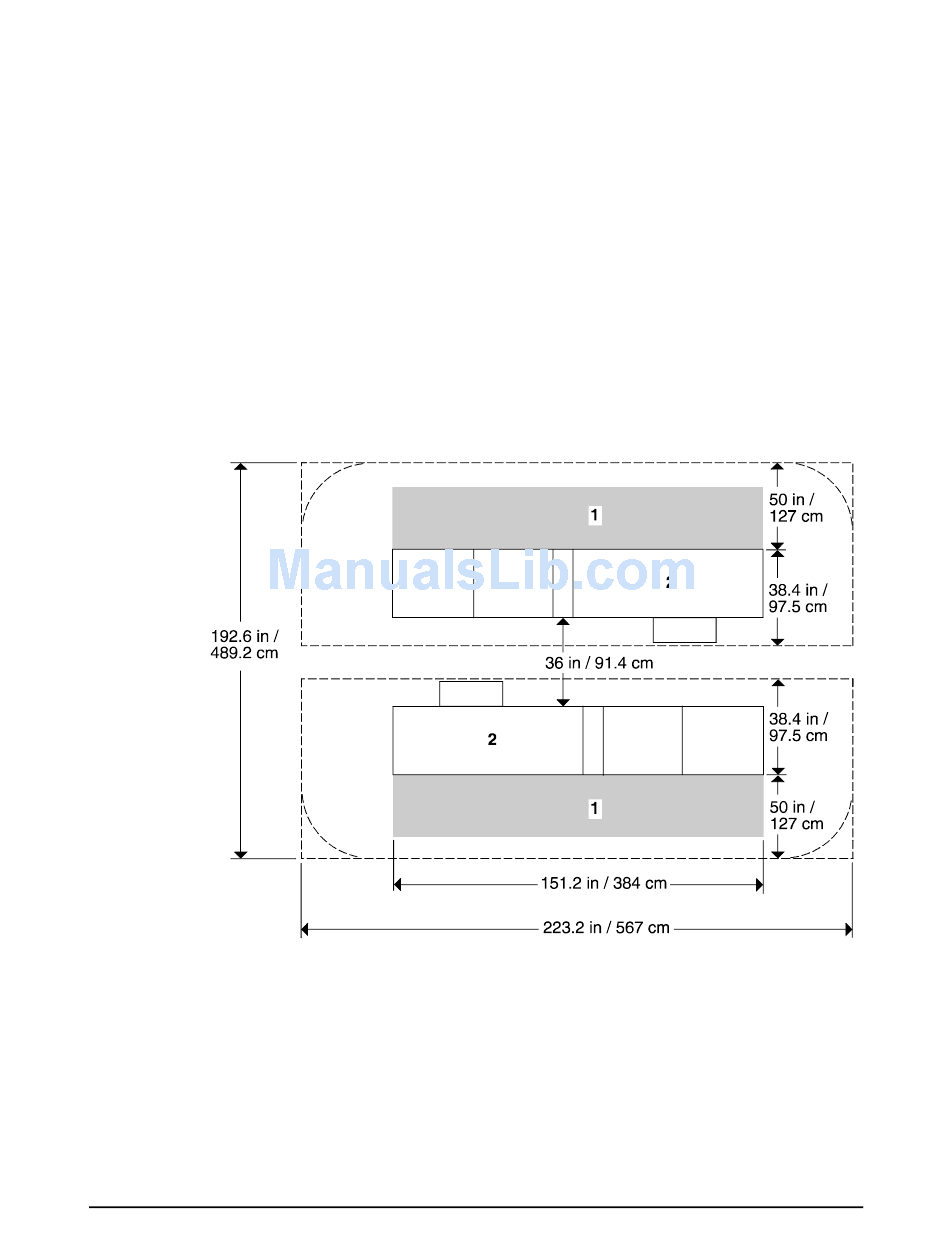

Figure 6-14. Back-to-back shared service area space
1. Operator area
2. Printer
