Printer outlet voltages—50 Hz
Installation Planning Guide
NEMA
14-50R

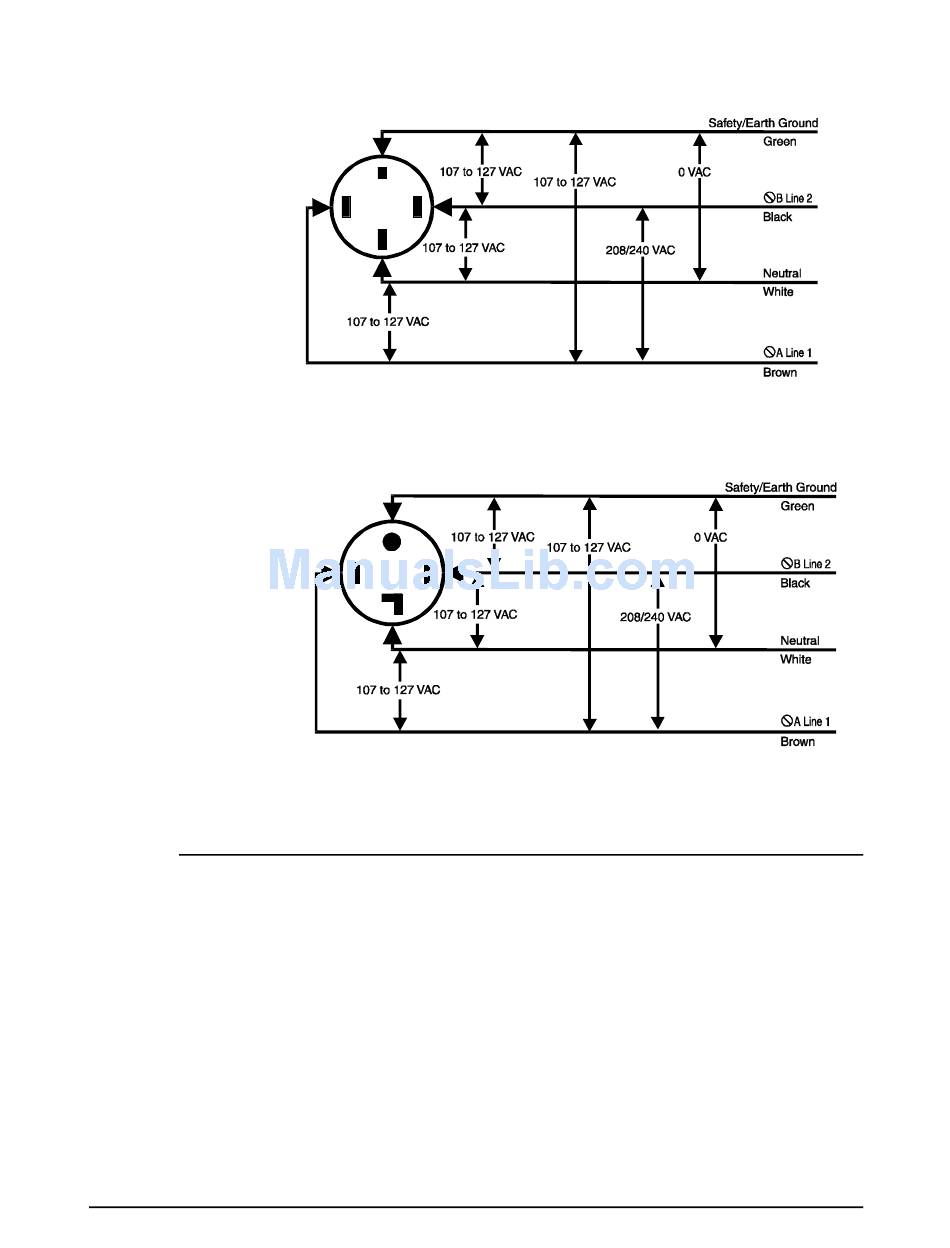

Figure 6-1. 60 Hz power configuration—50 amp (96/4635/
180)
NEMA
14-30R
Figure 6-2. 60 Hz power configuration - 30 amp (180 only)
All power outlets must have a dedicated circuit for each system
equipment piece. Make sure each power cord has a separate
circuit.
NOTE: Consult with your service representative to determine
the type of plug and receptacle to be used for your 50 Hz system.
6-3
