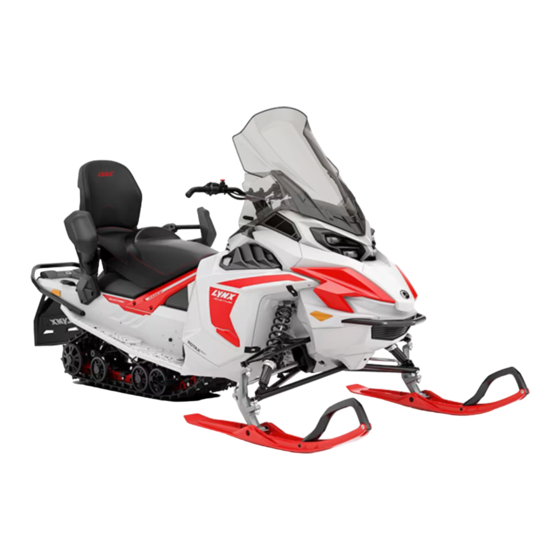

BRP LYNX ADVENTURE ELECTRIC 2024 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S
ADVENTURE ELECTRIC
GUIDE
Includes Safety,
2024
Use and Maintenance Information
Read this operator's guide thoroughly.
It contains important safety information.
619901028
Minimum recommended operator age: 16 or older.
Original Instructions
Keep this operator's guide with the vehicle at all times.

Advertisement

Table of Contents
loading

Related Manuals for BRP LYNX ADVENTURE ELECTRIC 2024

Summary of Contents for BRP LYNX ADVENTURE ELECTRIC 2024

  • Page 1 OPERATOR’S ADVENTURE ELECTRIC GUIDE Includes Safety, 2024 Use and Maintenance Information Read this operator’s guide thoroughly. It contains important safety information. 619901028 Minimum recommended operator age: 16 or older. Original Instructions Keep this operator’s guide with the vehicle at all times.
  • Page 2 CALIFORNIA PROPOSITION 65 WARNING Ukraine and Turkmenistan) and Turkey, products are distributed and serviced by BRP European Distribution S. A. and other af liates or subsidiaries of BRP. For all other countries, products are distributed and serviced by Bombardier Recreational Products Inc. (BRP) or its af liates.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION............8 SAFETY INFORMATION .
  • Page 4 TABLE OF CONTENTS GENERAL INFORMATION Carrying Loads ......21 Accessories and Modifications ....21 GENERAL INFORMATION .
  • Page 5 LYNX ADVENTURE ELECTRIC PRE-RIDE INSPECTION ..... . 61 Standby Mode ......78 Turning OFF the Vehicle .
  • Page 6 ....106 BRP GO! App ......139 Windshield .
  • Page 7 Vehicle Description Decal ....211 Identification Numbers ..... 212 BRP LIMITED WARRANTY FOR THE EUROPEAN COMPLIANCE LABELS .
  • Page 8 COVERAGE ......241 WHAT BRP WILL DO ..... . 241 TRANSFER .
  • Page 9 Este manual pode estar disponível em seu idioma. Fale com sua Português concessionária ou visite o site: www.operatorsguides.brp.com Воспользуйтесь руководством на вашем языке . Узнайте Русский о его наличии у дилера или на странице по адресу...

  • Page 10: General Information

    GENERAL INFORMATION GENERAL INFORMATION Know Before You Go Congratulations on your purchase of a new BRP To learn how to reduce the risk for you, your passen- snowmobile. Whatever model you have chosen, it is ger or bystanders being injured or killed, read the backed by the Bombardier Recreational Products Inc.

  • Page 11: Safety Messages

    LYNX ADVENTURE ELECTRIC Safety Messages CAUTION This operator’s guide utilizes the following symbols Indicates a hazard situation which, if not avoided, and words to emphasize particular information: could result in minor or moderate injury. This is the safety alert symbol. It is used to alert you to potential physical injury hazards.

  • Page 12: About This Operator's Guide

    • The information contained in this document is correct Passenger: refers to a person sitting behind the at the time of publication. BRP, however, maintains a operator. policy of continuous improvement of its products •...

  • Page 13: Respect Of The Environment

    It is in everyone’s best interest to tread lightly into sport. Help us lead it down the right path! From all of our recreational areas. Because, in the long run, to us at BRP, thank you for doing your share. protect the sport we must preserve the environment.
  • Page 14 BRP You’re a light treader when you follow the principles has developed the “Light Treading Is Smart Sledding”...
  • Page 15 So and responsibly. This effort continues today, as whether you’re driving a high performance BRP strong as ever. snowmobile or any other make or model, show you know what you’re doing.

  • Page 16: Safety Information

    Be sure to contact the local authorities for information regarding the legal opera- tion of a snowmobile in the intended jurisdiction of use. BRP highly recommends that you take a safety riding course. Basic training is required for the safe operation of any snowmobile.

  • Page 17: Drugs And Alcohol

    LYNX ADVENTURE ELECTRIC Drugs and Alcohol Protective Gear Never ride after consuming alcohol or drugs. Riding Proper snowmobile clothing should be worn by all on a snowmobile requires the operator and passen- riders. It should be comfortable and not too tight. ger to be sober, attentive and alert.

  • Page 18: Required Equipment

    If this occurs, stop using the vehicle. The vehicle aboard. Check your local regulations about should be inspected by a BRP dealer prior to next requirements. ride. Contact local emergency service for immediate...

  • Page 19: Hazardous Materials

    Contact sidered hazardous materials. Special care are with electrolyte will cause serious injury, rinse the required for BRP electric snowmobiles or high- affected area with water and seek for immediate voltage propulsion batteries disposal. Refer to local medical attention.

  • Page 20: Get Familiar With The Snowmobile

    SAFETY INFORMATION GET FAMILIAR WITH THE SNOWMOBILE as ski stance, ski type, suspension type, track length, width and type vary from one model to another. The This vehicle may exceed the performance of other snowmobile handling is greatly influenced by these vehicles you may have ridden.

  • Page 21: Steering

    LYNX ADVENTURE ELECTRIC more space to turn. Refer to the SNOWMOBILES ance due to an incorrect combination of traction EQUIPPED WITH TRACTION ENHANCING PROD- enhancing products, the snowmobile may tend to UCTS subsection of this guide to learn how to bal- oversteer or understeer, which could lead to a loss of ance the grip of the ski vs the grip of the track.

  • Page 22: Braking

    Equipped with Traction Enhancing Products subsec- control. tion for track studding application. Visit your BRP authorized dealer to see if this acces- Parking Brake sory is available for your model. Always engage the parking brake before starting the vehicle.

  • Page 23: Carrying Loads

    Any modifications or addition of accessories • approved by BRP may affect the handling of your Never exceed the maximum cargo capacity. Refer to the Technical Specifications subsection for the vehicle. It is important to take the time to get familiar applicable cargo load capacity of your snowmobile.

  • Page 24: Ride Safely

    For safety reasons, some BRP accessories must be principles of making your snowmobile go where you installed by a BRP dealer but if you decide to install want it to. When turning on the side of a hill, you and...
  • Page 25 LYNX ADVENTURE ELECTRIC teach you how much lean to put into turns at different Sitting speeds and how much you will have to lean into a Feet on the running boards, body midway back on slope to maintain proper balance. seat is an ideal position when operating the snowmo- bile over familiar, smooth terrain.
  • Page 26 SAFETY INFORMATION Posting Kneeling A semi-sitting position with the body off the seat and This position is achieved by placing one foot firmly the feet under the body in a sort of squatting posture, on the running board and the opposite knee on the thus allowing the legs to absorb the shocks when seat.

  • Page 27: Rider Position (Reverse Operation)

    This is an effective position to see better and to shift bystanders before proceeding in reverse. weight as conditions dictate. Avoid abrupt stops. • BRP recommends sitting on your snowmobile when operating in reverse. • Avoid standing up. Your weight could shift forward against the accelerator lever while operating in reverse, causing an unexpected acceleration.

  • Page 28: Riding With Passenger(S)

    Refer to Tune Your Ride subsection for more details. • Never carry a passenger on a seat not approved by BRP. Ask your passenger to inform you to slow down or stop immediately if he feels uncomfortable or inse- •...

  • Page 29: Riding Alone

    LYNX ADVENTURE ELECTRIC vehicle to topple. Be extremely careful, go more Riding in a Group slowly and check the passenger frequently. Keep a Before starting out, designate a “trail boss” to lead watchful eye on your passenger while riding. the party and another person to follow-up at the end of the party.
  • Page 30 SAFETY INFORMATION Hand Signals Every snowmobiler should relay any signal to the ones behind. STOP LEFT TURN Raise either hand straight Extend your left hand above your head. straight out in the proper direction. RIGHT TURN SLOWING DOWN Extend the left arm and Left hand extended out raise the hand to a verti- and down from the side...
  • Page 31 LYNX ADVENTURE ELECTRIC FOLLOWING ONCOMING SNOWMOBILES SNOWMOBILES Arm raised, elbow bent Left arm raised at shoul- with thumb pointing back- der height, elbow bent ward, in hitch-hicking and forearm vertical, wrist motion move arm forward bent, move arm from left to backward over your to right over head point- shoulder.

  • Page 32: Avoiding Collisions

    (e.g., before a hilltop or curve). Use extra caution whenever off-trail. Visit your BRP snowmobile dealer for more information. Always keep a safe distance from other snowmobiles and bystanders. Tailgating another snowmobile...

  • Page 33: Riding Behaviors

    LYNX ADVENTURE ELECTRIC On land or water, fog or visibility-limiting snow can Jumping can be a hazardous situation. It requires practice and should be done in a known and con- form. If you must proceed into the fog or heavy snow, trolled environment.

  • Page 34: Speeding

    SAFETY INFORMATION • Speeding When the track is raised off the ground, only run it at the lowest possible speed. Centrifugal force Excessive speed and reckless driving can be fatal. could cause debris, damaged or loose studs, Always adjust your speed according to snow condi- pieces of torn track, or an entire severed track to tions and circumstances.
  • Page 35 LYNX ADVENTURE ELECTRIC Ungroomed Trail Deep Snow Unless there has been a fresh snowfall you can In deep powder snow, your vehicle could begin to expect “washboard” and snowdrift conditions. Taken sink. If this occurs, turn in as wide an arc as possible at excessive speeds, such conditions can be physi- and look for a firmer base.
  • Page 36 SAFETY INFORMATION Frozen Water Slush Traveling frozen lakes and rivers can be fatal. Avoid Slush should be avoided at all times. Always check waterways. If you are in an unfamiliar area, ask the for slush before starting across any lake or river. If local authorities or residents about the ice condition, dark spots appear in your tracks, get off the ice inlets, outlets, springs, fast moving currents or other...
  • Page 37 LYNX ADVENTURE ELECTRIC A direct climb could present problems. Choose the Downhill standing position, accelerate before you start the Downhill driving requires that you have full control of climb and then reduce accelerator pressure to pre- your vehicle at all times. On steeper hills, keep your vent track slippage.
  • Page 38 SAFETY INFORMATION Avalanche Hazard Bright Sunshine When riding on mountainous terrain, be aware of the Bright sunny days can considerably reduce your risk of avalanches. Avalanches vary in size and vision. The glare from sun and snow may blind you shape and generally occur in steep terrain and on to the extent that you cannot easily distinguish unstable snow.
  • Page 39 LYNX ADVENTURE ELECTRIC Unfamiliar Territory Hidden Wires Whenever you enter an area that is new to you, drive Always be on the lookout for hidden wires, especially with extreme caution. There may be obstructions hid- in areas that may have been farmed at one time or den beneath the snow.
  • Page 40 SAFETY INFORMATION parked vehicles. When you are certain that the road Road Crossing is clear proceed straight across the intersection with- Your snowmobile is not designed to operate or turn out hesitation. Each rider needs to come to a com- on pavement of public streets, roads or highways.

  • Page 41: Respect Of The Wildlife

    LYNX ADVENTURE ELECTRIC Respect of the Wildlife Exercises to Practice Snowmobile tracks provide firm ground over which Practice alone the following exercises after having animals can travel from area to area. Do not violate done the entire pre-ride inspection. Always start and stop the vehicle according to the instructions in Start- this privilege by chasing or harassing wildlife.
  • Page 42 SAFETY INFORMATION Tips for additional practice: Directions: At first, you will only use the accelerator • lever for a moment at a time, then release it and Press the emergency stop switch without looking coast. at it. • Start the vehicle and release the parking brake Starting, Stopping and Basic Handling lever.
  • Page 43 LYNX ADVENTURE ELECTRIC Vehicle Stop While in Motion Basic Turns Purpose: Get comfortable turning in a controlled Purpose: Become familiar with using the emergency manner on both sides. stop switch when in motion so you know how the vehicle will react if you need to use it later. Directions: •...
  • Page 44 SAFETY INFORMATION • Repeat, increasing your speed and braking harder. Quick Stops When you feel that the rotation of the track will be Purpose: stopped you need to release the pressure on the • Become familiar with the vehicle braking ability. brake lever.

  • Page 45: Transporting The Vehicle

    LYNX ADVENTURE ELECTRIC • Repeat the reverse and stop in straight line until Make sure the trailer meets state or provincial you get comfortable. requirements. Ensure the hitch and safety chains are • Once you are comfortable with reversing in straight secured and the brake, turn indicators and clearance line, you can slowly reverse while turning the lights are functional.
  • Page 46 SAFETY INFORMATION The vehicle’s electric motor is mechanically con- nected to the snowmobile track and can generate electricity when rotated. AVOID PULLING OR PUSHING THE VEHICLE TO CAUSE THE TRACK TO MOVE WHEREVER POS- SIBLE. IF NECESSARY, THE VEHICLE MAY BE TEMPORARILY PULLED AT A SPEED NO GREATER THAN 10 km/h (6 mph).

  • Page 47: Pushing Or Pulling The Vehicle

    LYNX ADVENTURE ELECTRIC PUSHING OR PULLING THE VEHICLE NOTICE Front and rear bumpers should not be used as sole WARNING attachment points when towing a snowmobile on a Never transport this vehicle with the track on the trailer/flatbed platform. ground or so that the propulsion system can rotate at a speed higher than 10 km/h (6 mph).
  • Page 48 SAFETY INFORMATION Ski legs (spindles) Front bumper If the vehicle cannot be lifted onto the flatbed, or if a flatbed is not available and the vehicle must be recovered, it may be winched or temporarily towed at a speed below 10 km/h (6 mph) using a tow rope...

  • Page 49: Important On-Product Labels (Canada/United States)

    The following labels are on your vehicle and they or punctured. should be considered permanent parts of the vehicle. If missing or damaged, the decals can be replaced • Do not disassemble. free of charge. Visit an authorized BRP snowmobile dealer.
  • Page 50 SAFETY INFORMATION Disk Guard - Warning Label...
  • Page 51 LYNX ADVENTURE ELECTRIC Starting Procedure - Warning Label...
  • Page 52 SAFETY INFORMATION Passenger Safety - Warning Labels...
  • Page 53 LYNX ADVENTURE ELECTRIC...
  • Page 54 SAFETY INFORMATION Maximum Cargo Load and Towing Capacity- Warning Labels...
  • Page 55 LYNX ADVENTURE ELECTRIC...
  • Page 56 SAFETY INFORMATION Rotating Track - Warning Label...
  • Page 57 LYNX ADVENTURE ELECTRIC Correct Towing Direction - Warning Label...
  • Page 58 SAFETY INFORMATION To avoid the risk of SERIOUS INJURY or DEATH Battery Warning Labels from ELECTRIC SHOCK, ARC FLASH or FIRE, always follow these precautions: NEVER attempt to open, modify or disassemble this battery pack. This battery pack is not serviceable. NEVER use this battery pack for other than its intended purpose in this vehicle.
  • Page 59 LYNX ADVENTURE ELECTRIC NEVER come in contact with a leaking battery pack. ALWAYS keep out of reach of children. ALWAYS follow applicable laws and regulations when transporting, packaging, and storing this battery pack. To Qualified EV Technicians: For replacement of this battery pack, follow the repair manual.
  • Page 60 SAFETY INFORMATION...
  • Page 61 LYNX ADVENTURE ELECTRIC...
  • Page 62 SAFETY INFORMATION Electric Shock - Warning Label...

  • Page 63: Technical Information Labels

    LYNX ADVENTURE ELECTRIC Technical Information Labels Technical Information Label PRE-RIDE INSPECTION Perform a pre-ride inspection before each ride to detect potential problems during operation. The pre- ride inspection can help you monitor wear and dete- rioration before they become a problem. Correct any problems that you discover to reduce the risk of an accident or a malfunction.

  • Page 64: Before Starting

    SAFETY INFORMATION Before Starting 7. Apply parking brake and ensure it operates prop- erly. Leave parking brake applied. 1. Remove snow and ice from body including lights, seat, footrests, controls and instruments. After Starting 2. Remove packed snow and ice from the rear sus- For proper starting procedure, refer to STARTING pension using the wrench tool.

  • Page 65: Pre-Ride Check List

    LYNX ADVENTURE ELECTRIC Pre-Ride Check List ITEM OPERATION Body including seat, footrests, lights, Check condition and wear and remove snow or ice. controls and instruments Skis and steering action Check for free movement and proper operation. Ski runners Check for abnormal wear. Accelerator lever Check for proper operation.
  • Page 66 SAFETY INFORMATION ITEM OPERATION Slider shoes Check for abnormal wear. Emergency stop switch Check for proper operation. Check for proper action. Tether cord must be attached to Vehicle power-off switch (tether cord cap) operator clothing eyelet. Lights Check for proper operation. Horn button (if equipped) Check for proper operation.

  • Page 67: High Voltage Components

    The vehicle should be inspected The vehicle shall only be charged using an EVSE by a BRP dealer prior to next ride. Contact local or charging station equipped with a emergency service for immediate assistance if any UL2231 compliant Charge Current Interruption signs of thermal event or hardware failure occur.

  • Page 68: Electric Vehicle (Ev) Overview

    ELECTRIC VEHICLE (EV) OVERVIEW High-voltage charger High-voltage battery pack High-voltage heater High-voltage electric motor High-voltage charging socket High-voltage inverter High-voltage cables...

  • Page 69: Lithium-Ion High-Voltage Propulsion Battery

    Do not open or high-voltage cables as if they were live and tamper with the battery in any way. Contact an powered. authorized BRP dealer for battery servicing. NOTE: WARNING The warranty will be voided if any high-voltage...
  • Page 70 ELECTRIC VEHICLE (EV) OVERVIEW The 400V and 12V circuits are linked together NOTICE through the DC-DC converter. Avoid fully discharging the high-voltage battery to The 400V lithium-ion propulsion battery is comprised 0%. The battery will engage a power/torque limiter of multiple sealed cells that store the energy used to when the state of charge is low.

  • Page 71: Battery Management System (Bms)

    LYNX ADVENTURE ELECTRIC Battery Management System (BMS) WARNING The high-voltage battery pack is equipped with a Bat- People with medical electric devices, such as a tery Management System (BMS) that monitors the pacemaker or a cardiovascular defibrillator, should condition of the high-voltage propulsion battery. The consult their physician for recommendations related BMS optimizes charging and under certain condi- to electric vehicles and electric vehicle supply...

  • Page 72: Charging Port Connection

    ELECTRIC VEHICLE (EV) OVERVIEW Charging Port Connection Electric Vehicle Supply Equipment (EVSE) WARNING Immediately disconnect the EVSE from the vehicle if plug or wall outlet is hot to the touch or emitting any unusual odors. WARNING Do not use extension cords or adapters with the EVSE.

  • Page 73: Charging The Vehicle

    LYNX ADVENTURE ELECTRIC 4. Open the hinged charge port cover. WARNING Do not use the EVSE if the cable or cord is frayed, has broken insulation or shows any other signs of damage. The Electric Vehicle Supply Equipment (EVSE) cable used for charging the vehicle must be compatible with a IEC61851 style port for Level 1 (120V) and Level 2 (240V) charging.
  • Page 74 ELECTRIC VEHICLE (EV) OVERVIEW 6. Insert the EVSE charging plug into the charger socket. The vehicle display will switch to the charging screen. Charging will continue until the battery is fully charged or the EVSE is disconnected. Though charging will continue until complete, the dis- play will turn off after five minutes of inactivity.

  • Page 75: Stopping Charging

    LYNX ADVENTURE ELECTRIC Stopping Charging 2. The electric lock will automatically disengage. Remove the charging cable from the charging To stop charging the high-voltage propulsion battery: port. 1. If the state of charge has not yet reached 100%, touch Stop Charging on the display, if available. 3.

  • Page 76: Charging Best Practices

    ELECTRIC VEHICLE (EV) OVERVIEW Charging Best Practices level. For this to occur, the vehicle must be plugged in with an EVSE to a proper outlet. Charging will Effect of Temperature resume once the temperature has returned to an The Lynx Adventure Electric snowmobile is designed appropriate range.

  • Page 77: Charging Status And Battery State Of Charge

    LYNX ADVENTURE ELECTRIC CHARGING STATUS AND BATTERY STATE OF NOTICE CHARGE If the high-voltage battery charge is extremely low , Battery and charging status can be monitored in the it should be plugged in within 24 hours of being instrument cluster. discharged to avoid potential damage and preserve its longevity.

  • Page 78: Power Sources

    ELECTRIC VEHICLE (EV) OVERVIEW When the state of charge is low, a message is shown When charging is complete, the estimated time remaining changes to show “Complete.” on the display. POWER SOURCES The following power sources can be used to charge your vehicle: •...

  • Page 79: Starting And Driving

    LYNX ADVENTURE ELECTRIC STARTING AND DRIVING 2. Pull the emergency stop switch up. Starting the Vehicle To start the vehicle: 1. Insert the D.E.S.S. key into the D.E.S.S. post. The touchscreen will activate when the D.E.S.S. is rec- ognized by the system.

  • Page 80: Switching To And From Reverse

    ELECTRIC VEHICLE (EV) OVERVIEW 3. Press the Start button on the handlebar multifunc- Switching to and from Reverse tion switch for 0.5 seconds. The ON indicator is When the vehicle is in the READY to drive mode, it shown on the lower left of the display. is automatically set to the forward drive position.

  • Page 81: Turning Off The Vehicle

    LYNX ADVENTURE ELECTRIC While in the ON mode, a message will be displayed after 5 minutes without interaction, indicating to the user to activate the brake lever to keep the vehicle awake. If there is still no interaction, the vehicle will shut down.

  • Page 82: Regenerative Braking

    ELECTRIC VEHICLE (EV) OVERVIEW REGENERATIVE BRAKING PERFORMANCE GAUGE Regenerative braking captures some of the excess energy released in the braking process and returns it to the high-voltage system for increased range, when possible. It is automatically activated when releasing the accelerator lever and increases when the brake lever is pulled.

  • Page 83: Vehicle Range

    LYNX ADVENTURE ELECTRIC • The thick curve, which varies instantaneously on Terrain: Rough terrain or frequent and difficult hill both the discharge and regenerative braking portions, climbs require more power from the vehicle, thus represents the actual usage of the vehicle’s pow- affecting range.

  • Page 84: Differences Between Electric Vehicles And Vehicles With Internal Combustion Engines

    ELECTRIC VEHICLE (EV) OVERVIEW • DIFFERENCES BETWEEN ELECTRIC VEHICLES Sound: Under normal operating conditions, an EV AND VEHICLES WITH INTERNAL COMBUSTION generates significantly less sound than an • ENGINES Vibration: An EV does note produce as much vibration during operation as an internal combus- This electric vehicle is designed to provide the same tion engine.

  • Page 85: Vehicle Deactivation Classification

    LYNX ADVENTURE ELECTRIC VEHICLE DEACTIVATION CLASSIFICATION EV 00 - Category Description The maintenance and repair tasks for this vehicle are Indicates a maintenance or classified using a deactivation level for the vehicle repair task requiring no deacti- high-voltage components. Tasks in this guide are vation of the vehicle high- identified as either EV-00 or EV-01.

  • Page 86: Vehicle Information

    VEHICLE INFORMATION • Tasks Limitations High-voltage inverter • High-voltage cables These tasks must not interact with the following transmission components and/or propulsion system WARNING components: • Sprocket Do not disconnect or touch any exposed • Wheel connections and/or damaged components with bare •...
  • Page 87 LYNX ADVENTURE ELECTRIC Vehicle Preparation CAUTION 1. Disconnect the charger, if necessary, by pressing Make sure to elevate all moving components so STOP CHARGING on the vehicle cluster, waiting they are not in contact with the work table when for the lock release, and then pull on the handle. servicing.

  • Page 88: Ev 01 - Category Description

    VEHICLE INFORMATION Vehicle Release 1. Remove the vehicle from the work table and place on the ground, if applicable. 2. Release the parking brake, if applicable. EV 01 - Category Description Indicates a maintenance or repair task requiring a basic deactivation of the vehicle high- voltage components.
  • Page 89 LYNX ADVENTURE ELECTRIC Tasks Limitations WARNING These tasks must not interact with the following Do not disconnect or touch any exposed transmission components and/or propulsion system connections and/or damaged components with bare components: fingers, non-insulated tools or other metallic objects. •...

  • Page 90: Ev 01 - Safe Working Procedures

    VEHICLE INFORMATION EV 01 - Safe Working Procedures Mandatory Personal Protective Mandatory Tools: Equipment (PPE): • D.E.S.S. locking device • Safety Glasses • Safety lock box • Safety shoes with electric shock • 1 personal padlock resistant soles Vehicle Preparation 1.
  • Page 91 LYNX ADVENTURE ELECTRIC Basic Deactivation Procedure CAUTION 1. Remove the D.E.S.S. key from the vehicle. Make sure to elevate all moving components so 2. Install and lock the D.E.S.S. locking device. they are not in contact with the work table when servicing.
  • Page 92 VEHICLE INFORMATION Proceed with the tasks permitted under this deactiva- tion level. WARNING The single key of the worker’s personal lock on the safety lock box must remain on the EV technician working on the unit until activation is safe to perform.

  • Page 93: Primary Controls

    LYNX ADVENTURE ELECTRIC PRIMARY CONTROLS Typical Handlebar The handlebar controls the steering of the snowmo- bile. As the handlebar is rotated to right or left, the skis are turned right or left to steer the snowmobile. WARNING Fast reverse while turning could result in loss of stability and control.
  • Page 94 VEHICLE INFORMATION iTC Accelerator Lever Switching from Thumb to Finger Accelerator Lever Position (ITC Accelerator Lever) Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. CAUTION It is highly recommended to immobilize the To accelerate snowmobile and ensure that the emergency stop To decelerate switch is engaged before attempting any modification to the accelerator lever position as it...
  • Page 95 LYNX ADVENTURE ELECTRIC Thumb accelerator position : push downward to If wanted, continue to rotate the accelerator rotate accelerator housing housing...

  • Page 96: Emergency Stop Switch

    VEHICLE INFORMATION Finger accelerator position Emergency Stop Switch The emergency stop switch is located on the RH side of handlebar. Typical CAUTION It is HIGHLY recommended to use gloves and NOT mitts when using the finger accelerator lever position. To stop the vehicle in an emergency, push the switch It is not recommended to use the finger accelerator down to the OFF position and simultaneously apply lever position while riding in dense off-trail areas.
  • Page 97 LYNX ADVENTURE ELECTRIC OFF position ON position To allow the drive mode activation, pull the switch up All operators of the snowmobile should familiarize to the ON position. themselves with the function of the emergency stop switch by using it several times on first outing and...

  • Page 98: Brake Lever

    Most effective braking is done without locking the corrected before activating the vehicle. Visit an track. authorized BRP snowmobile dealer for servicing.
  • Page 99 LYNX ADVENTURE ELECTRIC Typical Brake Lever Adjustment Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. WARNING It is important to adjust the brake lever to the user size and normal riding position. Brake lever To apply the brake Proper brake lever position should allow: •...
  • Page 100 VEHICLE INFORMATION Taking the time to adjust and try out the brake lever Adjusting the Brake Lever before your first snowmobile outing improves user comfort. Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. 1. Loosen the two bolts enough to easily move the brake lever on the handlebar.
  • Page 101 LYNX ADVENTURE ELECTRIC 2. Locate the reference mark on the handlebar and 0 to 5 mm (0 to 0.197 in) between the handlebar respect the distance and rotation limits. point and side of the brake lever 3. With the operator on the driver seat, put the brake lever in the desired position.

  • Page 102: Parking Brake Lever

    VEHICLE INFORMATION Parking Brake Lever WARNING The parking brake lever is located on the LH side of Make sure the parking brake is fully disengaged handlebar. before operating the snowmobile. When you ride Typical the vehicle, brake pads that are caused to drag by a continuous pressure on the lever may cause damage to the brake system and cause loss of braking capacity and/or fire.

  • Page 103: Vehicle Cut-Off Switch

    LYNX ADVENTURE ELECTRIC To Engage the Parking Brake To Release the Parking Brake Apply and hold the brake, then lock the brake lever Activate the brake lever. The parking brake lever will automatically return to its original position. Always using the parking brake lever as shown. release the parking brake before riding.
  • Page 104 VEHICLE INFORMATION The tether cord cap must be securely snapped on Your authorized BRP snowmobile dealer has pro- the vehicle cut-off switch to allow vehicle operation. gramed the D.E.S.S. of your snowmobile to recog- nize the D.E.S.S. key in the tether cord cap to allow Pulling the tether cord cap from the switch shuts the vehicle operation.

  • Page 105: Secondary Controls

    We recommend the purchase of additional tether Models with the 10.25 Color Touchscreen Display cords from your authorized BRP snowmobile dealer. If you have more than one D.E.S.S. equipped BRP snowmobile, each can be programmed by your authorized BRP snowmobile dealer to accept the other vehicles D.E.S.S.
  • Page 106 VEHICLE INFORMATION Press the button or use the up/down button as Headlights Dimmer Button required to select the heating intensity to keep your Press to select HIGH or LOW beam. Lights are auto- hands at a comfortable temperature. matically ON when the vehicle is ON. Adjusting the Heated Grips Ratio –...

  • Page 107: Passenger Heated Grip Switch

    LYNX ADVENTURE ELECTRIC Passenger Heated Grip Switch The switch is located on the LH passenger handhold. Microphone Button This button is used to activate the voice commands. UP / Down / OK Button This button is used to navigate and select the vari- ous menus of the multifunction display.

  • Page 108: Body And Seat

    VEHICLE INFORMATION Adjust the heating intensity as shown. BODY AND SEAT Front and Rear Bumpers To be used whenever snowmobile requires manual lifting. CAUTION Beware of injuries by using proper lifting techniques, including lifting with your legs. Do not attempt to lift the rear of vehicle if it is above your limits.
  • Page 109 LYNX ADVENTURE ELECTRIC Typical Front bumper NOTICE This vehicle is not designed for towing. NOTICE Do not use skis to pull or lift the snowmobile.

  • Page 110: Windshield

    VEHICLE INFORMATION Windshield 3. Pull the windshield up until both side pins come out of their rubber grommet. Removing the Windshield Typical 1. Pull the deflector pins off the grommets, if applicable. Typical — With side deflectors 2. Place hands on each side of the windshield.
  • Page 111 LYNX ADVENTURE ELECTRIC 4. Disengage the center pin or tab. 2. Insert center pin or tab in headlamp module hole. Installing the Windshield 1. Lubricate the grommets using soapsuds, if required. NOTICE Do not lubricate grommets with any type of grease.
  • Page 112 VEHICLE INFORMATION Typical Typical 3. Secure windshield by inserting the windshield pins into the grommets.

  • Page 113: Adjustable Mirrors (If Equipped)

    LYNX ADVENTURE ELECTRIC Adjustable Mirrors (if equipped) Typical Each mirror can be adjusted to suit the operator’s preference. WARNING Adjust with the vehicle at rest in a safe place. When installing a cover, the mirrors can be tilted downward to ease the installation.

  • Page 114: Front Storage Compartment

    VEHICLE INFORMATION Typical Typical Front Storage Compartment NOTE: A storage compartment is located at the front of the When closing, make sure the cover is secured vehicle, above the gauge. properly. You will hear a click . The Operator’s Guide is in the front storage compartment.

  • Page 115: Side Panels

    LYNX ADVENTURE ELECTRIC Side Panels Removing the Side Panels 1. Unlock all latches, then open the panel. Typical — 2 Latches Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. WARNING Never operate the vehicle with side panels opened or removed.
  • Page 116 VEHICLE INFORMATION 2. Pivot the side panel around its lower edge. 3. Slide the panel hinge off the bottom pan. NOTICE Make sure to place the panel in a safe place to avoid scratching it.

  • Page 117: Upper Body Module

    LYNX ADVENTURE ELECTRIC Installing the Side Panels Removing the Upper Body Module The installation is the reverse of the removal proce- 1. Remove both side panels. Refer to Side Panels in dure. Make sure the bottom panel tab is inserted in this section.
  • Page 118 VEHICLE INFORMATION 3. Disconnect the following connectors. 4. Remove the upper body module retaining screws on both sides.
  • Page 119 LYNX ADVENTURE ELECTRIC Installing the Upper Body Module 1. At front, insert the upper body module tabs into the bottom pan openings. Front Hood Tab 5. Grab the upper body module in the gauge support area. 6. Pull the module forward. 7.

  • Page 120: Seat

    VEHICLE INFORMATION 4. On both sides, install the upper body module Seat retaining screws. TIGHTENING TORQUE 1.8 ± 0.2 Nm Upper body screws Vehicle Deactivation Level: (16 ± 2 lbf-in) 5. Connect the headlight connectors. 6. Install the storage compartment but leave the See Vehicle Deactivation Classification for more cover open.
  • Page 121 LYNX ADVENTURE ELECTRIC Installing the Seat – Ball Stud Lock 1. Connect the heated seat harness. 2. Place seat over the hooks, then slide it forward. 3. Engage both ball studs at front. Push Pull Lift up and backward to unlock seat 2.
  • Page 122 VEHICLE INFORMATION 2. Raise or lower the handhold to suit the passen- Passenger Handholds (if equipped) ger’s comfort. The passenger handholds provide a strong holding point and comfort for the passenger on long rides. Adjusting the Passenger Handholds To adjust the handhold height, proceed as follows: 1.

  • Page 123: Equipment

    LYNX ADVENTURE ELECTRIC EQUIPMENT Some features may not apply to your model or could be optional. Operator’s Guide The Operator’s Guide should be stored in the Front Storage Compartment. Heated Cellphone Case (if equipped) A heated cellphone case is mounted underneath the front storage compartment cover.

  • Page 124: Power Outlet - Usb (If Equipped)

    VEHICLE INFORMATION Power Outlet - USB (if equipped) Adjustable Handlebar Riser (if equipped) The USB power outlet is located in the front storage WARNING compartment. It allows you to charge your cellphone while stored in the heated cell case. Always stop the vehicle before adjusting the handlebar.

  • Page 125: Electric Visor Jack Connector (If Equipped)

    LYNX ADVENTURE ELECTRIC Move the handlebar back and forth to make sure the Tools mechanism is securely engaged. A part of the compartment under the operator seat is designed to hold the tools allowing for basic Electric Visor Jack Connector (if equipped) maintenance.
  • Page 126 VEHICLE INFORMATION Install in the following sequence: 2. Press the closed end on the retaining tabs. 1. Slide the suspension adjustment tool open end under the retaining tab. Suspension adjustment tool...

  • Page 127: 10.25" Color Touchscreen Display

    LYNX ADVENTURE ELECTRIC 3. Slide the headlight adjustment tool short end into 10.25” COLOR TOUCHSCREEN DISPLAY the hole. Default Display Headlight adjustment tool Light Mode Dark Mode 4. Rotate and clip the long end in place.

  • Page 128: Navigating The Multifunction Display

    VEHICLE INFORMATION Navigating the Multifunction Display indicators, controls and an infotainment center with a digital touchscreen. WARNING We recommend you practice selecting some func- tions on the infotainment center before getting on the Reading or operating the multifunction display can road.

  • Page 129: Center Display

    LYNX ADVENTURE ELECTRIC Center Display Narrow View Display To change from full view to narrow view, open an In full view, long press in the upper center of the applet or slide the divider on the right side. screen to cycle through extra gauges. To change back to full view, long press on applet In full view, long press the lower center of the screen switcher or slide the divider back in place.

  • Page 130: Applet Menu

    VEHICLE INFORMATION Left Lateral Display Right Lateral Display In narrow view, the right lateral display includes vari- In narrow view, the left lateral display includes: ous apps. Refer to App Menu for more information. • Speedometer and performance gauge • Trip meter Applet Menu In narrow view, long press the tripmeter to show one...
  • Page 131 LYNX ADVENTURE ELECTRIC Press on an applet icon to open it. The Phone applet menu is used to access the: • Keypad • Phone contact list • Phone history NOTE: To have access to the Phone menu, a phone and Phone rider helmet (Headset) must be paired.
  • Page 132 VEHICLE INFORMATION Media Volume can be adjusted using the status bar volume icon on the touchscreen. The Media applet is used to: • Control song choice in the helmet audio system • View song information (when available) This vehicle is not equipped with speakers. An appropriate helmet audio system is required to listen to music.
  • Page 133 LYNX ADVENTURE ELECTRIC Statistics Vehicle Settings The Statistics applet is used to access : The Vehicle Settings applet is used to: • • Trip distance information View vehicle health, including: • Trip elapsed time information Vehicle information • Average speed Faults (codes and description) Three sets of statistics are stored in memory.
  • Page 134 Get information about manufacturer information must connect (USB connection) a mobile device with and device regulatory compliance the BRP GO! app. The app can be downloaded from Reset to factory settings the Apple App Store or Google Play Store via a...

  • Page 135: Quick Preferences

    LYNX ADVENTURE ELECTRIC Quick Preferences NOTICE To access the Quick Preferences menu, press the For more information on the BRP GO! app, see the following icon. BRP GO! section in this manual or visit the Lynx website. NOTICE The smartphone must be connected with a USB cable to the USB port located in the glove box.

  • Page 136: Tell-Tales And Indicators

    VEHICLE INFORMATION Tell–Tales and Indicators Status Bar TELL–TALES ON THE DISPLAY The following tell-tales and indicators will alert you to a vehicle condition or malfunction. Some tell-tales will illuminate when starting the vehicle to verify opera- Tell-tale Description tion. If any tell-tales remain on after starting the vehicle, refer to MONITORING SYSTEM in RED - Coolant temperature TROUBLESHOOTING.
  • Page 137 LYNX ADVENTURE ELECTRIC Tell-tale Description Tell-tale Description AMBER - Electrical fault or problem detected with the charging system Charging indicator RED - 12V battery voltage too low or there is a problem with the electrical system Vehicle ON indicator External cord connected Vehicle READY indicator ORANGE - Error with the connected external cord...
  • Page 138 VEHICLE INFORMATION Bottom Bar of Instrument Cluster Icons and Indicators - Status Bar Pilot Lamps – 10.25” Color Digital Touchscreen Icon Description Shut down Quick Preferences Tell–tale Description Smartphone network connection ORANGE - Vehicle malfunction Clock BLUE - The high beams are selected RED - Parking brake is engaged or Audio volume malfunction of the brake system...

  • Page 139: Pairing Your Smartphone Via Bluetooth

    LYNX ADVENTURE ELECTRIC Pairing your Smartphone Via Bluetooth NOTICE On the Vehicle More than one smartphone can be paired with the 1. Open the Applet menu vehicle. However, only one will connect at any given time. 2. Select “Preferences” 3. Select “Bluetooth” On the Phone 1.

  • Page 140: Messages In Multifunction Display

    Notifications will always appear at the top right corner diately go to the nearest authorized BRP snowmobile of the screen. dealer to have your vehicle serviced before riding again.

  • Page 141: Brp Go! App

    Press the App Menu icon to access apps. 1) Download the BRP GO! Smartphone App Select “Navigation.” Download the BRP GO! app via the App Store for Apple™ or the Google™ Play Store for Android. 2) Connect your smartphone using a USB cable...

  • Page 142: Quick Tour Of The Brp Go! App

    North America and Europe on the map. 3. Connect to My Vehicle: Find steps to help you connect the BRP GO! app to the 10.25” touch- screen display. 4. FAQ: This link takes you to answers of common questions asked by riders like you.

  • Page 143: Riding Conditions And Your Snowmobile

    5. Rides: Easily access your planned and completed In the event you have to ride in these types of condi- rides made with the Navigation features of the tions: BRP GO! app. • Avoid exceeding a speed of 70 km/h (45 mph) in all conditions 6.

  • Page 144: Tune Your Ride

    VEHICLE INFORMATION Vehicles Equipped with Ice Scratchers TUNE YOUR RIDE Ice scratchers are equipped on the vehicle to lubri- Snowmobile handling and comfort depend upon mul- cate and cool track clips and sliders. They must be tiple adjustments. used whenever on ice, hard packed snow or any conditions that do not lift enough snow particles into WARNING the rear suspension and the tunnel.
  • Page 145 LYNX ADVENTURE ELECTRIC Choice of suspension adjustments vary with carrying WARNING load, operator’s weight, personal preference, riding Before proceeding with any suspension adjustment, speed and field conditions. remember: NOTICE • Park in a safe place. • Remove the tether cord cap from the cut-off Some adjustments may not apply to your switch.

  • Page 146: Front Suspension Adjustments

    VEHICLE INFORMATION The best way to set up the suspension is to custom- Front Suspension Adjustments ize each adjustment one at a time. Various adjust- ments are interrelated. It may be necessary to read- just center spring after adjusting front springs for instance.
  • Page 147 LYNX ADVENTURE ELECTRIC Front spring preload also has an effect on the steer- WARNING ing behavior. Adjust both springs to the same preload. Uneven Action Result adjustment can cause poor handling and loss of Firmer front suspension stability and/or control and increase the risk of an Higher front end accident.

  • Page 148: Rear Suspension Adjustments

    VEHICLE INFORMATION Rear Suspension Adjustments SC5 120 Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. Stopper strap Center spring Center shock absorber Rear spring Rear shock absorber Coupling blocks Rear shock lower pivot Front arm...
  • Page 149 LYNX ADVENTURE ELECTRIC Action Result NOTICE Lighter ski pressure under Whenever adjusting rear suspension, check track Increasing acceleration tension and adjust if necessary. stopper strap More center spring travel length Stopper Strap – SC5 120 More bump absorption capability Stopper strap length has an effect on the amount of Heavier ski pressure under Decreasing acceleration...
  • Page 150 VEHICLE INFORMATION Stopper strap Position 4 Free holes (4th hole, factory settings) 4th hole from end Towards rear Tip of strap touching strap axis Two holes left open between screw head and nut Towards front...
  • Page 151 LYNX ADVENTURE ELECTRIC Stopper strap Position 6 (6th hole) Free holes 6th hole from end Towards rear Tip of strap touching strap axis Two holes left open between screw head and nut Towards front Always install the stopper strap bolt as close as pos- sible to the lower shaft.
  • Page 152 VEHICLE INFORMATION Generally, a longer stopper strap setting provides Action Result better performance in deep snow on a flat landscape. Heavier steering Center Spring Less bump absorption Decreasing preload capability Center spring preload has an effect on steering Better trail handling effort, handling and bump absorption.
  • Page 153 LYNX ADVENTURE ELECTRIC Rear Spring Action Result Rear spring preload has an effect on comfort, ride Softer rear suspension height and load compensation. Lower rear end Less bump absorption Also, adjusting rear spring preload shifts more or less Decreasing preload capability weight to the snowmobile front end.
  • Page 154 VEHICLE INFORMATION Typical - proper adjustment What to do 50 to 75 mm (2 to 3 in) No adjustment required More than Adjusted too soft. 75 mm (3 in) Increase preload Less than Adjusted too firm. 50 mm (2 in) Decrease preload NOTICE If the specification is unattainable with the original...
  • Page 155 LYNX ADVENTURE ELECTRIC Typical - LH side shown WARNING Both rear spring preload must be set at the same position. Otherwise vehicle behavior may be unpredictable, and suspension may become warped. The adjustment cams have 5 different settings, 1 being the softest. Position 1 Position 4 Position 2...
  • Page 156 VEHICLE INFORMATION Coupling block - Right side view Coupling Blocks (SC5 120) (R - RIGHT embossed on block) The adjustment of the coupling blocks has an effect on vehicle handling during acceleration only. NOTICE A high coupling block setting will reduce both comfort and transfer under acceleration.

  • Page 157: Adjustment Tips According To Vehicle Behavior

    LYNX ADVENTURE ELECTRIC Coupling Blocks Setting Position More ski lift during acceleration - and best comfort Intermediate setting Intermediate setting Less ski lift during acceleration - and some comfort loss Adjustment Tips According to Vehicle Behavior Problem Corrective Measures Check ski alignment. •...
  • Page 158 VEHICLE INFORMATION Problem Corrective Measures • Set coupling blocks to a higher position (if equipped) Too much ski lift during cornering or • Shorten limiter strap acceleration • Increase rear spring preload • Reduce rear spring preload • Reduce compression damping adjustment Rear of snowmobile seems too stiff (if equipped) Rear of snowmobile seems too soft...

  • Page 159: Maintenance Schedule

    LYNX ADVENTURE ELECTRIC MAINTENANCE SCHEDULE Trail / Crossover / Utility Usage Maintenance is very important to keep your vehicle in Whether your vehicle is a Trail, Crossover, or Utility a safe operating condition. The vehicle should be model, it requires yearly maintenance. These items serviced as per the maintenance schedule.

  • Page 160: Maintenance

    MAINTENANCE Your driving habits determine the factors you should Maintenance Overview adhere to. For example: Calendar Trail / Cross Odometer • Someone who uses their vehicle every other week- Time Over / Utility end trail riding with friends would most likely follow Every Month 1500 km (1000 mi) the odometer reading to determine the frequency...
  • Page 161 LYNX ADVENTURE ELECTRIC Rotax E–Power TRAIL / CROSSOVER / UTILITY A = Adjust C = Clean Every month Every year Every 2 years I = Inspect L = Lubricate 1500 km 3000 km 6000 km R = Replace (1000 mi) (2000 mi) (4000 mi) T = Torque...
  • Page 162 MAINTENANCE TRAIL / CROSSOVER / UTILITY A = Adjust C = Clean Every month Every year Every 2 years I = Inspect L = Lubricate 1500 km 3000 km 6000 km R = Replace (1000 mi) (2000 mi) (4000 mi) T = Torque Brake Brake components and function...
  • Page 163 LYNX ADVENTURE ELECTRIC TRAIL / CROSSOVER / UTILITY A = Adjust C = Clean Every month Every year Every 2 years I = Inspect L = Lubricate 1500 km 3000 km 6000 km R = Replace (1000 mi) (2000 mi) (4000 mi) T = Torque Low-Voltage Electrical...
  • Page 164 MAINTENANCE TRAIL / CROSSOVER / UTILITY A = Adjust C = Clean Every month Every year Every 2 years I = Inspect L = Lubricate 1500 km 3000 km 6000 km R = Replace (1000 mi) (2000 mi) (4000 mi) T = Torque Steering and Controls Accelerator operation...

  • Page 165: Maintenance Procedures

    LYNX ADVENTURE ELECTRIC MAINTENANCE PROCEDURES Coolant This section includes instructions for basic mainte- nance procedures. Vehicle Deactivation Level: WARNING Turn off the vehicle, remove tether cord cap and follow these maintenance procedures when See Vehicle Deactivation Classification for more performing maintenance. If you do not follow proper information.
  • Page 166 When checking level at low temperature, it may be slightly lower than the mark. If additional coolant is necessary or if entire system Coolant reservoir has to be refilled, refer to an authorized BRP snow- COLD line mobile dealer, repair shop or person of your own choosing.

  • Page 167: Brake Fluid

    LYNX ADVENTURE ELECTRIC Brake Fluid Recommended Coolant RECOMMENDED COOLANT XPS Extended life pre-mixed coolant IF THE RECOMMENDED XPS COOLANT IS NOT Vehicle Deactivation Level: AVAILABLE Distilled water and antifreeze solution (50% distilled water, 50% antifreeze) See Vehicle Deactivation Classification for more information.
  • Page 168 Maximum Operating range If brake fluid level keeps dropping during or after each ride, or if entire system has to be refilled, refer to an authorized BRP dealer, repair shop, or a per- son of your own choosing for servicing.
  • Page 169 LYNX ADVENTURE ELECTRIC 2. Remove the screws retaining the reservoir cap. Adding Brake Fluid NOTICE Vehicle must be on a level surface before checking any fluid levels. 1. Clean the reservoir cap.
  • Page 170 MAINTENANCE 3. Remove the reservoir cap. CAUTION Avoid getting brake fluid on skin or eyes - it may cause severe burns. In case of contact with the skin, wash thoroughly. In case of contact with the eyes, immediately rinse with plenty of water for at least 10 minutes and then consult a doctor immediately.
  • Page 171 LYNX ADVENTURE ELECTRIC 5. Ensure the diaphragm is pushed in the reservoir Recommended Brake Fluid cap before installing the cap on the reservoir. Recommended Brake Fluid XPS DOT 4 Brake Fluid Alternative or if not available DOT 4 Brake Fluid Use only DOT 4 brake fluid from a sealed container.

  • Page 172: Chaincase Oil

    75W140 gear oil that meets the Vehicle Deactivation Level: API GL-5 specification. The gearcase of this snowmobile has been developed and validated using the XPS™ Synthetic gearcase oil. BRP See Vehicle Deactivation Classification for more strongly recommends the use of its XPS Synthetic information.
  • Page 173 LYNX ADVENTURE ELECTRIC Check plug Replacing the Chaincase Oil Draining the Chaincase Oil 1. Place the vehicle on a level surface. 2. Place a drain pan under the chaincase drain plug area. 3. Remove the filler cap. 4. Remove the drain plug located at the bottom of the chaincase.
  • Page 174 MAINTENANCE 5. Wait a while to allow all oil to drain out of the Check plug chaincase. 6. Install drain plug and tighten to specification. Tightening Torque Chaincase drain plug 6 ± 1 Nm (53 ± 9 lbf-in) Filling the Chaincase 1.

  • Page 175: Drive Chain

    LYNX ADVENTURE ELECTRIC 3. Remove the filler cap. 5. Reinstall the check plug and tighten to Typical - top of chaincase specification. Tightening Torque Check plug 6 ± 1 Nm (53 ± 9 lbf-in) Reinstall the filler cap. Drive Chain Vehicle Deactivation Level: Filler cap See Vehicle Deactivation Classification for more...

  • Page 176: Track

    With the vehicle off, rotate the track by hand, and inspect condition. If worn or cut, if track fibers are exposed or if missing or defective inserts or guides are noted, contact an authorized BRP snowmobile dealer.
  • Page 177 On approved studded tracks, replace broken or dam- Snowmobiles Equipped with Traction Enhancing Products aged studs immediately. If your track shows signs of If your snowmobile is equipped with a BRP approved deterioration, it must be replaced immediately. When studded track, PROCEED WITH A VISUAL INSPEC- in doubt, ask your dealer.
  • Page 178 MAINTENANCE Verifying the Track Tension WARNING To prevent serious injury to individuals near the NOTICE snowmobile: Ride the snowmobile in snow about 15 to 20 • NEVER stand behind or near a moving track. minutes prior to adjusting track tension. •...
  • Page 179 LYNX ADVENTURE ELECTRIC 4. Prepare the tensiometer. b. Place the upper O-ring to 0 kgf (0 lbf). Service tool Tensiometer (P/N 414348200) a. Set the bottom O-ring as per the Track Deflec- tion from the applicable vehicle in the Technical Specifications table.
  • Page 180 MAINTENANCE Typical Deflection O-ring aligned with slider shoe...
  • Page 181 LYNX ADVENTURE ELECTRIC 7. Read the load recorded by the upper O-ring on Adjusting the Track Tension the tensiometer. 1. Remove the tether cord cap from the vehicle cut- Typical - Load Reading off switch. CAUTION Use proper lifting techniques, including lifting with your legs.
  • Page 182 MAINTENANCE Typical 5. If correct tension is unattainable, contact an authorized BRP snowmobile dealer. 6. Retighten the rear axle fasteners to specification. TIGHTENING TORQUE Rear idler wheel 48 ± 6 Nm (35 ± 4 lbf-ft) retaining screws 7. Check track alignment as described below.
  • Page 183 LYNX ADVENTURE ELECTRIC 1. Lift the rear of the vehicle and support it off the Aligning the Track ground. WARNING CAUTION Before checking track alignment, ensure that the track is free of all particles which could be thrown Use proper lifting techniques, including lifting with out while track is rotating.
  • Page 184 MAINTENANCE 3. Check that the track is well centered; equal dis- 4. To correct track alignment: tance on both sides between edges of track guides and slider shoes. A01F0BA Guides Slider shoes Tighten on this side A01F05A a. Stop the vehicle. Guides b.

  • Page 185: Suspension

    LYNX ADVENTURE ELECTRIC 7. Tighten the rear axle nut to the specified torque. WARNING Tightening Torque Remove the tether cord cap from the vehicle cut-off Rear axle screw 48 ± 6 Nm (35 ± 4 lbf-ft) switch before performing any maintenance or 8.
  • Page 186 MAINTENANCE Rear Suspension Condition Suspension Lubrication Visually inspect all suspension components including Lubricate the following suspension pivots at grease fittings. Refer to Maintenance Schedule for mainte- slider shoes, springs, wheels, etc. nance frequency. NOTE: SERVICE PRODUCT XPS Synthetic grease suspension During normal driving, snow will act as a lubricant and coolant for the slider shoes.

  • Page 187: Skis

    Wear and Condition of Skis and Runners Check the condition of the skis and ski runner car- Visually inspect the steering and the front suspension bides. If worn, contact an authorized BRP snowmo- for tightness of components (steering arms, control bile dealer.
  • Page 188 MAINTENANCE Access to Fuse Block Open RH side panel, refer to Body and Seat. Fuses Location Refer to Technical Specification for relay and fuse identification.

  • Page 189: Headlights

    To remove the fuse from the holder, pull the fuse out. Check if the filament is melted. WARNING If a fuse has burnt out, the source of the malfunction should be determined and corrected before restarting. See an authorized BRP snowmobile dealer for servicing. Headlights Vehicle Deactivation Level: A15E0KA...
  • Page 190 MAINTENANCE Turn the adjustment screw to reach desired beam Headlight Beam Aiming height. Open the storage compartment. Typical...

  • Page 191: 12V Battery

    LYNX ADVENTURE ELECTRIC 12V Battery Removing the 12V Battery 1. Remove the seat. 2. Remove the battery cover. Typical Vehicle Deactivation Level: See Vehicle Deactivation Classification for more information. WARNING Never charge or boost the battery while it is installed on the vehicle. NOTICE If the 12V battery voltage is low, it may need to be recharged or replaced in order to start the vehicle.
  • Page 192 MAINTENANCE 3. Disconnect the negative terminal first, then the 4. Remove the battery hold down bracket. positive terminal. NOTICE Battery BLACK ( – ) cable must always be disconnected first and connected last.
  • Page 193 LYNX ADVENTURE ELECTRIC 5. Remove the battery. Charging the 12V Battery Use any automotive type battery charger. Always refer to the battery charger manufacturer’s instructions. Installing the 12V Battery NOTICE Battery BLACK ( – ) cable must always be disconnected first and connected last. The installation is the reverse of the removal proce- dure.

  • Page 194: Vehicle Care

    MAINTENANCE VEHICLE CARE Avoid leaving your snowmobile in temperatures above 40° C (104° F) or below -20° C (-4° F). The Post-Operation Care heater and coolant pump will heat the battery when Remove snow and ice from rear suspension, track, the temperature is between -40°...

  • Page 195: Storage

    LYNX ADVENTURE ELECTRIC STORAGE Non–Compatible Cleaning Products Non-Compatible Cleaning Proper storage is necessary when a snowmobile is Material Type Products not in use for more than three months. BRAKE AND PARTS When planning on storing the vehicle for more than All plastics, vinyls, CLEANER 90 days, there are steps you can take to maintain...
  • Page 196 MAINTENANCE NOTICE CAUTION Vehicles stored during cold temperatures may Use appropriate lifting device or have assistance to require the vehicle to be connected for a longer share lifting stress. If a lifting device is not used, period of time before riding. use proper lifting techniques, including lifting with your legs.

  • Page 197: Preseason Preparation

    LYNX ADVENTURE ELECTRIC PRESEASON PREPARATION Proper vehicle preparation is necessary when a vehicle has not been used for more than three months. Perform the items as directed in the Maintenance Schedule. Visit your authorized BRP snowmobile dealer for more information.

  • Page 198: Maintenance Records

    MAINTENANCE MAINTENANCE RECORDS Send photocopy of maintenance record to BRP if needed. Pre-delivery Serial number: Signature/Print: Mileage / km: Hours: Date: Dealer no: Notes: Refer to vehicle Pre-Delivery Bulletin for detailed installation procedures...
  • Page 199 LYNX ADVENTURE ELECTRIC First inspection Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 200 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 201 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 202 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 203 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 204 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 205 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 206 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 207 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 208 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 209 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 210 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 211 LYNX ADVENTURE ELECTRIC Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...
  • Page 212 MAINTENANCE Service Mileage / km: Signature/Print: Hours: Date: Dealer no: Notes: For maintenance schedule refer to Maintenance Information section of this operator’s guide...

  • Page 213: Vehicle Identification

    LYNX ADVENTURE ELECTRIC VEHICLE IDENTIFICATION Vehicle Description Decal Vehicle description decal is located on right hand side of tunnel. Typical For North American Market...

  • Page 214: Technical Information

    It may sometimes become necessary to locate these numbers for war- ranty purposes or to trace your snowmobile in the event of loss. These numbers are required by the authorized BRP snowmobile dealer to complete war-...
  • Page 215 LYNX ADVENTURE ELECTRIC Model number and model year are part of the infor- Vehicle Identification Number (VIN) mation found in the VIN. See illustration. VIN is scribed on vehicle description decal. See above. It is also engraved on tunnel near vehicle description decal.

  • Page 216: Compliance Labels

    IN EFFECT ON THE DATE OF adopted by the Snowmobile Safety and Certification DATE DE FABRICATION. ITS MANUFACTURE. CERTIFIÉ Committee (SSCC) of which BRP is a proud partici- PARRAINÉ PAR LE COMITÉ DE SPONSORED BY THE SNOWMO- SÉCURITÉ DE CERTIFICATION BILE SAFETY AND CERTIFICA- M O T O N E I G E , I N C .

  • Page 217: Eu Declaration Of Conformity

    LYNX ADVENTURE ELECTRIC EU DECLARATION OF CONFORMITY...

  • Page 218: Uk Declaration Of Conformity

    TECHNICAL INFORMATION UK DECLARATION OF CONFORMITY...

  • Page 219: Radio Frequency Digitally Encoded Security System (Rf D.e.s.s. Key)

    LYNX ADVENTURE ELECTRIC RADIO FREQUENCY DIGITALLY ENCODED We, the party responsible for compliance, declare SECURITY SYSTEM (RF D.E.S.S. KEY) under our sole responsibility that the device is in con- formity with the provisions of the following Council This device complies with FCC Part 15 and Industry Directive: 2014/53/EU.

  • Page 220: Multifunction Gauge Regulatory Information

    TECHNICAL INFORMATION MULTIFUNCTION GAUGE REGULATORY To display the regulatory information on the vehicle INFORMATION digital display: From the home screen, access the main menu and keep the joystick pressed down for Technical Information more than 10 seconds. Transmitter: USA and Canada •...
  • Page 221 LYNX ADVENTURE ELECTRIC (2) l’appareil doit accepter tout brouillage radioélec- Mexico trique subi, même si le brouillage est susceptible IFETEL d’en compromettre le fonctionnement. Marca: Enovation Controls LLC Changes or modifications not expressly approved by Número: RCPENOD22-2195 the party responsible for compliance could void the Modelo: OD1025-01 user’s authority to operate the equipment.
  • Page 222 TECHNICAL INFORMATION Brazil Japan This device is granted pursuant to the Japanese 電波法 Radio Law ( ) and the Japanese Telecommuni- 電気通信事業法 cations Business Law ( ). This device should not be modified (otherwise the granted desig- nation number will become invalid). Europe 15742-23-14024 Declaration of Conformity...
  • Page 223 LYNX ADVENTURE ELECTRIC...
  • Page 224 TECHNICAL INFORMATION...

  • Page 225: Adventure Electric

    LYNX ADVENTURE ELECTRIC ADVENTURE ELECTRIC COOLING SYSTEM XPS Extended life pre-mixed Recommended coolant Ethyl glycol and distilled water Coolant type Alternative, or if not avail- (50%/50%) able or coolant specifically formulated for electric vehicles Quantity Without radiator 5.9 l (6.2 qt (US)) ELECTRICAL SYSTEM –...

  • Page 226: Technical Specifications

    TECHNICAL SPECIFICATIONS ELECTRICAL SYSTEM – LOW VOLTAGE Main Fuse 20 A Start / Relays Accessories 15 A Taillight / Brake / PAC 10 A Fuses ECM / RFID / O2 Sensor / 10 A CAPS Cluster 15 A 15 A Headlamps 20 A Main...
  • Page 227 LYNX ADVENTURE ELECTRIC DRIVE SYSTEM — CHAINCASE Recommended XPS Synthetic gearcase oil Type Alternative, or if not avail- 75W140 gear oil that meets the Chaincase oil able API GL-5 specification Capacity 350 ml (11.8 fl oz (US)) First chain: 19/43 Chain drive ratio Second chain: 23/53 DRIVE SYSTEM —...
  • Page 228 TECHNICAL SPECIFICATIONS BRAKE SYSTEM Single 200-mm cross-drilled car- Brake Type bon steel disc Type DOT 4 Brake fluid Quantity 65 ml (2.2 fl oz (US)) Caliper Fixed twin pistons (2 x 40 mm) Brake pad material Organic Minimum brake pad thickness (includes backing plate) 5 mm (.197 in) Minimum brake disc thickness 4.5 mm (.177 in)
  • Page 229 LYNX ADVENTURE ELECTRIC REAR SUSPENSION SC5 120 Suspension type rMotion X Suspension maximum travel 276 mm (10.9 in) Measured at rear arm Center Shock absorber type Rear WEIGHT AND DIMENSIONS Mass (dry) 236 kg (521 lb) Overall length 312.7 cm (123.1 in) Overall width 121.7 cm (47.9 in) Overall height...

  • Page 230: Troubleshooting

    Connect the vehicle to an Electrical Vehicle Supply Equipment (EVSE) and let the vehicle charging system recharge the high and low voltage battery packs. Contact an authorized BRP snowmobile dealer. If the high-voltage propulsion battery temperature is below -20° C (-4° F), the system will not charge.
  • Page 231 Check the coolant pump is activated under normal and charging operation. 3. High-voltage battery state of charge is too low. Connect the vehicle to an EVSE. 4. Incorrect track adjustment. Refer to Maintenance and/or an BRP snowmobile dealer for proper alignment and tension adjustments.
  • Page 232 Place the emergency stop switch in the ON position and install the tether cord cap (on cut-off switch). 2. Vehicle temperature and/or system voltage is too low. Connect the vehicle to an Electrical Vehicle Supply Equipment (EVSE) and let the vehicle charging system recharge the High and Low voltage battery packs. Contact an authorized BRP snowmobile dealer.

  • Page 233: Monitoring System

    LYNX ADVENTURE ELECTRIC Digital Pilot Lamp – 10.25” Color Digital MONITORING SYSTEM Touchscreen Tell–Tales, Messages and Beeper Codes Gauge pilot lamp(s) will inform you if an anomaly Pilot Lamps – 10.25” Color Digital Touchscreen occurs or to inform you of a particular condition. A tell-tale can flash alone or in combination with another lamp.
  • Page 234 TROUBLESHOOTING Pilot lamp ON Beeper Message display Description — — The coolant temperature is high. A problem with the low voltage system is SYSTEM OVERLOAD– 1 long beep detected, such as DC-DC failure or system PARK IN A SAFE PLACE overload.
  • Page 235 LYNX ADVENTURE ELECTRIC Pilot lamp ON Beeper Message display Description Limited power mode activated due to low AUTOMATIC POWER state of charge, system temperature too low 1 short beep REDUCTION - PARK IN or too high, or a problem being detected in the A SAFE PLACE drive components.

  • Page 236: Fault Codes

    CHECK KEY proper key for the vehicle or have the pro- grammed. Fault Codes Contact an authorized BRP snowmobile dealer for code signification. The fault codes can be displayed on the center display. The fault codes are accessible in the setting menu.

  • Page 237: Brp Limited Warranty For The European Economic And The Commonwealth Of The Independent States (Cis) Areas And Turkey: 2024 Lynx Snowmobiles

    (“Product(s)”) and its high-voltage batteries sold by to change its intended use. distributors or dealers authorized by BRP to distribute (3) the Product has been altered or modified in such the Products in member states of the European Eco-...

  • Page 238: Warranty

    TO THE EXTENT PERMITTED BY LAW, THIS PROVINCE. WARRANTY IS EXPRESSLY GIVEN AND Neither the distributor, any BRP dealer nor any other ACCEPTED IN LIEU OF ANY AND ALL OTHER person has been authorized to make any affirmation, WARRANTIES, EXPRESSED OR IMPLIED,...

  • Page 239: Exclusions - Are Not Warranted

    BRP or resulting from repairs done by warranty. a person that is not an authorized servicing BRP •...
  • Page 240 Any capacity/range reduction-based claim must be tery to contact with a direct flame; • Physical damage to the high voltage battery or confirmed by and approved by BRP to be eligible for intentional attempt to reduce the life of the high coverage. voltage battery;...

  • Page 241: Warranty Coverage Period

    LYNX ADVENTURE ELECTRIC HIGH-VOLTAGE BATTERY WARRANTY COVERAGE PERIOD The vehicle limited warranty will be in effect from (1) The high-voltage battery limited warranty will be in the date of delivery to the first retail consumer, or (2) effect for TWENTY-FOUR (24) consecutive months, the date the product is first put into use, whichever or eight thousand kilometers (8,000 km) / five thou- occurs first and for the applicable period below:...

  • Page 242: Conditions To Have Warranty Coverage

    • The Product must be purchased as new and BRP will not honour this limited warranty to any pri- unused by its first owner from a LYNX Distributor / vate use owner or commercial use owner if one of Dealer authorized to distribute LYNX products in the preceding conditions has not been met.

  • Page 243: What To Do To Obtain Warranty Coverage

    WHAT TO DO TO OBTAIN WARRANTY WHAT BRP WILL DO COVERAGE To the extent permitted by law, BRP’s obligations under this warranty are limited to, at its sole discre- The customer must cease using the Product upon tion, repairing or replacing parts found defective...

  • Page 244: Transfer

    BRP by mail at one of the addresses listed ject to its terms and conditions, will NOT be trans- under the CONTACT US section of this guide.

  • Page 245: Data Privacy Information

    LYNX ADVENTURE ELECTRIC DATA PRIVACY INFORMATION Your personal information that may be collected by BRP, directly from you or from authorized dealers or Bombardier Recreational Products Inc., its affiliates authorized third parties, includes: and subsidiaries (“BRP”) are committed to protecting •...

  • Page 246: Customer Information

    CUSTOMER INFORMATION • • Interaction with BRP Information (e.g., informa- Communication (e.g., sending you a BRP satisfac- tion collected when you call BRP’s in-house sales tion survey) • representatives, buy items on a BRP website, sign Online Behavioural Advertising, Profiling and...
  • Page 247 LYNX ADVENTURE ELECTRIC We may receive information about you from diverse BRP’s Data Protection Officer at sources, including third parties, such as BRP’s autho- privacyofficer@brp.com or by mail at: rized dealerships and partners, with whom we offer BRP Legal Service, 726 St-Joseph, Valcourt, Que- services or engage in joint-marketing activities.

  • Page 248: Contact Us

    CUSTOMER INFORMATION CONTACT US France Arteparc Bâtiment B www.brp.com Route de la côte d’Azur, Europe, Middle East and Africa 13 590 Meyreuil Belgium Norway Oktrooiplein 1 Ingvald Ystgaardsvei 15 9000 Gent N-7484 Trondheim Salg, marketing, ettermarked Czech Republic Stefanikova 43a...

  • Page 249: North America

    We will ask you to provide your If your address has changed or if you are the new name, address, phone number, the vehicle identifica- owner of the snowmobile, be sure to notify BRP by tion number and the date it was stolen. either: •...
  • Page 250 THIS PAGE IS INTENTIONALLY BLANK...
  • Page 252 THIS PAGE IS INTENTIONALLY BLANK...
  • Page 254 THIS PAGE IS INTENTIONALLY BLANK...
  • Page 256 THIS PAGE IS INTENTIONALLY BLANK...
  • Page 257 LYNX ADVENTURE ELECTRIC Lithium–Ion High–Voltage Propulsion Battery . . .67 CUSTOMER INFORMATION Performance Gauge ....80 Change of Address/Ownership ...243 Power Sources .

  • Page 258: Index

    INDEX Vehicle Care ..... . .192 MAINTENANCE Vehicle Cleaning and Protection ..192 12V Battery .
  • Page 259 LYNX ADVENTURE ELECTRIC Know Terrain and Riding Variations ..32 Steering ......19 Moving Parts .
  • Page 260 Navigating the Multifunction Display ..126 BRP GO! App ..... .139 Operator’s Guide ....121 Center Display .
  • Page 261 Tune Your Ride .....142 WHAT BRP WILL DO ....241 Upper Body Module .
  • Page 262 NOTES...
  • Page 263 NOTES...
  • Page 264 NOTES...
  • Page 265 NOTES...
  • Page 267 Model No. _____________________________________________ VEHICLE IDENTIFICATION NUMBER (V.I.N.)_____________________________ HIGH-VOLTAGE BATTERY IDENTIFICATION NUMBER__________________________________ Owner: ______________________________________________ NAME ______________________________________________ STREET ______________________________________________ CITY STATE/PROVINCE ZIP/POSTAL CODE Purchase Date ________________________________________ YEAR MONTH DAY Warranty Expiry Date __________________________________ YEAR MONTH DAY To be completed by the dealer at the time of the sale. DEALER IMPRINT AREA...
  • Page 268 ®TM AND THE BRP LOGO ARE TRADEMARKS OF BOMBARDIER RECREATIONAL PRODUCTS INC. OR ITS AFFILIATES. ©2023 BOMBARDIER RECREATIONAL PRODUCTS INC. ALL RIGHTS RESERVED. PRINTED IN CANADA.

Table of Contents
