PAPER TRAY UNIT INSTALLATION 21 July 2006

1.3.2 INSTALLATION PROCEDURE

[A]
B390I603.WMF
[C]
[B]
B390I601.WMF
CAUTION
Unplug the machine power cord before starting the following procedure.

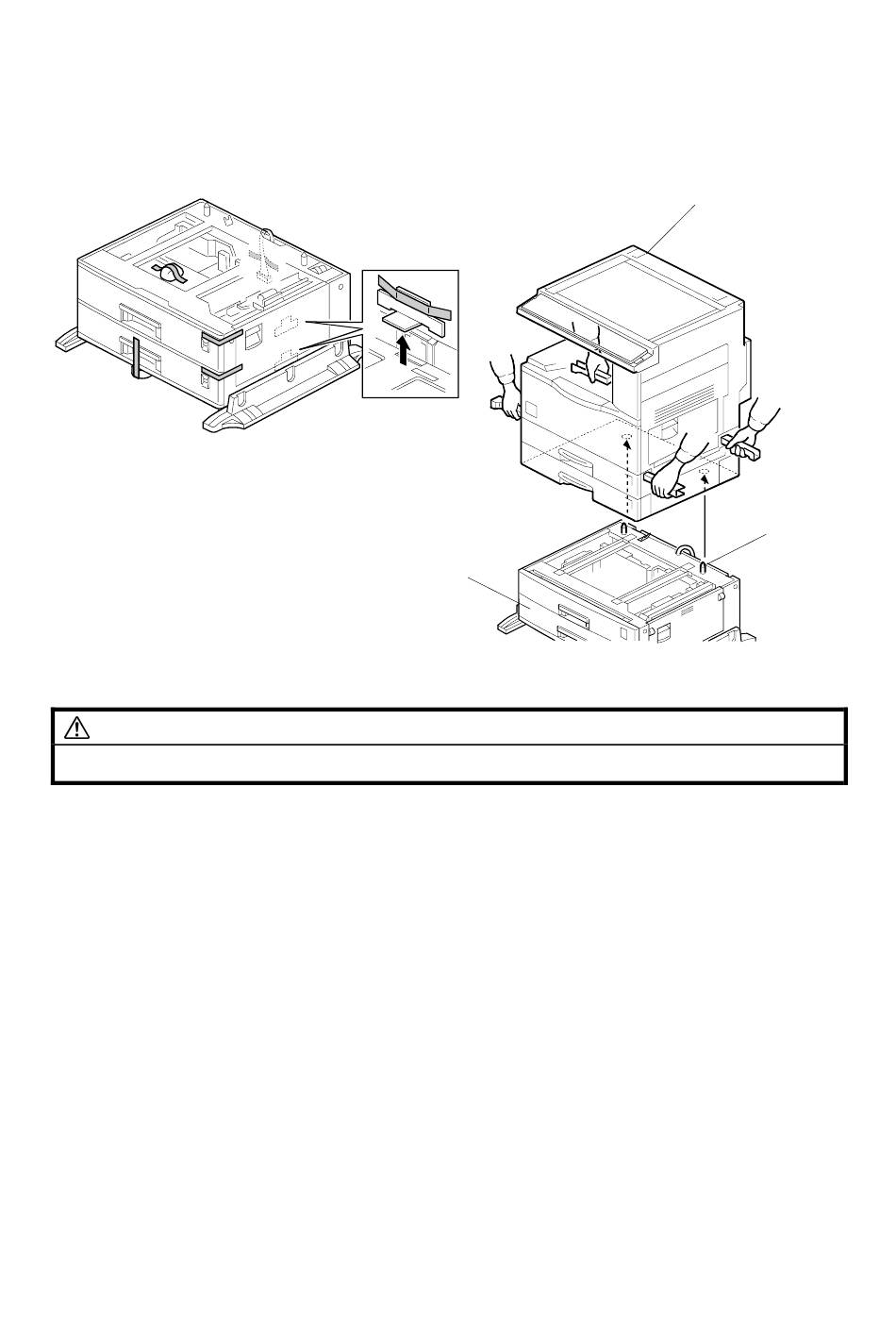

1. Remove the strips of tape.
2. Set the copier [A] on the paper tray unit [B].
NOTE: When installing the copier, be careful not to pinch the cable [C].
