21 July 2006 PAPER FEED

6.11.2 PAPER FEED DRIVE MECHANISM

[A]
[D]
[B]
[C]
B205D937.WMF

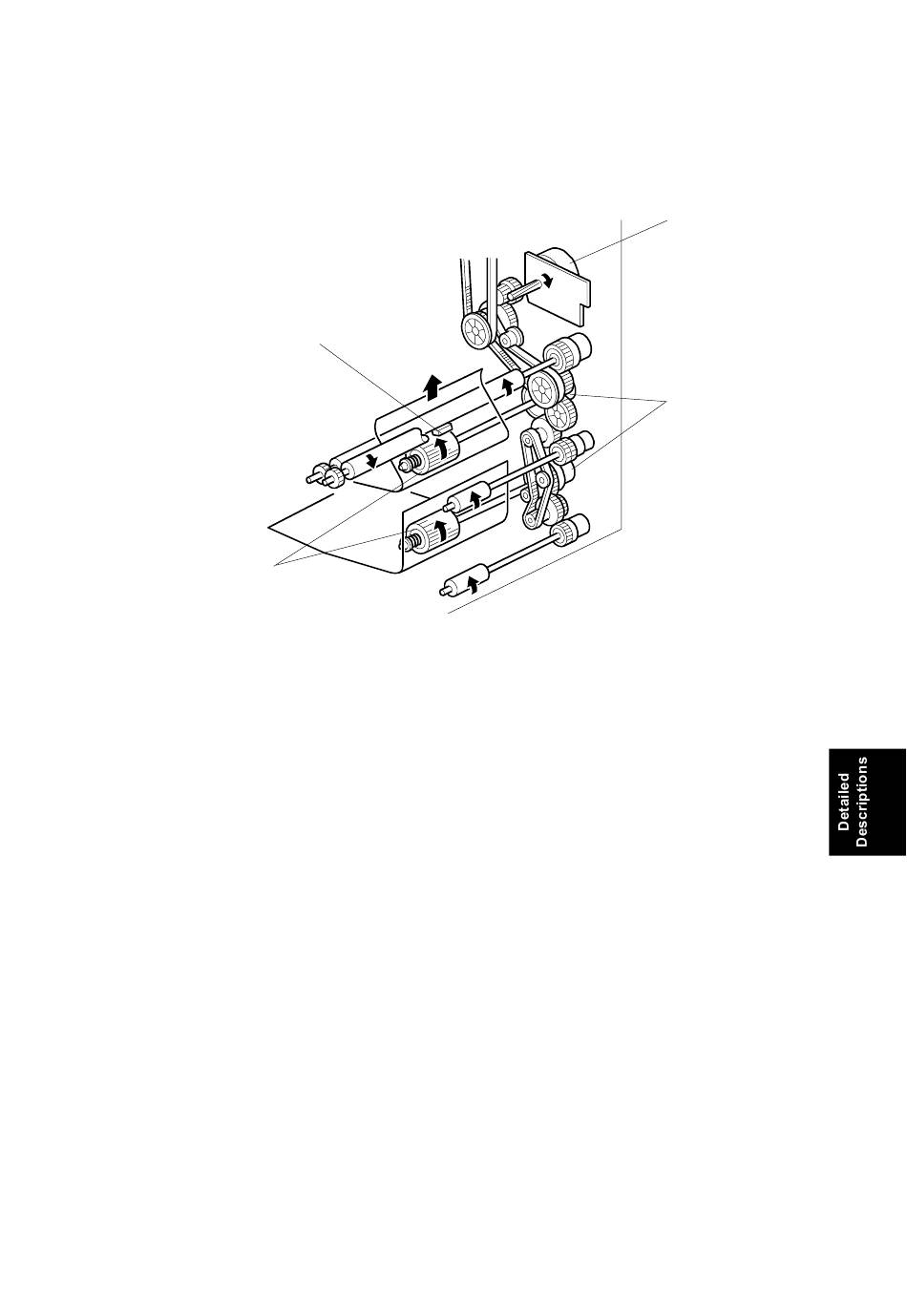

The main motor [A] drives the pick-up and feed mechanism of both the first and
second paper trays. The paper feed clutches [B] transfer drive from this motor to
the paper feed rollers [C].
When the paper feed clutch turns on, the feed rollers start to feed the paper. The
paper feed clutch stays on until shortly after the registration sensor [D] has been
activated.
6-59
