SCANNER UNIT

21 July 2006
3.5 SCANNER UNIT

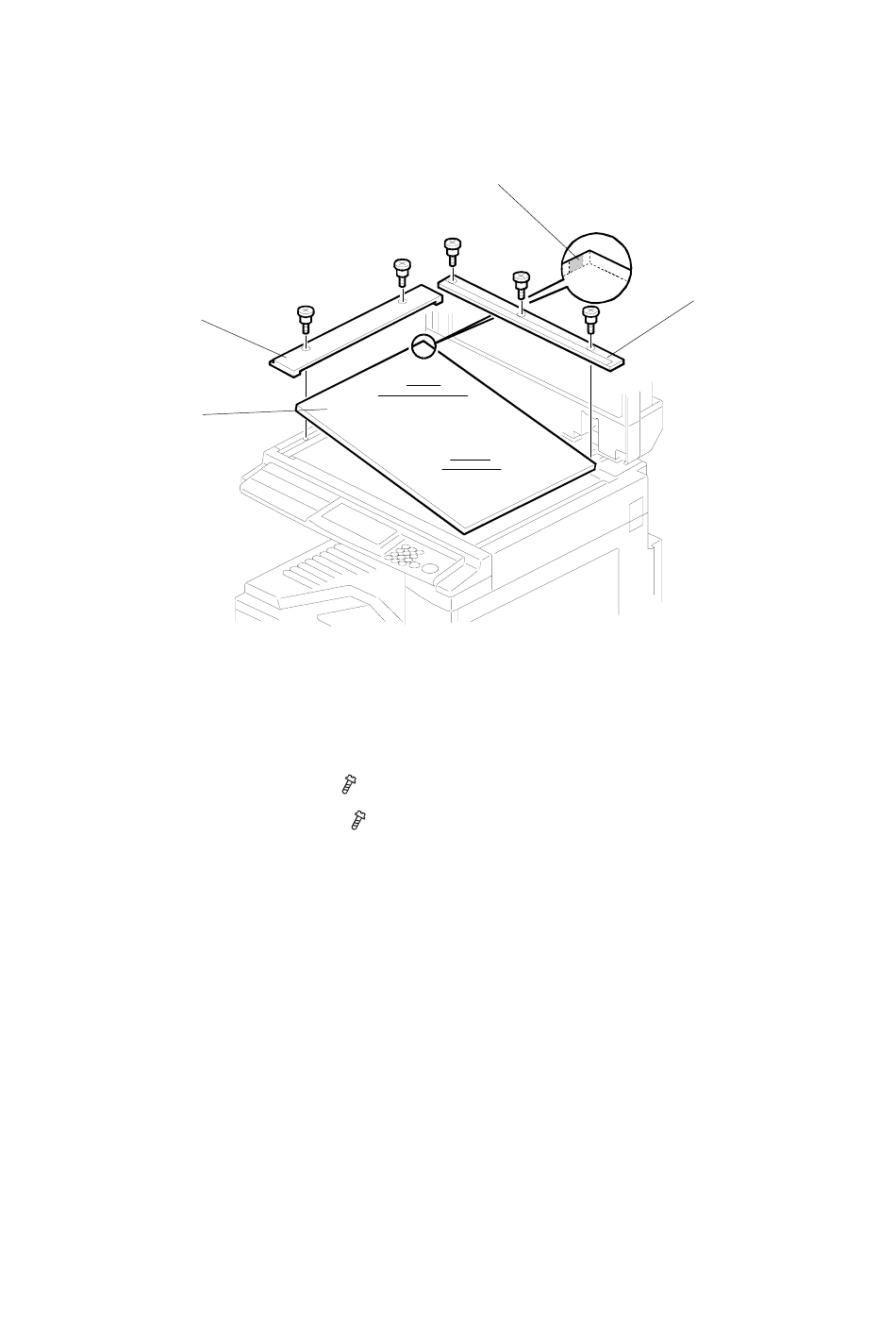

3.5.1 EXPOSURE GLASS

[D]
[B]
[A]
[C]
B205R909.WMF
1. Open the ADF or platen cover.
2. Remove the left scale [A] ( x2).
3. Remove the rear scale [B] ( x3).
4. Remove the exposure glass [C].
NOTE: When reinstalling the exposure glass, make sure that the mark [D] is
positioned at the rear left corner, as shown.
3-4
