Paper Tray Lift Motors - Ricoh R-C4 Service Manual

PAPER FEED

3.10.4 PAPER TRAY LIFT MOTORS

[B]
[A]
[E]

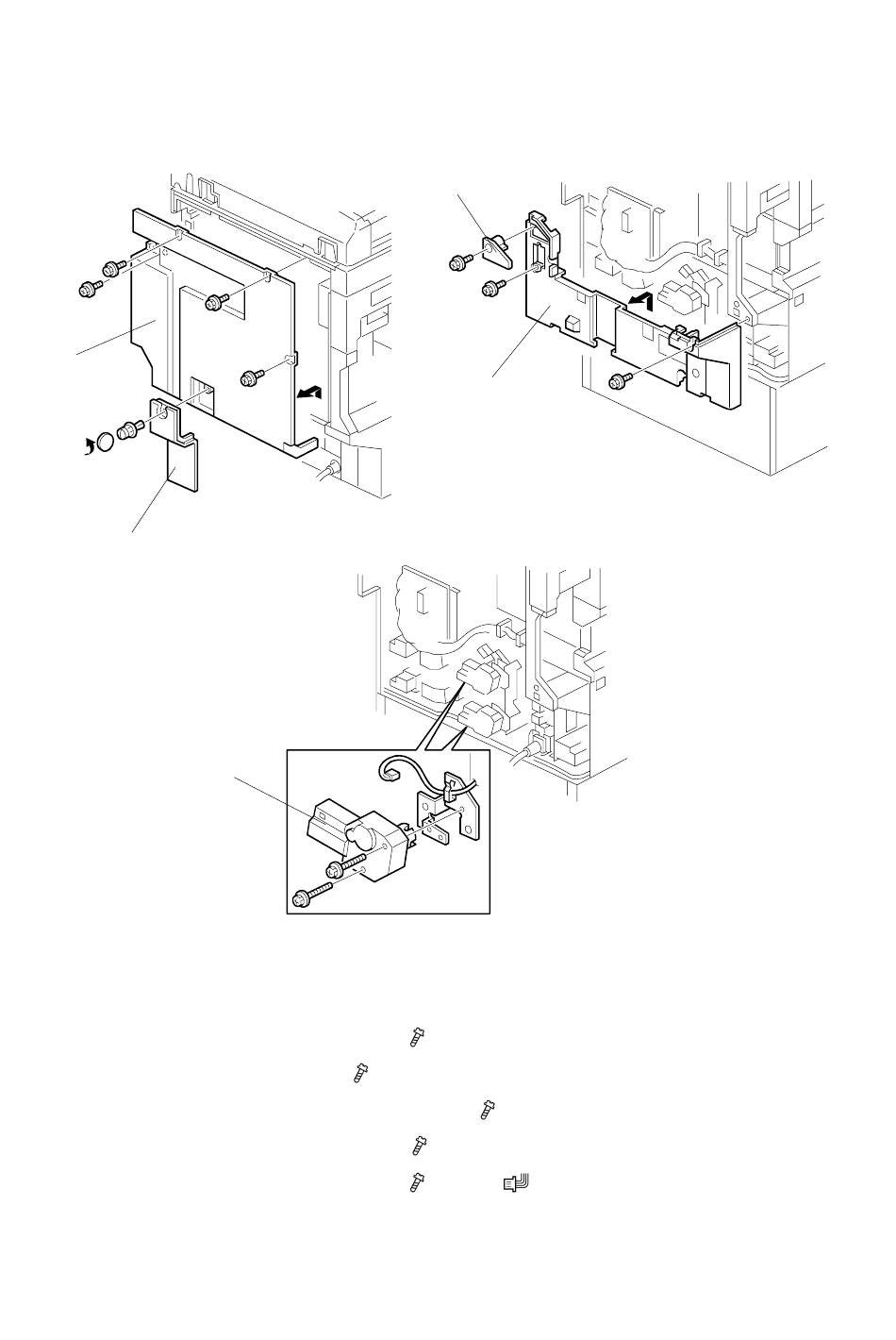

1. Remove the paper tray.
2. Remove the connector cover [A] (
3. Remove the rear cover [B] (
4. Remove the duplex connector cover [C] (
5. Remove the lower rear cover [D] (
6. Replace the paper lift motors [E] (
[C]
[D]
B205R704.WMFF
x1) and disconnect the cable.
x4).
x2).
x2 ea.,
3-40
B205R946.WMF
x1).
x1 ea.).
21 July 2006
B205R945.WMF
