Psu - Ricoh R-C4 Service Manual

21 July 2006 PCBS AND OTHER ITEMS

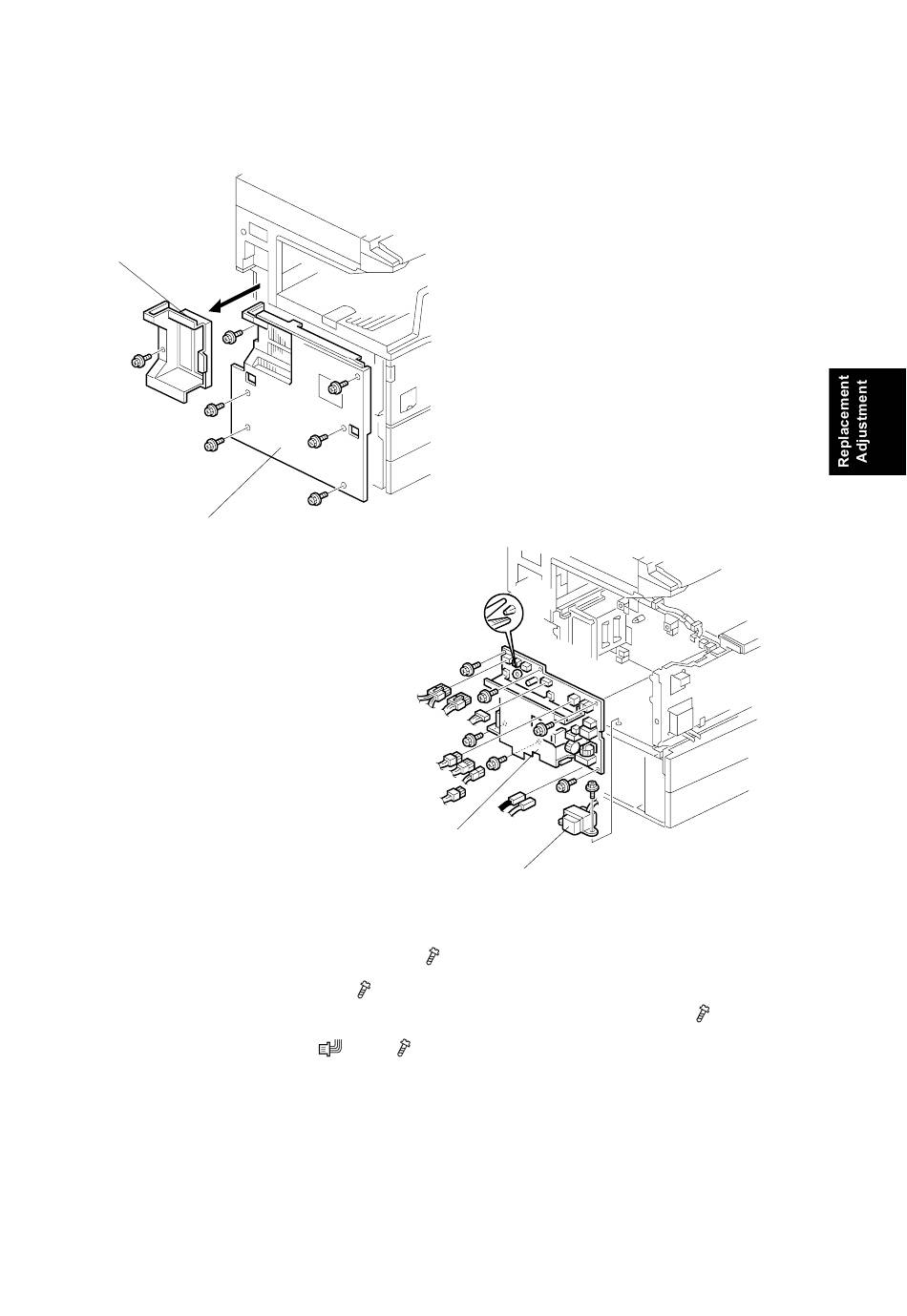

3.11.6 PSU

[A]
[B]
B205R963.WMF
[D]
[C]
B205R964.WMF
1. Remove the optional finisher if it has been installed.
2. Remove the application cover [A] ( x1).
3. Remove the left cover [B] ( x6).
NOTE: For the 220 V machine only, remove the transformer [C] ( x1).
4. Remove the PSU [D] ( x all, x6, Clip x1).
3-53
