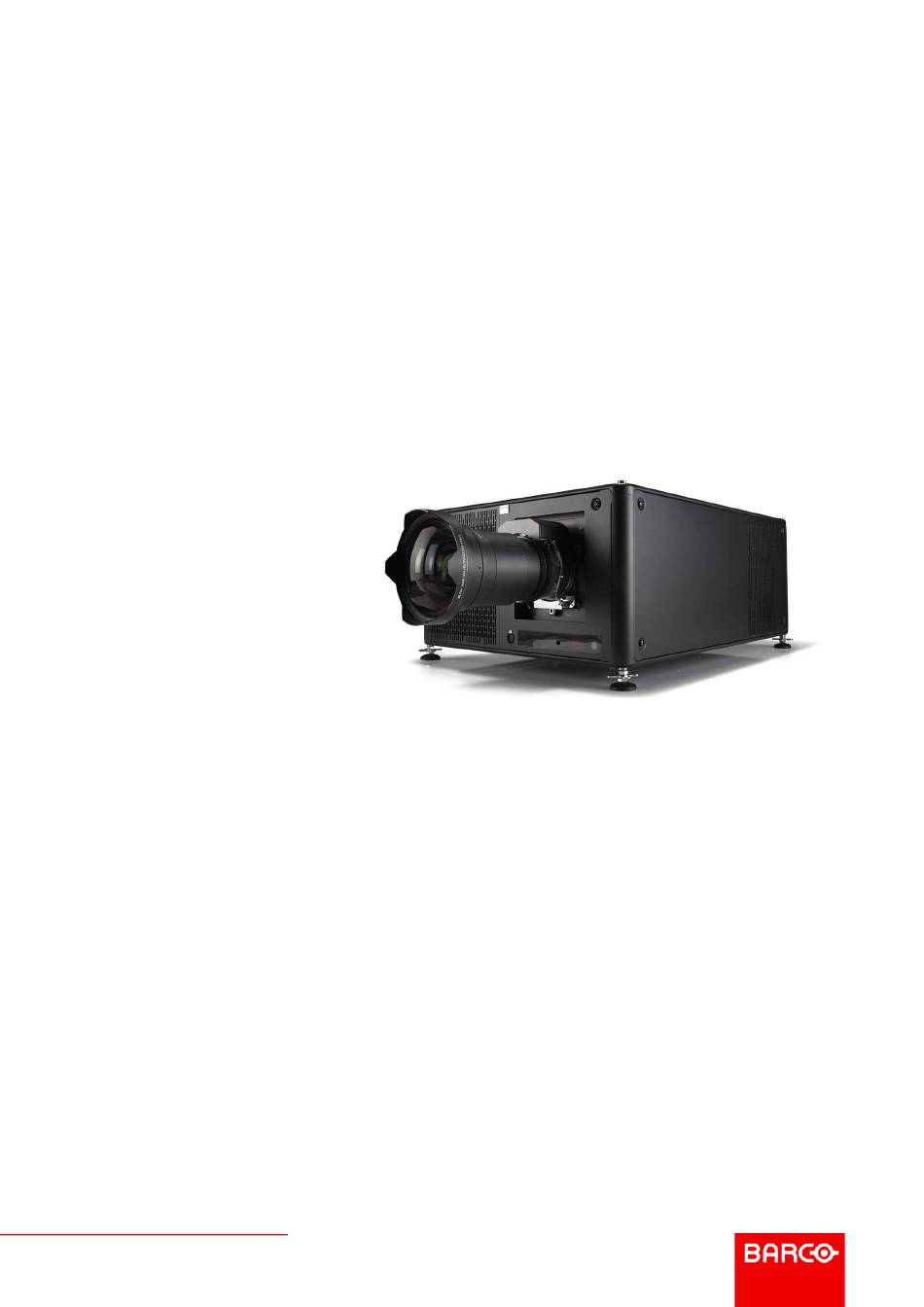

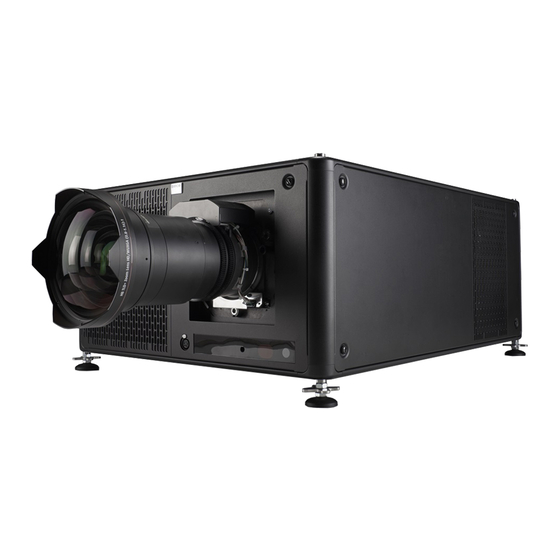

  • Page 1 User manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Product revision Software Revision: 2.2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 Disclaimer for camera usage Barco provides a kit with a laser range finder and USB camera to help measure the distance from the front of the projector to the projected surface and to help monitor the performance of the projector. Barco disclaims any liability for any use of the USB camera outside this intended use.

  • Page 5: Table Of Contents

    Table of contents 1 Safety information....................................9 General considerations ................................10 Safety training to be provided by the installer ......................... 11 Important safety instructions..............................12 Product safety labels..................................16 High Brightness precautions: Hazard Distance ......................16 HD for fully enclosed projection systems...........................18 HD in function of modifying optics ............................20 Radio equipment (optional) ...............................20 Compliance ......................................21 1.10...
  • Page 6 LED and Button indication chart .............................44 Pulse Quad Combo input Mk II ...............................45 Pulse Quad Combo input Mk I..............................46 Pulse Quad DP 1.2 input ................................47 Pulse SFP input ....................................48 5 GUI – Introduction....................................49 Overview......................................50 Navigation ......................................53 Test Patterns......................................55 6 GUI – Source ......................................57 Displaying a single source .................................58 Displaying multiple sources: Stitched layouts.........................58 Connector Settings ..................................60...
  • Page 7 10.17 Flex brightness ....................................151 10.18 Rigging frame Calibration................................ 152 10.19 Electronic Convergence................................153 10.20 Setting up the external cooler on a UDX......................... 154 10.21 Capture mode ....................................155 10.22 Login to advanced settings..............................156 10.23 List of open source licenses..............................156 11 Advanced Settings ...................................
  • Page 8 Cleaning the lens ..................................173 13.3 Cleaning the exterior of the projector..........................174 A Specifications ......................................175 Specifications of the UDX-4K40 ............................176 Specifications of the UDX-4K32 ............................177 Specifications of the UDX-4K26 ............................179 Specifications of the UDX-4K22 ............................180 Specifications of the UDX-W40............................

  • Page 9: Safety Information

    Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the UDX projector. Clarification of the term “UDX” used in this document When referring in this document to the term “UDX” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 11: Safety Training To Be Provided By The Installer

    1.2 Safety training to be provided by the installer Users definition The UDX projector is intended for persons who have been instructed and trained by a skilled person (installer or service personnel) to identify energy sources that may cause injury and to take precautions to avoid unintentional contact with or exposure to those energy sources.

  • Page 12: Important Safety Instructions

    Safety information Distance (HD). This shall be physically impossible by creating sufficient separation height and width or by placing optional barriers. Within the restricted area operator training is considered sufficient. The applicable separation heights and widths are discussed in “High Brightness precautions: Hazard Distance”, page Exclusion zone The projector radiates heat on its external surfaces and from ventilation ducts during normal operation.
  • Page 13 • Never stack more than 2 UDX projectors in a hanging configuration (truss) and never stack more than 3 UDX projectors in a base stand configuration (table mount).
  • Page 14 In the event of fire, use sand, CO or dry powder fire extinguishers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 15 For lens cleaning follow the instructions precisely as stipulated in the projector manual. • Only use zoom lenses of the Barco TLD+ series on the 4k models of the UDX. Using other lenses will damage the internal optics. For suitable fixed TLD+ lenses contact Barco or see Barco website.

  • Page 16: Product Safety Labels

    Safety information 1.4 Product safety labels Light beam related safety labels Label image Label description Label location Hazard RG3: not for household use symbol Hazard RG3: optical radiation warning symbol Hazard class 2: laser radiation warning symbol. 0.95 mW - 638 nm. DECEMBER 12, 2019 WARNING! DO NOT LOOK INTO THE LIGHT BEAM.
  • Page 17 Safety information Restriction Zone (RZ) based on the HD The HD depends on the amount of lumens produced by the projector and the type of lens installed. See chapter “HD in function of modifying optics”, page To protect untrained end users (as cinema visitors, spectators) the installation shall comply with the following installation requirements: Operators shall control access to the beam within the hazard distance or install the product at a height that will prevent spectators' eyes from being in the hazard distance.

  • Page 18: Hd For Fully Enclosed Projection Systems

    The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.
  • Page 19 Safety information Restriction Zone (RZ) based on the HD The projector is also suitable for rear projection applications; projecting a beam onto a defuse coated projection screen. As displayed in Image 1– 4 two areas should be considered: the restricted enclosed projection area (RA) and the observation area (TH).

  • Page 20: Hd In Function Of Modifying Optics

    NO PL 5250 MHz frequency range. UKNI Hereby, Barco declares that the radio equipment type UDX is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www. barco.

  • Page 21: Compliance

    Bracknell RG12 8PE, Berkshire, United Kingdom 1.10 Download Product Manual Download Product Manual Product manuals and documentation are available online at www.barco.com/td. Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply.
  • Page 22 Safety information R5906112 /15...

  • Page 23: Getting Started

    Getting started Getting to know the projector ......................24 Power on projector........................25 Start image projection ........................26 Switching to ready mode .......................29 Power off projector........................29 About this chapter This chapter and by extension this whole document, the user manual, is intended for the user who want’s to operate the projector.

  • Page 24: Getting To Know The Projector

    Getting started 2.1 Getting to know the projector Orientation convention This manual refers to the left side of the projector as the side at your left hand when standing behind the projector and looking at the projection screen in front of the projector. Image 2–1 Right Left...

  • Page 25: Power On Projector

    Getting started Image 2–3 Projector Infra Red receivers and Remote Control Unit The projector has three Infra Red receivers: one at the rear (next to the power input), one at the front (below the lens holder) and one at the right side (integrated in the Input & Communication module). Point the Remote Control Unit (RCU) directly to the Infra Red (IR) receiver.

  • Page 26: Start Image Projection

    The current mains input voltage is indicated on the voltmeter just above the power switch. The background image of the startup screen and info screens can be changed with Projector Toolset with an installed UDX plug-in. 2.3 Start image projection Connect the source Connect the source cable with the appropriate input port on the Input &...
  • Page 27 Getting started Image 2–8 Example of connecting an HDMI source. Check if the SYNC LED lit up ORANGE (reference 1). This indicates that the sync is detected on the input signal. Image 2–9 Select the source Press the Input button (reference I ) on the remote control or local keypad. Image 2–10 The Source selection menu opens on the LCD display.
  • Page 28 Getting started Image 2–11 Example of the input selection menu Use the arrow keys to select the desired source. • the SEL LED (reference 2) of the selected source lit up GREEN, and • the image of the selected source is projected. Image 2–12 Quick test pattern selection Press the Test pattern button (references P) on the remote control or local keypad.

  • Page 29: Switching To Ready Mode

    Getting started 2.4 Switching to ready mode How to switch to ready mode Press and hold the Power on/off button for 3 seconds on the local keypad, or press the Power Off button on the remote control. The projector goes to Ready mode. The after-cooling cycle will start (about 30 seconds). During this period the Power on/off button will blink.
  • Page 30 Getting started R5906112 /15...

  • Page 31: Pulse Remote Control Unit

    Pulse Remote Control Unit Pulse RCU, battery installation ......................32 Pulse RCU, protocol setup ......................33 Pulse RCU, function of the on/off button ..................33 Using the RCU ..........................34 Pulse RCU, Functionality overview ....................35 Pulse RCU, function of the “button pressed indicator” ..............35 Pulse RCU, function of the “RGB filter”...

  • Page 32: Pulse Rcu, Battery Installation

    Pulse Remote Control Unit 3.1 Pulse RCU, battery installation Where to find the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time. At delivery the batteries can be found in a separated bag attached to the remote control unit.

  • Page 33: Pulse Rcu, Protocol Setup

    Depending on the projector to control the remote control can be switched between these protocols. Which protocol to use • The NEC protocol has to be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, UDM, XDL, etc. •...

  • Page 34: Using The Rcu

    Using the RCU in combination with a 3D emitter When using a 3D emitter that radiates IR beams (e. g. the optional 3D emitter that Barco provides), the IR beams of the 3D emitter may interfere with the IR communication between projector and the RCU.

  • Page 35: Pulse Rcu, Functionality Overview

    Pulse Remote Control Unit 3.5 Pulse RCU, Functionality overview Remote Control Unit buttons Image 3–7 Button pressed indicator Backspace (while entering values) Shutter open XLR connector Shutter close Decimal mark (while entering values) LCD panel on / off Macro button Project OSD on / off Menu back Lens zoom...

  • Page 36: Pulse Rcu, Function Of The "Rgb Filter" Button

    Pulse Remote Control Unit 3.7 Pulse RCU, function of the “RGB filter” button Filtering the color of the projected image By pressing the RGB filter button on the RCU you can place a color filter on the output of the projector. This feature can be useful during the installation and configuration of a multi-projector or multi-channel setup.

  • Page 37: Using The Mini-Jack Connector Of The Rcu

    (optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non slip and soft touch. All buttons and holes remain accessible. The sleeve is quick and easy installed. For ordering information see Barco website.
  • Page 38 Pulse Remote Control Unit How to install Pull off the rubber XLR-lid from the RCU. Image 3–10 Place back side (XLR side) of the RCU into the sleeve and pull the other side of the sleeve over the front side of the RCU. Image 3–11 R5906112 /15...

  • Page 39: Input & Communication

    Input & Communication Introduction ..........................40 Local Keypad and LCD panel ......................40 LCD touch panel...........................41 Communication connections......................42 LED and Button indication chart.....................44 Pulse Quad Combo input Mk II ......................45 Pulse Quad Combo input Mk I .......................46 Pulse Quad DP 1.2 input .......................47 Pulse SFP input..........................48 R5906112 /15...

  • Page 40: Introduction

    Input & Communication 4.1 Introduction General The Input & Communication module consists of a local keypad with LCD panel (1), a communication panel (4) and a Quad Combo input board (5). The free input slot can be used for optional modules (e.g. the Quad DP 1.2 input board).

  • Page 41: Lcd Touch Panel

    Input & Communication Menu navigation Input selection Menu confirmation, OK button Shutter open / close Menu open / close Test patterns Menu back Lens adjustment Power on / off LCD panel Project OSD on / off Local Keypad The Keypad gives direct access to several functions, in addition to access to the menu system. The keypad has a backlight that can be switched on and off manually.

  • Page 42: Communication Connections

    Sub-D connector and an USB connector acting as RS input when connected to an USB input of a PC. You can use the RS232/RS422 input to connect a local PC to your UDX series projector. By this way you can configure and control your projector from your local PC.
  • Page 43 Input & Communication Advantages of using RS232/RS422 serial communication: • easy adjustment of the projector via PC (or MAC). • allow storage of multiple projector configurations and set ups. • wide range of control possibilities. • address range from 0 to 255. •...

  • Page 44: Led And Button Indication Chart

    Input & Communication 4.5 LED and Button indication chart Button Backlight Status Description Button Color status Power button Blinking WHITE (slow) Projector starts up (booting) Blinking WHITE (fast) Firmware upgrade Solid WHITE Projector is in Standby or Ready mode Blinking BLUE Projector goes to ON mode Solid BLUE Projector is ON...

  • Page 45: Pulse Quad Combo Input Mk Ii

    Input & Communication 4.6 Pulse Quad Combo input Mk II Overview Quad Combo Input Mk II Image 4–4 Quad SDI channel A: 3G/12G input DisplayPort Input Quad SDI channel B: 3G input HDMI input Quad SDI channel C: 3G SDI input + 3G/12G output HDBaseT input 1 Quad SDI channel D: 3G SDI input / output HDBaseT input 2...

  • Page 46: Pulse Quad Combo Input Mk I

    Input & Communication HD, 3G & 12G IN 0 OUT 0 IN 1 OUT 1 N.C. HD & 3G IN 0 OUT 0 N.C. IN 1 OUT 1 FPGA IN: HD & 3G SDI IN/OUT OUT 0 OUT: HD, 3G & 12G IN 0 N.C.

  • Page 47: Pulse Quad Dp 1.2 Input

    Input & Communication Remark concerning the Mk I and Mk II inputs boards The Mk I input board miss functionality that has been implemented on the Mk II input board. These missing features include: • Loop-through functionality • 12G SDI support •...

  • Page 48: Pulse Sfp Input

    Input & Communication 4.9 Pulse SFP input The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output Board. However, it is possible that the SFP Input board can also work with other third-party devices that support 12G over fiber.

  • Page 49: Gui - Introduction

    GUI – Introduction Overview .............................50 Navigation............................53 Test Patterns ..........................55 About this chapter This chapter gives an general overview of the Graphic User Interface. R5906112 /15...

  • Page 50: Overview

    GUI – Introduction 5.1 Overview Disclaimer on GUI images used in this manual The GUI images in this manual are example illustrations and should be treated as such. While the name of the projector displayed in the illustrations may be different from the projector model you are currently using, the menu lay-out and functionality is identical.
  • Page 51 GUI – Introduction Image 5–2 Example of the Product registration form GUI – Status Screens While the projector menu is not active, or the projector is Ready or Standby mode, the Status screens remain visible. These screens give an overview of the state of the projector and can be navigated through using the left and right arrow keys, or by swiping the screen left or right.
  • Page 52 GUI – Introduction The OSD can be disabled by pressing the OSD on/off button. Image 5–4 Example of the home menu The projector software platform uses access levels what each user can do. A standard user has access to the standard projector functionality.

  • Page 53: Navigation

    Only visible if specific option is installed Only visible on HDX4K Only visible on 4K models with actuators Only visible when motorized lens is installed Only visible on UDX & UDM Only visible when logged in as service user Only visible on UDM 5.2 Navigation Navigation via the RCU or local keypad Navigating the OSD can be done using the remote control or the local keypad.
  • Page 54 GUI – Introduction Image 5–6 To start up the menu structure, press MENU (1). Use the arrow keys (Menu Navigation buttons) to navigate to the desired menu item (2). The background color changes to light blue. Press the Menu Selection button (center key of the arrow keys), also called OK button, to activate that item and to jump one level deeper (3).

  • Page 55: Test Patterns

    GUI – Introduction To enter values with the local keyboard, use the arrow keys to select the first digit, press OK. Select the second digit and press OK. Continue until all digits are entered. Close the action by selecting the enter (↵) button and press OK.
  • Page 56 GUI – Introduction Example of test Type Explanation pattern icon Standard Standard test patterns. See previous list to see all test patterns test available for your device. patterns Warped test Available from software 2.2 onward. Every test pattern will have a patterns “warped”...

  • Page 57: Gui - Source

    GUI – Source Displaying a single source ......................58 Displaying multiple sources: Stitched layouts ..................58 Connector Settings ........................60 About the Source menu This menu is used to select, review and configure sources into the projector. R5906112 /15...

  • Page 58: Displaying A Single Source

    GUI – Source 6.1 Displaying a single source About selecting a source Before a source can be projected, the source signal must be connected to the source input(s) of the device and a valid synchronization signal must be available along with the source signal on at least one of the input connectors.
  • Page 59 GUI – Source The table below describes the different Stitch Layouts and scan directions. Type of layout Description Available connectors Mode A single source is displayed in Quad Combo input: Mono / Active full screen stereo • SDI (4x) • HDBaseT (2x) •...

  • Page 60: Connector Settings

    GUI – Source Image 6–4 Example of the stitched layout options Select the desired stitched input. Tip: If the Quad DP input board is installed, scroll all the way down the menu for the stitched options on that board. Image 6–5 Example of the stitched input options with the Quad DP board installed 6.3 Connector Settings About Connector Settings The Connector Settings menu allows you to change settings for each input connector of the projector.
  • Page 61 GUI – Source Image 6–6 Main menu, Source Press OK. The Select Source menu is displayed with the actual available sources filled out. Scroll down to the bottom of the list of available sources and select Connector Settings. Image 6–7 Source menu, connector settings The available input connectors are displayed.
  • Page 62 GUI – Source You can change the following: • To force a limit on the used signal range, select one of the available signal ranges. • To force a limit on the color space, select one of the available color spaces. •...

  • Page 63: Gui - Image

    GUI – Image Setting image levels manually......................64 Adjusting the sharpness ........................65 Adjusting the gamma correction.....................66 Setting the desired Gamma type ....................67 Digital Shift & Zoom ........................69 RealColor P7..........................73 Setting the output resolution ......................75 Displaying HDR content ........................76 Dynamic contrast..........................77 R5906112 /15...

  • Page 64: Setting Image Levels Manually

    GUI – Image 7.1 Setting image levels manually Purpose Contrast: Change the contrast of the complete output signal of the projected image. Brightness: Change the brightness of the complete output signal of the projected image. Saturation: Change the saturation of the complete output signal of the projected image. How to set up Contrast In the main menu, select Image →...

  • Page 65: Adjusting The Sharpness

    GUI – Image Image 7–4 Example of the image sliders, brightness is the second slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. How to set up Saturation Level In the main menu, select Image → Saturation. Image 7–5 Image menu —...

  • Page 66: Adjusting The Gamma Correction

    GUI – Image Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range: -2 to 8.

  • Page 67: Setting The Desired Gamma Type

    GUI – Image Image 7–10 Image menu – Gamma Use the ▼ key to select the slider. Use the ◄ or ► key to change the gamma value between 1.0 and 2.8 . The default value is 2,2. Tip: The slider can be adjusted with a precision of 0.1. Image 7–11 Example of the gamma menu 7.4 Setting the desired Gamma type About the alternate gamma types...
  • Page 68 GUI – Image If the source signal is HDR encoded an HDR icon will be visible next to the source signal. This is visible both in the Source selection menu, as well as the status menu. Image 7–12 Example of the HDR icon on the status menu For more info on PQ and HDR, refer to “Displaying HDR content”, page How to adjust the gamma type?

  • Page 69: Digital Shift & Zoom

    GUI – Image Image 7–15 Example of selecting a gamma type Tip: If not sure what gamma type to select, keep the default value auto selected. This automatic mode will determine the used gamma type based on the incoming signal. However: keep in mind when using the automatic mode, your media player needs to be configured correctly as well.
  • Page 70 GUI – Image Image 7–16 Originally picture, not digitally zoomed Image 7–17 Picture digitally zoomed in Image 7–18 Picture digitally zoomed out The effect of Digital Shift This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result, some parts of the picture might be shifted outside the DMD range.
  • Page 71 GUI – Image Image 7–19 Original Picture, not digitally shifted Image 7–20 Picture shifted horizontally Image 7–21 Picture shifted vertically Digital Shift & Zoom In the main menu, select Image → Digital Zoom Shift. Image 7–22 Image menu, digital zoom and shift The Digital Zoom Shift menu is displayed.
  • Page 72 GUI – Image Image 7–23 Example of the digital zoom and shift menu In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable the Shift slider. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu. Use the enter key to activate this mini-keypad.

  • Page 73: Realcolor P7

    Image 7–26 Advanced settings menu – RealColor P7 The P7 menu is displayed. Image 7–27 Example of the RealColor P7 menu, here on a UDX Select the desired Custom Mode. Select one of the following Custom options and confirm: •...
  • Page 74 Image 7–29 Example of the RealColor P7 menu Select one of the pre-defined presets: • Standard: A color standard for all UDX projectors, which may be considered the new native settings for all UDX projectors. Default for UDX. • Native: Projector native color settings.

  • Page 75: Setting The Output Resolution

    GUI – Image Image 7–30 Example of one of the presets, here DCI-P3 Note: After choosing one of the presets, you can still alter the values of the coordinates to your own choosing, similarly to how you set custom P7 values. Use the Reset icon to return to the default values of the chosen preset.

  • Page 76: Displaying Hdr Content

    GUI – Image Image 7–32 Example of the available output resolutions Select the desired output resolution. Possible resolutions: • 4K UHD: 4k images, using the actuator at normal frequency. • 4K UHD S: 4k extra sharp images, using the actuator at a higher frequency •...

  • Page 77: Dynamic Contrast

    GUI – Image The projected HDR content depends on the following factors: • Mastering luminance: This is content-specific and cannot be changed. • Screen luminance: Every projection screen has a specific luminance (measured in nits or foot-Lambert). Entering this luminance in the projector will adapt the content towards the intended HDR result. •...
  • Page 78 GUI – Image How to set the dynamic contrast? In the main menu, select Image → Advanced → DynaBlack. Image 7–36 The DynaBlack menu is displayed. Image 7–37 Example of the DynaBlack menu Select the desired dynamic contrast setting, or leave the default on (medium). The result will slowly become visible.

  • Page 79: Gui - Installation

    GUI – Installation Configuring the lens, optical zoom-focus ..................80 Configuring the lens, shift ......................80 Configuring the lens, dynamic focus ....................81 Configuring the lens, Shift to center....................82 Configuring the lens, tilt sensor ......................83 Laser ranging ..........................84 Manipulating the rigging frame ......................85 Manipulating the rigging frame, center position ................87 Orientation ...........................87 8.10 Scaling modes..........................88...

  • Page 80: Configuring The Lens, Optical Zoom-Focus

    GUI – Installation 8.1 Configuring the lens, optical zoom-focus What can be done? If a motorized lens has been mounted onto the projector, you can fine-tune the projected image. Zoom - Focus In the main menu, select Installation → Lens → Zoom focus. Image 8–1 Lens menu, Zoom &...

  • Page 81: Configuring The Lens, Dynamic Focus

    GUI – Installation Image 8–3 Lens menu, lens shift The Lens shift menu is displayed. Image 8–4 Example of the lens shift menu Use the ◄ and ► keys to shift the lens (image) in horizontal direction. Use the ▲ and ▼ keys to shift the lens (image) in vertical direction. 8.3 Configuring the lens, dynamic focus About focus drift and dynamic focus Due to the design of TLD + lenses and ultra-short throw lenses (UST lenses), these type of lenses tends to...

  • Page 82: Configuring The Lens, Shift To Center

    GUI – Installation Image 8–5 Example of the Lens menu In the Lens menu, click Dynamic focus to toggle between On and Off. Image 8–6 Lens menu, Dynamic focus enabled Image 8–7 Lens menu, Dynamic focus disabled Note: The Dynamic focus slider is only visible when the light source is on. 8.4 Configuring the lens, Shift to center What can be done? The lens can be forced back to the center position by selecting Shift to center.

  • Page 83: Configuring The Lens, Tilt Sensor

    GUI – Installation Image 8–9 Example of the Shift to center action The lens will calibrate itself and return to the center position. 8.5 Configuring the lens, tilt sensor When to use the tilt sensor menu The projector has a built-in tilt sensor that detects the angle at which the projector is mounted. If you are in a situation where you need to fine-tune the projector because you want to achieve a picture at a specific angle (e.

  • Page 84: Laser Ranging

    GUI – Installation If you notice the tilt sensor isn’t working correctly (e.g. when compared to a level), you can calibrate the sensor in the settings menu. For more info, see “Advanced settings – Tilt sensor calibration”, page 165. 8.6 Laser ranging What can be done? When the optional laser range finder is installed on the projector, you can use the laser source to measure the distance between the front of the projector and the surface you are projecting on.

  • Page 85: Manipulating The Rigging Frame

    GUI – Installation Image 8–14 Example of projected image during laser ranging session with measurement on screen By default the measurement is in meters. If you want the distance projected in feet, you can change the measurement system in the System settings menu. For more info, refer to “Units (measurement) system setup”, page 140.
  • Page 86 GUI – Installation Image 8–16 Example of the Motorized frame menu Press the OK key or button to activate the frame shift motors. Image 8–17 Example of horizontal and vertical frame shift Use the ▲ or ▼ button to shift the rigging frame (image) in vertical direction. Use the ◄...

  • Page 87: Manipulating The Rigging Frame, Center Position

    GUI – Installation 8.8 Manipulating the rigging frame, center position What can be done? The motorized frame can be forced back to the center position by selecting Center motorized frame. How to reset the motorized frame? In the main menu, select Installation → Lens → Center motorized frame. Image 8–19 Lens menu, Center motorized frame A confirm action prompt will be displayed.

  • Page 88: Scaling Modes

    GUI – Installation How to set the correct orientation In the main menu, select Installation → Orientation. Image 8–21 Installation menu, orientation The Orientation menu is displayed. Image 8–22 Example of the orientation menu Use the ◄ or ► keys to select the projector orientation mode and press OK to activate. 8.10 Scaling modes About scaling modes While the default mode of projection is to fill the screen while respecting the aspect ratio (fill aspect), it is also...

  • Page 89: Warping

    GUI – Installation Scaling Mode Explanation Example image Fill screen Fills the screen to the screen size defined in the Screen Size menu, while respecting the original aspect ratio. For more info on adjusting the Screen Size menu, see “Warping – Screen Size”, page Stretch This mode stretches the image to the screen size defined in the Screen Size menu, while ignoring the...

  • Page 90: Warping - On/Off

    GUI – Installation 8.11.1 Warping – On/Off About warping on/off By toggling between on and off the warping functionality can be enabled or disabled. How to toggle In the main menu, select Installation → Warp. Image 8–25 Installation menu, warp The Warp menu is displayed.
  • Page 91 GUI – Installation Image 8–29 Warp outline example Using the screen aspect ratio presets In the main menu, select Installation → Warp → Screen Size. Image 8–30 Warp menu, screen size The Screen Size menu is displayed. Image 8–31 Example of the screen size menu Click on one of the predefined presets for the screen aspect ratio.
  • Page 92 GUI – Installation Image 8–32 Example of the screen size menu, with preset “3:2” selected. The selected ratio is filled out next to Screen width and Screen height. Click Apply. How to adjust the image with pixels? In the main menu, select Installation → Warp → Screen Size. Image 8–33 Warp menu, screen size The Screen Size menu is displayed.

  • Page 93: Warping - 4 Corners Adjustment

    GUI – Installation Image 8–35 Example of the Screen size menu, editing the screen width Tip: A red border will be projected along with the current image. The border is a visual tool, showing the result of the adjusted outline. Image 8–36 Tip: The value can also be entered by the numeric keys on the remote control.
  • Page 94 GUI – Installation Image 8–37 4 corner adjustment How to adjust the image? In the main menu, select Installation → Warp → 4 Corners. Image 8–38 Warp menu, 4 corners The 4 corners menu is displayed. Image 8–39 Example of the 4 corners menu To enable 4 Corners warping, enable the 4 corner slider.

  • Page 95: Warping - Bow

    GUI – Installation Image 8–40 Example of 4 corners warping menu, with helper lines active on the edges of the screen To set warping on one of the four corners, select one of the four corners and confirm. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm. After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were enabled).
  • Page 96 GUI – Installation Image 8–42 Bow distortion Definition of angle and linearity (length) in the bow warp procedure Image 8–43 Symmetric bow correction In the main menu, select Installation → Warp → Bow. Image 8–44 Warp menu, Bow The bow menu is displayed. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
  • Page 97 GUI – Installation Image 8–45 Both the Bow and Symmetric sliders are set to on Use the arrow keys to select the helping lines that represent the picture and confirm. The helping lines that represent the projected picture are now colored blue, while the others are colored white.
  • Page 98 GUI – Installation The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. Image 8–48 Example of a symmetric bow correction Asymmetric bow correction In the Bow menu, enable the Bow slider and disable the symmetric slider.

  • Page 99: Warping - Warp Files

    GUI – Installation Select the desired slider and confirm. Image 8–51 Adjust angle and linearity (length) individually to obtain the correct correction. Press enter to confirm and to switch between angle and length. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys.
  • Page 100 GUI – Installation For more information on uploading/downloading Warp files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. When uploading a warp file that is too big, or with warp parameters outside the limits of the projector, some irregularities can occur.

  • Page 101: Warping - Latency Control In A Multi Projector Setup

    GUI – Installation Image 8–56 Example of the Warp files menu 8.11.6 Warping – Latency control in a multi projector setup Transport latency The added delay in the image processing chain. The value is the number of lines relative to the output resolution.

  • Page 102: Blending & Masking

    GUI – Installation Image 8–58 Installation menu, Warp In the Warp menu, select Transport Delay. Image 8–59 Warp menu, Transport delay The Transport menu is displayed. Image 8–60 Example of the Transport delay menu Enter the value either by the arrow keys (one step at a time) or directly by the numeric keys on the remote control.

  • Page 103: Basic Blend

    GUI – Installation Width, Projector 1 Width, Projector 2 Picture frame Picture frame Projector 1 Projector 2 Overlap / Blend Zone Image 8–61 From the start (mask) position, you can blend zone size per edge (left, top, right, bottom). For each edge there will be a drop-off curve for the blend zone.
  • Page 104 GUI – Installation Image 8–63 Example of the basic blend menu To enable blending, put the Enable switch to the right. The color of the switch becomes blue when enabled. To project masking lines on the screen, put the Show lines switch to the right. The color of the switch becomes blue when enabled.

  • Page 105: Blend & Blend Mask

    GUI – Installation Do not forget to disable the Show lines button after you achieved the desired blend zone. 8.12.2 Blend & Blend mask About masking and blending width or height Offset is used to clip the image on one or multiple sides (masking). This is used to hide parts of the picture that should not be shown on the screen.
  • Page 106 GUI – Installation Image 8–67 Start position (mask) Blending width Select one of the four starting positions values with the arrow keys and confirm. Use the arrow keys or remote digits to change the value of the mask and confirm. Repeat this process for all other desired sides.

  • Page 107: Blend Files

    GUI – Installation Image 8–68 Set up for projector 1 Image 8–69 Set up for projector 2 8.12.3 Blend Files About custom Blend Files Next to setting your specific Blending configuration in the GUI, you can also upload or download a custom Blend configuration file in png, jpg or tiff format to/from the projector.

  • Page 108: Basic Black Level Adjustment

    GUI – Installation Image 8–70 Blend and mask menu, Blend files The Blend Files menu is displayed. Image 8–71 Example of the blend files menu If any custom Blend files are available, select the desired file. Image 8–72 To enable the selected blend file, make sure the Enable slider is set to the right. The color of the slider becomes blue when enabled.
  • Page 109 GUI – Installation You can also specify the offsets manually by turning off the automatic calculation. The black level value is adjusted in a 16–bit resolution from 0 to 65535. The following figure shows how this occurs in a side by side configuration without any correction of the black level.

  • Page 110: Rgb Gain Adjustment

    GUI – Installation This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side. Note: Do not forget to disable the Show lines button after you achieved the desired blend zone. 8.12.5 RGB gain adjustment About RGB gain adjustment The purpose of black level correction is to ensure a uniform black level in multi projector setups.

  • Page 111: Black Level Files

    GUI – Installation Image 8–78 Example of the default black level menu Select one of the three sliders on the bottom of the menu (Red, Green or Blue). Use the left and right arrow keys to modify the gain of the chosen color. Repeat for every slider until the desired result is achieved on screen.

  • Page 112: Illumination

    GUI – Installation Image 8–80 Example of the black level files menu If any custom Black Level adjustment files are available, select the desired file. Image 8–81 Example of custom black level files selected Make sure the Enable slider is set to the right to activate the selected black level file 8.13 Illumination What can be done? Within a certain percentage, the light output of the light source can be reduced by reducing the power slider.

  • Page 113: Projection

    GUI – Installation CLO can not be used when the light source is off, the shutter is closed or if the Dynamic Black feature is active (if available). How to reduce the power In the main menu, select Installation → Illumination. Image 8–82 Installation menu, illumination The Illumination menu is displayed.

  • Page 114: Setup Process 3D Projection

    GUI – Installation To present stereoscopic pictures, two images are projected superimposed onto the same screen through polarizing filters or presented on a display with polarized filters. For Digital Cinema, a silver screen is used so that polarization is preserved. On most passive displays every other row of pixels are polarized for one eye or the other.

  • Page 115: Setup

    Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
  • Page 116 Image 8–84 Installation menu, 3D setup The 3D setup menu is displayed. Image 8–85 Example of the 3D setup menu on a UDX If it is necessary to invert the stereo sync output, enable the Swap eyes option. If the projected moving 3D content doesn’t look smooth enough, enable the Swap frame pair option to help improve this.

  • Page 117: Gui - Projector Profiles

    GUI – Projector profiles Saving the current projector settings in a profile ................118 Assigning a created projector profile to a preset ................120 Deleting a projector profile......................121 About projector profiles The profile function makes it possible to store different profiles / projector setups for different use cases, and quickly recall them when needed.

  • Page 118: Saving The Current Projector Settings In A Profile

    GUI – Projector profiles 9.1 Saving the current projector settings in a profile Which settings can be saved to a profile? Profile domain Settings saved name Illumination • Illumination power for each source • Light sensor enabled / disabled • Light sensor set point Source Active source selection &...
  • Page 119 GUI – Projector profiles How to save the current projector settings? In the main menu, select Profiles → Edit. Image 9–1 Profiles menu, edit The Profile edit menu is displayed. Image 9–2 Profile edit menu Use the arrow keys to select New Profile... and confirm. The New Profile pane is expanded and fully displayed.

  • Page 120: Assigning A Created Projector Profile To A Preset

    GUI – Projector profiles 9.2 Assigning a created projector profile to a preset This procedure assumes you have created at least one projector profile. For more info on saving projector settings to a profile, see “Saving the current projector settings in a profile”, page 118.

  • Page 121: Deleting A Projector Profile

    GUI – Projector profiles Image 9–7 Example of projector profiles allocated to preset slots (here slot 00 and 04) 9.3 Deleting a projector profile How to delete a profile In the main menu, select Profiles → Edit. Image 9–8 Profiles menu, edit The edit menu is displayed.
  • Page 122 GUI – Projector profiles Image 9–10 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. R5906112 /15...

  • Page 123: Gui - System Settings

    10.17 Flex brightness........................... 151 10.18 Rigging frame Calibration ......................152 10.19 Electronic Convergence ......................153 10.20 Setting up the external cooler on a UDX ..................154 10.21 Capture mode ..........................155 10.22 Login to advanced settings ......................156 10.23 List of open source licenses......................156...

  • Page 124: Remote Control

    The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 10.1.2 Projector address About individual projector address As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or with a computer using serial communication.

  • Page 125: Ir Sensors

    GUI – System Settings How to change In the main menu, select Settings → Communication → IR control. Image 10–3 Communication menu, Remote Control The Remote control menu is displayed. Image 10–4 Example of the Remote control menu Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes.

  • Page 126: Host Name - Custom Projector Name Setup

    The default host name of the projector is the projector type along with the serial number of your projector (e.g. “UDX-4K40-0123456789”). You can change this name to make it easier to spot in a network with multiple devices or projectors How to set a different Host name In the main menu, select Settings →...

  • Page 127: Communication, Lan Setup

    GUI – System Settings Image 10–8 Example of the host name menu Press confirm to edit the Host name field. Use the digital keyboard to change the Host name to the desired custom name. Press the OK key, or press the enter icon to confirm the typed name. Click Apply to update the host name. 10.3 Communication, LAN setup About a network connection A network connection can be made via a wired connection or via the optional wireless unit.

  • Page 128: Wired Ip Address Set Up

    GUI – System Settings What should be set up for an Ethernet address? Two ways can be used to assign an address: • use the Automatic setting so that an automatic address will be assigned. • Assign manually an IP address, Net-mask (subnet-mask), (default) gateway address. Set the IP-Address field to the desired value.
  • Page 129 GUI – System Settings Image 10–11 Communication menu, LAN The LAN menu is displayed Image 10–12 Example of the LAN menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–13 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.

  • Page 130: Wireless Ip Address Set Up

    GUI – System Settings 10.3.3 Wireless IP address set up When can the wireless IP address be used? When the optional WiFi module has been installed on the projector, you can configure the projector in such a way it can access the network via WiFi instead of a LAN cable. For more information on how to install the WiFi module, please refer to the installation manual.
  • Page 131 GUI – System Settings Tip: If the desired wireless network is not in the list or hidden by default, select Other network. A form will pop up, allowing you to fill in the details of the network. Image 10–17 Example of the entry form to search for other wireless networks If required by the chosen wireless network fill in the user name, password and confirm.
  • Page 132 GUI – System Settings Image 10–19 Example of the WiFi menu Make sure the Enable slider is set to the right to enable the WiFi module. The color of the slider becomes blue. Disable the Automatic slider by setting it to the left. The switch becomes gray. Image 10–20 Use the arrow keys to select Address and press OK button to activate the input box.

  • Page 133: Lan Over Hdbaset Tm Ip Address Set Up

    GUI – System Settings Image 10–21 Example of the available networks list. Press Connect to connect to the selected network. If required by the chosen wireless network, fill in the username and password and confirm. When connected to this network, it is indicated in the upper right corner of the menu with the term “connected”.
  • Page 134 GUI – System Settings Image 10–23 Example of the HDBaseT menu To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue. An IP address will be automatically assigned if it can make a connection to the network.. When connected, it is indicated with the connection symbol and the indication Connected.

  • Page 135: Dmx

    GUI – System Settings Image 10–26 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
  • Page 136 GUI – System Settings DMX Feature What can be done? If no DMX signals are available, you can reset the intensity value to its default (maximum) value of 255 using the Max Intensity button. Auto power The projector can be forced to shut down after a certain time-out period if no DMX signals down are available.

  • Page 137: Front Xlr Output Voltage Control

    12 V. The motorized rigging frame on the other end requires 24 V. Location of the XLR connector Image 10–29 Location of the XLR connector on the UDX How to enable or disable? In the main menu, select System Settings → Communication → DMX.

  • Page 138: Gsm Configuration

    GUI – System Settings 10.6 GSM configuration Only possible when a GSM module with SIM card is installed in the projector. When to use the GSM menu The GSM menu by itself does not have any functionality. The main purpose of this menu is to read out the necessary data from the SIM card in the GSM module.

  • Page 139: Changing The User Interface Language

    GUI – System Settings 10.7 Changing the User Interface language How to change the language of the user interface In the main menu, select Settings → User interface → Language. Image 10–34 Interface The Language menu is displayed. Image 10–35 Example of the Language menu Select the desired language.

  • Page 140: Units (Measurement) System Setup

    GUI – System Settings Image 10–36 Settings menu, themes In the themes menu, select the desired Theme. You can choose one of the following: Light, or Dark. 10.9 Units (measurement) system setup About the measurement systems You can use this menu to change the default measurement systems. By default the metric system is used. But you can choose between the following: •...

  • Page 141: Controlling The Backlight Of The Lcd Display

    GUI – System Settings 10.10 Controlling the backlight of the LCD Display What lighting can be controlled? You can choose how quickly the backlight of the LCD turns off. You can select one of the default values, or enter a custom value. Stealth Mode Alternatively, you can turn on Stealth Mode instead.

  • Page 142: Date And Time Setup - Automatically

    GUI – System Settings Image 10–41 Settings menu, Date and time The Date and time menu is displayed. Image 10–42 Example of the Date and time menu Disable the Automatic slider. Gray slider: automatic is off Blue slider: automatic is on Select Date The Date dialog is prompted.
  • Page 143 GUI – System Settings Image 10–43 The Date and time menu is displayed. Enable the Automatic slider. Image 10–44 Gray slider: automatic is off Blue slider: automatic is on Select Server and click OK. Image 10–45 Enter the name or the IP address of the NTP server. Tip: In case you cannot connect to an external NTP server although you can PING this server, the connection is blocked by the local firewall policy.

  • Page 144: Power Saving Settings - Standby Mode

    GUI – System Settings Image 10–46 The list of cities is updated according the selected region. Select City and select the city corresponding with your time line. Select Apply to activate. 10.13 Power saving settings – Standby mode Why change the power saving features? As a power-saving feature, if the projector is projecting no image, it will automatically go to Ready mode and later Standby mode after 15 minutes each.

  • Page 145: Lens Features

    GUI – System Settings Image 10–48 Example of the Standby mode menu Select the desired standby time-out timeframe, or disable standby mode all together by selecting Ready. Image 10–49 Example of the Standby mode menu with Standby mode disabled Tip: When Ready is chosen, the projector will remain in Ready mode regardless of the timeframe, unless the main power is cut or the projector is turned OFF.

  • Page 146: Factory Reset

    GUI – System Settings Image 10–51 Example of the lens features menu Depending on the mounted lens type, different functions may or may not be available such as: • Focus • Horizontal lens shift • Vertical lens shift • Zoom To enable/disable a feature, click on the slider and drag it to the left to disable the feature or the right to enable the feature.
  • Page 147 GUI – System Settings Option / Domain Setting Factory setting Blend Files Note: All uploaded blend and black level files will be deleted ImageCapture Camera Camera disabled, all measurements reset to 0 Connectors Signal range Auto Color space Auto EDID Default EDID for projector type Note: All uploaded custom EDID files will be deleted.
  • Page 148 GUI – System Settings Option / Domain Setting Factory setting Peripheral Settings for External Cooler Cooling mode set to internal. Settings for Motorized Frame All values to mid value Profiles Settings for projector profiles All profiles will be deleted Screen Screen luminance unit nits Screen Luminance...

  • Page 149: Lens Calibration

    GUI – System Settings Image 10–53 Example of the reset menu In the Reset menu, select RESET ALL and confirm with OK. How to reset one or more projector settings In the main menu, select Settings → Maintenance → Reset. Image 10–54 Settings menu, factory reset The Reset menu is displayed.
  • Page 150 GUI – System Settings Image 10–56 Maintenance menu, lens calibration The Lens Calibration menu is displayed, alongside the status of each Image 10–57 Example of the lens calibration menu In the Lens Calibration menu, select the desired calibration action and click OK. You can select one of the following functions, depending on the type of mounted lens: •...

  • Page 151: Flex Brightness

    GUI – System Settings 10.17 Flex brightness This feature is available by default on the following devices: UDX 4k40, UDX W40. This feature is also available as an option on the following devices: UDX 4K32, UDX 4K26, UDX W32, UDX W26. Overview With the FLEX technology the projector owners can lock the light output to different levels.

  • Page 152: Rigging Frame Calibration

    GUI – System Settings Image 10–60 Example of the Flex license menu Choose the desired Light output (in lumens) for which you have a code available. Enter the code via the OSD menu and confirm. Image 10–61 Example of entering the code in the Flex license menu 10.18 Rigging frame Calibration How to calibrate the motorized rigging frame In the main menu, select Settings →...

  • Page 153: Electronic Convergence

    GUI – System Settings Image 10–63 Example of the Frame calibration menu In the Frame Calibration menu, select the desired calibration action and click OK. You can select one of the following functions: • Horizontal shift • Vertical shift • Rotation The text Calibrating will be displayed until the calibration is completed.

  • Page 154: Setting Up The External Cooler On A Udx

    Tip: Press Reset to return all values to the factory settings. Repeat all steps until the desired alignment is achieved. 10.20 Setting up the external cooler on a UDX Using the external cooler When the external cooler for the projector is correctly installed, the Cooling menu will be enabled and visible in the menu.

  • Page 155: Capture Mode

    GUI – System Settings Image 10–68 Installation menu, Cooling The Cooling menu is displayed. Image 10–69 Example of the cooling menu In the Cooling menu, select the desired cooling option. Note: After changing the settings, it can take up to 1 minute for the changed settings to take effect. 10.21 Capture mode Why use capture mode? Various technical features are used inside the projector to display the best possible image on the projected...

  • Page 156: Login To Advanced Settings

    GUI – System Settings 10.22 Login to advanced settings How to login In the main menu, Settings → Maintenance → Login. Image 10–72 The Login menu is displayed. Image 10–73 There are 2 ways to login: • Via user & password, go to step 2 •...
  • Page 157 GUI – System Settings How to find the open source licenses For the complete and most up-to-date list of the used open source software and the version used, go to the main menu and select Settings → General → Open source licenses. Image 10–74 General menu –...
  • Page 158 GUI – System Settings R5906112 /15...

  • Page 159: Advanced Settings

    Advanced Settings 11.1 Remote access – Enable source preview ..................160 11.2 Remote access – Enable camera preview ..................161 11.3 Advanced Settings – Color ......................162 11.4 Advanced Settings – Statistics..................... 163 11.5 Checking the status of the Laser Banks ..................164 11.6 Advanced settings –...

  • Page 160: Remote Access - Enable Source Preview

    Advanced Settings 11.1 Remote access – Enable source preview Source preview Up until Pulse software 2.0. x, you were able to see a preview of the connected source when you remotely accessed the projector. This was a feature you could disable using Projector Toolset. However, from Pulse 2.1.

  • Page 161: Remote Access - Enable Camera Preview

    Advanced Settings 11.2 Remote access – Enable camera preview Camera preview Up until Pulse software 2.0.x, you were able to see the footage of the camera when you remotely accessed the projector. This was a feature you could disable using Projector Toolset. However, from Pulse 2.1.

  • Page 162: Advanced Settings - Color

    Advanced Settings 11.3 Advanced Settings – Color CAUTION: The native colors have been measured and set during factory production. Do not change them, unless parts of the optical path have been replaced due to servicing. If you need to change the native colors on the device, make sure to also perform a P7 calibration, using the Projector Toolset and a chroma meter.

  • Page 163: Advanced Settings - Statistics

    Advanced Settings 11.4 Advanced Settings – Statistics What can be seen? The statistics screen shows the general information about the projector, spread over two tab pages. The following items will be displayed: • Laser runtime • Laser Strikes • Laser bank x runtime •...

  • Page 164: Checking The Status Of The Laser Banks

    Advanced Settings 11.5 Checking the status of the Laser Banks About failing laser banks The projector is powered by a laser light source, which has multiple laser banks. The light output and color performance is dependant on the number of active laser banks. If one or more laser banks have failed of a certain type, you will notice a decreased light input and decrease in color performance.

  • Page 165: Advanced Settings - Tilt Sensor Calibration

    Advanced Settings Image 11–17 Example of the laser bank group menu If you want notifications to be disabled for a specific group of laser banks, disable the Enable notifications for this group slider. 11.6 Advanced settings – Tilt sensor calibration CAUTION: The calibration procedure resets the values of the tilt sensor to 0 in the current position of the projector.
  • Page 166 Advanced Settings Image 11–20 Example of the Advanced menu with the Tilt sensor menu The tilt sensor will be set to zero in the current position of the projector. R5906112 /15...

  • Page 167: Gui - Status Menu

    GUI – Status menu 12.1 Status menu overview......................... 168 No settings can be modified in the status menu. Its only for consulting. R5906112 /15...

  • Page 168: Status Menu Overview

    GUI – Status menu 12.1 Status menu overview How to access the status menu While in the main menu, press Status. Image 12–1 Main menu, status The status menu is displayed. Image 12–2 Example of the first page of the status menu Swipe the screen left of right to swap between the Status pages.
  • Page 169 GUI – Status menu What can be seen on the About page? • Projector information, e.g. firmware version, serial number, projector article number and registration status (only if applicable for your device) • Mounted lens: Lens type and Lens description (if available). •...
  • Page 170 GUI – Status menu R5906112 /15...

  • Page 171: Projector Maintenance

    Projector maintenance 13.1 Software update ......................... 172 13.2 Cleaning the lens........................173 13.3 Cleaning the exterior of the projector .................... 174 About this chapter This chapter contains general maintenance procedures. R5906112 /15...

  • Page 172: Software Update

    Download the latest firmware (format .fw) from Barco's website in the same way as for Projector Toolset. Start Projector Toolset and make a connection with the projector. For more information, see the “Projector Toolset”...

  • Page 173: Cleaning The Lens

    Always contact Barco if you want to make sure a downgrade will not hurt your device.

  • Page 174: Cleaning The Exterior Of The Projector

    Projector maintenance If there are still fingerprints on the surface, wipe them off with lens cleaner together with a clean lens cleaning cloth. Polish again with a dry one. If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth.

  • Page 175: A Specifications

    Specifications Specifications of the UDX-4K40 ....................176 Specifications of the UDX-4K32 ....................177 Specifications of the UDX-4K26 ....................179 Specifications of the UDX-4K22 ....................180 Specifications of the UDX-W40 ....................182 Specifications of the UDX-W32 ....................184 Specifications of the UDX-W26 ....................185 Specifications of the UDX-W22 ....................

  • Page 176: Specifications Of The Udx-4K40

    3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 37,500 (WQ)/36,500 (4K UHD) center lumens // 36,500 (WQ)/35,500 (4K UHD) ansi lumen // 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...

  • Page 177: Specifications Of The Udx-4K32

    3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 31,000 (WQ)/30,000 (4K UHD) center lumens* // 30,000 (WQ)/29,000 (4K UHD) ansi lumens // 33,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
  • Page 178 Specifications Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) Color correction Light source laser phosphor with inorganic phosphor wheel Light source lifetime 25,000 hrs Optical dowser Digital Picture-by-picture Two sources simultaneously Orientation 360°...

  • Page 179: Specifications Of The Udx-4K26

    3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 26,000 (WQ)/25,000 (4K UHD) center lumens // 25,000 (WQ)/24,000 (4K UHD) ansi lumens // 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1 ;...

  • Page 180: Specifications Of The Udx-4K22

    Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations part 15 Class A and CE EN55022 Class A, Rhos Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.4 Specifications of the UDX-4K22 Specifications...
  • Page 181 Specifications Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1...

  • Page 182: Specifications Of The Udx-W40

    Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable. Check with your local authorized Barco sales representative for full details. A.5 Specifications of the UDX-W40 Specifications...
  • Page 183 Specifications Sealed DLP™ core standard DMX 512 standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Keystone correction Integrated web server CLO (constant light output) Standard Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz* Inputs Single HDBaseT;...

  • Page 184: Specifications Of The Udx-W32

    Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 32,000 center lumens/ 31,000 ansi lumen / 34,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ;...

  • Page 185: Specifications Of The Udx-W26

    0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 26,000 center lumens / 25,000 ansi lumens / 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1;...
  • Page 186 Specifications Light source lifetime 40,000 hrs Optical dowser Digital Picture-by-picture Two sources simultaneously Sealed DLP™ core standard Orientation 360° DMX 512 standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Keystone correction Integrated web server CLO (constant light output) Standard Active eye wear (optional), passive circular (optional);...

  • Page 187: Specifications Of The Udx-W22

    Specifications Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.8 Specifications of the UDX-W22 Specifications Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 21,000 center lumens* / 20,000 ansi lumens / 22,500 ISO...

  • Page 188: Specifications Of The Udx-U45Lc

    Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.9 Specifications of the UDX-U45LC Specification...
  • Page 189 Specifications Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) Color correction Light source...

  • Page 190: Specifications Of The Udx-U40

    0.96" DMD™ x3 Resolution 1600 x 1200 Brightness 37,500 center lumen/ 36,500 ansi lumens / 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ;...

  • Page 191: Specifications Of The Udx-U32

    UXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,600 x 1,200 Brightness 30,000 center lumens / 29,000 ansi lumen / 32,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio R5906112 /15...
  • Page 192 Specifications ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0- 2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses)

  • Page 193: Specifications Sdi Inputs

    Specifications Dissipation BTU Max. 9,895 BTU/h Dimensions (WxLxH) 660 x 830 x 350 mm / 25.98 x 32.7 x 13.78 inches Shipping Dimensions (WxLxH) 800 x 1,200 x 685 mm / 31.49 x 47.24 x 26.96 inches Weight 92 kg (202 lbs)/shipping weight from factory: 110 kg (242 lbs) Standard accessories Power cord, wireless/XLR wired rugged remote control, bottom rigging kit/ clamps...

  • Page 194: Specifications Hdmi Inputs

    • Up to 4096 x 2160 @50 Hz • Up to 4096 x 2160 @60 Hz Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz A.14 Specifications HDBaseT inputs...

  • Page 195: Specifications Displayport 1.2 Inputs

    • 2048 x 2160 @50 Hz • 2048 x 2400 @60 Hz Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2160 @60 Hz CAUTION: The HDBaseT inputs can bridge a distance of 100 m but are sensitive to radiated electromagnetic interference: radiated electromagnetic interference (e.g.
  • Page 196 Specifications Color depth • 24 bpp • 30 bpp • 36 bpp Data rate support • 1.62 Gbps: Reduced Bit Rate (RBR) • 2.7 Gbps: High Bit Rate (HBR) • 5.4 Gbps: High Bit Rate 2 (HBR2) For future release •...

  • Page 197: Specifications Sfp Inputs

    2 column mode (2x1 1920 x 2160 @60 Hz stereo layout) Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz CAUTION: In order to display high resolution images (e.g.: 3840 x 2160 @60 Hz) via the DP1.2 input, the quality of the cable must be adequate, in addition the length of the cable can also influence the performance.
  • Page 198 Specifications R5906112 /15...

  • Page 199: B Video Timing Tables

    Video timing tables Overview video timings ....................... 200 Overview video timings SDI Inputs ....................201 Overview video timings HDMI 2.0 inputs..................202 Overview video timings DisplayPort 1.2 inputs ................204 Overview video timings HDBaseT inputs ..................206 About this chapter This chapter contains the tables with video timings for video interfaces.

  • Page 200: Overview Video Timings

    B.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.

  • Page 201: Overview Video Timings Sdi Inputs

    Video timing tables Compatible signal 12G SDI Input on Mk Vertical II Input HDBaseT & refresh rate Resolution HDMI 2.0 3G SDI DisplayPort board & HDMI 1.4 (Hz) Inputs Inputs 1.2 Inputs Fiber Inputs Network Inputs 2048 x 1080 — —...

  • Page 202: Overview Video Timings Hdmi 2.0 Inputs

    Video timing tables Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1280 x 720 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link &...
  • Page 203 Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 1024x 768 1280 x720 Frame packing Top – bottom 1280 x 720 Frame packing Top – bottom 1280 x 800 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200 1920 x 1080...

  • Page 204: Overview Video Timings Displayport 1.2 Inputs

    Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 4096 x 2160 4096 x 2160 B.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing...
  • Page 205 Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 1280 x 1600 4 Quadrant mode (2 x 2 Active 3D layout) 1400 x 1050 1600 x 1200 1600 x 1200...

  • Page 206: Overview Video Timings Hdbaset Inputs

    Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 Passive Stereo 3840 x 2400 3840 x 2400...
  • Page 207 Video timing tables Video timing Vertical refresh rate (Hz) (active pixels x active lines) 1920 x 1080 1920 x 1200 1920 x 1200 1920 x 2160 1920 x 2160 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 2160...
  • Page 208 Video timing tables R5906112 /15...

  • Page 209: C Dmx Chart

    DMX chart DMX chart input board positioning ....................210 DMX chart, Basic........................210 DMX chart, Extended........................211 R5906112 /15...

  • Page 210: Dmx Chart Input Board Positioning

    DMX chart C.1 DMX chart input board positioning About the input boards 6 Input selection ranges are reserved in the DMX chart per input board location (named L1 and L2). With the current version of DMX support, it is important to take into account to keep the input boards in their original slots.

  • Page 211: Dmx Chart, Extended

    DMX chart Function Value Default Action 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1 second) 152 - 159 Select input 9: Quad DP board Input C (if held for 1 second) 160 - 167...
  • Page 212 DMX chart Function Value Default Actions 128 - 135 Select input 6: Quad SDI input (if held for 1 second) 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1 second) 152 - 159 Select input 9: Quad DP board Input C (if held for 1...
  • Page 213 DMX chart Function Value Default Actions 24 - 31 Calibrate lens (zoom, focus and shift) (if held for 5 seconds) 32 - 255 Reserved for future functionality R5906112 /15...
  • Page 214 DMX chart R5906112 /15...

  • Page 215: D Regulatory Information

    Regulatory information Product compliance ........................216 China RoHS compliance ......................217 Taiwan RoHS compliance......................218 Turkey RoHS compliance......................219 Disposal information ........................219 Contact information........................220 Production address........................220 R5906112 /15...

  • Page 216: Product Compliance

    Regulatory information D.1 Product compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom EurAsian Conformity (EAC) This product complies with the Safety of Low-Voltage Equipment (LVE Technical Regulation 004/...

  • Page 217: China Rohs Compliance

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 218: Taiwan Rohs Compliance

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 219: Turkey Rohs Compliance

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco. com/AboutBarco/weee...

  • Page 220: Contact Information

    Registered office address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. D.7 Production address...

  • Page 221: E Wifi & Gsm Compliance Information

    WiFi & GSM compliance information Compliance FCC ........................222 Compliance IC..........................222 KCC Certification ........................223 About this chapter This chapter contains important compliance information related to the WiFi and GSM module. Regulatory information for US and Canada can be accessed in the OSD of the projector. In order access it, select System Settings →...

  • Page 222: Compliance Fcc

    WiFi & GSM compliance information E.1 Compliance FCC Federal Communication Commission Interference Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 223: Kcc Certification

    기기명칭: 특정소출력무선기기(무선랜을 포함한 무선접속시스템용 무선기기) 인증자상호: Barco N.V. 모델명: eBox Pulse 인증번호: R-C-BVY-eBoxPulse 모듈 ID: KCC-CRM-TCS-HE910-D 제조연월: 2019. 제조자/제조국: Barco NV/벨기에와 중국 EMC 경고: 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. R5906112 /15...
  • Page 224 WiFi & GSM compliance information R5906112 /15...

  • Page 225: Glossary

    Glossary Default Gateway A router that serves as an entry point into and exit point out of a network. For example, a local network (LAN) may need a gateway to connect it to a wide area network (WAN) or to the Internet. DHCP Dynamic host configuration protocol.
  • Page 226 Glossary RS232 An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of the communication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This standard is used for relatively short-range communications and does not specify balanced control lines. RS- 232 is a serial control standard with a set number of conductors, data rate, word length and type of connector to be used.

  • Page 227: List Of Tools

    List of tools List of tools Clean cotton cloth Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) Compressed air Lens cleaner (e.g. ZEISS lens cleaner, Purosol™ or other water based lens cleaner products) Level R5906112 /15...
  • Page 228 List of tools R5906112 /15...

  • Page 229: Index

    Index RGB adjustment 110 Numbers/Symbols RGB gain 110 Brightness 64 3D emitter setup 115 3D projection 113 3D setup 114 CE Certification 20 Cleaning Exterior 174 Lens 173 Active 3D 113 Communication 39 setup 115 DMX 42 Active Stereo 113 Introduction 40 Address IR control...
  • Page 230 Index Graphic User Interface Overview 50 Digital Shift 69 Graphics User Interface 49 Digital Zoom 69 Display Compliance 221 Multiple sources 58 GSM activation Single source 58 SIM card 138 DisplayPort 1.2 inputs Specifications 195 Image 63 Disposal 219 Installation 79 Battery 220 Introduction 49 DMX 135...
  • Page 231 Index KCC 인증 223 Open source licenses 156 Orientation 87 Output resolution 75 Laser Banks Overview video timings 200 Status 164 Laser range finder 84 Laser ranging 84 LED behavior Quad Combo Mk I 46 RealColor 73 Quad Combo Mk II 45 Passive 3D 113 Quad DP 1.2 47 Passive stereo 113...
  • Page 232 User Interface settings 146 HDMI inputs 194 Warping 146 SDI inputs 193 Restricted access location 11 SFP inputs 197 Restriction zone 12 UDX-4K22 180 Rigging frame 85 UDX-4K26 179 Center position 87 UDX-4K32 177 RS232 42 UDX-4K40 176 RS422 42...
  • Page 233 Index Advanced settings 159 Advanced Settings Color 162 RCU 36 Statistics 163 XLR connector Communication 127 Control 137 IP address, HDBaseT IP address, wired connection 128 IP address, wireless connection 130 Factory reset 146 Flex brightness 151 Zoom 80 Frame 152 Frame Calibration 152 Lens adjustment Calibration 149...
  • Page 234 Index R5906112 /15...
  • Page 236 R5906112 /15 | 2022-10-19 www.barco.com...

This manual is also suitable for:

Udx-4k40Udx-4k32Udx-4k26Udx-4k22Udx-w40Udx-w32 ... Show all

Table of Contents
