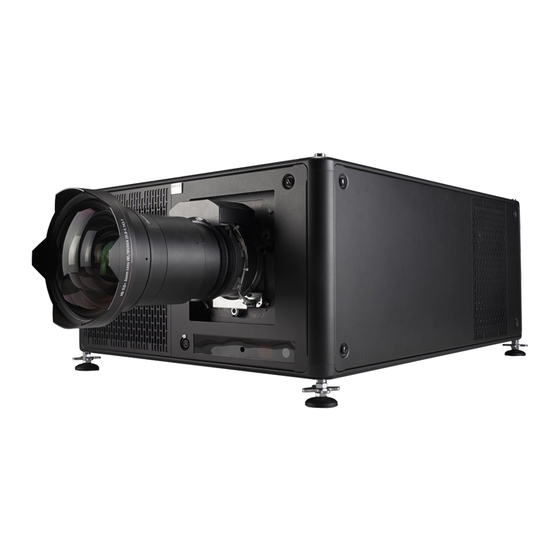

Barco UDX Series User Manual

Hide thumbs Also See for UDX Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
UDX series
User Manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading

Related Manuals for Barco UDX Series

Summary of Contents for Barco UDX Series

  • Page 1 UDX series User Manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Product revision Software Revision: 1.6.x Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be responsible for correcting any interference at his own expense Changes or modifications not expressly approved by the party responsible for compliance could void the...

  • Page 5: Table Of Contents

    Controlling the projector.............................45 Quick setup via Direct access..............................46 Software update ....................................47 5 Graphic User Interface (GUI)..................................51 Overview........................................52 Navigation ......................................52 Test Patterns......................................53 6 GUI – Source........................................55 Displaying a single source ................................56 Displaying multiple sources: Stitched layouts........................56 Connector Settings ..................................58 R5906112-06 UDX series...
  • Page 6 Service – Color ................................107 9.6.2 Service – Statistics ..............................108 9.6.3 Lens Calibration................................109 9.6.4 Flex brightness................................110 Lens features.....................................111 Controlling the backlight of the LCD Display ........................112 Reset........................................113 9.10 Checking the status of the Laser Banks..........................115 R5906112-06 UDX series...
  • Page 7 C Overview video timings for video interfaces ........................... 139 Overview video timings................................140 Overview video timings SDI Inputs ............................141 Overview video timings HDMI 2.0 inputs.......................... 142 Overview video timings DisplayPort 1.2 inputs......................143 Overview video timings HDBaseT inputs ......................... 146 R5906112-06 UDX series...
  • Page 8 R5906112-06 UDX series...

  • Page 9: Safety

    Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the UDX projector. Clarification of the term “UDX” used in this document When referring in this document to the term “UDX” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 11: Important Safety Instructions

    Warning: high intensity light beam. NEVER look into the lens ! High luminance could result in damage to the eye. • Warning: extremely high brightness projector: This projector embeds extremely high brightness (radiance) lasers; this laser light is processed through the projectors optical path. Native laser light is not R5906112-06 UDX series...
  • Page 12 Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 13 For lens cleaning follow the instructions precisely as stipulated in the projector manual. • Only use zoom lenses of the Barco TLD+ series on the 4k models of the UDX. Using other lenses will damage the internal optics. For suitable fixed TLD+ lenses contact Barco or see Barco website.
  • Page 14 Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 15: Product Safety Labels

    1.0 meter (SW) lateral separation from any place where such persons are permitted to be. In environments where unrestrained behavior is reasonably foreseeable, the minimum separation height should be greater than or R5906112-06 UDX series...
  • Page 16 (RZ) in the theater must be established. This can be done by using physical barrier, like a red rope as illustrated in Image 1-2. The restricted area sticker can be replaced by a sticker with only the symbol. R5906112-06 UDX series...
  • Page 17 • This product can only be installed by Barco or sold or leased only to valid laser light show variance holders. In other words our installers are required to have an approved laser light show variance. Such installers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the RG3 LIPs into their shows.

  • Page 18: Hd For Fully Enclosed Projection Systems

    The light emitted from the screen within the observation shall never exceed the RG2 exposure limit, determined at 10 cm. The HD can be neglected if the measured light at the screen surface is below 5000 diffuse cd/m² or 15000 LUX. R5906112-06 UDX series...

  • Page 19: Hd In Function Of Modifying Optics

    Safety 1.6 HD in function of modifying optics Hazard Distance 12,00 UDX 4K32 UDX U32 UDX W32 10,00 8,00 UDX 4K22 UDX W22 6,00 4,00 2,00 0,00 Throw Ratio Image 1-4 R5906112-06 UDX series...
  • Page 20 Safety R5906112-06 UDX series...

  • Page 21: Remote Control Unit

    Remote Control Unit R5906112-06 UDX series...

  • Page 22: Remote Control, Battery Installation

    Insert (1) both lower tabs of the battery cover in the gaps at the bottom of the remote control, and press (2) the cover until it clicks in place. Image 2-3 When replacing batteries, the broadcast address of the RCU will be reset to its default value '0'. R5906112-06 UDX series...

  • Page 23: Using The Xlr Connector Of The Rcu

    RCU off will extend the battery life time of the remote control. To activate the remote control press the on/off button. To deactivate the remote control press the on/off button again. Default when (re)placing batteries, is “ON”. Image 2-5 R5906112-06 UDX series...
  • Page 24 Remote Control Unit R5906112-06 UDX series...

  • Page 25: Input & Communication

    Input & Communication R5906112-06 UDX series...

  • Page 26: Introduction

    About the Quad combo input Mark II Due to demand from the market, Barco has created a second generation of the Input board to support 12G input and throughput on the SDI connectors. From the release of this board onward, the Quad combo input will be supported and will be the standard input board in every Input &...
  • Page 27 Image 3-3: Mark 1 Quad Combo input board, without markings above the SDI inputs SDI IN SDI IN/OUT 3G/12G SYNC SYNC SYNC SYNC Image 3-4: Mark 2 Quad Combo input board, with 3G/12G markings above the SDI inputs/outputs. R5906112-06 UDX series...
  • Page 28 4096 x 2160 @50 Hz and @60 Hz Input specifications – HDMI Input Pixel rate 25 – 600 MHz pixel clock HDCP support • HDCP 1.x • HDCP 2.2 • RGB 4:4:4 For the full list of video timings, see Appendix R5906112-06 UDX series...
  • Page 29 Up to 4096 x 2160 @25 Hz • Up to 4096 x 2160 @30 Hz • Up to 2048 x 1080 @48 Hz • Up to 2560 x 1600 @50 Hz • Up to 2560 x 1600 @60 Hz R5906112-06 UDX series...
  • Page 30 • 2560 x 1080 @120 Hz • 2560 x 1600 @120 Hz Native video • UDX-U-series: 1600 x 1200 @60 Hz timings • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz R5906112-06 UDX series...

  • Page 31: Input Source Connections - Quad Combo Input Mk I

    Up to 2048 x 1080 @50 Hz Quad link Up to 2048 x 1080 @60 Hz 3G-SDI Single link 1920 x 1200 @50 Hz, @59.94 Hz and “BarcoLink” @60 Hz. Quad link For the full list of video timings, see Appendix R5906112-06 UDX series...
  • Page 32 36 bpp HDCP support HDCP 1.x supported on HDBaseT Input 1 Network support Yes, on HDBaseT Input 1 For future release • 3D support • Interlaced support Audio not supported Video timings Layout mode Supported formats progressive R5906112-06 UDX series...
  • Page 33 • 2560 x 1080 @120 Hz • 2560 x 1600 @120 Hz Native video • UDX-U-series: 1600 x 1200 @60 Hz timings • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz R5906112-06 UDX series...

  • Page 34: Input Source Connections - Quad Dp 1.2 Input Board

    2 column mode (2x1 • 1920 x 2160 @60 Hz layout) • 1920 x 2160 @120 Hz • 1920 x 2400 @60 Hz • 2048 x 2160 @60 Hz For the full list of video timings, see Appendix R5906112-06 UDX series...

  • Page 35: Communication Connections

    3.5 Communication connections Communication Panel Image 3-8 1 WIFI antenna for wireless IP (optional) RS232 for serial communication Sync Out 3D 2 12V 1A output 3 Firmware update / USB download log files 10 Sync In 3D R5906112-06 UDX series...
  • Page 36 Sub-D connector and an USB connector acting as RS input when connected to an USB input of a PC. You can use the RS232/RS422 input to connect a local PC to your UDX series projector. By this way you can configure and control your projector from your local PC.

  • Page 37: Led And Button Indication Chart

    3.6 LED and Button indication chart Button Backlight Status Description Button Color status Standby button Blinking WHITE (slow) Projector starts up (booting) Blinking WHITE (fast) Firmware upgrade Solid WHITE Projector is in Standby mode Blinking BLUE Projector goes to ON mode R5906112-06 UDX series...
  • Page 38 Light source is on in ECO mode GREEN Light source is on in normal mode GREEN-ORANGE Light source is on in CLO mode ERR (error LED) No error RED toggles on/off Error ORANGE toggles on/off Warning IR signal received GREEN IR signal acknowledged R5906112-06 UDX series...

  • Page 39: Getting Started

    Overview • Functionality overview • Power on projector • Switching to standby • Power off projector • Using the RCU • Projector Address • Quick setup via Direct access • Software update R5906112-06 UDX series...

  • Page 40: Functionality Overview

    The Power button and Shutter buttons are equipped with white, blue and red backlit LEDs. The other keys are only equipped with white and blue backlit LEDs. The LEDs are controlled according to the features available. R5906112-06 UDX series...

  • Page 41: Power On Projector

    Toggle between the two indications by using the Menu button on the keypad, or on the remote control. The LCD Display will fade out 30 seconds after the last key operation. 4.2 Power on projector How to power on Press the mains switch at the side of the projector to switch on this projector. R5906112-06 UDX series...
  • Page 42 Current firmware version and model name • Current illumination (in percentage) • Projector runtime in hours • Uptime in hours • Chosen source • Current resolution and refresh rate • Chosen communication method and IP address (if connected) • Active functions R5906112-06 UDX series...

  • Page 43: Switching To Standby

    Power on/off button will be lit WHITE. 30 s Image 4-4 4.4 Power off projector CAUTION: This procedure assumes the projector is in standby mode. How to power off Switch off the projector with the mains switch. '0' must be pressed. R5906112-06 UDX series...

  • Page 44: Using The Rcu

    When using the wireless remote control, make sure you are within the effective operating distance (30 m, 100 ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if there are obstacles between the remote control unit and the projector IR sensor. R5906112-06 UDX series...

  • Page 45: Projector Address

    Using the RCU in combination with a 3D emitter When using a 3D emitter that radiates IR beams (e. g. the optional 3D emitter that Barco provides), the IR beams of the 3D emitter may interfere with the IR communication between projector and the RCU.

  • Page 46: Quick Setup Via Direct Access

    The Source selection menu opens on the LCD display. Image 4-9: Input selection Use the arrow keys to select the desired source. Quick test pattern selection Press the Test pattern button on the remote control or local keypad. R5906112-06 UDX series...

  • Page 47: Software Update

    Download the latest firmware (format .fw) from Barco's website in the same way as for Projector Toolset. Start Projector Toolset and make a connection with the projector. For more information, see the Projector Toolset user guide.
  • Page 48 Power on the projector. Wait until the Power on/off button is either lit white or blue. Download the latest firmware file ( format .fw) from Barco's website. The firmware can be downloaded for free from Barco's website, (URL: http://www.barco.com). Click on myBarco and log in to get access to secured information.
  • Page 49 Getting Started The update file will be transferred to the projector and installed. The projector will reboot when completed. Take note that the update process can take a long time to complete. R5906112-06 UDX series...
  • Page 50 Getting Started R5906112-06 UDX series...

  • Page 51: Graphic User Interface (Gui)

    Graphic User Interface (GUI) Overview • Overview • Navigation • Test Patterns R5906112-06 UDX series...

  • Page 52: Overview

    (3). Use the numeral keys to enter values, or use the arrow keys to move the bar scale up or down. Press the Back button to go up one level (4). R5906112-06 UDX series...

  • Page 53: Test Patterns

    Push the Test Patterns button on the RC. Image 5-4: Main menu, Test Patterns In the Test Patterns menu, select either Internal, or Output test patterns. In the chosen submenu, select the desired test pattern from the list. R5906112-06 UDX series...
  • Page 54 Full screen black / white / blue / green / red / cyan / magenta / yellow • Grid • Horizontal Ramp • Vertical Ramp • To turn the test pattern off, return to the previous menu. R5906112-06 UDX series...

  • Page 55: Gui - Source

    GUI – Source About the Source menu This menu is used to select, review and configure sources into the projector. Overview of features • Displaying a single source • Displaying multiple sources: Stitched layouts • Connector Settings R5906112-06 UDX series...

  • Page 56: Displaying A Single Source

    This is called a Stitched Layout: the sources are stitched together. The following table lists which stitched layouts you can use, and in which display mode these layouts can be used. The table below describes the different Stitch Layouts and scan directions. R5906112-06 UDX series...
  • Page 57 How to select a stitched layout Press Menu to activate the menus and select Source. Image 6-3: Select Source Press OK. The Select Source menu is displayed with the actual available sources filled out, including all available stitched layout options. R5906112-06 UDX series...

  • Page 58: Connector Settings

    When entering the menu for each input connector, you can change the following: • Color Space • Signal Range • EDID How to configure a connector Press Menu to activate the menus and select Source. Image 6-6: Select Source R5906112-06 UDX series...
  • Page 59 To force a limit on the used signal range, select one of the available signal ranges. • To set a video timing other than the one native for the connector, select one of the options under EDID. Note: You cannot change the EDID for SDI connectors. R5906112-06 UDX series...
  • Page 60 GUI – Source R5906112-06 UDX series...

  • Page 61: Gui - Image

    GUI – Image Overview of features • Setting image levels manually • Adjusting the sharpness • Adjusting the gamma correction • P7 Realcolor • Setting the output resolution • HDR – Perceptual Quantizer (PQ) R5906112-06 UDX series...

  • Page 62: Setting Image Levels Manually

    How to set up Brightness Level In the main menu, select Image → Brightness. Image 7-3: Image menu — Brightness Use the ◄ or ► key to change the brightness until the desired value is reached (adjustable between –1 and 1). R5906112-06 UDX series...

  • Page 63: Adjusting The Sharpness

    Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range: -2 to 8. Default value: 0 R5906112-06 UDX series...

  • Page 64: Adjusting The Gamma Correction

    Gamma correction is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced). How to adjust In the main menu, select Image → Advanced → Gamma. R5906112-06 UDX series...

  • Page 65: P7 Realcolor

    How to set custom P7 values In the main menu, select Image → Advanced → P7 Realcolor. Image 7-12: Advanced menu — P7 Realcolor The P7 menu is displayed. R5906112-06 UDX series...
  • Page 66 You can reset all coordinates to the default values (to native) by selecting Reset modes to native. Press OK button to reset. How to choose one of the P7 presets In the main menu, select Image → Advanced → P7 Realcolor. Image 7-14: Advanced menu — P7 Realcolor The P7 menu is displayed. R5906112-06 UDX series...

  • Page 67: Setting The Output Resolution

    7.5 Setting the output resolution This menu is only available on the 4k models, with an actuator included. How to choose the output resolution In the main menu, select Image → Advanced → Output resolution. Image 7-17: Advanced menu, Output resolution R5906112-06 UDX series...

  • Page 68: Hdr - Perceptual Quantizer (Pq)

    When entering the desired screen luminance, take into account the distance of the projector to the screen and the quality of the screen used. How to set the PQ? In the main menu, select Image → Advanced → PQ. Image 7-19 The PQ menu is displayed R5906112-06 UDX series...
  • Page 69 GUI – Image Image 7-20 Select the desired Unit (nits or foot-lambert). Enter the Screen luminance (either in nits or foot-lambert). R5906112-06 UDX series...
  • Page 70 GUI – Image R5906112-06 UDX series...

  • Page 71: Gui - Installation

    GUI – Installation Overview of features • Configuring the lens, zoom-focus • Configuring the lens, shift • Orientation • Warping • Blending • Laser illumination • Setting up the external cooler • 3D projection R5906112-06 UDX series...

  • Page 72: Configuring The Lens, Zoom-Focus

    Lens shift is only possible when lens shift is calibrated. Please refer to the lens calibration section in System Settings → Lens Calibration menu. Vertical and Horizontal Shift To change the position of the projected image, select Installation → Lens → Shift. Image 8-3: Lens menu, Lens shift R5906112-06 UDX series...

  • Page 73: Orientation

    In the main menu, select Installation → Orientation. Image 8-5: Installation menu, Orientation The Orientation menu is displayed. Image 8-6: Orientation menu Use the ▲ or ▼ key to select the desired mounting position and press OK button to activate. R5906112-06 UDX series...

  • Page 74: Warping

    How to toggle In the main menu, select Installation → Warp. Image 8-7: Installation menu, Warp The Warp menu is displayed. Image 8-8 In the Warp menu, click Warp to toggle between On and Off. Image 8-9 Image 8-10 R5906112-06 UDX series...

  • Page 75: Warping - Screen Size

    Image 8-11: Warp outline example How to adjust the image? In the main menu, select Installation → Warp → Screen Size. Image 8-12: Warp Menu, Screen Size The Screen Size menu is displayed. R5906112-06 UDX series...

  • Page 76: Warping - 4 Corners Adjustment

    For example, you can overshoot the screen and use 4 corner adjustment to pull your projected image corners back into the screen. Some examples: Image 8-14: 4 corner adjustment How to adjust the image? In the main menu, select Installation → Warp → 4 Corners. R5906112-06 UDX series...

  • Page 77: Warping - Bow

    To reset the 4 corner adjustments, select Reset and press the OK button. 8.4.5 Warping – Bow About bow adjustment A bow distortion can be adjusted so that a normal image is displayed. Positive adjustments introduce more outside bow distortion. Negative adjustments introduce more inside bow distortion. R5906112-06 UDX series...
  • Page 78 To enable Bow correction, make sure the Bow slider is set to On (visible by the blue highlight). To perform a symmetric adjustment , make sure the Symmetric slider is set to On (visible by the blue highlight). R5906112-06 UDX series...
  • Page 79 The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. R5906112-06 UDX series...
  • Page 80 Image 8-25: Right vector of the upper side of the picture. Adjust angle and linearity (length) individually to obtain the correct correction and confirm. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys. R5906112-06 UDX series...
  • Page 81 Image 8-27: Left vector of the upper side of the picture. When completed, a transformation will occur in a way similar to the following example. Observe that the upper side of the picture now has an asymmetric correction. Image 8-28: Example of an asymmetric bow correction R5906112-06 UDX series...

  • Page 82: Warping - Warp Files

    For more information on uploading/downloading Warp files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. How to activate an uploaded Warp grid? In the main menu, select Installation → Warp. Image 8-30: Installation menu, Warp In the Warp menu, select Files. R5906112-06 UDX series...
  • Page 83 The Warp Files menu is displayed. Image 8-32 If any custom Warp files are available, select the desired warp file. Image 8-33 Click on the on/off button on top to activate the selected warp file. Image 8-34 R5906112-06 UDX series...

  • Page 84: Warping - Latency Control In A Multi Projector Setup

    Transport delay in the status menu for each projector. Image 8-35 Identify the projector with the longest delay. For each projector in the setup, select Installation → Warp in the main menu. Image 8-36: Installation menu, Warp In the Warp menu, select Transport Delay. R5906112-06 UDX series...

  • Page 85: Blending

    The principle is that the light intensity in the blend zone from each projector will be adjusted individually, so that the rendering on the screen are perceived as from one projector. Width, Projector 1 Width, Projector 2 Picture frame Picture frame Projector 1 Projector 2 Overlap / Blend Zone Image 8-39 R5906112-06 UDX series...

  • Page 86: Blend & Mask

    Determine the start position of the mask (1) for the masking height and width, together with the desired size of the mask (2) to determine the width of the masked area. When the blending lines are activated, you will get a visual indication of the screen of the installed blending area. R5906112-06 UDX series...
  • Page 87 Enable blending and activate Show lines. First set the mask width for the right edge of the first projector. Enter a width value equal to the overlap area (width1). Repeat for the left edge of the second projector. R5906112-06 UDX series...

  • Page 88: Black Level Adjustment

    You can also specify the offsets manually by turning off the automatic calculation. The black level value is adjusted in a 8 bit resolution from 0 to 255. The following figure shows how this occurs in a side by side configuration without any correction of the black level. R5906112-06 UDX series...
  • Page 89 This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side. Note: Do not forget to disable the Show lines button after you achieved the desired blend zone. R5906112-06 UDX series...

  • Page 90: Black Level Files

    The Black Level Files menu is displayed. Image 8-49 If any custom Black Level adjustment files are available, select the desired file. Image 8-50 Click on the Enable slider on top to activate the selected Black Level adjustment file. R5906112-06 UDX series...

  • Page 91: Blend Files

    In the main menu, select Installation → Blend and Mask → Blend Files. Image 8-51: Blend menu, Blend Files The Blend Files menu is displayed. Image 8-52 If any custom Blend files are available, select the desired file. Image 8-53 R5906112-06 UDX series...

  • Page 92: Laser Illumination

    The actual power setting is indicated at the bottom of the Power button. Use the Slider to change the power value. Image 8-55 Note: If the shutter of the projector is closed, this feature will be disabled. Make sure the shutter is opened. R5906112-06 UDX series...

  • Page 93: Setting Up The External Cooler

    How to set up the external cooler In the main menu, select Installation → Illumination → Cooling. Image 8-57: Illumination menu, Cooling The Cooling menu is shown. Image 8-58: Cooling menu In the Cooling menu, select the desired cooling option. R5906112-06 UDX series...

  • Page 94: Projection

    Connect the proper source cables to the projector. For more info, see “Connection possibilities”, page 95. Set up and connect your 3D emitter to the projector. For more info, refer to the user manual of your 3D emitter. R5906112-06 UDX series...

  • Page 95: Connection Possibilities

    AutoStereo: Automatic mode (2D input = 2D output, 3D input = Active Stereo output). • Mono: Forces all source signals to 2D output. • ActiveStereo: Forces all source signals to Active Stereoscopic 3D. Use the following table as an indicator of what display mode you require. R5906112-06 UDX series...

  • Page 96: Emitter Setup

    Why change the 3D setup? While Barco provides a 3D emitter and active shutter glasses as options to this projector, you are free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco provides, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
  • Page 97 The 3D setup menu is displayed Image 8-62 Select the desired the stereo Dark Time. Use the slider to set the desired stereo sync delay. If necessary to invert the stereo sync, click the Swap Eye option. R5906112-06 UDX series...
  • Page 98 GUI – Installation R5906112-06 UDX series...

  • Page 99: Gui - System Settings

    GSM configuration • IR control • Setting a custom projector name • Themes • Service Menu • Lens features • Controlling the backlight of the LCD Display • Reset • Checking the status of the Laser Banks R5906112-06 UDX series...

  • Page 100: Communication, Lan Setup

    This must not be 0.0.0.0. If there is no router on the projector's local subnet then just set this field to any IP-Address on the subnet. 9.1.2 Wired IP address set up How to automatically set up the IP address In the main menu, select System Settings → Communication → LAN. R5906112-06 UDX series...
  • Page 101 In the main menu, select System Settings → Communication → LAN. Image 9-3: Communication menu, LAN The LAN menu is displayed Image 9-4: LAN menu Disable Automatic. Put the switch to the left. The switch becomes gray. R5906112-06 UDX series...

  • Page 102: Gsm Configuration

    If the code is still the same, it is not necessary to enter the PIN code again. If it is a PIN code, continue with next step. Image 9-6: Enter PIN code Enter the 4 digits of the pin code and select APPLY and click OK. R5906112-06 UDX series...

  • Page 103: Ir Control

    The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 9.3.2 Projector address About individual projector address Before a projector, and only this projector, can be controlled via a remote control, an individual address must be entered in the projector.

  • Page 104: Ir Sensors

    How to disable In the main menu, select System Settings → Communication → IR Control. Image 9-11: Communication menu, IR control The IR control menu is displayed. R5906112-06 UDX series...

  • Page 105: Setting A Custom Projector Name

    In the main menu, select System Settings → Communication → Hostname. Image 9-13: System Settings, Hostname The Hostname menu is displayed. Image 9-14 In the Hostname menu, press confirm to edit the Hostname field. Use the digital keyboard to change the Hostname to the desired custom name. R5906112-06 UDX series...

  • Page 106: Themes

    Image 9-16: System Settings Menu — Themes. In the themes menu, select the desired Theme. You can choose one of the following: Light, or Dark. 9.6 Service Menu About the service menu The service menu can only be entered with a Service code. R5906112-06 UDX series...

  • Page 107: Service - Color

    Projector Toolset and a chroma meter. For more info on P7 calibration, refer to the Projector Toolset Reference guide. How to adjust the P7 native settings In the main menu, System Settings → Service. Image 9-18 Enter the service code. In the Service menu, select Color. Image 9-19 R5906112-06 UDX series...

  • Page 108: Service - Statistics

    Laser Strikes • Projector Runtime • System time • Current Uptime How to display the statistics In the main menu, System Settings → Service. Image 9-21 Enter the service code. In the Service menu, select Statistics. Image 9-22 R5906112-06 UDX series...

  • Page 109: Lens Calibration

    How to calibrate In the main menu, System Settings → Service. Image 9-24 Enter the service code. In the Service menu, select Lens Calibration. Image 9-25: System Settings menu — Lens Calibration The Lens Calibration menu is displayed. R5906112-06 UDX series...

  • Page 110: Flex Brightness

    To lock to a specific value a 4 digit code is necessary; These codes can be created by the projector owner using Projector Toolset. Light output activation via OSD menu In the main menu, System Settings → Service. Image 9-27 Enter the service code. In the Service menu, select Flex. R5906112-06 UDX series...

  • Page 111: Lens Features

    Some lens features can be disabled once they are correctly aligned so that a misalignment during a show is not possible. How to enable/disable In the main menu, System Settings → Service. Image 9-30 Enter the service code. In the Service menu, select Lens features. R5906112-06 UDX series...

  • Page 112: Controlling The Backlight Of The Lcd Display

    Alternatively, you can turn on Stealth Mode instead. By activating this mode, both the backlight of the LCD as well as the backlight of all the buttons of the keypad will be permanently disabled. How to control In the main menu, System Settings → Backlight. R5906112-06 UDX series...

  • Page 113: Reset

    Screen luminance - Unit nits Optics High Contrast Illumination Power 100% ImageConnector Color Space auto Signal Range auto ImageResolution Output Resolution (if applicable) 4K UHD ImageWarp Screen size 5120x3200 / 2560x1600 4 corner Warp off, no warp R5906112-06 UDX series...
  • Page 114 In the Reset menu, select RESET ALL and click OK. How to reset one or more projector settings In the main menu, select System Settings → Reset. Image 9-35: System Settings menu, Reset The Reset menu is displayed. R5906112-06 UDX series...

  • Page 115: Checking The Status Of The Laser Banks

    Projector Toolset User Manual. How to check the status of the Laser Banks In the main menu, System Settings → Service. Image 9-37 Enter the service code. In the Service menu, select Laser Banks. Image 9-38: Service menu, Laser Banks R5906112-06 UDX series...
  • Page 116 In the laser banks group page, you can see which laser banks are part of this specific group. You can also see which laser banks are operational and which have failed. Image 9-40 If you want notifications to be disabled for a specific group of laser banks, disable the LCD/OSD notifications enabled button. R5906112-06 UDX series...

  • Page 117: Status Menu

    Status menu This is a status menu only. No changes can be made to settings from this menu. Overview • Status menu overview R5906112-06 UDX series...

  • Page 118: Status Menu Overview

    Warp Displays the Warp status and type of warp used Blend Displays the Warp status and type of Blend used Environment Shows the ambient temperature. Display Shows display settings Active Functions Shows the active function enabled. R5906112-06 UDX series...

  • Page 119: Maintenance

    Maintenance About this chapter This chapter contains general maintenance procedures. Overview • Cleaning the lens • Cleaning the exterior of the projector R5906112-06 UDX series...

  • Page 120: Cleaning The Lens

    Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Pressurized air cans are not efficient if there is too much dust on the surface, the pressure is too low R5906112-06 UDX series...

  • Page 121: A Specifications

    Specifications of the UDX W32 • Specifications of the UDX W22 • Specifications of the UDX U32 • Dimensions of a UDX • Dimensions of the rigging frame • Dimensions of the flight case • Technical Regulations R5906112-06 UDX series...

  • Page 122: Specifications Of The Udx 4K32

    XLR wired + IR, RS232, Wifi**, GSM** (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi** (optional) Power requirements 120-160 V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max. power consumption 2,900W nom/3,100W max / STBY less than 10W R5906112-06 UDX series...

  • Page 123: Specifications Of The Udx 4K22

    Laser phosphor with inorganic phosphor wheel Light source lifetime 25,000 hrs Optical dowser Digital Picture-in-picture Two sources simultaneously Sealed DLP™ core Standard Orientation 360° DMX 512 standard* WARP Direct adjust OSD + toolset Image processing Embedded warp & blend R5906112-06 UDX series...

  • Page 124: Specifications Of The Udx W32

    Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable. Check with your local authorized Barco sales representative for full details. A.3 Specifications of the UDX W32 Specifications...
  • Page 125 (LxWxH) 1,200 x 800 x 685 mm / 47.24 x 31.49 x 26.96 inches Dimensions (WxLxH) 660 x 830 x 350 mm / 25.95 x 32.7 x 13.78 inches Weight 92kg (202 lbs)/shipping weight from factory: 110kg (242 lbs) R5906112-06 UDX series...

  • Page 126: Specifications Of The Udx W22

    Active eye wear (optional), passive circular (optional); 3 flash up to 200Hz* Inputs Single HDBt; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/ HDSDI/dual HDSDI/6G/BarcoLink Optional Inputs Quad DP1.2 Input resolutions From NTSC up to 4K (4,096 x 2,560) Max. pixel clock 600 Mhz R5906112-06 UDX series...

  • Page 127: Specifications Of The Udx U32

    Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.5 Specifications of the UDX U32 Specifications...
  • Page 128 Power cord, wireless/XLR wired rugged remote control, bottom rigging kit/ clamps Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years +/- 10% R5906112-06 UDX series...

  • Page 129: Dimensions Of A Udx

    Specifications A.6 Dimensions of a UDX Overview Image A-1: Dimensions, in mm Geometrical centre A.7 Dimensions of the rigging frame Overview 1018,97 463,3 978,38 Image A-2: Dimensions, in mm R5906112-06 UDX series...

  • Page 130: Dimensions Of The Flight Case

    A.8 Dimensions of the flight case Overview 1133 Image A-3: Dimensions, in mm A.9 Technical Regulations Certificates Image A-4: EAC mark Image A-5: Rohs Image A-6: Rohs OK Image A-7: CE mark Image A-8: CCC mark Image A-9: FCC label R5906112-06 UDX series...
  • Page 131 Specifications Image A-10: RCM mark Image A-11: SGS mark R5906112-06 UDX series...
  • Page 132 Specifications R5906112-06 UDX series...

  • Page 133: B Environmental Information

    Environmental information Overview • Disposal information • Turkey RoHS compliance • China RoHS compliance • Taiwan RoHS compliance • Contact information • Production address • Download Product Manual R5906112-06 UDX series...

  • Page 134: Disposal Information

    According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese R5906112-06...
  • Page 135 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 136: Taiwan Rohs Compliance

    備考2.〝〇〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2：“〇” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝—〞係指該項限用物質為排除項目。 Note 3：The “—” indicates that the restricted substance corresponds to the exemption. R5906112-06 UDX series...

  • Page 137: Contact Information

    Registered office address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. B.6 Production address...
  • Page 138 Environmental information R5906112-06 UDX series...

  • Page 139: C Overview Video Timings For Video Interfaces

    Overview video timings for video interfaces R5906112-06 UDX series...

  • Page 140: Overview Video Timings

    C.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.

  • Page 141: Overview Video Timings Sdi Inputs

    Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 3G-SDI Single Link & Quad Link Support for refresh rates 24.00, 30.00 and 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. R5906112-06 UDX series...

  • Page 142: Overview Video Timings Hdmi 2.0 Inputs

    1600 x 1200 1920 x 1080 Frame packing Top – bottom Support for refresh rates 24.00, 30.00 and 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. 12G SDI board only, and only on Channel A R5906112-06 UDX series...

  • Page 143: Overview Video Timings Displayport 1.2 Inputs

    4096 x 2160 C.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates R5906112-06 UDX series...
  • Page 144 4 Quadrant mode (2 x 2 Active 3D layout) 1920 x 1200 1920 x 1200 1920 x 1200 4 Quadrant mode (2 x 2 Active 3D layout) Other layout modes are only available on Input boards that have multiple DP inputs. R5906112-06 UDX series...
  • Page 145 Passive Stereo 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 Other layout modes are only available on Input boards that have multiple DP inputs. R5906112-06 UDX series...

  • Page 146: Overview Video Timings Hdbaset Inputs

    2048 x 1080 2048 x 1080 2048 x 1080 2048 x 2160 2 Column mode (2 x 1 layout) 2048 x 2160 2 Column mode (2 x 1 layout) 2560 x 1600 2560 x 1600 3840 x 2160 R5906112-06 UDX series...
  • Page 147 Available layout modes, other Video timing Vertical refresh rate (Hz) than standard layout (1 x 1 (active pixels x active lines) layout) 3840 x 2160 3840 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 R5906112-06 UDX series...
  • Page 148 R5906112-06 | 20/07/2018 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com...

This manual is also suitable for:

Udx u32Udx w22Udx w32Udx 4k32Udx 4k22

Table of Contents
