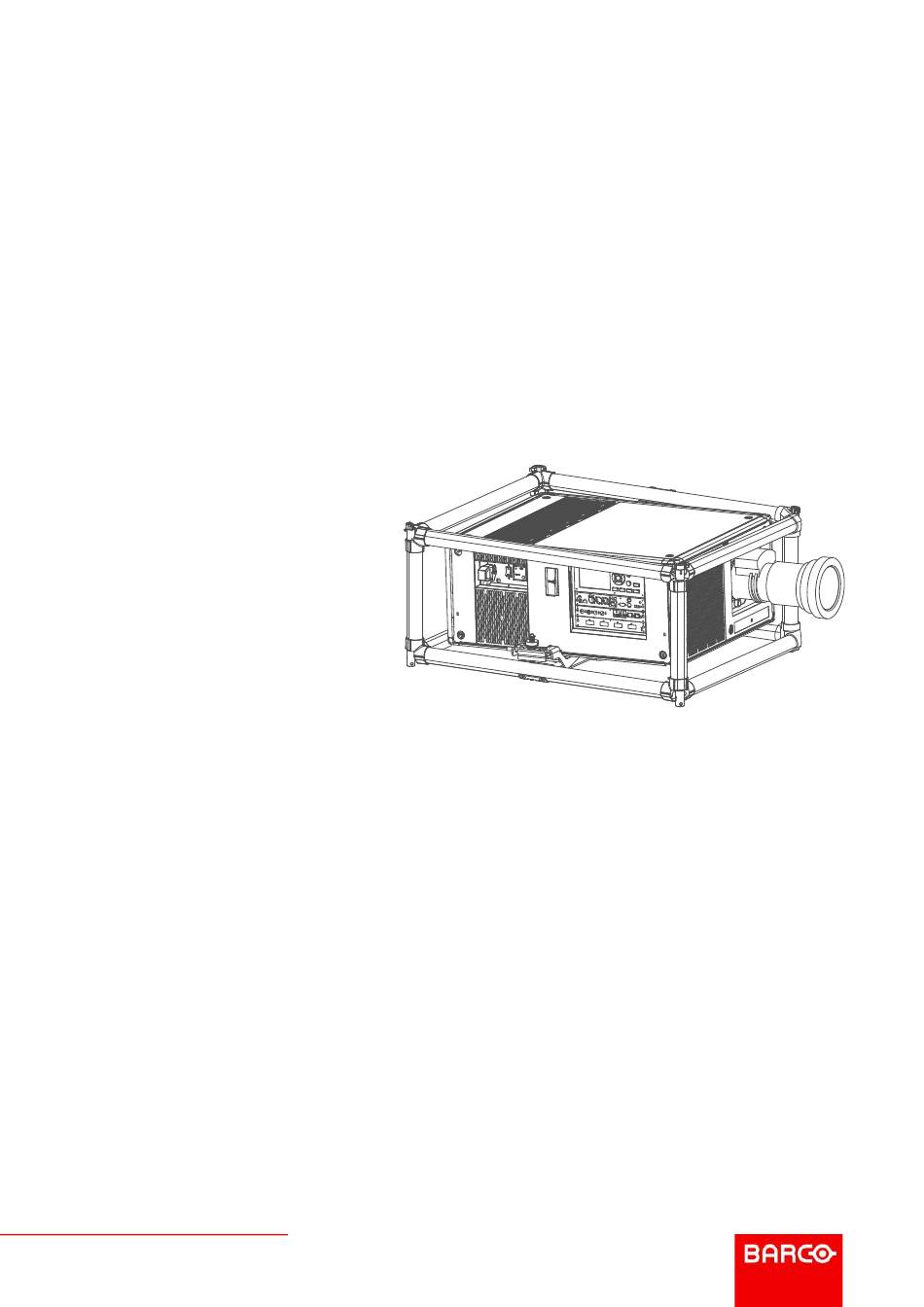

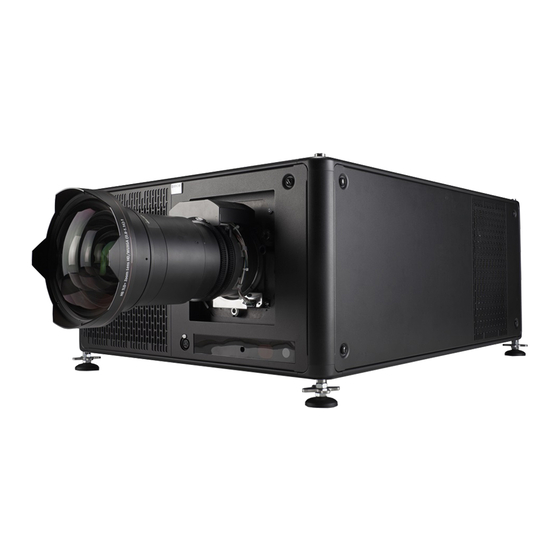

UDX Multifunctional Frame
Installation manual
ENABLING BRIGHT OUTCOMES

Advertisement

loading

Related Manuals for Barco UDX Series

Summary of Contents for Barco UDX Series

  • Page 1 UDX Multifunctional Frame Installation manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...

  • Page 3: Disposal Information

    Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 Trademarks Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufacturers.
  • Page 5 UDX series multifunctional frame Purpose of the UDX series multifunctional frame The UDX series multifunctional frame is exclusively designed for the Barco UDX projectors and can thus not be used on any other equipment. Overview • Safety • Introduction •...
  • Page 6 UDX series multifunctional frame 1.1 Safety About this chapter Read this chapter attentively. It contains important information to prevent damage to the rigging frame. Ensure that you understand and follow all safety instructions mentioned in this chapter before installing the rigging frame.
  • Page 7 UDX series multifunctional frame Image 1-1: Transportation method of the frame This limitation only counts for transportation of a rigging frame with projector mounted. You can still install the projector in portrait position while in the rigging frame. 1.2 Introduction Functionality An UDX projector mounted in the multifunctional frame makes the projector more rugged and handy.
  • Page 8 UDX series multifunctional frame The high 17 mm hex socket is not a common type of socket. Make sure you have this at your disposal before assembling the frame. Parts identification Image 1-2 Multifunctional frame (rear side) Projector mounting holes...

  • Page 9: Assembling The Frame

    UDX series multifunctional frame Image 1-3 Part of package to be used to insert projector in rigging frame. 1.4 Assembling the frame Required tools • Torque wrench with large 17 mm hex socket • Allen wrench 3 mm • Allen wrench 6 mm •...
  • Page 10 UDX series multifunctional frame Image 1-4 Assemble the vertical frames onto the bottom frame as illustrated. Use the rigging screws to tighten them together. Caution: Use high strength threadlocker on the rigging screws thread. Tighten the rigging screws with a torque of 40 Nm.
  • Page 11 UDX series multifunctional frame 40Nm Image 1-7 Attach the side frame to the rigging frame as illustrated (Image 1-8). Use the two small plates with screw thread holes. Install all 11 hex screws without tightening. Use an 6 mm Allen wrench.
  • Page 12 UDX series multifunctional frame Image 1-9 Image 1-10 Tighten the stacking pins by hand until you feel it's been fully tightened. Turn the stacking pins back in the opposite direction until you can place the orientation rod + nut as illustrated Image 1-11).
  • Page 13 UDX series multifunctional frame Image 1-12 Image 1-13 Remove the orientation rod + nut 1.5 Installing the projector onto the multifunctional frame Required tools Torque Wrench with 6 mm and 8 mm Allen bit Required parts • Rigging frame cardboard packaging •...
  • Page 14 UDX series multifunctional frame Image 1-14 Mount the six M8 hex screws (reference 1) + spring washer (reference 2) + plain washer (reference 3) on the bottom of the rigging frame to tie the two together. Caution: Fasten the six screws with a torque of 20 Nm.
  • Page 15 UDX series multifunctional frame Lift the rigging frame with projector up and flip it upside down. Install the four locking pins (reference 1 Image 1-17) in the top stacking pins. Image 1-17 Note: Skip this step if you immediately are going to stack or suspend multiple rigging frames.
  • Page 16 UDX series multifunctional frame Image 1-20 Note: Even if not all pins are necessary in your current setup, it is important to keep all locking pins to their respective rigging frame for future use. Stack the multifunctional frames. Make sure the stacking pins of both frames are aligned.
  • Page 17 UDX series multifunctional frame 1.7 Suspending the projector from a truss WARNING: It is the responsibility of the installer to suspend the rigging frames in a safe and secure fashion. Safety cables must be applied according to local regulations and standards. Safety cables must be dimensioned for the applicable load and no drop distance is allowed or must be limited as much as possible.
  • Page 18 UDX series multifunctional frame How to suspend from a truss, using the rigging clamps Measure the distance between the two used support bars of the truss, using the center tube as reference. Image 1-25: Example of truss Turn the projector upside down and install the rigging clamps, according the measured distance and secure this position.
  • Page 19 UDX series multifunctional frame Image 1-27: Example of mounting to truss Warning: Always secure the rigging points after adjustment. Lock all four rigging clamps.. Lift up the truss with the attached projector to the desired height. How to suspend from a truss, using a single point hanger Turn the projector upside down and install the single point hanger.
  • Page 20 UDX series multifunctional frame Image 1-30: Example of mounting to truss Lock the single point hanger. Install two safety cables, one on both sides of the rigging frame, and around the truss. Mount safety cables around the frame bar (push the hook through the loop and then around the truss so that there is not to much play (maximum 20 cm).

  • Page 21: Tilting The Projector

    UDX series multifunctional frame Image 1-32 1.9 Tilting the projector How to tilt the projector? Turn the tilt adjustment knob at the back (reference 1, Image 1-33) to lift the projector up or down. Image 1-33 1.10 Rotating the projector How to rotate the projector? Turn the rotate adjustment knob on the left side (reference 1, Image 1-34) to rotate the projector.
  • Page 22 UDX series multifunctional frame 1.11 Dimensions Useful Dimensions 445,8 distance lens to lens when stacked 773,72 CC rigging points CC tubes CC Tubes 463,3 803,38 CC rigging points 843,94 Image 1-35 All dimensions are in mm. The lens to lens distance when stacking is 445,8 mm.
  • Page 23 UDX series multifunctional frame R5906124 /05 UDX Multifunctional Frame...
  • Page 24 R5906124 /05 | 2020-01-09 Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
