Page 1 User manual ENABLING BRIGHT OUTCOMES...
Page 2 Product revision Software Revision: 2.1.x Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
Page 4 Disclaimer for camera usage Barco provides a kit with a laser range finder and USB camera to help measure the distance from the front of the projector to the projected surface and to help monitor the performance of the projector. Barco disclaims any liability for any use of the USB camera outside this intended use.
Page 5: Table Of Contents
Table of contents 1 Safety information....................................9 General considerations ................................10 Safety training to be provided by the installer ......................... 11 Important safety instructions..............................12 Product safety labels..................................16 High Brightness precautions: Hazard Distance ......................16 HD for fully enclosed projection systems...........................18 HD in function of modifying optics ............................19 Radio equipment (optional) ...............................19 Download Product Manual ................................20 2 Getting started......................................21...
Page 6 Pulse Quad Combo input Mk II ...............................43 Pulse Quad Combo input Mk I..............................44 Pulse Quad DP 1.2 input ................................45 Pulse SFP input ....................................46 5 GUI – Introduction ....................................47 Overview......................................48 Navigation ......................................49 Test Patterns......................................51 6 GUI – Source ......................................53 Displaying a single source .................................54 Displaying multiple sources: Stitched layouts.........................54 Connector Settings ..................................56 7 GUI –...
Page 7 12 Projector maintenance ................................. 157 12.1 Software update.................................... 158 12.2 Cleaning the lens ..................................159 12.3 Cleaning the exterior of the projector..........................160 A Specifications ......................................161 Specifications of the UDX-4K40 ............................162 Specifications of the UDX-4K32 ............................163 R5906112 /12...
Page 8 Specifications of the UDX-4K26 ............................165 Specifications of the UDX-4K22 ............................166 Specifications of the UDX-W40............................168 Specifications of the UDX-W32............................170 Specifications of the UDX-W26............................171 Specifications of the UDX-W22............................173 Specifications of the UDX-U45LC ............................174 A.10 Specifications of the UDX-U40............................. 176 A.11...
Page 9: Safety Information
Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the UDX projector. Clarification of the term “UDX” used in this document When referring in this document to the term “UDX” means that the content is applicable for following Barco products: •...
Page 10: General Considerations
• Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.
Page 11: Safety Training To Be Provided By The Installer
1.2 Safety training to be provided by the installer Users definition The UDX projector is intended for persons who have been instructed and trained by a skilled person (installer or service personnel) to identify energy sources that may cause injury and to take precautions to avoid unintentional contact with or exposure to those energy sources.
Page 12: Important Safety Instructions
Safety information placing optional barriers. Within the restricted area operator training is considered sufficient. The applicable separation heights and widths are discussed in “High Brightness precautions: Hazard Distance”, page Exclusion zone The projector radiates heat on its external surfaces and from ventilation ducts during normal operation. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire.
Page 13 • Never stack more than 2 UDX projectors in a hanging configuration (truss) and never stack more than 3 UDX projectors in a base stand configuration (table mount).
Page 14 In the event of fire, use sand, CO or dry powder fire extinguishers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
Page 15 Safety information • Only use zoom lenses of the Barco TLD+ series on the 4k models of the UDX. Using other lenses will damage the internal optics. For suitable fixed TLD+ lenses contact Barco or see Barco website. • Allowed ambient temperature range: t = 0°C (32°F) to 40 °C (104 °F)
Page 16: Product Safety Labels
Safety information 1.4 Product safety labels Light beam related safety labels Label image Label description Label location Hazard RG3: not for household use symbol Hazard RG3: optical radiation warning symbol Hazard class 2: laser radiation warning symbol. 0.95 mW - 638 nm. DECEMBER 12, 2019 WARNING! DO NOT LOOK INTO THE LIGHT BEAM.
Page 17 Safety information Restriction Zone (RZ) based on the HD The HD depends on the amount of lumens produced by the projector and the type of lens installed. See chapter “HD in function of modifying optics”, page To protect untrained end users (as cinema visitors, spectators) the installation shall comply with the following installation requirements: Operators shall control access to the beam within the hazard distance or install the product at the height that will prevent spectators' eyes from being in the hazard distance.
Page 18: Hd For Fully Enclosed Projection Systems
Safety information RESTRICTED AREA Image 1–3 1.6 HD for fully enclosed projection systems Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the cornea or on the skin.
Page 19: Hd In Function Of Modifying Optics
Throw Ratio 1.8 Radio equipment (optional) CE Conformity The UDX may be equipped with WiFi & GSM modules for Pulse Input & Communication unit, which are fit for use in the European Economic Area (EEA). The UDX is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency range.
Page 20: Download Product Manual
Safety information Hereby, Barco declares that the radio equipment type UDX is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.barco.com/support WiFi & GSM module For WLAN: For GSM: •...
Page 21: Getting Started
Getting started Getting to know the projector ......................22 Power on projector........................23 Start image projection ........................24 Switching to standby ........................27 Power off projector........................27 About this chapter This chapter and by extension this whole document, the user manual, is intended for the user who want’s to operate the projector.
Page 22: Getting To Know The Projector

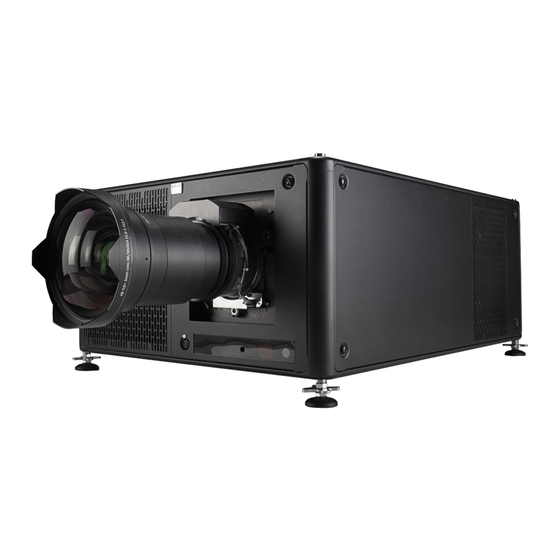

Getting started 2.1 Getting to know the projector Orientation convention This manual refers to the left side of the projector as the side at your left hand when standing behind the projector and looking at the projection screen in front of the projector. Image 2–1 Right Left...
Page 23: Power On Projector
Getting started Image 2–3 Projector Infra Red receivers and Remote Control Unit The projector has three Infra Red receivers: one at the rear (next to the power input), one at the front (below the lens holder) and one at the right side (integrated in the Input & Communication module). Point the Remote Control Unit (RCU) directly to the Infra Red (IR) receiver.
Page 24: Start Image Projection
The current mains input voltage is indicated on the voltmeter just above the power switch. The background image of the startup screen and info screens can be changed with Projector Toolset with an installed UDX plug-in. 2.3 Start image projection Connect the source Connect the source cable with the appropriate input port on the Input &...
Page 25 Getting started Image 2–8 Example of connecting an HDMI source. Check if the SYNC LED lit up ORANGE (reference 1). This indicates that the sync is detected on the input signal. Image 2–9 Select the source Press the Input button (reference I ) on the remote control or local keypad. Image 2–10 The Source selection menu opens on the LCD display.
Page 26 Getting started Image 2–11 Example of the input selection menu Use the arrow keys to select the desired source. • the SEL LED (reference 2) of the selected source lit up GREEN, and • the image of the selected source is projected. Image 2–12 Quick test pattern selection Press the Test pattern button (references P) on the remote control or local keypad.
Page 27: Switching To Standby
Getting started 2.4 Switching to standby How to switch to standby Press and hold the Power on/off button for 3 seconds on the local keypad, or press the Power Off button on the remote control. The projector goes to standby mode. The after-cooling cycle will start (about 30 seconds). During this period the Power on/off button will blink.
Page 28 Getting started R5906112 /12...
Page 29: Pulse Remote Control Unit
Pulse Remote Control Unit Remote control, battery installation ....................30 Remote control, protocol setup ......................31 Remote control, on/off button......................31 Using the RCU ..........................32 Functionality overview........................33 Functions of the “button pressed indicator” ..................33 Function of the RGB filter button ....................33 Displaying and Programming addresses into the RCU..............34 Using the XLR connector of the RCU .....................34 3.10 Using the mini-jack connector of the RCU..................35 3.11 Silicone protection sleeve for the RCU (optional)................35...
Page 30: Remote Control, Battery Installation
Pulse Remote Control Unit 3.1 Remote control, battery installation Where to find the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time. At delivery the batteries can be found in a separated bag attached to the remote control unit.
Page 31: Remote Control, Protocol Setup
Depending on the projector to control the remote control can be switched between these protocols. Which protocol to use • The NEC protocol has to be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, UDM, XDL, etc. •...
Page 32: Using The Rcu
Using the RCU in combination with a 3D emitter When using a 3D emitter that radiates IR beams (e. g. the optional 3D emitter that Barco provides), the IR beams of the 3D emitter may interfere with the IR communication between projector and the RCU.
Page 33: Functionality Overview
Pulse Remote Control Unit 3.5 Functionality overview Remote Control Unit buttons Image 3–7 Button pressed indicator Backspace (while entering values) Shutter open XLR connector Shutter close Decimal mark (while entering values) LCD panel on / off Macro button Project OSD on / off Menu back Lens zoom Default value button...
Page 34: Displaying And Programming Addresses Into The Rcu
Pulse Remote Control Unit having one projector project a red image and another project a green image, it is easier to spot and adjust the overlap section. By pressing this button multiple times, you will have different active filters, in the following cycle: •...
Page 35: Using The Mini-Jack Connector Of The Rcu
(optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non slip and soft touch. All buttons and holes remain accessible. The sleeve is quick and easy installed. For ordering information see Barco website.
Page 36 Pulse Remote Control Unit Image 3–10 Place back side (XLR side) of the RCU into the sleeve and pull the other side of the sleeve over the front side of the RCU. Image 3–11 R5906112 /12...
Page 37: Input & Communication
Input & Communication Introduction ..........................38 Local Keypad and LCD panel ......................38 LCD touch panel...........................39 Communication connections......................40 LED and Button indication chart.....................42 Pulse Quad Combo input Mk II ......................43 Pulse Quad Combo input Mk I .......................44 Pulse Quad DP 1.2 input .......................45 Pulse SFP input..........................46 R5906112 /12...
Page 38: Introduction
Input & Communication 4.1 Introduction General The Input & Communication module consists of a local keypad with LCD panel (1), a communication panel (4) and a Quad Combo input board (5). The free input slot can be used for optional modules (e.g. the Quad DP 1.2 input board).
Page 39: Lcd Touch Panel
Input & Communication Local Keypad The Keypad gives direct access to several functions, in addition to access to the menu system. The keypad has a backlight that can be switched on and off manually. By default the light turns off after 5 minutes.
Page 40: Communication Connections
Input & Communication Image 4–4 4.4 Communication connections Communication Panel Image 4–5 WIFI antenna for wireless IP (optional) RS232 for serial communication 12V 1A output Sync Out 3D Firmware update / USB download log files Sync In 3D 10/100 base-T for external control over IP and Art-Net Status lights DMX interface input IR receive sensor...
Page 41 Sub-D connector and an USB connector acting as RS input when connected to an USB input of a PC. You can use the RS232/RS422 input to connect a local PC to your UDX series projector. By this way you can configure and control your projector from your local PC.
Page 42: Led And Button Indication Chart
Input & Communication RS422 An EIA serial digital interface standard that specifies the electrical characteristics of balanced (differential) voltage, digital interface circuits. This standard is usable over longer distances than RS-232. This signal governs the asynchronous transmission of computer data at speeds of up to 920,000 bits per second.
Page 43: Pulse Quad Combo Input Mk Ii
Input & Communication Description Color status GREEN Projector is on LIGHT (Illumination LED) Light source is off No light source detected ORANGE Light source is on in ECO mode GREEN Light source is on in normal mode GREEN-ORANGE Light source is on in CLO mode ERR (error LED) No error RED toggles on/off...
Page 44: Pulse Quad Combo Input Mk I
Input & Communication Only Input A accepts 12G SDI signals . While it is technically possible to connect a 12G SDI source to Input B and connect that source to another projector in line (using Input/Output D), this first projector itself will not be able to process the 12G signal. HD, 3G &...
Page 45: Pulse Quad Dp 1.2 Input
Input & Communication Remark concerning the Mk I and Mk II inputs boards The Mk I input board miss functionality that has been implemented on the Mk II input board. These missing features include: • Loop-through functionality • 12G SDI support •...
Page 46: Pulse Sfp Input
Input & Communication 4.9 Pulse SFP input The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output Board. However, it is possible that the SFP Input board can also work with other third-party devices that support 12G over fiber.
Page 47: Gui - Introduction
GUI – Introduction Overview .............................48 Navigation............................49 Test Patterns ..........................51 About this chapter This chapter gives an general overview of the Graphic User Interface. R5906112 /12...
Page 48: Overview
GUI – Introduction 5.1 Overview Disclaimer on GUI images used in this manual The GUI images in this manual are example illustrations and should be treated as such. While the name of the projector displayed in the illustrations may be different from the projector model you are currently using, the menu lay-out and functionality is identical.
Page 49: Navigation
GUI – Introduction Image 5–2 Example of a Dashboard status screen GUI – Main Menu overview The projector on-screen display (OSD) is the primary user interface (UI). From here, you can review and adjust all projector and display settings. The OSD interface uses buttons to display the main menu. Each main menu contains submenus. The OSD can be disabled by pressing the OSD on/off button.
Page 50 GUI – Introduction Image 5–4 To start up the menu structure, press MENU (1). Use the arrow keys (Menu Navigation buttons) to navigate to the desired menu item (2). The background color changes to light blue. Press the Menu Selection button (center key of the arrow keys), also called OK button, to activate that item and to jump one level deeper (3).
Page 51: Test Patterns
GUI – Introduction To enter values with the local keyboard, use the arrow keys to select the first digit, press OK. Select the second digit and press OK. Continue until all digits are entered. Close the action by selecting the enter (↵) button and press OK.
Page 52 GUI – Introduction Image 5–7 Test patterns menu, test pattern off R5906112 /12...
Page 53: Gui - Source
GUI – Source Displaying a single source ......................54 Displaying multiple sources: Stitched layouts ..................54 Connector Settings ........................56 About the Source menu This menu is used to select, review and configure sources into the projector. R5906112 /12...
Page 54: Displaying A Single Source
GUI – Source 6.1 Displaying a single source About selecting a source Before a source can be projected, the source signal must be connected to the source input(s) of the device and a valid synchronization signal must be available along with the source signal on at least one of the input connectors.
Page 55 GUI – Source The table below describes the different Stitch Layouts and scan directions. Type of layout Description Available connectors Mode A single source is displayed in Quad Combo input: Mono / Active full screen stereo • SDI (4x) • HDBaseT (2x) •...
Page 56: Connector Settings
GUI – Source Image 6–4 Example of the stitched layout options Select the desired stitched input. Tip: If the Quad DP input board is installed, scroll all the way down the menu for the stitched options on that board. Image 6–5 Example of the stitched input options with the Quad DP board installed 6.3 Connector Settings About Connector Settings The Connector Settings menu allows you to change settings for each input connector of the projector.
Page 57 GUI – Source Image 6–6 Main menu, Source Press OK. The Select Source menu is displayed with the actual available sources filled out. Scroll down to the bottom of the list of available sources and select Connector Settings. Image 6–7 Source menu, connector settings The available input connectors are displayed.
Page 58 GUI – Source Image 6–9 Example of connector settings for an HDMI connector You can change the following: • To force a limit on the used signal range, select one of the available signal ranges. • To force a limit on the color space, select one of the available color spaces. •...
Page 59: Gui - Image
GUI – Image Setting image levels manually......................60 Adjusting the sharpness ........................61 Adjusting the gamma correction.....................62 Setting the desired Gamma type ....................63 Digital Shift & Zoom ........................65 RealColor P7..........................69 Setting the output resolution ......................71 Displaying HDR content ........................72 Dynamic contrast..........................73 R5906112 /12...
Page 60: Setting Image Levels Manually
GUI – Image 7.1 Setting image levels manually Purpose Contrast: Change the contrast of the complete output signal (main and PiP window together) of the projected image. Brightness: Change the brightness of the complete output signal (main and PiP window together) of the projected image.
Page 61: Adjusting The Sharpness
GUI – Image Image 7–4 Example of the image sliders, brightness is the second slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. How to set up Saturation Level In the main menu, select Image → Saturation. Image 7–5 Image menu —...
Page 62: Adjusting The Gamma Correction
GUI – Image Increasing the sharpness will have the best effect in high contrast images, eg a table with text and borders. In a natural picture, high sharpness can be perceived as noise, as all details in the picture will be amplified. Available range: -2 to 8.
Page 63: Setting The Desired Gamma Type
GUI – Image Image 7–10 Image menu – Gamma Use the ▼ key to select the slider. Use the ◄ or ► key to change the gamma value between 1.0 and 2.8 . The default value is 2,2. Tip: The slider can be adjusted with a precision of 0.1. Image 7–11 Example of the gamma menu 7.4 Setting the desired Gamma type About the alternate gamma types...
Page 64 GUI – Image Exception when using an HDR source The only alternate color gamma that can not be selected in this menu is PQ/HDR. Because the color output of HDR is dependant on extra factors such as screen luminance, a separate menu has been made available for this (PQ).
Page 65: Digital Shift & Zoom
GUI – Image Image 7–15 Example of selecting a gamma type Tip: If not sure what gamma type to select, keep the default value auto selected. This automatic mode will determine the used gamma type based on the incoming signal. However: keep in mind when using the automatic mode, your media player needs to be configured correctly as well.
Page 66 GUI – Image Image 7–16 Originally picture, not digitally zoomed Image 7–17 Picture digitally zoomed in Image 7–18 Picture digitally zoomed out The effect of Digital Shift This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result, some parts of the picture might be shifted outside the DMD range.
Page 67 GUI – Image Image 7–19 Original Picture, not digitally shifted Image 7–20 Picture shifted horizontally Image 7–21 Picture shifted vertically Digital Shift & Zoom In the main menu, select Image → Digital Zoom Shift. Image 7–22 Image menu, digital zoom and shift The Digital Zoom Shift menu is displayed.
Page 68 GUI – Image Image 7–23 Example of the digital zoom and shift menu In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable the Shift slider. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu. Use the enter key to activate this mini-keypad.
Page 69: Realcolor P7
Image 7–26 Advanced settings menu – RealColor P7 The P7 menu is displayed. Image 7–27 Example of the RealColor P7 menu, here on a UDX Select the desired Custom Mode. Select one of the following Custom options and confirm: •...
Page 70 Image 7–29 Example of the RealColor P7 menu, here on a UDX Select one of the pre-defined presets: • Standard: A color standard for all UDX projectors, which may be considered the new native settings for all UDX projectors. Default for UDX. •...
Page 71: Setting The Output Resolution
GUI – Image Image 7–30 Example of one of the presets, here DCI-P3 Note: After choosing one of the presets, you can still alter the values of the coordinates to your own choosing, similarly to how you set custom P7 values. Use the Reset icon to return to the default values of the chosen preset.
Page 72: Displaying Hdr Content
GUI – Image Image 7–32 Example of the available output resolutions Select the desired output resolution. Possible resolutions: • 4K UHD: 4k images, using the actuator at normal frequency. • 4K UHD S: 4k extra sharp images, using the actuator at a higher frequency •...
Page 73: Dynamic Contrast
GUI – Image The projected HDR content depends on the following factors: • Mastering luminance: This is content-specific and cannot be changed. • Screen luminance: Every projection screen has a specific luminance (measured in nits or foot-Lambert). Entering this luminance in the projector will adapt the content towards the intended HDR result. •...
Page 74 GUI – Image How to set the dynamic contrast? In the main menu, select Image → Advanced → DynaBlack. Image 7–36 The DynaBlack menu is displayed. Image 7–37 Example of the DynaBlack menu Select the desired dynamic contrast setting, or leave the default on (medium). The result will slowly become visible.
Page 75: Gui - Installation
GUI – Installation Configuring the lens, optical zoom-focus ..................76 Configuring the lens, shift ......................76 Configuring the lens, dynamic focus ....................77 Configuring the lens, Shift to center....................78 Configuring the lens, tilt sensor ......................79 Laser ranging ..........................79 Manipulating the rigging frame ......................81 Manipulating the rigging frame, center position ................82 Orientation ...........................83 8.10 Scaling modes..........................84...
Page 76: Configuring The Lens, Optical Zoom-Focus
GUI – Installation 8.1 Configuring the lens, optical zoom-focus What can be done? If a motorized lens has been mounted onto the projector, you can fine-tune the projected image. Zoom - Focus In the main menu, select Installation → Lens → Zoom focus. Image 8–1 Lens menu, Zoom &...
Page 77: Configuring The Lens, Dynamic Focus
GUI – Installation Image 8–3 Lens menu, lens shift The Lens shift menu is displayed. Image 8–4 Example of the lens shift menu Use the ◄ and ► keys to shift the lens (image) in horizontal direction. Use the ▲ and ▼ keys to shift the lens (image) in vertical direction. 8.3 Configuring the lens, dynamic focus About focus drift and dynamic focus Due to the design of ultra-short throw lenses (UST lenses), this type of lens tends to heat up over time when...
Page 78: Configuring The Lens, Shift To Center
GUI – Installation Image 8–5 Example of the Lens menu In the Lens menu, click Dynamic focus to toggle between On and Off. Image 8–6 Lens menu, Image 8–7 Lens menu, Dynamic focus enabled Dynamic focus disabled Note: The Dynamic focus slider is only visible when the light source is on. 8.4 Configuring the lens, Shift to center What can be done? The lens can be forced back to the center position by selecting Shift to center.
Page 79: Configuring The Lens, Tilt Sensor
GUI – Installation 8.5 Configuring the lens, tilt sensor When to use the tilt sensor menu The projector has a built-in tilt sensor that detects the angle at which the projector is mounted. If you are in a situation where you need to fine-tune the projector because you want to achieve a picture at a specific angle (e.
Page 80 GUI – Installation Image 8–11 Installation menu, laser ranging The Laser ranging menu is displayed. Image 8–12 Example of the laser ranging menu For a single laser ranging calculation, press Once. This will continue the laser for 30 seconds. If you want a continued laser ranging (e.g. when fine-tuning the position of the projector), press Repeatedly.
Page 81: Manipulating The Rigging Frame
GUI – Installation 8.7 Manipulating the rigging frame When can you manipulate the rigging frame? You can manipulate the rigging frame in the Pulse menu when: • The projector is mounted in a motorized rigging frame. • The wiring of the motorization is connected to the projector, including the XLR connector. •...
Page 82: Manipulating The Rigging Frame, Center Position
GUI – Installation Use the ▲ or ▼ button to shift the rigging frame (image) in vertical direction. Use the ◄ or ► button to shift the rigging frame (image) in horizontal direction. Confirm with the OK button. The frame rotation menu is displayed. Image 8–17 Example of frame rotation Use the ◄...
Page 83: Orientation
GUI – Installation Image 8–19 Example of the Center motorized frame action prompt Confirm to reset the frame to its center position. Wait until the frame motors have stopped before doing other actions. 8.9 Orientation What can be done? The way of physical installation of the projector can be defined to the projector. The following installation are possible: •...
Page 84: Scaling Modes
GUI – Installation Image 8–21 Example of the orientation menu Use the ◄ or ► keys to select the projector orientation mode and press OK to activate. 8.10 Scaling modes About scaling modes While the default mode of projection is to fill the screen while respecting the aspect ratio (fill aspect), it is also possible to stretch the image in a different way.
Page 85: Warping
GUI – Installation Setting a scaling mode In the main menu, select Installation → Scaling. Image 8–22 Installation menu, scaling The scaling mode menu is displayed. Image 8–23 Example of the scaling mode menu In the Scaling menu, select the desired scaling mode and confirm. 8.11 Warping About warping Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen.
Page 86: Warping - Screen Size
GUI – Installation Image 8–25 Example of the Warp menu In the Warp menu, click Warp to toggle between On and Off. Image 8–26 Image 8–27 8.11.2 Warping – Screen Size About (Warp) Screen Size adjustment If the used source aspect ratio is different than the projector aspect ratio, e.g. source is 16:9 and projector is 16:10, then black bars will be projected.
Page 87 GUI – Installation Image 8–29 Warp menu, screen size The Screen Size menu is displayed. Image 8–30 Example of the screen size menu Select either Screen width or Screen height. Set the new value to shrink either the width or height of the warp outline so that the outline is equal with the active source.
Page 88: Warping - 4 Corners Adjustment
GUI – Installation 8.11.3 Warping – 4 corners adjustment About 4 Corners adjustment 4 corner adjustment is typically used when the mechanical installation of the projector prevents it from pointing perpendicularly at the screen. For example, you can overshoot the screen and use 4 corner adjustment to pull your projected image corners back into the screen.
Page 89: Warping - Bow
GUI – Installation Image 8–35 Example of 4 corners warping menu, with helper lines active on the edges of the screen To set warping on one of the four corners, select one of the four corners and confirm. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm. After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were enabled).
Page 90 GUI – Installation Image 8–37 Bow distortion Definition of angle and linearity (length) in the bow warp procedure Image 8–38 Symmetric bow correction In the main menu, select Installation → Warp → Bow. Image 8–39 Warp menu, Bow The bow menu is displayed. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
Page 91 GUI – Installation Image 8–40 Both the Bow and Symmetric sliders are set to on Use the arrow keys to select the helping lines that represent the picture and confirm. The helping lines that represent the projected picture are now colored blue, while the others are colored white.
Page 92 GUI – Installation The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. Image 8–43 Example of a symmetric bow correction Asymmetric bow correction In the Bow menu, enable the Bow slider and disable the symmetric slider.
Page 93 GUI – Installation Image 8–45 Select the desired slider and confirm. Image 8–46 Adjust angle and linearity (length) individually to obtain the correct correction. Press enter to confirm and to switch between angle and length. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys.
Page 94: Warping - Warp Files
GUI – Installation To reset the bow adjustments, select Reset and confirm. 8.11.5 Warping – Warp files About custom Warp Files Next to setting your specific warp configuration in the GUI, you can also upload or download a custom warp grid in XML format to/from the projector.
Page 95: Warping - Latency Control In A Multi Projector Setup
GUI – Installation Image 8–50 Example of the Warp files menu Make sure the Enable slider is set to right. Select the desired warp file. Image 8–51 Example of the Warp files menu 8.11.6 Warping – Latency control in a multi projector setup Transport latency The added delay in the image processing chain.
Page 96 GUI – Installation Image 8–52 Example of the Transport delay in the status menu Identify the projector with the longest delay. For each projector in the setup, select Installation → Warp in the main menu. Image 8–53 Installation menu, Warp In the Warp menu, select Transport Delay.
Page 97: Blending & Masking
GUI – Installation Click “Apply” to confirm the value. Repeat this process for every projector in the setup. 8.12 Blending & masking About blending Blending is used in multi channel installation to have a seamless transition between the channels. Image blending gives the appearance of a single view, thus achieving realistic immersion for the majority of wide screen applications.
Page 98 GUI – Installation Image 8–58 Example of the basic blend menu To enable blending, put the Enable switch to the right. The color of the switch becomes blue when enabled. To project masking lines on the screen, put the Show lines switch to the right. The color of the switch becomes blue when enabled.
Page 99: Blend & Blend Mask
GUI – Installation Do not forget to disable the Show lines button after you achieved the desired blend zone. 8.12.2 Blend & Blend mask About masking and blending width or height Offset is used to clip the image on one or multiple sides (masking). This is used to hide parts of the picture that should not be shown on the screen.
Page 100 GUI – Installation Image 8–62 Start position (mask) Blending width Select one of the four starting positions values with the arrow keys and confirm. Use the arrow keys or remote digits to change the value of the mask and confirm. Repeat this process for all other desired sides.
Page 101: Blend Files
GUI – Installation Image 8–63 Set up for projector 1 Image 8–64 Set up for projector 2 8.12.3 Blend Files About custom Blend Files Next to setting your specific Blending configuration in the GUI, you can also upload or download a custom Blend configuration file in png, jpg or tiff format to/from the projector.
Page 102: Basic Black Level Adjustment
GUI – Installation Image 8–65 Blend and mask menu, Blend files The Blend Files menu is displayed. Image 8–66 Example of the blend files menu If any custom Blend files are available, select the desired file. Image 8–67 To enable the selected blend file, make sure the Enable slider is set to the right. The color of the slider becomes blue when enabled.
Page 103 GUI – Installation You can also specify the offsets manually by turning off the automatic calculation. The black level value is adjusted in a 16–bit resolution from 0 to 65535. The following figure shows how this occurs in a side by side configuration without any correction of the black level.
Page 104: Rgb Gain Adjustment
GUI – Installation Move the cursor to Level, press enter and adjust this level until the black level equals the level in the blend zone. This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side. Note: Do not forget to disable the Show lines button after you achieved the desired blend zone.
Page 105: Black Level Files
GUI – Installation Image 8–73 Example of the default black level menu Select one of the three sliders on the bottom of the menu (Red, Green or Blue). Use the left and right arrow keys to modify the gain of the chosen color. Repeat for every slider until the desired result is achieved on screen.
Page 106: Illumination
GUI – Installation Image 8–75 Example of the black level files menu If any custom Black Level adjustment files are available, select the desired file. Image 8–76 Example of custom black level files selected Make sure the Enable slider is set to the right to activate the selected black level file 8.13 Illumination What can be done? Within a certain percentage, the light output of the light source can be reduced by reducing the power slider.
Page 107: Projection
GUI – Installation How to reduce the power In the main menu, select Installation → Illumination. Image 8–77 Installation menu, illumination The Illumination menu is displayed. Image 8–78 Example of the Illumination menu Use the Slider to change the power value. Enable the Constant light output slider if you want to enable CLO mode.
Page 108: Setup Process 3D Projection
GUI – Installation The viewer wears glasses which contain a pair of opposite polarizing filters. As each filter only passes light which is similarly polarized and blocks the opposite polarized light, each eye only sees one of the images, and the effect is achieved.
Page 109: Setup
Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
Page 110 Image 8–79 Installation menu, 3D setup The 3D setup menu is displayed. Image 8–80 Example of the 3D setup menu on a UDX If it is necessary to invert the stereo sync output, enable the Swap eyes option. If the projected moving 3D content doesn’t look smooth enough, enable the Swap frame pair option to help improve this.
Page 111: Gui - Macro's And Projector Profiles
GUI – Macro’s and projector profiles Saving the current projector settings in a profile ................112 Assigning a created projector profile to a preset ................114 Deleting a projector profile......................115 About macro’s and projector profiles Projectors can have different settings, depending on different environments (e. g. playing video games in a bright environment or playing a movie in a dark environment), or using different mediums (e.g.
Page 112: Saving The Current Projector Settings In A Profile
GUI – Macro’s and projector profiles 9.1 Saving the current projector settings in a profile Which settings can be saved to a profile? Profile setting Settings saved name Source Active source selection & EDID Image • All basic image settings: contrast, brightness, saturations, sharpness & gamma •...
Page 113 GUI – Macro’s and projector profiles Image 9–1 Profiles menu, edit The Profile edit menu is displayed. Image 9–2 Profile edit menu Use the arrow keys to select New Profile... and confirm. The New Profile pane is expanded and fully displayed. Image 9–3 Example of the new profile pane Use the arrow keys and the okay key to select any of the settings you wish to save in this macro.
Page 114: Assigning A Created Projector Profile To A Preset
GUI – Macro’s and projector profiles 9.2 Assigning a created projector profile to a preset This procedure assumes you have created at least one projector profile. For more info on saving projector settings to a profile, see “Saving the current projector settings in a profile”, page 112.
Page 115: Deleting A Projector Profile
GUI – Macro’s and projector profiles The preset slot is now shown next to the profile name. Image 9–7 Example of projector profiles allocated to preset slots (here slot 00 and 04) 9.3 Deleting a projector profile How to delete a profile In the main menu, select Profiles →...
Page 116 GUI – Macro’s and projector profiles Image 9–10 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. R5906112 /12...
Page 117: Gui - System Settings
GUI – System Settings 10.1 Communication, LAN setup ......................118 10.2 IR control ........................... 124 10.3 Setting a custom projector name....................127 10.4 DMX ............................127 10.5 Front XLR output voltage control....................129 10.6 GSM configuration........................130 10.7 Changing the User Interface language ..................131 10.8 Themes .............................
Page 118: Communication, Lan Setup
GUI – System Settings 10.1 Communication, LAN setup About a network connection A network connection can be made via a wired connection or via the optional wireless unit. 10.1.1 Introduction to a Network connection DHCP Dynamic host configuration protocol. DHCP is a communications protocol that lets network administrators manage centrally and automate the assignment of IP addresses in an organization's network.
Page 119 GUI – System Settings Image 10–1 Communication menu, LAN The LAN menu is displayed. Image 10–2 Example of the LAN menu To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue. An IP address will be automatically assigned if it can make a connection to the network..
Page 120: Wireless Ip Address Set Up
GUI – System Settings Image 10–4 Example of the LAN menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–5 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.
Page 121 GUI – System Settings Image 10–6 Communication menu, WiFi The WiFi menu is displayed. Image 10–7 Example of the WiFi menu Make sure the Enable slider is set to the right to enable the WiFi module. The color of the slider becomes blue.
Page 122 GUI – System Settings Tip: If the desired wireless network is not in the list or hidden by default, select Other network. A form will pop up, allowing you to fill in the details of the network. Image 10–9 Example of the entry form to search for other wireless networks If required by the chosen wireless network fill in the user name, password and confirm.
Page 123 GUI – System Settings Image 10–11 Example of the WiFi menu Make sure the Enable slider is set to the right to enable the WiFi module. The color of the slider becomes blue. Disable the Automatic slider by setting it to the left. The switch becomes gray. Image 10–12 Use the arrow keys to select Address and press OK button to activate the input box.
Page 124: Ir Control
GUI – System Settings Image 10–13 Example of the available networks list. Press Connect to connect to the selected network. If required by the chosen wireless network, fill in the username and password and confirm. When connected to this network, it is indicated in the upper right corner of the menu with the term “connected”.
Page 125: Projector Address
The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. 10.2.2 Projector address About individual projector address As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or with a computer using serial communication.
Page 126: Ir Sensors
GUI – System Settings Image 10–17 Example of the IR control menu Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes. From now on the projector will only listen to this new address and to its broadcast address. 10.2.3 IR sensors What can be done? Each IR sensor can be individually disabled or enabled.
Page 127: Setting A Custom Projector Name
GUI – System Settings To disable an IR sensor, select the slider and drag to the left. A blue slider means an active IR sensor. A gray slider means an inactive IR sensor. Select APPLY and click OK to apply the changes. 10.3 Setting a custom projector name What can be done? The default name of the projector is “Pulse”.
Page 128 GUI – System Settings If you are using a DMX console and other automated lighting products compatible with Art-Net, the Ethernet network can serve as the link for DMX control. All DMX controls can be sent over the Ethernet cable. Multiple universes are possible.
Page 129: Front Xlr Output Voltage Control
DMX Art-Net, set the power level to 0 V. Location of the XLR connector Image 10–24 Location of the XLR connector on the UDX How to enable or disable? In the main menu, select System Settings → Communication → DMX.
Page 130: Gsm Configuration
GUI – System Settings Image 10–25 Communication menu, DMX The DMX menu is displayed. Image 10–26 Example of the DMX menu On the bottom of the DMX menu, Enable the XLR connector slider. Select the desired Output Voltage. 10.6 GSM configuration Only possible when a GSM module with SIM card is installed in the projector.
Page 131: Changing The User Interface Language
GUI – System Settings The GSM pin code input menu is displayed. If a pin code has already been entered, it will not be necessary to enter the pin code again. If all you see is an entry field, continue with next step. Enter the 4 digits of the pin code and select APPLY and confirm with OK.
Page 132: Themes
GUI – System Settings • Japanese (JA) • Korean (KO) • Portuguese (PT-BR) • Russian (RU) • Chinese (ZH) 10.8 Themes About Themes Themes are used to apply a predefined functionality to the OSD display. There are two options: light or dark (default).
Page 133: Controlling The Backlight Of The Lcd Display
GUI – System Settings Image 10–33 Example of the Units menu Select the desired Temperature unit and Length unit and confirm. 10.10 Controlling the backlight of the LCD Display What lighting can be controlled? You can choose how quickly the backlight of the LCD turns off. You can select one of the default values, or enter a custom value.
Page 134: Power Settings
GUI – System Settings Image 10–35 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. 10.11 Power settings Why change the power saving features? As a power-saving feature, the projector will automatically go to Ready and standby mode after 15 minutes each.
Page 135: Lens Features
GUI – System Settings Image 10–37 Example of the power settings menu To change the time the projector turns the light source off, select the desired Power off time-out. To change the time the projector goes to stand-by mode, select the desired Standby time-out. How to disable/enable auto off mode In the main menu, select Settings.
Page 136: Factory Reset
GUI – System Settings Image 10–40 Settings menu, Lens features The Lens features menu is displayed. Image 10–41 Example of the lens features menu Depending on the mounted lens type, different functions may or may not be available such as: •...
Page 137 GUI – System Settings Option Setting Factory setting Image connectors Color Space auto Signal Range auto Image convergence Electronic Convergence All values to zero Image display Display mode AutoStereo Image features Contrast mid value Brightness mid value Saturation mid value Sharpness mid value Gamma...
Page 138 GUI – System Settings Option Setting Factory setting Units – Temperature °C Units – Length Meters (m) How to reset all projector settings In the main menu, select Settings → Maintenance → Reset. Image 10–42 Settings menu, factory reset The Reset menu is displayed. Image 10–43 Example of the reset menu In the Reset menu, select RESET ALL and confirm with OK.
Page 139: Lens Calibration
GUI – System Settings Image 10–45 Example of the reset menu Navigate to the checkbox next to the settings that need to be reset and press OK. Multiple selections are possible. Select RESET SELECTED and confirm with OK to reset all selected settings. 10.14 Lens Calibration How to calibrate In the main menu, Settings →...
Page 140: Flex Brightness
When an error is detected, the message Calibration Error is displayed next to function. 10.15 Flex brightness This feature is available by default on the following devices: UDX 4k40, UDX W40. This feature is also available as an option on the following devices: UDX 4K32, UDX 4K26, UDX W32, UDX W26. Overview With the FLEX technology the projector owners can lock the light output to different levels.
Page 141 GUI – System Settings How to configure? Create a new text message containing 3 parts, each separated with a space character: • Activation code (created using Projector Toolset) • Action string • Action parameter Example: “1234 MLO 14” Send this message to the GSM number associated with the projector. The receiving projector will analyze the message and configure the light output accordingly.
Page 142: Rigging Frame Calibration
GUI – System Settings Image 10–51 Example of entering the code in the Flex license menu 10.16 Rigging frame Calibration How to calibrate the motorized rigging frame In the main menu, select Settings → Maintenance → Frame Calibration. Image 10–52 Maintenance menu, Frame calibration The Frame calibration menu is displayed.
Page 143: Electronic Convergence
GUI – System Settings Image 10–54 Example of a calibration in progress When an error is detected, the message Calibration Error is displayed next to function. 10.17 Electronic Convergence What can be done? The convergence patterns can be used to check the convergence alignment of red, green and blue. If there is a misalignment of at least one 1 pixel, an electronic realignment is possible.
Page 144: Setting Up The External Cooler
GUI – System Settings Image 10–57 Tip: Press Reset to return all values to the factory settings. Repeat all steps until the desired alignment is achieved. 10.18 Setting up the external cooler Using the external cooler When the external cooler for the projector is correctly installed, the Cooling menu will be enabled and visible in the menu.
Page 145: List Of Open Source Licenses
GUI – System Settings Image 10–59 Example of the cooling menu In the Cooling menu, select the desired cooling option. Note: After changing the settings, it can take up to 1 minute for the changed settings to take effect. 10.19 List of open source licenses About open source licenses Open source licenses are licenses that comply with the Open Source Definition.
Page 146: Remote Access - Enable Source Preview
GUI – System Settings Image 10–61 Example of the Maintenance menu, with the Advanced menu and Remote access menu unlocked The Advanced Settings and Remote access menu items will remain visible until you leave the Maintenance menu. 10.20.1 Remote access – Enable source preview Source preview Up until Pulse software 2.0.
Page 147: Remote Access - Enable Camera Preview
GUI – System Settings Image 10–63 Example of the Remote access menu Enable the slider to enable the source preview feature. Image 10–64 Remote access menu, Source preview is enabled 10.20.2 Remote access – Enable camera preview Camera preview Up until Pulse software 2.0.x, you were able to see the footage of the camera when you remotely accessed the projector.
Page 148: Advanced Settings - Color
GUI – System Settings Image 10–66 Example of the Remote access menu Enable the slider to enable the Camera preview feature. Image 10–67 Remote access menu, Camera preview is enabled 10.20.3 Advanced Settings – Color CAUTION: The native colors have been measured and set during factory production. Do not change them, unless parts of the optical path have been replaced due to servicing.
Page 149: Advanced Settings - Statistics
GUI – System Settings The RealColor calibration menu will be displayed. Image 10–70 Example of the RealColor calibration menu Select the desired value to change and confirm. Change the values to the desired position, taking into account the color gamut values. Select APPLY and confirm.
Page 150: Checking The Status Of The Laser Banks
GUI – System Settings The Statistics will be displayed. Image 10–73 Example of the Statistics menu 10.20.5 Checking the status of the Laser Banks About failing laser banks The projector is powered by a laser light source, which has multiple laser banks. The light output and color performance is dependant on the number of active laser banks.
Page 151: Advanced Settings - Tilt Sensor Calibration
GUI – System Settings Image 10–76 Example of the Laser group statistics menu Select the desired laser group. In the laser banks group page, you can see which laser banks are part of this specific group. You can also see which laser banks are operational and which have failed. Image 10–77 Example of the laser bank group menu If you want notifications to be disabled for a specific group of laser banks, disable the Enable notifications for this group slider.
Page 152 GUI – System Settings Image 10–78 Maintenance menu, Advanced Enter the service code. In the Service menu, select Tilt sensor calibration. Image 10–79 Advanced menu, Tilt sensor calibration Confirm your action. Image 10–80 Example of the Advanced menu with the Tilt sensor menu The tilt sensor will be set to zero in the current position of the projector.
Page 153: Gui - Status Menu
GUI – Status menu 11.1 Status menu overview......................... 154 No settings can be modified in the status menu. Its only for consulting. R5906112 /12...
Page 154: Status Menu Overview
GUI – Status menu 11.1 Status menu overview How to access the status menu While in the main menu, press Status. Image 11–1 Main menu, status The status menu is displayed. Image 11–2 Example of a status menu Swipe the screen to switch between the Status and About page. Image 11–3 Example of the About page in the Status menu What can be seen on the Status page? •...
Page 155 GUI – Status menu What can be seen on the About page? • Projector information, e.g. firmware version, serial number and projector article number • Mounted lens: Type and description • Basic statistics, e.g. light source run time, projector runtime R5906112 /12...
Page 156 GUI – Status menu R5906112 /12...
Page 157: Projector Maintenance
Projector maintenance 12.1 Software update ......................... 158 12.2 Cleaning the lens........................159 12.3 Cleaning the exterior of the projector .................... 160 About this chapter This chapter contains general maintenance procedures. R5906112 /12...
Page 158: Software Update
Download the latest firmware (format .fw) from Barco's website in the same way as for Projector Toolset. Start Projector Toolset and make a connection with the projector. For more information, see the “Projector Toolset”...
Page 159: Cleaning The Lens
Always contact Barco if you want to make sure a downgrade will not hurt your device.
Page 160: Cleaning The Exterior Of The Projector
Projector maintenance Use a dry lens cleaning cloth to remove left liquid or stripes. Polish with small circles. If there are still fingerprints on the surface, wipe them off with lens cleaner together with a clean lens cleaning cloth. Polish again with a dry one. If smears occur when cleaning lenses, replace the cloth.
Page 161: A Specifications
Specifications Specifications of the UDX-4K40 ....................162 Specifications of the UDX-4K32 ....................163 Specifications of the UDX-4K26 ....................165 Specifications of the UDX-4K22 ....................166 Specifications of the UDX-W40 ....................168 Specifications of the UDX-W32 ....................170 Specifications of the UDX-W26 ....................171 Specifications of the UDX-W22 ....................
Page 162: Specifications Of The Udx-4K40
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 37,500 (WQ)/36,500 (4K UHD) center lumens // 36,500 (WQ)/35,500 (4K UHD) ansi lumen // 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
Page 163: Specifications Of The Udx-4K32
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 31,000 (WQ)/30,000 (4K UHD) center lumens* // 30,000 (WQ)/29,000 (4K UHD) ansi lumens // 33,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
Page 164 Specifications Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) Color correction Light source laser phosphor with inorganic phosphor wheel Light source lifetime 25,000 hrs Optical dowser Digital Picture-by-picture Two sources simultaneously Orientation 360°...
Page 165: Specifications Of The Udx-4K26
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 26,000 (WQ)/25,000 (4K UHD) center lumens // 25,000 (WQ)/24,000 (4K UHD) ansi lumens // 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1 ;...
Page 166: Specifications Of The Udx-4K22
Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations part 15 Class A and CE EN55022 Class A, Rhos Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.4 Specifications of the UDX-4K22 Specifications...
Page 167 Specifications Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1...
Page 168: Specifications Of The Udx-W40
Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable. Check with your local authorized Barco sales representative for full details. A.5 Specifications of the UDX-W40 Specifications...
Page 169 Specifications Sealed DLP™ core standard DMX 512 standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Keystone correction Integrated web server CLO (constant light output) Standard Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz* Inputs Single HDBaseT;...
Page 170: Specifications Of The Udx-W32
Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 32,000 center lumens/ 31,000 ansi lumen / 34,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ;...
Page 171: Specifications Of The Udx-W26
0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 26,000 center lumens / 25,000 ansi lumens / 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1;...
Page 172 Specifications Light source lifetime 40,000 hrs Optical dowser Digital Picture-by-picture Two sources simultaneously Sealed DLP™ core standard Orientation 360° DMX 512 standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Keystone correction Integrated web server CLO (constant light output) Standard Active eye wear (optional), passive circular (optional);...
Page 173: Specifications Of The Udx-W22
Specifications Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.8 Specifications of the UDX-W22 Specifications Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 21,000 center lumens* / 20,000 ansi lumens / 22,500 ISO...
Page 174: Specifications Of The Udx-U45Lc
Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative A.9 Specifications of the UDX-U45LC Specification...
Page 175 Specifications Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) Color correction Light source...
Page 176: Specifications Of The Udx-U40
0.96" DMD™ x3 Resolution 1600 x 1200 Brightness 37,500 center lumen/ 36,500 ansi lumens / 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ;...
Page 177: Specifications Of The Udx-U32
UXGA 3-chip DLP digital projector Technology 0.96" DMD™ x3 Resolution 1,600 x 1,200 Brightness 30,000 center lumens / 29,000 ansi lumen / 32,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio R5906112 /12...
Page 178 Specifications ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0- 2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses)
Page 179: Specifications Sdi Inputs
Specifications Dissipation BTU Max. 9,895 BTU/h Dimensions (WxLxH) 660 x 830 x 350 mm / 25.98 x 32.7 x 13.78 inches Shipping Dimensions (WxLxH) 800 x 1,200 x 685 mm / 31.49 x 47.24 x 26.96 inches Weight 92 kg (202 lbs)/shipping weight from factory: 110 kg (242 lbs) Standard accessories Power cord, wireless/XLR wired rugged remote control, bottom rigging kit/ clamps...
Page 180: Specifications Hdmi Inputs
• Up to 4096 x 2160 @50 Hz • Up to 4096 x 2160 @60 Hz Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz A.14 Specifications HDBaseT inputs...
Page 181: Specifications Displayport 1.2 Inputs
• 2048 x 2160 @50 Hz • 2048 x 2400 @60 Hz Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2160 @60 Hz CAUTION: The HDBaseT inputs can bridge a distance of 100 m but are sensitive to radiated electromagnetic interference: radiated electromagnetic interference (e.g.
Page 182 Specifications • RGB 4:4:4 Color depth • 24 bpp • 30 bpp • 36 bpp Data rate support • 1.62 Gbps: Reduced Bit Rate (RBR) • 2.7 Gbps: High Bit Rate (HBR) • 5.4 Gbps: High Bit Rate 2 (HBR2) For future release •...
Page 183: Specifications Sfp Inputs
2 column mode (2x1 1920 x 2160 @60 Hz stereo layout) Native video timings • UDX-U-series: 1600 x 1200 @60 Hz • UDX-W-series: 1920 x 1200 @60 Hz • UDX-4k-series: 3840 x 2400 @60 Hz CAUTION: In order to display high resolution images (e.g.: 3840 x 2160 @60 Hz) via the DP1.2 input, the quality of the cable must be adequate, in addition the length of the cable can also influence the performance.
Page 184: Technical Regulations
Specifications A.17 Technical Regulations Certificates Image A– Image A– Image A– Image A–3 CE Image A–4 CCC 5 CEBEC Image A–6 FCC 1 EAC mark 2 Rohs OK mark mark mark label Image A–7 RCM Image A– mark 8 SGS mark R5906112 /12...
Page 185: B Video Timing Tables
Video timing tables Overview video timings ....................... 186 Overview video timings SDI Inputs ....................187 Overview video timings HDMI 2.0 inputs..................188 Overview video timings DisplayPort 1.2 inputs ................190 Overview video timings HDBaseT inputs ..................192 About this chapter This chapter contains the tables with video timings for video interfaces.
Page 186: Overview Video Timings
B.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.
Page 187: Overview Video Timings Sdi Inputs
Video timing tables Compatible signal 12G SDI Input on Mk Vertical II Input HDBaseT & refresh rate Resolution HDMI 2.0 3G SDI DisplayPort board & HDMI 1.4 (Hz) Inputs Inputs 1.2 Inputs Fiber Inputs Network Inputs 2048 x 1080 — —...
Page 188: Overview Video Timings Hdmi 2.0 Inputs
Video timing tables Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1280 x 720 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link &...
Page 189 Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 1280 x720 Frame packing Top – bottom 1280 x 720 Frame packing Top – bottom 1280 x 800 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200 1920 x 1080 Frame packing...
Page 190: Overview Video Timings Displayport 1.2 Inputs
Video timing tables B.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing Available layout modes, Vertical refresh rate other than standard...
Page 191 Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 1920 x 1080 1920 x 1080 4 Quadrant mode (2 x 2 Active 3D layout) 1920 x 1200...
Page 192: Overview Video Timings Hdbaset Inputs
Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 B.5 Overview video timings HDBaseT inputs Overview...
Page 193 Video timing tables Video timing Vertical refresh rate (Hz) (active pixels x active lines) 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 2160 2048 x 2160 2560 x 1600 2560 x 1600 3840 x 2160 3840 x 2160 3840 x 2160...
Page 194 Video timing tables R5906112 /12...
Page 195: C Dmx Chart
DMX chart DMX chart input board positioning ....................196 DMX chart, Basic........................196 DMX chart, Extended........................197 R5906112 /12...
Page 196: Dmx Chart Input Board Positioning
DMX chart C.1 DMX chart input board positioning About the input boards 6 Input selection ranges are reserved in the DMX chart per input board location (named L1 and L2). With the current version of DMX support, it is important to take into account to keep the input boards in their original slots.
Page 197: Dmx Chart, Extended
DMX chart Function Value Default Action 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1 second) 152 - 159 Select input 9: Quad DP board Input C (if held for 1 second) 160 - 167...
Page 198 DMX chart Function Value Default Actions 120 - 127 Select input 5: HDBaseT Input 1 (if held for 1 second) 128 - 135 Select input 6: Quad SDI input (if held for 1 second) 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1...
Page 199 DMX chart Function Value Default Actions 16 - 23 Calibrate lens horizontal and vertical shift (if held for 5 seconds) 24 - 31 Calibrate lens (zoom, focus and shift) (if held for 5 seconds) 32 - 255 Reserved for future functionality R5906112 /12...
Page 200 DMX chart R5906112 /12...
Page 201: D Wifi & Gsm Compliance Information
WiFi & GSM compliance information Compliance FCC ........................202 Compliance IC..........................202 KCC Certification ........................203 About this chapter This chapter contains important compliance information related to the WiFi and GSM module. Regulatory information for US and Canada can be accessed in the OSD of the projector. In order access it, select System Settings →...
Page 202: Compliance Fcc
WiFi & GSM compliance information D.1 Compliance FCC Federal Communication Commission Interference Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
Page 203: Kcc Certification
기기명칭: 특정소출력무선기기(무선랜을 포함한 무선접속시스템용 무선기기) 인증자상호: Barco N.V. 모델명: eBox Pulse 인증번호: R-C-BVY-eBoxPulse 모듈 ID: KCC-CRM-TCS-HE910-D 제조연월: 2019. 제조자/제조국: Barco NV/벨기에와 중국 EMC 경고: 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. R5906112 /12...
Page 204 WiFi & GSM compliance information R5906112 /12...
Page 205: E Environmental Information
Environmental information Disposal information ........................206 Turkey RoHS compliance......................206 Taiwan RoHS compliance......................207 Contact information........................208 Production address........................208 R5906112 /12...
Page 206: Disposal Information
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/AboutBarco/weee Disposal of batteries in the product This product contains batteries covered by the Directive 2006/66/EC which must be collected and disposed of separately from municipal waste.
Page 207: Taiwan Rohs Compliance
Environmental information E.3 Taiwan RoHS compliance 限用物質含有情況標示聲明書 (Declaration of the Presence Condition of the Restricted Substances Marking) 設備名稱：　數位投影機，　型號（型式）：　UDX Equipment name: Projector, Type designation: UDX 限用物質及其化學符號 Restricted substances and its chemical symbols 單元鉛汞鎘六價鉻多溴聯苯多溴二苯醚 Unit Lead...
Page 208: Contact Information
Registered office address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. E.5 Production address...
Page 209: Glossary
Glossary Default Gateway A router that serves as an entry point into and exit point out of a network. For example, a local network (LAN) may need a gateway to connect it to a wide area network (WAN) or to the Internet. DHCP Dynamic host configuration protocol.
Page 210 Glossary RS232 An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of the communication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This standard is used for relatively short-range communications and does not specify balanced control lines. RS- 232 is a serial control standard with a set number of conductors, data rate, word length and type of connector to be used.
Page 211: Index
Index Brightness 60 Numbers/Symbols 3D emitter setup 109 3D projection 107 CE Certification 19 3D setup 108 Cleaning Exterior 160 Lens 159 Communication 37 DMX 40 Active 3D 107 Introduction 38 setup 109 IR control Active Stereo 107 Broadcast address 124 Address IR sensors 126 Program...
Page 212 Index DMX chart 195 Test Patterns 51 Basic 196 Extended 197 DMX Chart Input mapping 196 Hazard Distance 16, 18 DMX input 40 Modifying optics 19 DMX interface 40 Hazardous Chemicals 15 DMX out 40 HDBaseT inputs Download Specifications 180 Product manual 20 HDMI inputs Specifications 180...
Page 213 Index Adjustment Prevent Calibration 139 Electrical shock 12 Cleaning 159 Product safety labels 16 Dynamic focus 77 Production address 208 Focus 76 Profile 111 Focus drift compensation 77 Delete 115 Shift 76 New 112 Shift to center 78 Profiles Tilt sensor 79 Edit 114 Zoom 76 Preset 114...
Page 214 Index Warping 136 UDX-4K40 162 Restricted access location 11 UDX-U32 177 Restriction zone 12 UDX-U40 176 Rigging frame 81 UDX-U45LC 174 Center position 82 UDX-W22 173 RS232 41 UDX-W26 171 RS422 41 UDX-W32 170 UDX-W40 168 Standard source files 185...
Page 215 Index Video timings DisplayPort Inputs 190 HDBaseT Inputs 192 HDMI Inputs 188 Video Timings SDI Inputs 187 Warnings Cooling liquid circuit 13 Warping 85 WiFi Compliance 201 RCU 34 XLR connector Control 129 Zoom 76 R5906112 /12...
Page 216 Index R5906112 /12...
Page 217: List Of Tools
List of tools List of tools Clean cotton cloth Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) Compressed air Lens cleaner (e.g. ZEISS lens cleaner, Purosol™ or other water based lens cleaner products) Level R5906112 /12...
Page 218 List of tools R5906112 /12...
Page 220 R5906112 /12 | 2021-02-08 www.barco.com...

This manual is also suitable for:

Udx 4k22 Udx 4k26 Udx 4k32 Udx 4k40 Udx 4k45 lc Udx u32 ... Show all

Barco UDX User Manual

Quick Links

Related Manuals for Barco UDX

Summary of Contents for Barco UDX

This manual is also suitable for:
