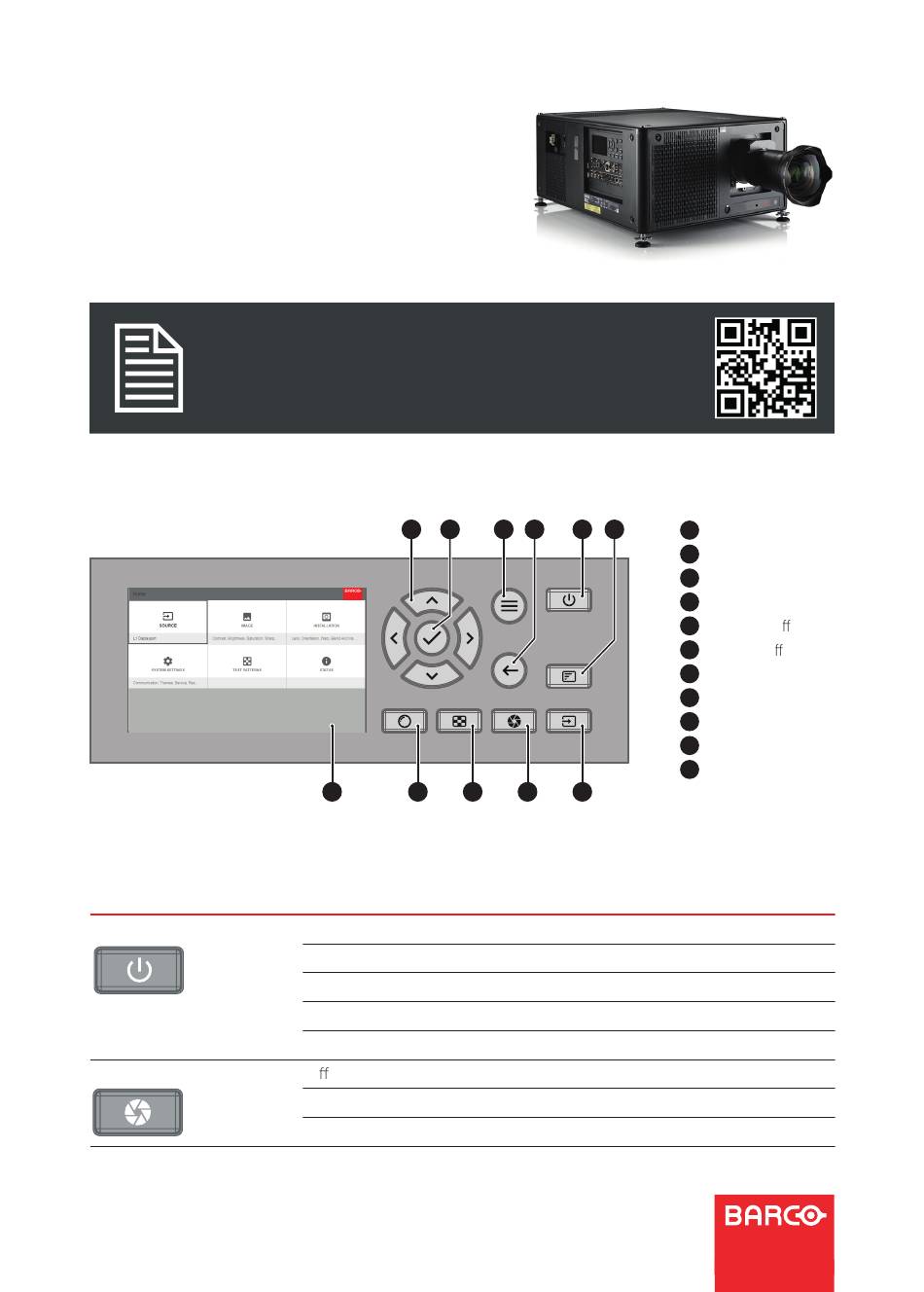

UDX

Quick reference guide

Download Product Manual
Product manuals and documentation are available online at www.barco.com/td/R9008600
Registration may be required; follow the instructions given on the website.
IMPORTANT!
Read Installation Instructions before connecting equipment to the mains power supply.
Local keypad
Button backlight status
BUTTON
Power button
Shutter button
1
2
11
10
9
COLOR STATUS
Blinking WHITE
Solid WHITE
Blinking RED
Blinking BLUE
Solid BLUE
O
Solid WHITE
Solid RED
3
4
5
6
8
7
DESCRIPTION
Projector starts up (Booting)
Projector is in Standby
Error condition
Projector goes to ON mode
Projector is ON
Projector not in power ON state
Shutter is open
Shutter is closed
1
Menu Navigation
Menu Selection
2
3
Open Menu
Menu Back
4
Power On/O
5
6
OSD On/O
Input Selection
7
8
Shutter Open/Close
Test Patterns
9
Lens Menu
10
11
LCD Panel

Advertisement

loading

Related Manuals for Barco UDX series

Summary of Contents for Barco UDX series

  • Page 1: Quick Reference Guide

    Quick reference guide Download Product Manual Product manuals and documentation are available online at www.barco.com/td/R9008600 Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply. Local keypad...
  • Page 2 RCU buttons Button pressed indicator Shutter Open Shutter Close LCD panel On/O OSD On/O Lens Zoom Lens Shift Menu Open/Close Menu Selection, OK button Menu Navigation Input Selection Address button Numeric buttons Backspace (when entering values) XLR connector Decimal mark (when entering values) Macro button Menu Back Default button...

  • Page 3: Install Lens

    Install Lens !! ONLY USE TLD+ Zoom Lenses !! 1. Place the primary lens lock in “unlock” position. Handle (ref. 1) towards electrical socket (ref 3). 2. If present, remove the plastic protection cover from the lens holder opening. 3. Check if the secondary lens lock stands in the “ulock” position (ref 2). 4.
  • Page 4 Switch o 1. Press the Power on/o button for three seconds. 2. Wait until the after-cooling cycle is finished (approximately 30 seconds). 3. Turn the mains switch to o (’0’). 4. Unplug the power cord from the projector. 3 sec 30 sec Adjust 1.
  • Page 5 Quad DisplayPort 1.2 channel C Input Quad DisplayPort 1.2 channel B Input Quad DisplayPort 1.2 channel D Input Support Tel.: - USA +1 866 374 7878 - EMEA +32 56 36 8019 Website www.barco.com/esupport - APAC +86 400 88 22726...

  • Page 6: Communication Panel

    Communication panel WiFi antenna for wireless IP (optional) RS232 for serial communication 12V 1A output Sync Out 3D Firmware update/Download log files Sync In 3D 10/100 base-T for external control over IP / Art-Net Status lights DMX interface input IR receive sensor DMX interface output GSM antenna input (optional) XLR input for wired projector control...
