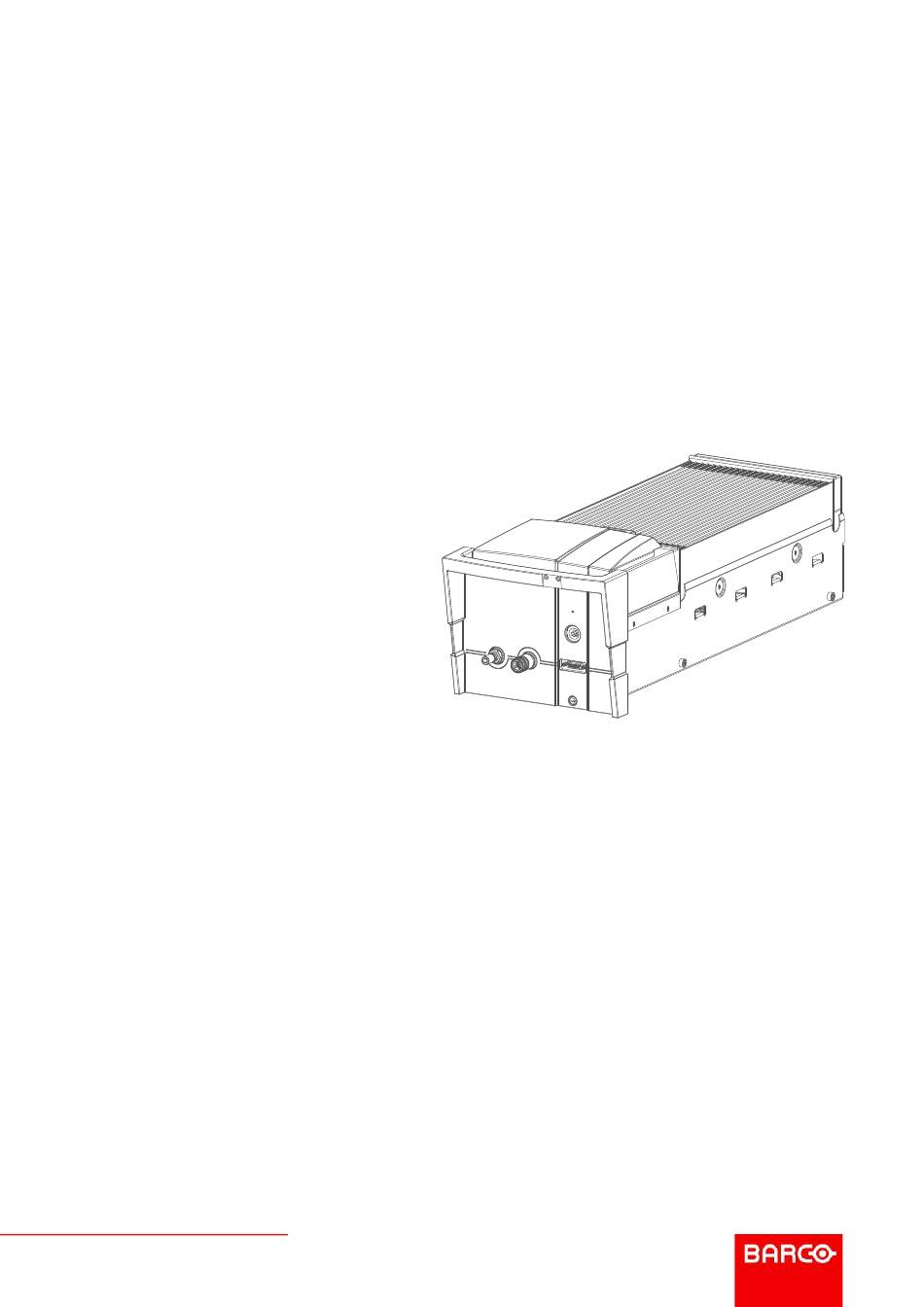

- Page 1 External Laser Cooler Module Installation manual ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
- Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
- Page 4 Trademarks Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufacturers.
-
Page 5: Table Of Contents
External Laser Cooler Module Introduction ............................6 Installation requirements .........................7 Supported mounting positions .......................10 Connecting the projector to the external cooler................12 Setting up the external cooler ......................14 Specifications of the Cooler Module ....................15 Cooler fan speed settings on projector ...................15 Dimensions Cooler Module ......................16 R5906125 /00 External Laser Cooler Module... -
Page 6: Introduction
Only coolers and hoses exclusively developed for this application and approved by Barco are allowed to be used in this setup. The cooler is controlled by the projector and ensures that the ambient temperature of the laser banks, and all other components within the light source are within spec. -
Page 7: Installation Requirements
External Laser Cooler Module Image 1-2 1.2 Installation requirements Environment conditions In general, keep in account that the external cooler should comply with the same environmental conditions as the projector it is connected to. It is not advised to have huge temperature differences between cooler module, tubing and projector, as this will have an influence on the cooling liquid flowing through it. - Page 8 (225 CFM). If the Barco filter is used, keep in account that the distance between filter and air inlets should still be around 5 cm (2 in). Distance between filter and the solid surface then should be around 10cm (4 in).
- Page 9 External Laser Cooler Module Image 1-5 Stacking multiple cooler modules Stacking multiple coolers on top of each other is NOT allowed (neither loose modules nor when mounted in a rigging frame). The air intake of the upper cooler would take in the “hot” air of the lower cooler, even at a distance of 1m apart.
-
Page 10: Supported Mounting Positions
External Laser Cooler Module Image 1-7: Good example of stacking cooler modules 1.3 Supported mounting positions General The Cooler module can be mounted in one of the following positions • While hanging from a truss in landscape or portrait mode. •... - Page 11 External Laser Cooler Module Caution: Only use the depicted mounting positions. For safety reasons, it’s not allowed to hang up the rigging frame with the tubes facing downwards. For technical reasons, it’s also not allowed to hang up the rigging frame with the tubes facing the right side. Image 1-9: mounting options when hanging from a truss beam •...
-
Page 12: Connecting The Projector To The External Cooler
External Laser Cooler Module Image 1-11 Portrait Mode with cooling tubes facing upward Singular cooling module in portrait mode with cooling tubes down Cooler modules in rack/rigging frame with cooling tubes down (not allowed for safety reasons). • Wall mounting – landscape mode: When this option is chosen, the cooler must be fixed on the wall in portrait mode or in landscape mode, while taking into account the installation requirements (e.g. - Page 13 External Laser Cooler Module Image 1-13 Remove the protective plate (reference 2, Image 1-14) from the back cover. Image 1-14 Install the back cover again, without the protective plate. How to connect the hoses and cable? Ensure that all connectors of the hoses, chillers and projector are clean. Wipe away any dust before attaching. Connect the hoses between the projector and external cooler as illustrated in Image 1-15 (reference 1).
-
Page 14: Setting Up The External Cooler
External Laser Cooler Module Image 1-16: Left: Male hose connection, right: Female hose connection Connect the communication and power cable (reference 2, Image 1-15) on the cooler with the same port on the projector. Use a long power and communication cable for this. Tip: Guide the long communication cable together with the hoses. -
Page 15: Specifications Of The Cooler Module
• UDX 4k22, 4k26, 4k32, W22, W26, W32, U32: 1 dB performance • UDX 4k40, W40: 8 dB Standard accessories Power & data cable (8 m), cooling liquid hose (2 x 8 m) 1.7 Cooler fan speed settings on projector About the fan speed settings The fan speed of the external cooler is determined by the projector it is connected to. -
Page 16: Dimensions Cooler Module
External Laser Cooler Module High Altitude Low altitude Device 20°C 40°C 20°C 40°C UDX W32 (Gen 1) UDX W26 (Gen 2) UDX W26 (Gen 1) UDX W22 UDX U32 1.8 Dimensions Cooler Module Dimensions AIR OUT: 225CFM 278,1 733,6 Image 1-19: Dimensions of the Cooler Module, in mm R5906125 /00 External Laser Cooler Module... - Page 17 External Laser Cooler Module R5906125 /00 External Laser Cooler Module...
- Page 18 R5906125 /00 | 2019-02-20 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
