Networks Options; Interface List - Fortinet FortiGate FortiGate-60M Administration Manual

Router

Networks options

Interface list

FortiGate-60M Administration Guide

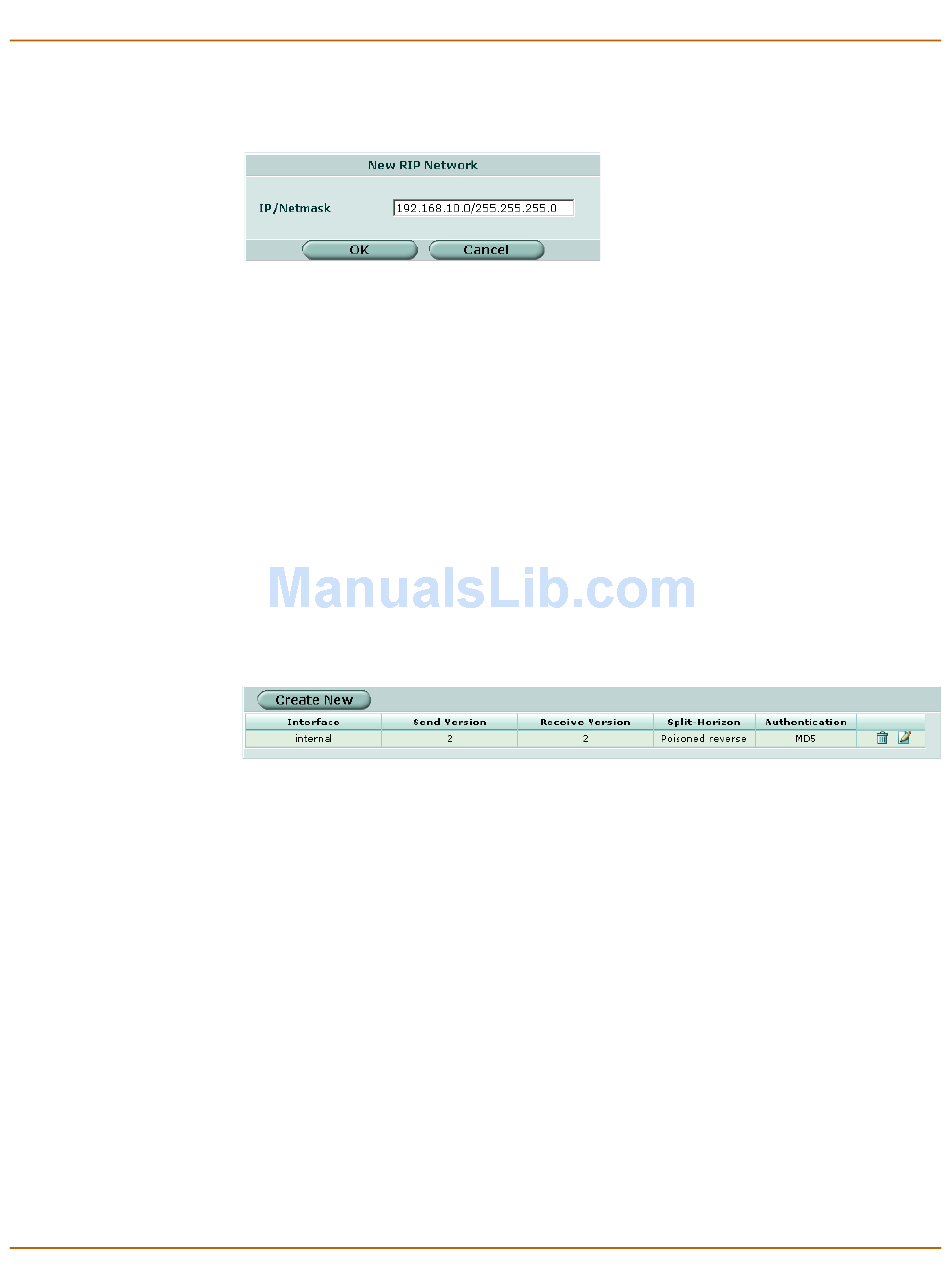

Figure 60: RIP Networks configuration
To configure a RIP network
1 Go to Router > RIP > Networks.
2 Select Create New to add a new RIP network or select the edit icon beside an existing
RIP network to edit that RIP network.
3 Enter the IP address and netmask for the network.
4 Select OK.
Configure RIP version 2 authentication, RIP version send and receive for the specified
interface, and configure and enable split horizon.
Authentication is only available for RIP version 2 packets sent and received by an
interface. Set authentication to None if Send Version or Receive Version are set to 1
or 1 2.
Figure 61: RIP interface list
Create New
Interface
Send Version
Receive Version
Split-Horizon
Authentication
Add a new RIP interface.
The FortiGate interface name.
The RIP send version for this interface.
The RIP receive version for this interface.
The split horizon type.
The authentication type.
The Delete and Edit icons.
01-28007-0144-20041217
RIP
151
