MegaPower 3200 Video-Matrix CCTV System (Dual CPU)

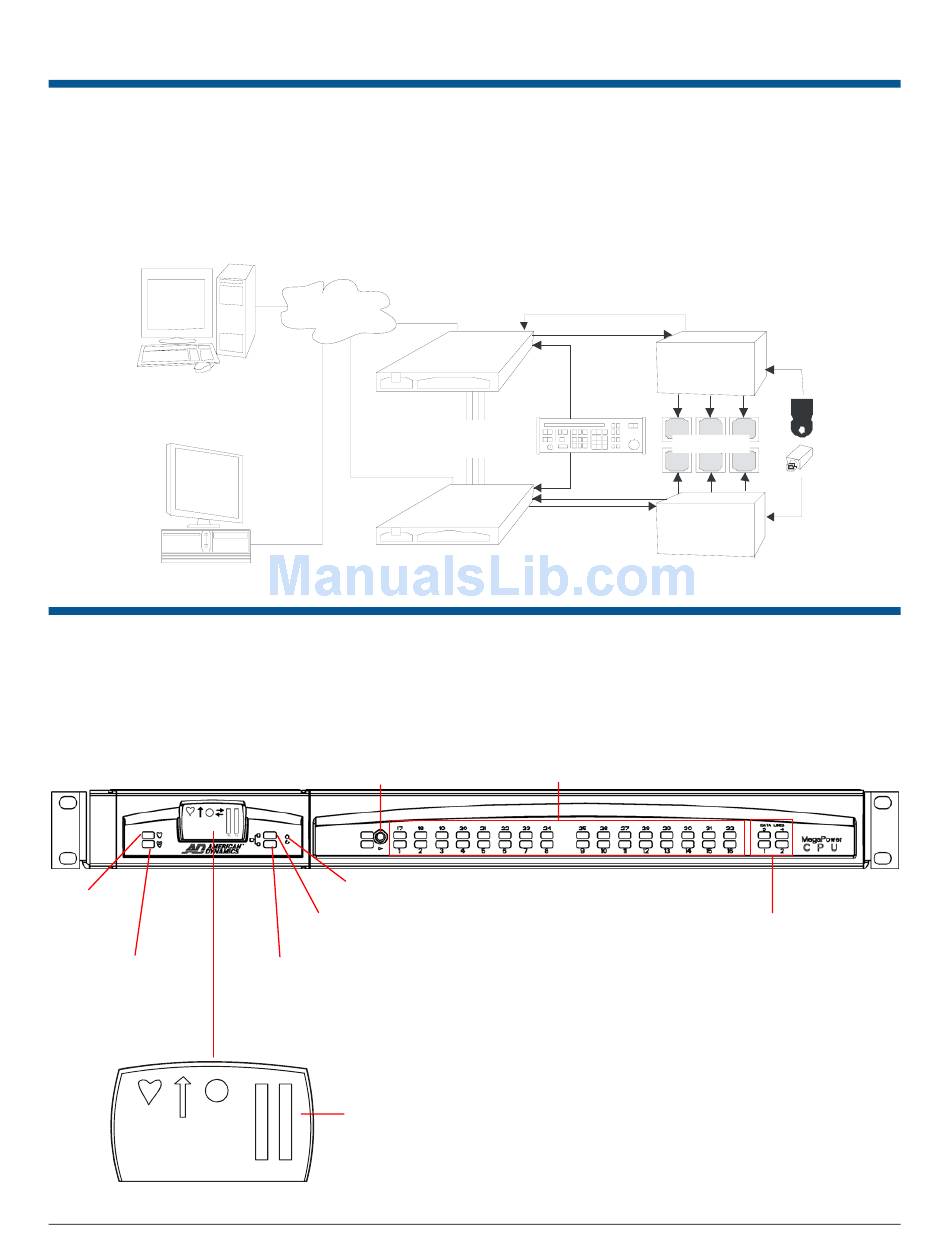

Figure 3 illustrates a MegaPower 3200 video-matrix CCTV system with an optional second MegaPower CPU
installed and a computer connected for programming the system using the EASY (Enhanced Administration
SYstem) CPU software.
Figure 3. MegaPower 3200 Video-Matrix CCTV system (dual CPU)
Programming PC
with EASY CPU
software
Intellex

MegaPower CPU Front Panel

The MegaPower CPU front panel (Figure 4) provides information about the unit's operating condition and
communications.
Figure 4. MegaPower CPU—front panel
Flashing
blue = CPU
running
Red = fault condition
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Ethernet
MegaPower CPU
nd
Optional 2 MegaPower CPU
Port module
soft select
Power reset
Solid green = Ethernet connectivity
Flashing green = Ethernet activity
Amber on = Ethernet 100BaseT
Amber off = Ethernet 10BaseT
LCD Icons:
– Blinking heart = System operating properly
– Blinking broken heart = MPU not communicating
– Up arrow = Selected CPU
– Down arrow = Backup CPU
– Clear circle = Normal operation
– Dark circle inside outer circle = CPU fault (error)
– Circle with one arrow = Single passive hot switch ribbon cable connected
– Two opposing arrows = Dual passive hot switch ribbon cable connected
Rx Tx – Rx/Tx levels = Peak and current level RS-232 and AD data line activity
indicators
Video Input
Data Line
Keyboards
Multiple
RS-232 Ports
Video Input
Data Line
COM port RS-232
activity LEDs
4 of 72
Video Bays
Domes and
Monitors
Cameras
Video Bays
AD data line activity
