Editing Keyboard Definitions

Once a keyboard is defined, you can edit the
definition by highlighting the desired field and typing
in new information.

Deleting Keyboard Definitions

1. Left click the left header of the row in the upper
screen that contains the keyboard definition to be
deleted.
2. Press the keyboard Delete key of the PC running
EASY CPU. The Delete Rows dialog box
appears.

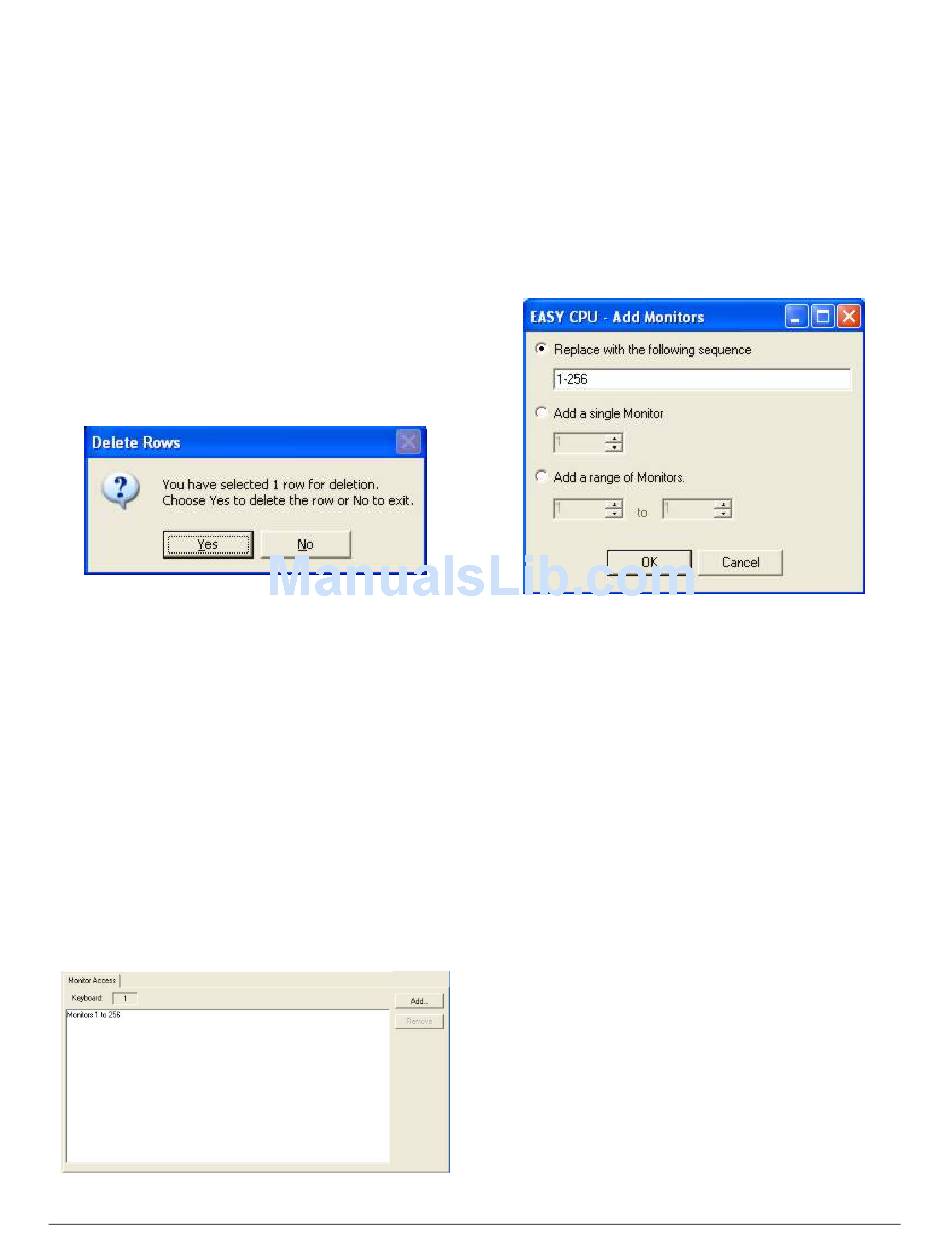

Figure 109. Delete Rows dialog
3. Left click Yes to delete the keyboard definition or
No to retain the definition and exit.
Adding Monitor Access to
Keyboards
The Monitor Access tab on the Partitions –
Keyboards to Monitors screen allows you to enable
selected keyboards to view, but not control, monitors.
To begin associating keyboards with monitors:
Left click on a keyboard (any cell in the keyboard
row) in the upper screen. This associates the
selected keyboard to the monitors listed in the
Monitor Access screen (lower screen). The keyboard
number appears in the grayed-out Keyboard box.
Figure 110. Monitor access screen
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
You can add monitors to keyboards, as well as
remove them from keyboards.

Adding Monitors to Keyboards

1. Left click Add on the right side of the Monitor
Access screen. The Add (Replace) Monitors
dialog box appears.
Figure 111. Add (Replace) Monitors dialog
The Add (Replace) Monitors dialog provides three
options. To select an option:
2. Left click the button beside the option and
complete the required information. The options
are:
• Replace with the following sequence –
Enter a range of monitors; for example: 1-256.
• Add a single Monitor – Click the up or down
arrows to select a monitor.
• Add a range of Monitors – Click the up or
down arrows on the "from" and "to" fields to
select a range of monitors.
3. Click OK to save your monitor choices or Cancel
to close the dialog box without saving your
choices.
4. Repeat this procedure for all keyboards.
Adding a Range of Monitors
To add monitors or a range of monitors:
1. Left click the Monitor Access tab in the lower
screen.
2. Left click Add on the right side of the lower
screen. The Add Monitors to monitor access
dialog box appears.
