Removing Monitors or Satellite
Sites Access from Keyboards
1. Left click on a keyboard (any cell in the keyboard
row) in the upper screen.
2. Do one of the following:
• Left click on the monitor access row to be
removed in the Monitor Access tab in the lower
screen.
• Left click on the site access row to be removed
in the Site Access tab in the lower screen.
3. Left click the Remove button on the right side of
the lower screen. This removes the specified
monitors or satellite sites associated with that
keyboard.
Associating Keyboards to
Monitors
The Partitions – Keyboards to Monitors screen allows
keyboard operators to access selected monitors.
Click on the Partitions – Keyboards to Monitors link in
the Explore menu to begin. The following screen
appears.

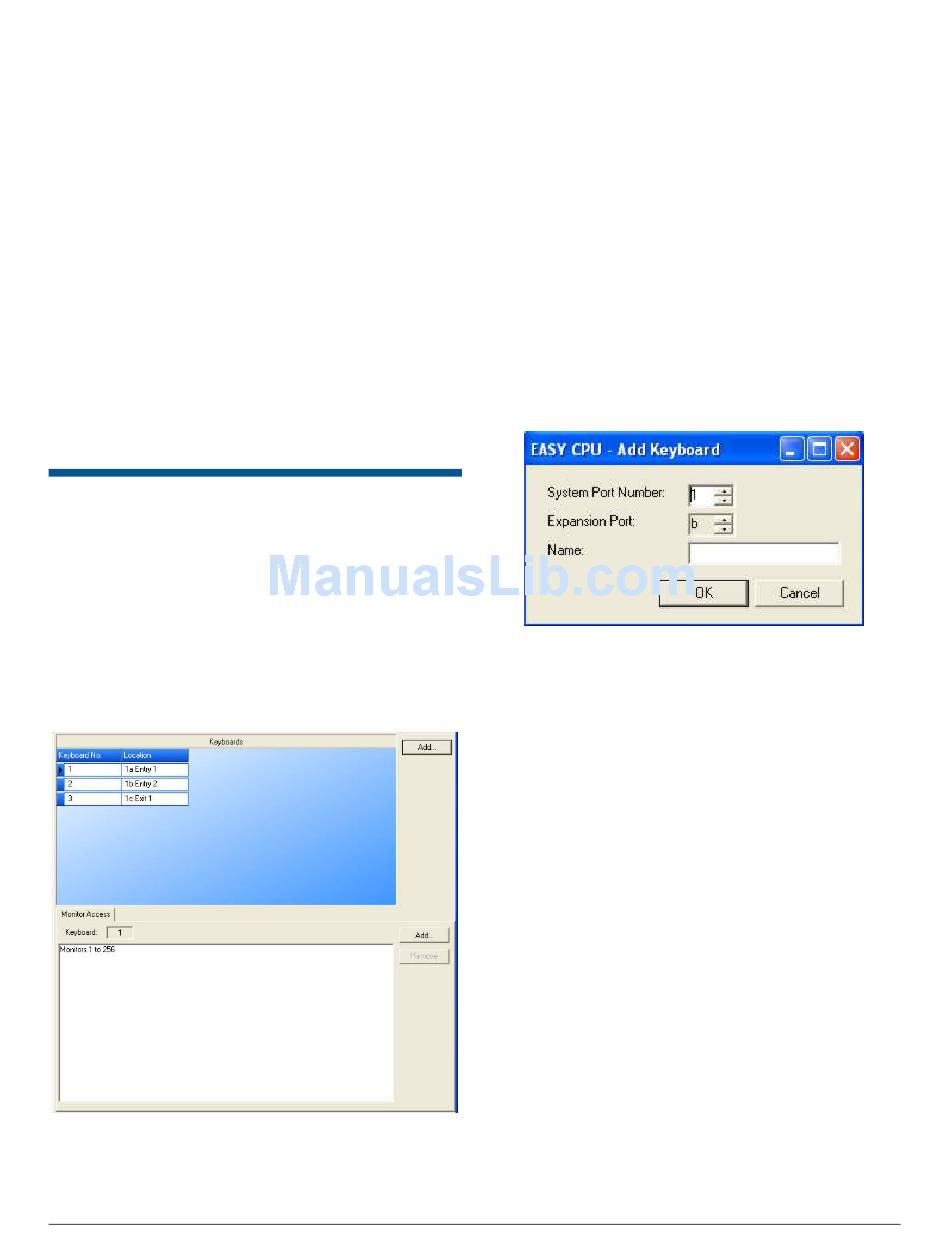

Figure 107. Partitions – keyboards to monitors
screen
The Partitions – Keyboards to Monitors screen is split
into two sections:
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
• The upper screen shows existing keyboard
definitions and allows you to create new
definitions.
• The lower screen allows you to set up monitor
access for each keyboard.
You can create, edit, and delete keyboard definitions.

Adding Keyboard Definitions

To add new keyboard definitions:
1. Left click Add on the right side of the Partitions –
Keyboards to Monitors upper screen. The Add
Keyboard dialog box appears.
Figure 108. Add Keyboard dialog
2. To add keyboards, complete the following fields:
• System Port Number – Enter the port number
of the keyboard's connection to the
MegaPower CPU. The MegaPower CPU can
support up to 128 keyboards using port
expansion modules. Port expansion modules
convert a single port into four ports. When a
port expansion module is connected to a port,
port numbering adds an alpha character (a, b,
c, d) to each port number; for example, port
one becomes ports 1a, 1b, 1c, 1d; port two
becomes ports 2a, 2b, 2c, 2d, and so on.
• Expansion Port – Choose the port on the
expansion port module (if the MegaPower
CPU is so equipped) that the keyboard will
connect to. The choices are a, b, c, or d.
• Name – Enter a name for the keyboard using
alpha or numeric characters.
3. Left click OK to display the new keyboard
definition or Cancel to close the dialog box
without displaying the definition.
Note: Remember to save or transfer your
changes before closing EASY CPU.
