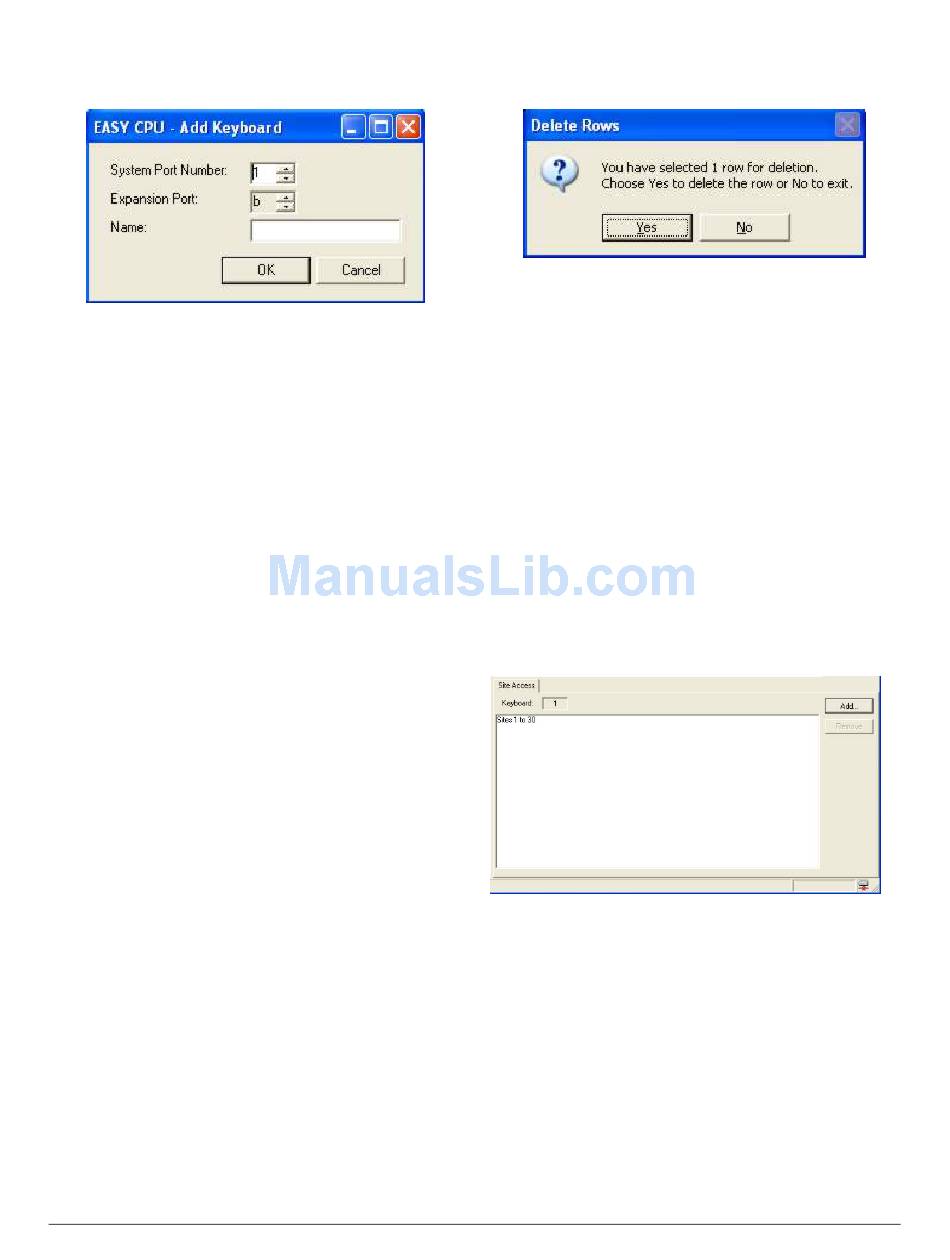

Figure 115. Add Keyboard dialog
2. To add keyboards, complete the following fields:
• System Port Number – Enter the port number
of the keyboard's connection to the
MegaPower CPU. The MegaPower CPU can
support up to 128 keyboards using port
expansion modules. Port expansion modules
convert a single port into four ports. When a
port expansion module is connected to a port,
port numbering adds an alpha character (a, b,
c, d) to each port number; for example, port
one becomes ports 1a, 1b, 1c, 1d; port two
becomes ports 2a, 2b, 2c, 2d, and so on.
• Expansion Port – Choose the port on the
expansion port module (if the MegaPower
CPU is so equipped) that the keyboard will
connect to. The choices are a, b, c, or d.
• Name – Enter a name for the keyboard using
alpha or numeric characters.
3. Left click OK to display the new keyboard
definition or Cancel to close the dialog box
without displaying the definition.
Note: Remember to save or transfer your
changes before closing EASY CPU.

Editing Keyboard Definitions

Once a keyboard is defined, you can edit the
definition by highlighting the information in the field
and typing in new information.

Deleting Keyboard Definitions

1. Left click the left header of the row in the upper
screen that contains the keyboard definition to be
deleted.
2. Press the keyboard Delete key of the PC running
EASY CPU. The Delete Rows screen appears.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 116. Delete Rows dialog
3. Press Yes to delete the keyboard definition or No
to retain the definition and exit.
You can add monitors to keyboards, as well as
remove them from keyboards.

Adding Site Access to Keyboards

The Site Access tab on the Partitions – Keyboards to
Satellites screen allows you to enable selected
keyboards to view, but not control, satellite sites.
To begin associating keyboards with satellite sites:
Left click on a keyboard (any cell in the keyboard
row) in the upper screen. This associates the
keyboard to the satellite sites listed in the Site
Access screen (lower screen). The keyboard number
appears in the grayed-out Keyboard box.
Figure 117. Site Access screen
You can add satellite sites to keyboards, as well as
remove them from keyboards.
