Starting Easy Cpu; Selecting A Language And Time Format - American Dynamics MegaPower 3200 Administrator's Manual

Starting EASY CPU

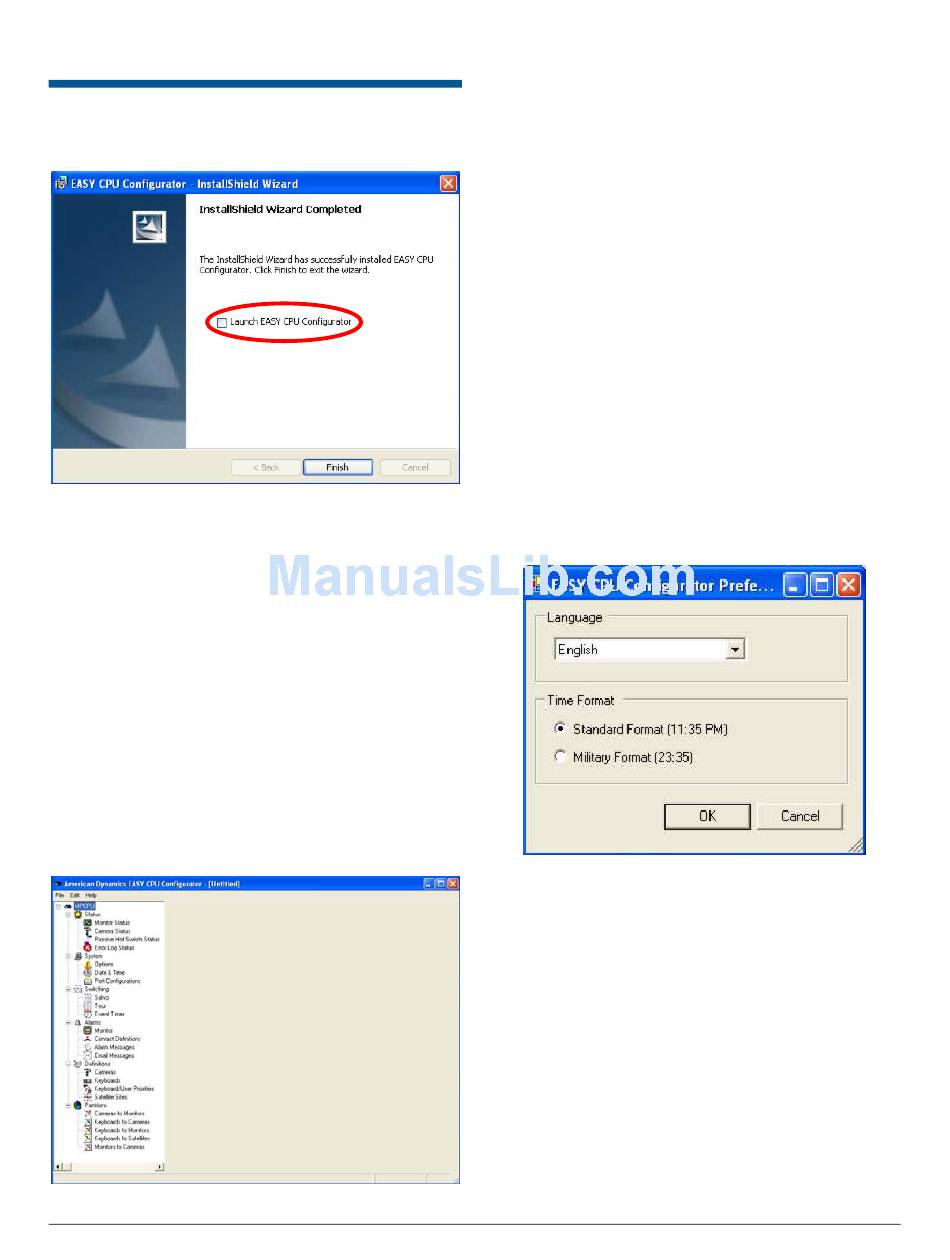

Figure 37. Installation Complete screen
To start EASY CPU, do one of the following:
• If you want to start EASY CPU immediately
following completion of the installation, click the
Launch EasyConfig checkbox in the preceding
screen (Figure 37), and then click Finish.
• If you do not want to start EASY CPU immediately
following completion of the installation, leave the
Launch EasyConfig checkbox blank, and click
Finish.
If you choose to wait to start EASY CPU, then
locate the EASY CPU file, Configurator.exe, and
double-click it to start the application.
In either case, EASY CPU starts and the Main
Screen appears. The default language is English.
Figure 38. Main screen
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Selecting a Language and Time
Format
Once EASY CPU is started, do one of the following:
• If you want EASY CPU to run in English, skip to
the next section, Saving Data on the Hard Drive.
• If you want to run EASY CPU in another
language, do the following:
1. Click Edit, and then click Preferences in the
dropdown menu bar. The Preferences dialog
box appears (Figure 39 on page 15).
EASY CPU supports the following languages:
− English
− French
− German
− Italian
− Portuguese
− Spanish
Figure 39. Configurator Preferences dialog
2. From the Language dropdown, select the
appropriate language.
3. Select a Time Format by clicking either
Standard Format (12-hr., a.m. and p.m.
display) or Military Format (24-hr. display).
4. Click OK to save your language choice or
Cancel to close the dialog box without saving
your choice.
5. Close and restart EASY CPU for your change
to take effect. The Main Screen (Figure 46 on
page 19) appears in the selected language.
15 of 72
8200-0421-03, REV. D
