4. To select an option, click the button beside it and
complete the required information. Options are:
− Replace with the following sequence – enter
a range of monitors, for example, 1-256.
− Add a single Monitor – Click the up or down
arrows to select a monitor.
− Add a range of Monitors – Click the up or
down arrows on the "from" and "to" fields to
select a range of monitors.
5. Click OK to save your monitor choices or Cancel
to close the dialog box without saving your
choices.
Adding a Range of Monitors
To add monitors or a range of monitors:
1. Left click the Monitor Access tab in the lower
screen.
2. Left click Add on the right side of the lower
screen. The Add Monitors to monitor access
dialog box appears.

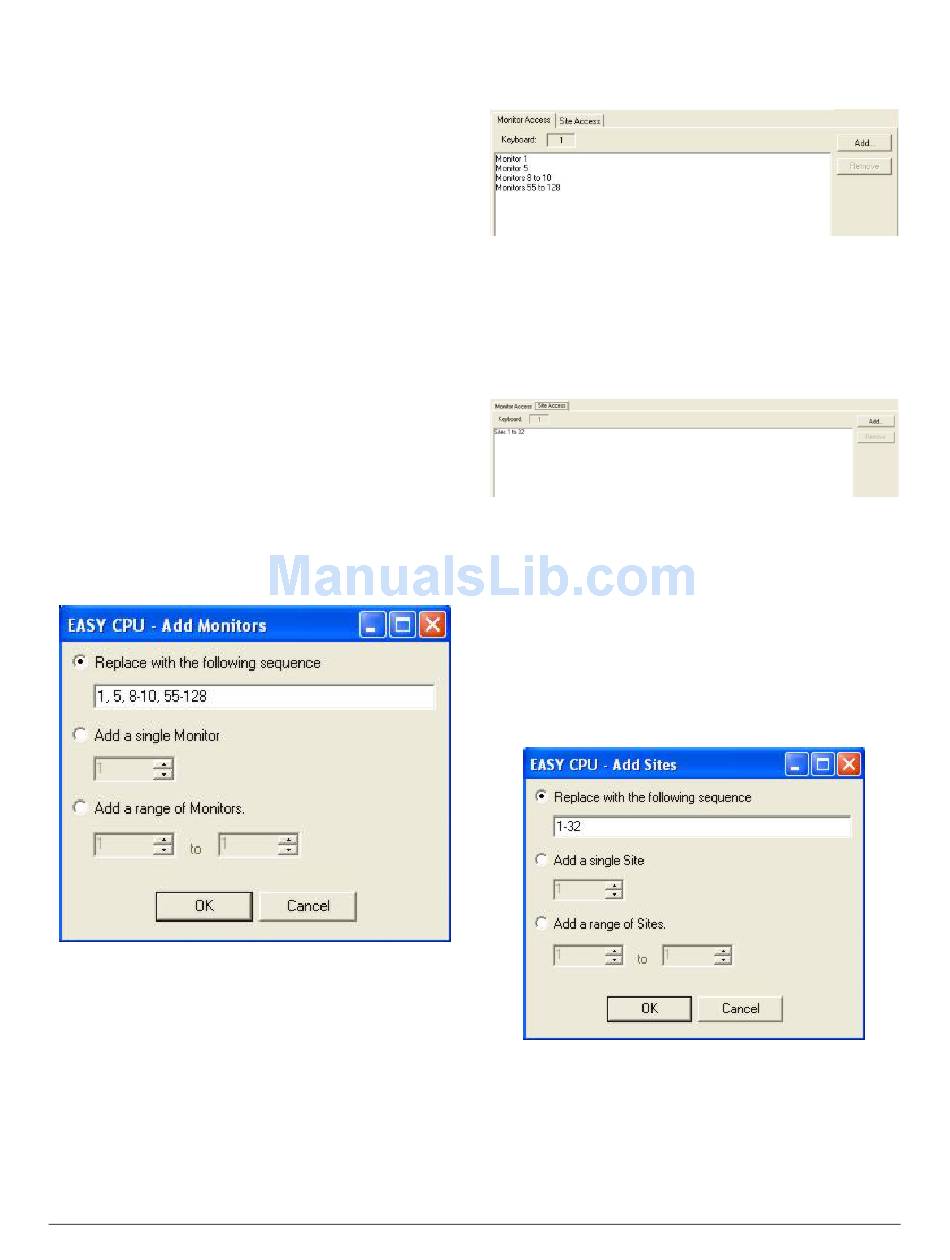

Figure 87. Add Monitors to Monitor Access dialog
3. Enter the numbers of the monitors or range of
monitors you want to associate with a specific
keyboard.
For example, Figure 88 displays a range of
monitors for Keyboard 1. The range of monitors
are 1, 5, 8 through10, and 55 through 128. When
entering the monitors, each monitor number or
range of monitor numbers is separated by a
comma. They appear as separate rows in the
lower screen.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 88. Adding a range of monitors
Adding Site Access to Keyboards
The Site Access tab on the Definitions – Keyboards
screen allows you to enable selected keyboards to
gain access to satellite sites.
Figure 89. Site access screen
To begin enabling site access from the Definitions –
Keyboards screen:
1. Click on a keyboard.
2. Click the Site Access tab. The selected keyboard
number appears just below the tab in the
keyboard field.
3. Click Add on the right side of the screen. The Add
Sites dialog box appears.
Figure 90. Add Sites dialog
