Firewall Setup - American Dynamics MegaPower 3200 Administrator's Manual

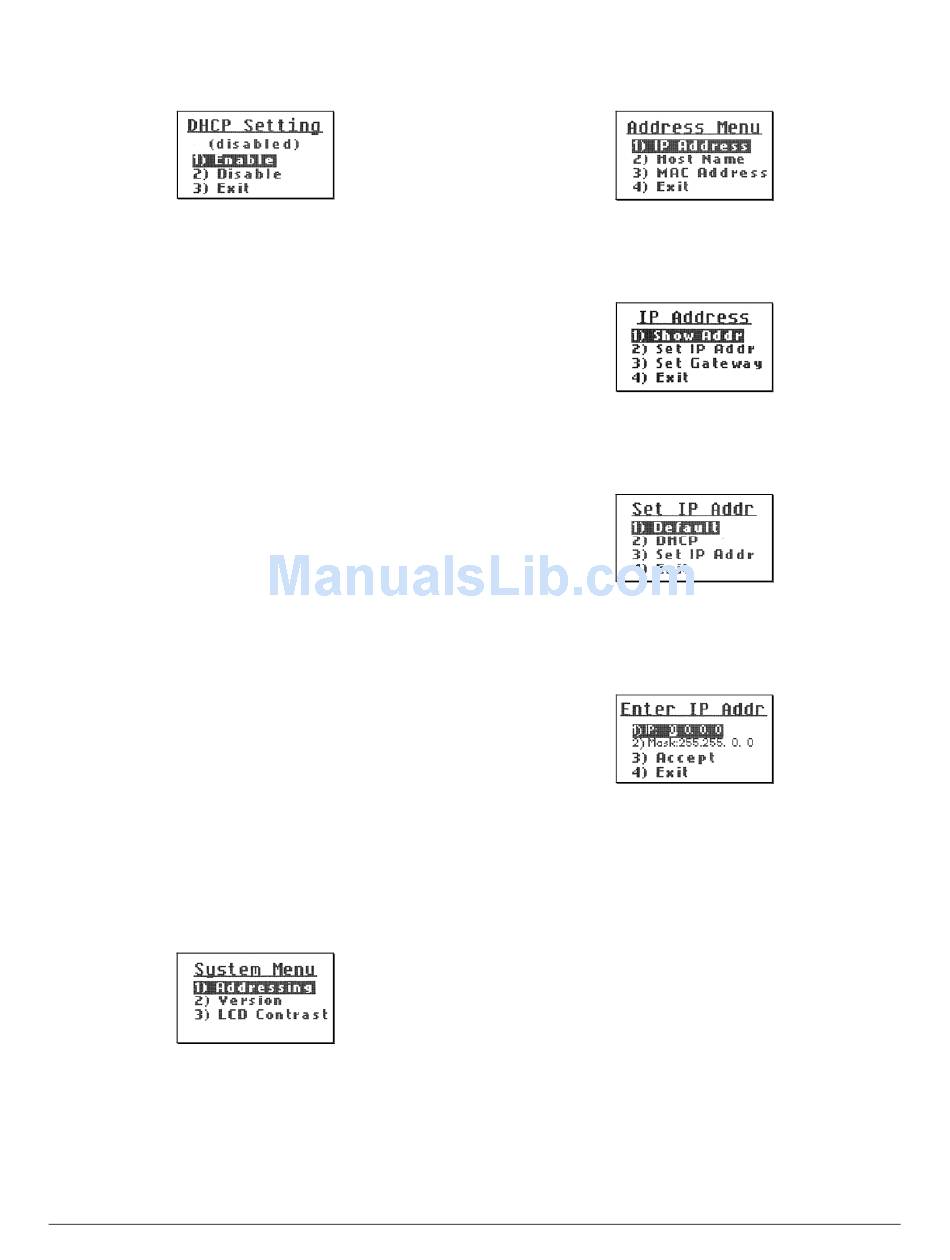

Figure 16. DHCP setting screen
h. Scroll down and press Enter to choose
Enable.
i. Exit from the MegaPower CPU menu
system.
Using a Static IP Address
To set up the MegaPower CPU for a static IP
address:
1. Connect a keyboard to an RS-232 port on the
MegaPower CPU. Ensure the baud rates match
for the keyboard and CPU port in use.
2. Place the keyboard in Menu Mode by turning the
keyswitch to MENU or pressing the Menu button,
depending on the keyboard used. Then,
depending on your MegaPower CPU installation,
do one of the following:
a. Standalone MPCPU: Enter 100, and then
press Ack or Enter, depending on your
keyboard.
b. Dual MPCPU: On the keyboard for the
selected MegaPower CPU enter 100, and
then press Ack or Enter, depending on your
keyboard.
c. Standby MPCPU: Enter 101, and then press
Ack or Enter, depending on your keyboard.
The System Menu screen (Figure 17) appears on
the LCD screen.
Note: To exit the LCD Menu Mode, turn the
keyboard keyswitch to OPERATE, or press
Menu, depending on your keyboard.
Figure 17. System menu screen
3. Press Enter to choose addressing. The Address
Menu screen appears.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 18. Address menu screen
4. Press Enter to choose the IP Address. The IP
Address screen appears.
Figure 19. IP address screen
5. Scroll down and press Enter to choose Set IP
Address. The Set IP Address screen appears.
Figure 20. Set IP address screen
6. Scroll down and press Enter to choose Set IP
Address. The Enter IP Address screen appears.
Figure 21. Enter IP address screen
7. Press Enter, and then type the IP address
pressing Enter twice after typing each segment
of the IP address.
8. Scroll down to Accept and press Enter.
9. Exit from the MegaPower CPU menu system.

Firewall Setup

To set up the firewall, refer to APPENDIX D: Port
Number Assignments on page 59 for the appropriate
MPCPU IP port source and destination port numbers.
Assigning these port numbers allows communication
with external devices.
