Removing Alarm Contacts

To remove alarm contacts from a camera:
1. Left click on a camera (any cell in the keyboard
row) in the upper screen.
2. Left click on the alarm contact row to be removed
in the Alarm Contacts tab in the lower screen.
3. Press the keyboard Delete key of the PC running
EASY CPU. The Delete Rows dialog box
appears.

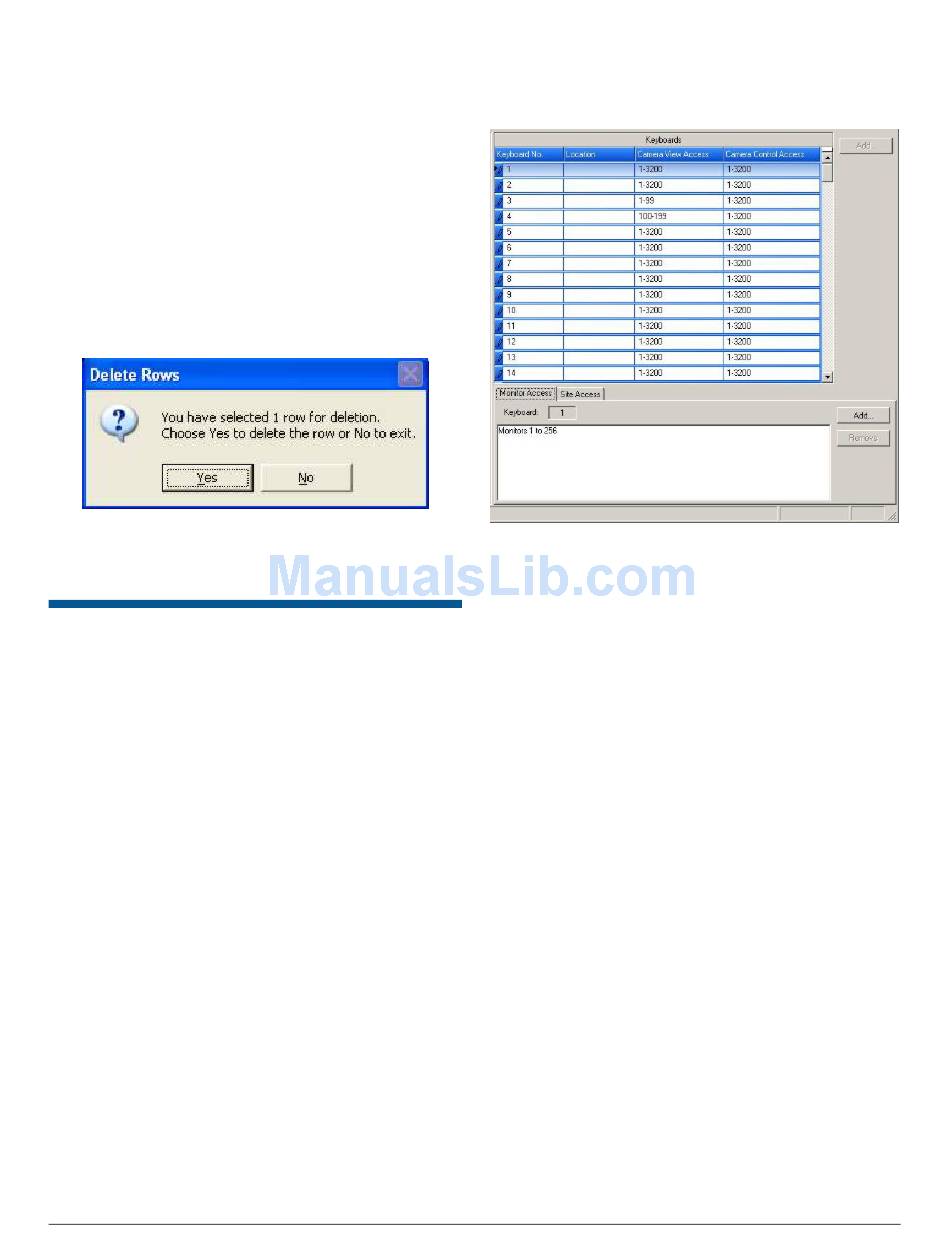

Figure 102. Delete Rows dialog
4. Click Yes to delete the alarm contact definition or
No to retain the definition.
Associating Keyboards to
Cameras
The Partitions – Keyboards to Cameras screen
determines the level of control that keyboard
operators can have over cameras.
Left click on the Partitions – Keyboards to Cameras
link in the Explore menu to begin. The following
screen appears.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 103. Partitions – keyboards to cameras
screen
The Partitions – Keyboards to Cameras screen is
split into two sections:
• The upper screen shows existing keyboard
definitions and allows you to create new
definitions. Ranges for camera view access and
camera control access are set up in this screen.
The cameras associated with the keyboard are
listed in the Camera View Access and the
Camera Control Access columns.
The Camera View Access column allows you to
enable selected keyboards to view, but not
control, cameras, while the Camera Control
Access column allows you to enable selected
keyboards to control cameras.
• The lower screen provides two tabs that allow
you to set up monitor and site access for each
keyboard.
You can create and delete monitor and site
access definitions.

Adding Keyboard Definitions

To add new keyboard definitions:
1. Left click Add on the right side of the Partitions –
Keyboards to Cameras upper screen. The Add
Keyboard dialog box appears.
