Read Cycle

During a Read cycle, data is transferred from the
CPU to a PC running EASY CPU. The following
screens show the sequence of operations that take
place during a Read cycle.

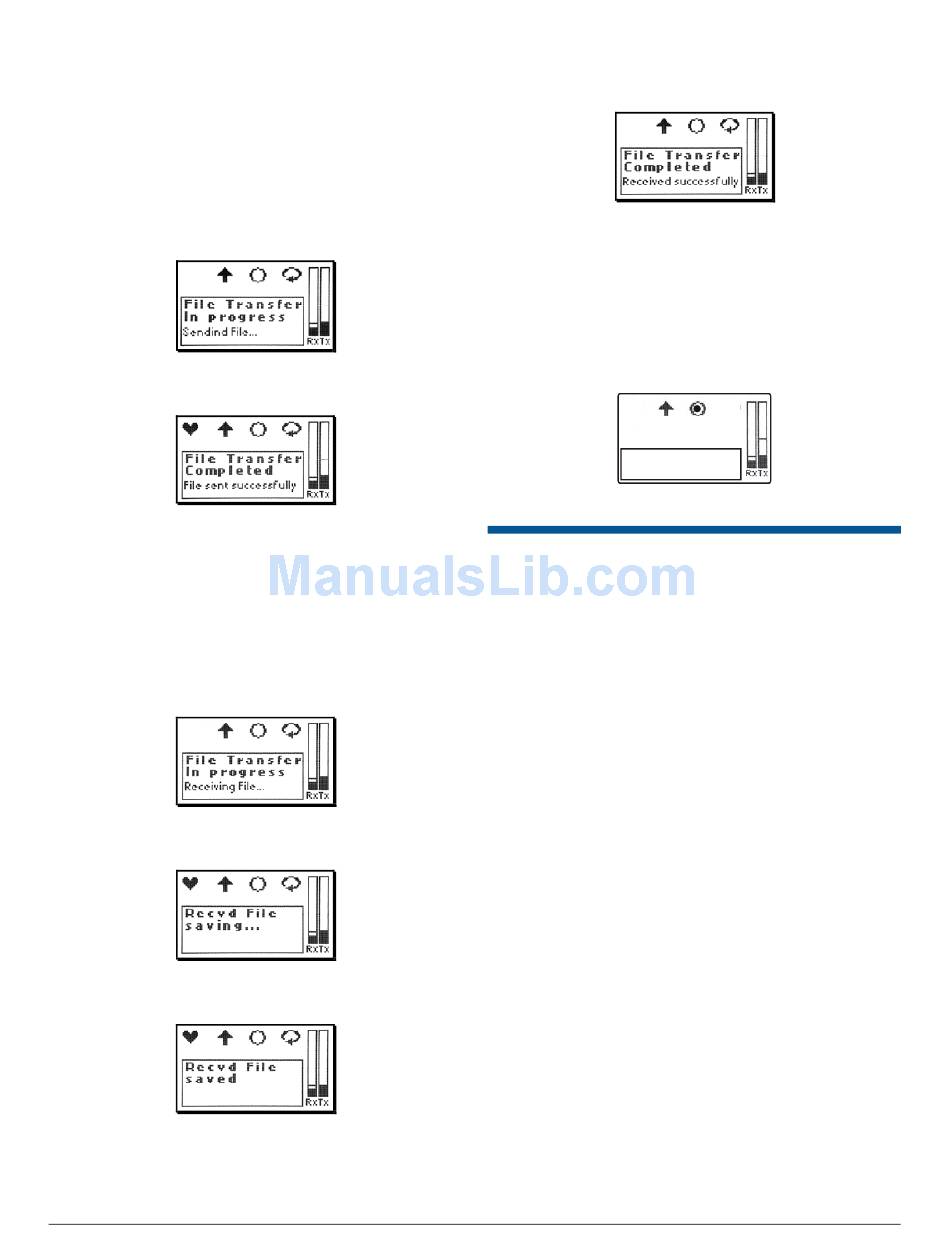

Figure 22. File transfer in progress screen
Figure 23. File transfer completed screen

Write Cycle

During a Write cycle, data is transferred to the CPU
from a PC running EASY CPU. The following
screens show the sequence of operations that take
place during a Write cycle.
Figure 24. File transfer in progress screen
Figure 25. Receiving file saving screen
Figure 26. Received file saved screen
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 27. File transfer completed screen

Error Message Example

The following screen shows an example of an error
message that can appear when an abnormal
condition occurs.
Figure 28. Error message screen example

Installing EASY CPU

System Requirements

The following are the minimum system requirements
for installing and operating the EASY CPU software
application:
• Computer: PC-compatible computer with 600
®
MHz Intel Pentium
• Hard Drive Space: 30MB
• Memory: 128MB
• Network Card: 10BaseT or 100BaseT
• Video: SVGA with 16MB video RAM
• Monitor: 800 x 600 pixel resolution, 16-bit color
• Operating System: Microsoft
Microsoft Windows 2000 Professional

Beginning the Installation

To begin installing EASY CPU:
1. Do one of the following:
• If you have the EASY CPU CD, insert it into
the computer. It should automatically load the
install program.
Note: If the install program does load
automatically, you will need to manually start it
by first clicking Start, then Run..., and then
Browse. In the Browse screen, navigate to the
folder on the CD where the executable file,
12 of 72
E1032
Rem KB Switch
Remote KB SW Equal
®
III microprocessor or greater
®
Windows
8200-0421-03, REV. D
®
XP, or
