Editing Camera Definitions; Changing Alarm Contacts - American Dynamics MegaPower 3200 Administrator's Manual

− Medium – To detect medium picture
content
− High – To detect high picture content
• Site – Identifies the remote site that provides
the video trunk inputs to the selected local
camera.
• Output – Identifies the monitor output from the
remote site that is connected to the selected
local camera input.
• Pan/Tilt – Identifies whether the selected
camera has pan/tilt capability. This field is not
downloaded to the system, but is for
informational purpose only.
• Alarm Number – Identifies the alarm contact
number, not the alarm table number.
• Location – Identifies the location of the
camera (up to 16 characters). Location is not
downloaded to the system, but is used for
database reports and easy identification.
4. Click OK to display the new definition or Cancel
to close the dialog box without displaying the
definition.
Note: Remember to save or transfer your changes
before closing EASY CPU.

Editing Camera Definitions

Once a camera is defined, you can edit the definition
by highlighting the information in the desired field and
entering new information.
Adding a Range of Monitors
1. To add monitors or a range of monitors, double-
click on a field in the Monitor Access column of
the Partitions – Cameras to Monitors screen.
2. Enter the numbers of the monitors or range of
monitors that you want to associate with the
camera of the currently highlighted row.
For example, Figure 100 displays a range of
monitors for five different cameras. For Camera 1,
the mapped monitors are 1, 5, 8 through10, and
55 through 128. Each monitor number or range of
monitor numbers is separated by a comma.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE

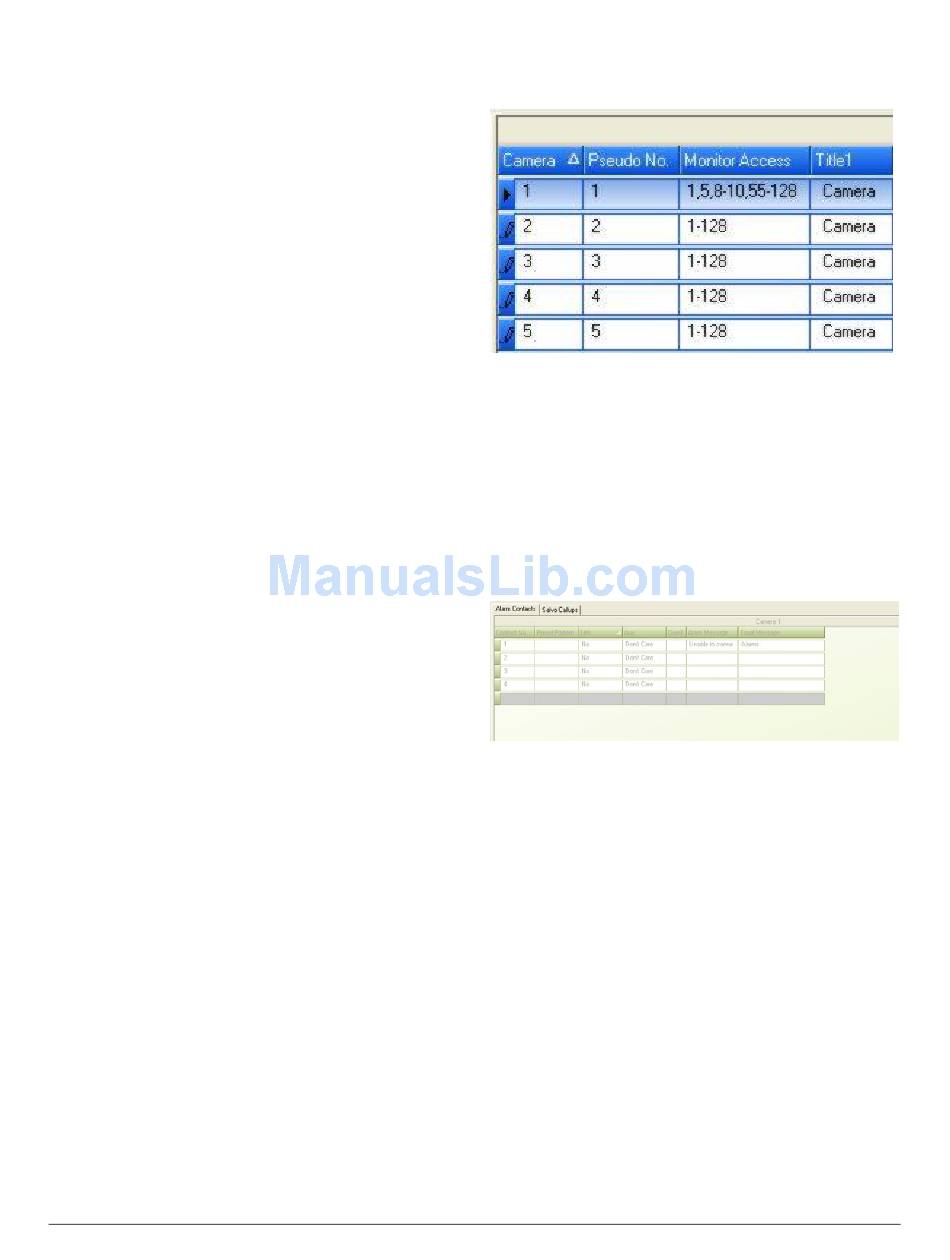

Figure 100. Adding a range of monitors

Changing Alarm Contacts

The Alarm Contacts tab section allows you to change
the alarm contacts associated with the highlighted
camera.
Note: Alarm contacts must first be defined in the
Alarms – Contact Definitions screen.
The Alarm Contacts tab contains the following fields:
Figure 101. Cameras Alarm Contacts tab screen
• Contact No. – Number of the alarm contact
associated with the camera
• Preset Pattern – Pattern or preset number
associated with the camera
• Link – Choose either No, Yes, Wired, No Group
Ack, Yes Group Ack, or Wired Group Ack
• Aux – Choose either Don't Care, Aux 1 On, Aux 1
Off, Aux 2 On, Aux 2 Off, Aux 3 On, Aux 3 Off, or
Aux 4 On
• Dwell – Enter the dwell time in seconds
• Alarm Message – Enter the alarm message
number to be associated with the camera. Note:
Alarm messages are first created in the Alarms –
Alarm Messages screen.
• Email Message – Enter the email message
number to be associated with the camera. Note:
Email messages are first created in the Alarms –
Email Messages screen.
