2

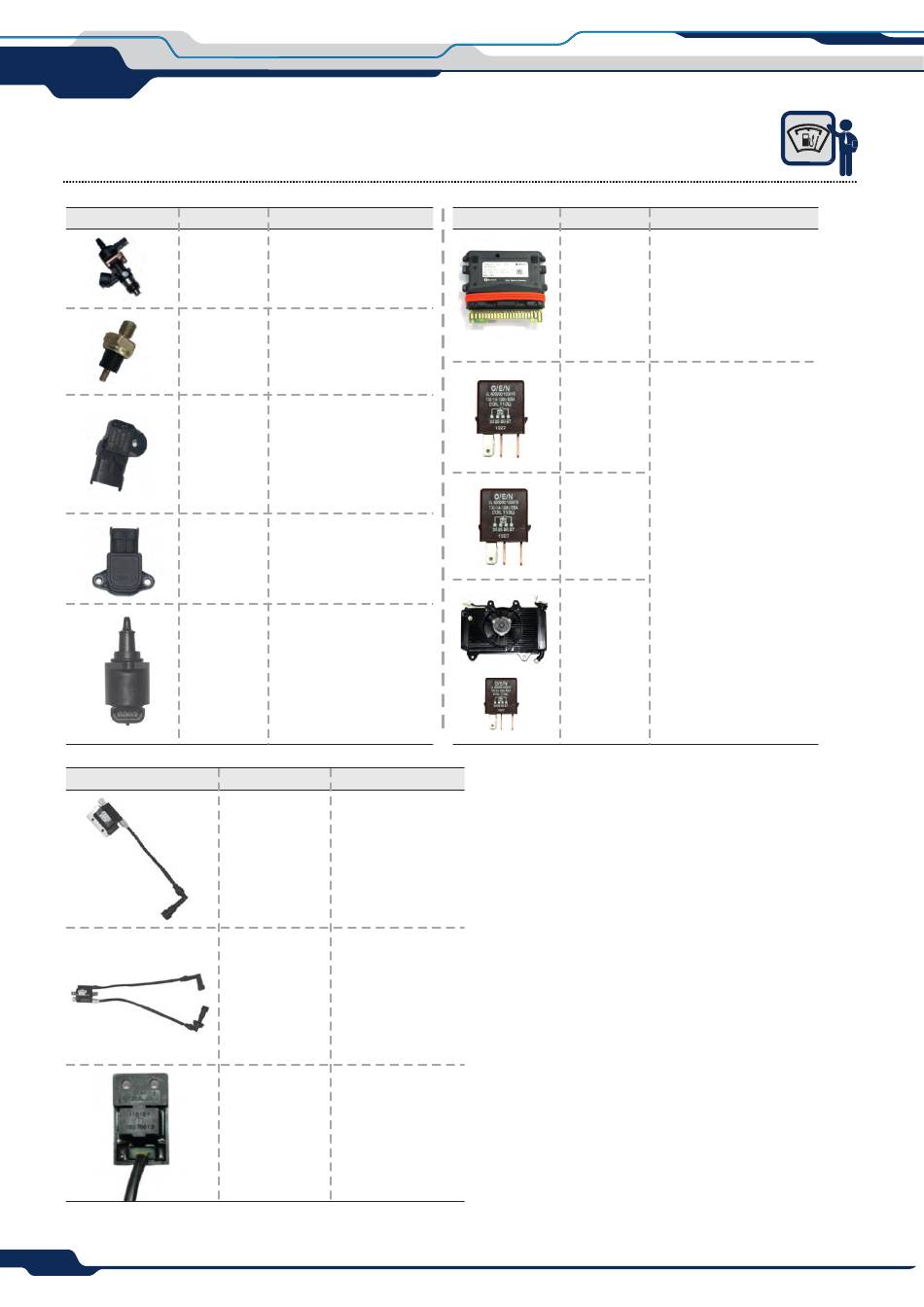

Sistema de Combustible y EMS
Direccionamiento del Ramal Eléctrico - ABS
Foto
Descripción Observaciones
Fuel Injector
Oil
pressure
Sensor
TMAP
TPS
Stepper
motor
Foto
Bajaj Auto International Business
48
To inject fuel into the intake
manifold until the ECU cut
electrical solenoid signal.
Measures the pressure of
engine oil flowing through the
internal galleries and
communicates the signal to the
speedometer.
It is a micro mechanical
sensor measures the absolute
pressure in the intake
manifold and compares it with
a reference vacuum pressure,
to atmospheric pressure.
To measure the exact
position of the throttle and
sending the converted signal
voltage to theECU.
The stepper motor is an electric
brushless DC motor that divides a
complete rotation in a number of
equal steps. You can sort the
engine to move and stay in one of
these positions without sensor
response.
Descripción
Observaciones
Coil 1
For the
central
spark plug
Coil 2
To the left and
right plugs
rollover sensor
signal to the ECU
when the tilt angle
is>60 °
Foto
Descripción
ECU
main relay
Fuel pump
relay
Fan Relay
Observaciones
Collects information from
various sensors and ensures that
the correct amount of fuel to be
injected into the intake manifold
at the right time according to the
various conditions load and
speed.
.
A relay is an electrically
operatedswitch. Many relays use
an electromagnet to
mechanically operate a switch.
Relays are used where
necessary to control a circuit by
a low power signal.
