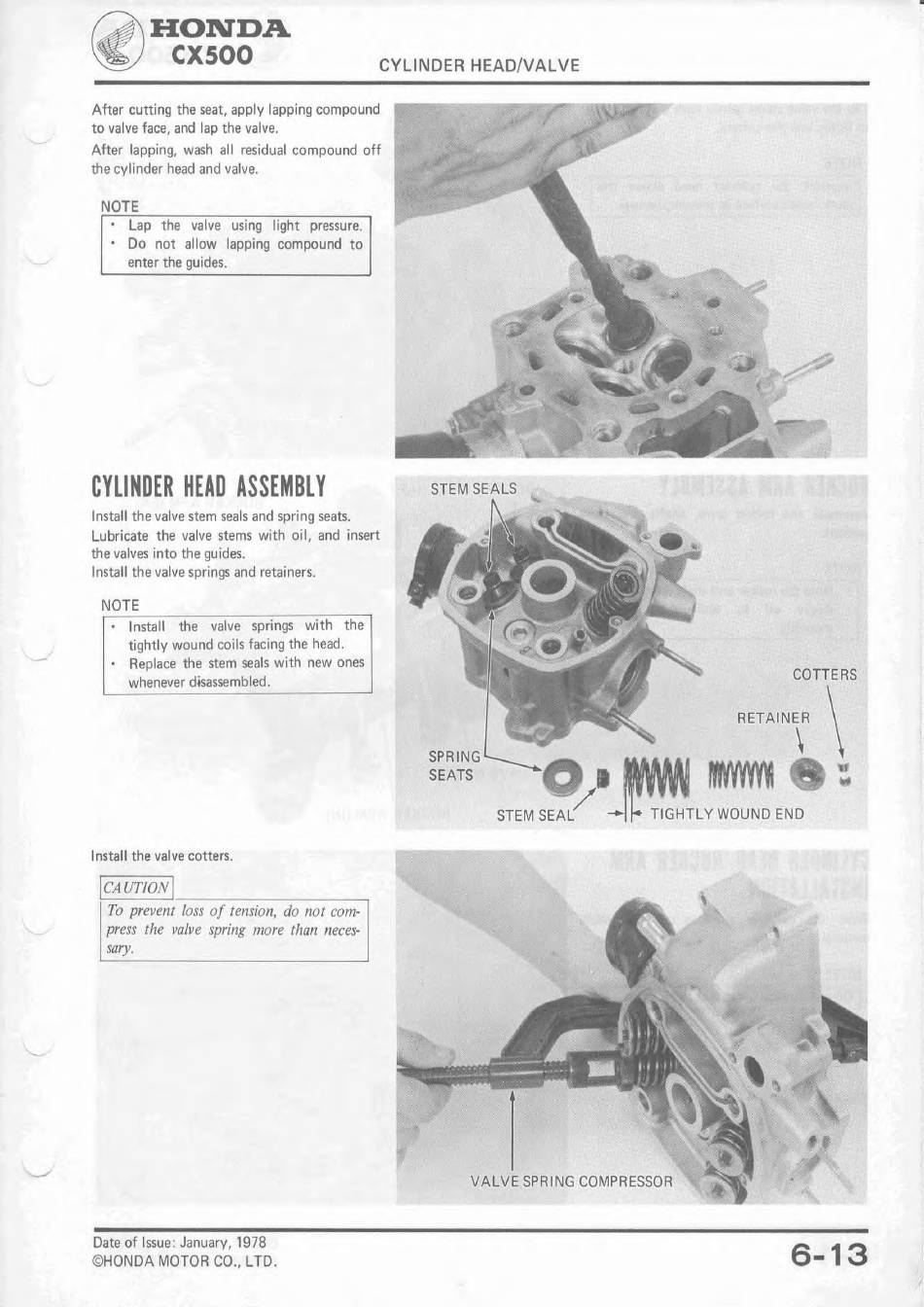

CYLINDER HEADIVALVE
After cutting the seat, apply lapping compound
to valve face, and lap the valve.
After lapping, wash all residual compound off
the cylinder head and valve.
. . . . .
,
..
Do not allow lapping compound t o
enter the guides.
CYLINDER HEAD ASSEMBLY
Install the valve stem seals and spring seats.
Lubricate the valve stems with oil, and insert
the valves into the guides.
Install the valve springs and retainers.
NOTE
1
.
Install the valve springs with the
I
1
tightly wound coils facing the head.
I
.
~
Replace the stem seals with new ones
whenever disassembled.
COTTERS
ING
TS
SPR
SEA
TIGHTLY WOUND
E
.........................
Install the valve cotters.
. . . . . . . . . . . . . . .
:..&?.' 4 :
. . . . . .
. .
To prevent loss of tension, do not com-
press the valve spring more than neces-
1
