3
Configuring the Switch
- tftp to file – Copies a file from a TFTP server to the switch.
- tftp to running-config – Copies a file from a TFTP server to the running config.
- tftp to startup-config – Copies a file from a TFTP server to the startup config.
• TFTP Server IP Address – The IP address of a TFTP server.
• File Type – Specify config (configuration) to copy configuration settings.
• File Name — The file name should not contain slashes (\ or /), the leading letter of
the file name should not be a period (.), and the maximum length for file names on
the TFTP server is 127 characters or 31 characters for files on the switch. (Valid
characters: A-Z, a-z, 0-9, ".", "-", "_")
Note:
The maximum number of user-defined configuration files is limited only by
available flash memory space.

Downloading Configuration Settings from a Server

You can download the configuration file under a new file name and then set it as the
startup file, or you can specify the current startup configuration file as the destination
file to directly replace it. Note that the file "Factory_Default_Config.cfg" can be
copied to the TFTP server, but cannot be used as the destination on the switch.
Web – Click System, File, Copy Operation. Select "tftp to startup-config" or "tftp to
file" and enter the IP address of the TFTP server. Specify the name of the file to
download and select a file on the switch to overwrite or specify a new file name, then
click Apply.
If you download to a new file name using "tftp to startup-config" or "tftp to file," the file
is automatically set as the start-up configuration file. To use the new settings, reboot
the system via the System/Reset menu.
3-20

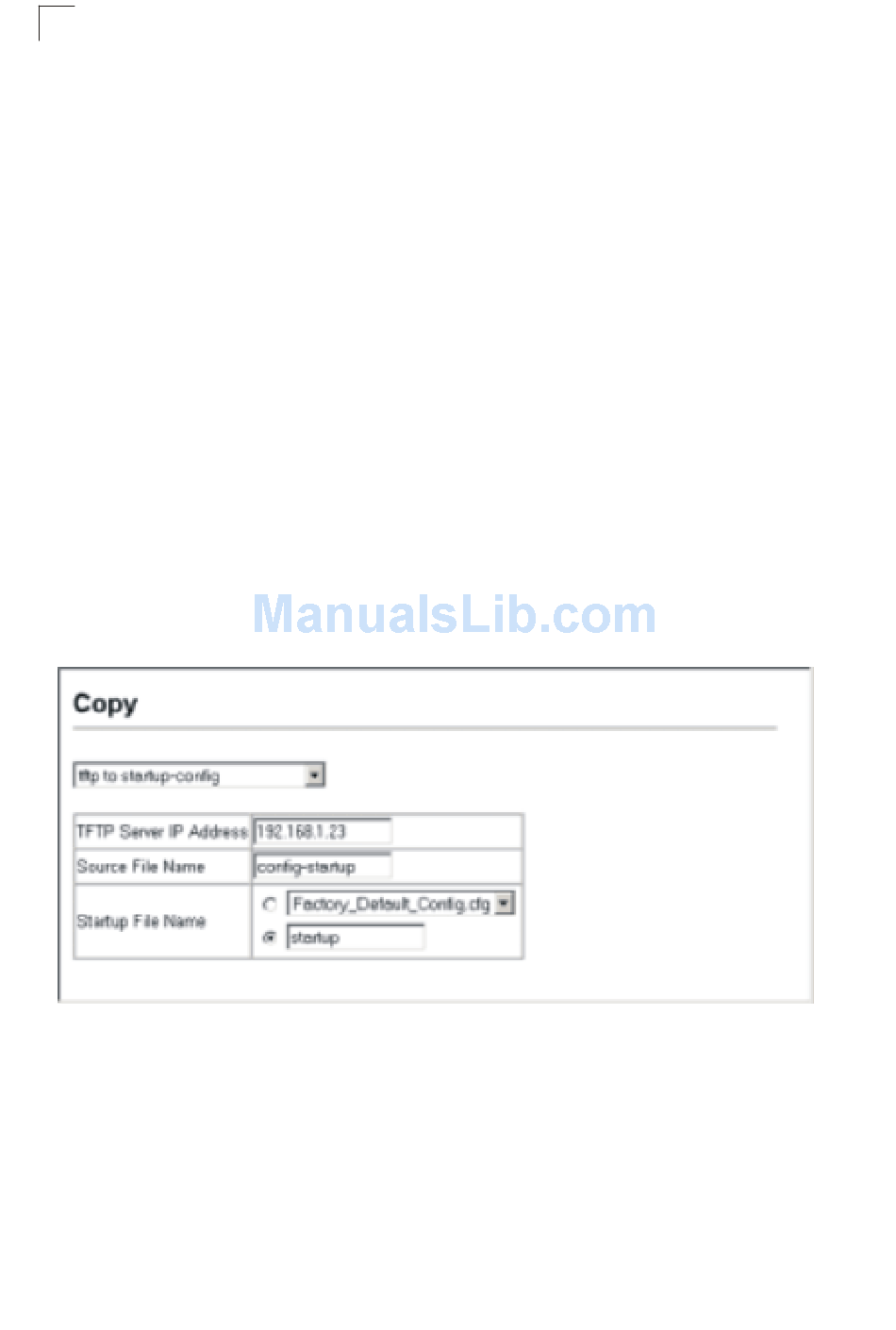

Figure 3-12 Downloading Configuration Settings for Startup
