Configuring the Switch
Web – Click Cluster, Configuration.
CLI – This example first enables clustering on the switch, sets the switch as the
cluster Commander, and then configures the cluster IP pool.
Console(config)#cluster
Console(config)#cluster commander
Console(config)#cluster ip-pool 10.2.3.4
Console(config)#

Cluster Member Configuration

Adds Candidate switches to the cluster as Members.
Command Attributes
• Member ID – Specify a Member ID number for the selected Candidate switch.
(Range: 1-16)
• MAC Address – Select a discoverd switch MAC address from the Candidate
Table, or enter a specific MAC address of a known switch.
3-196

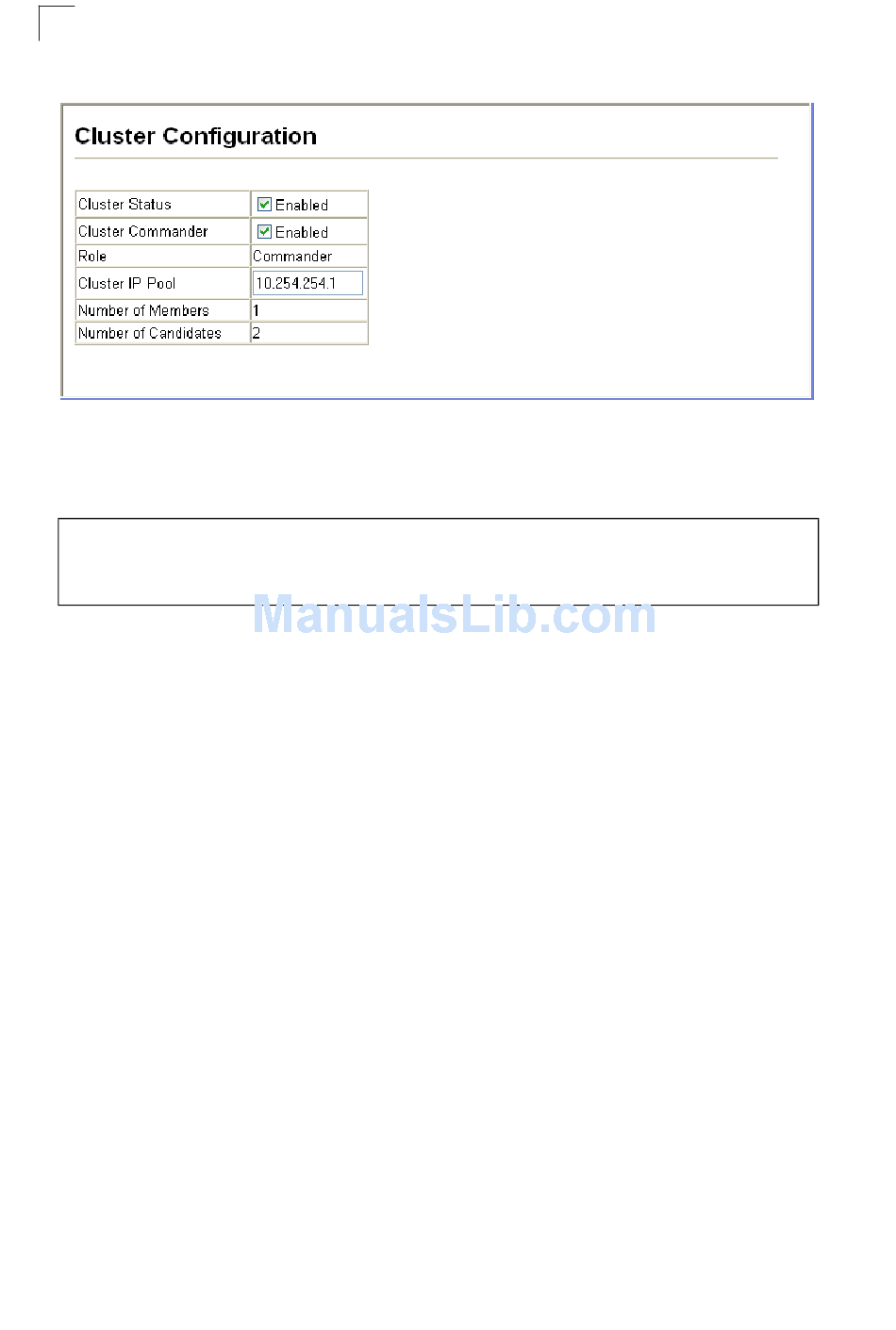

Figure 3-123 Cluster Configuration
