SC-T5400 Series/SC-T3400 Series/SC-T3400N Series

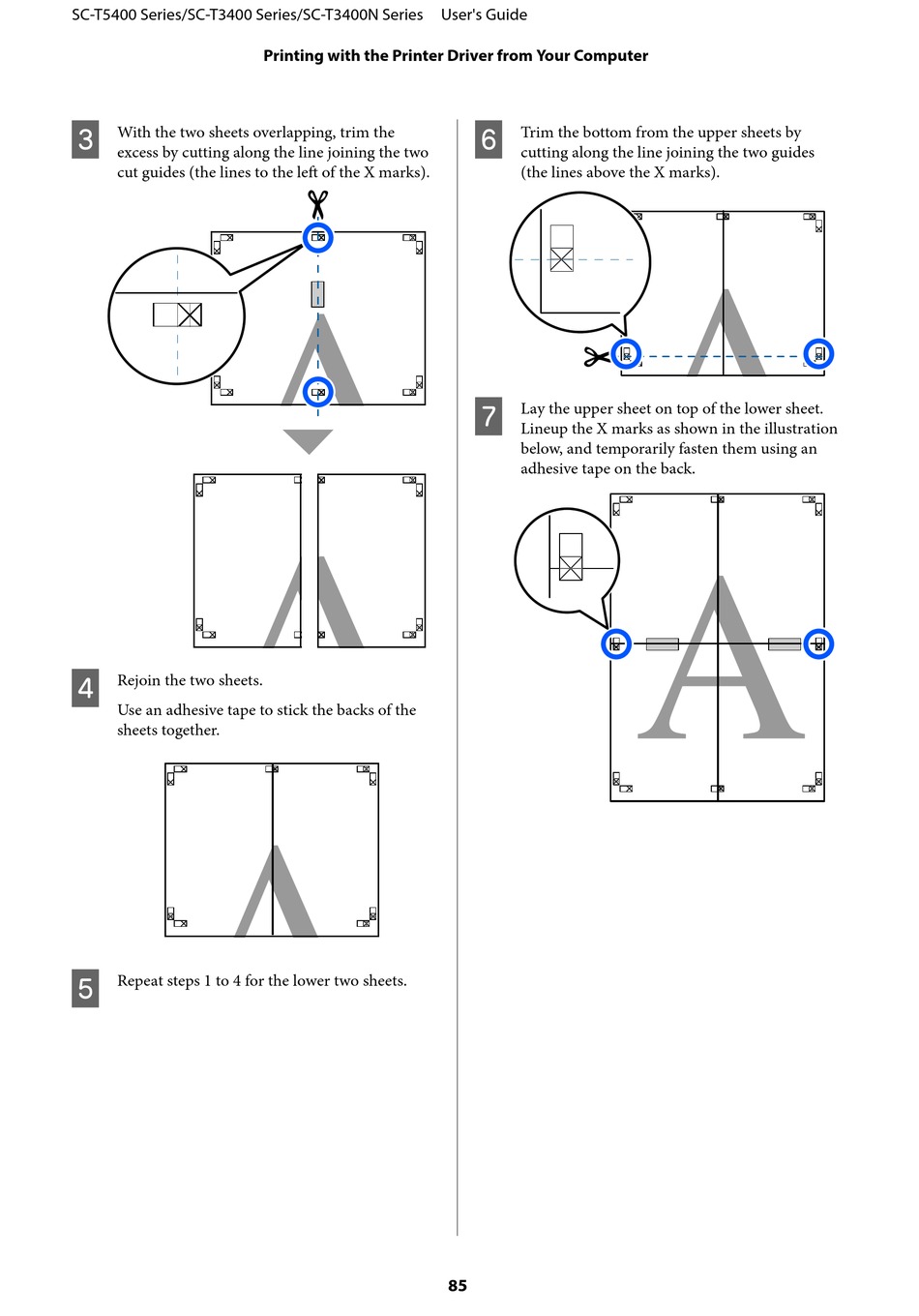

C
With the two sheets overlapping, trim the
excess by cutting along the line joining the two
cut guides (the lines to the left of the X marks).
D
Rejoin the two sheets.
Use an adhesive tape to stick the backs of the
sheets together.
E
Repeat steps 1 to 4 for the lower two sheets.
Printing with the Printer Driver from Your Computer
User's Guide
F
Trim the bottom from the upper sheets by
cutting along the line joining the two guides
(the lines above the X marks).
G
Lay the upper sheet on top of the lower sheet.
Lineup the X marks as shown in the illustration
below, and temporarily fasten them using an
adhesive tape on the back.
85
