Using The Dtmf Memory; D Entering Dtmf Code; D Monitoring The Entered Dtmf Code - Icom ID-31A PLUS Advanced Manual

12
OTHER FUNCTIONS

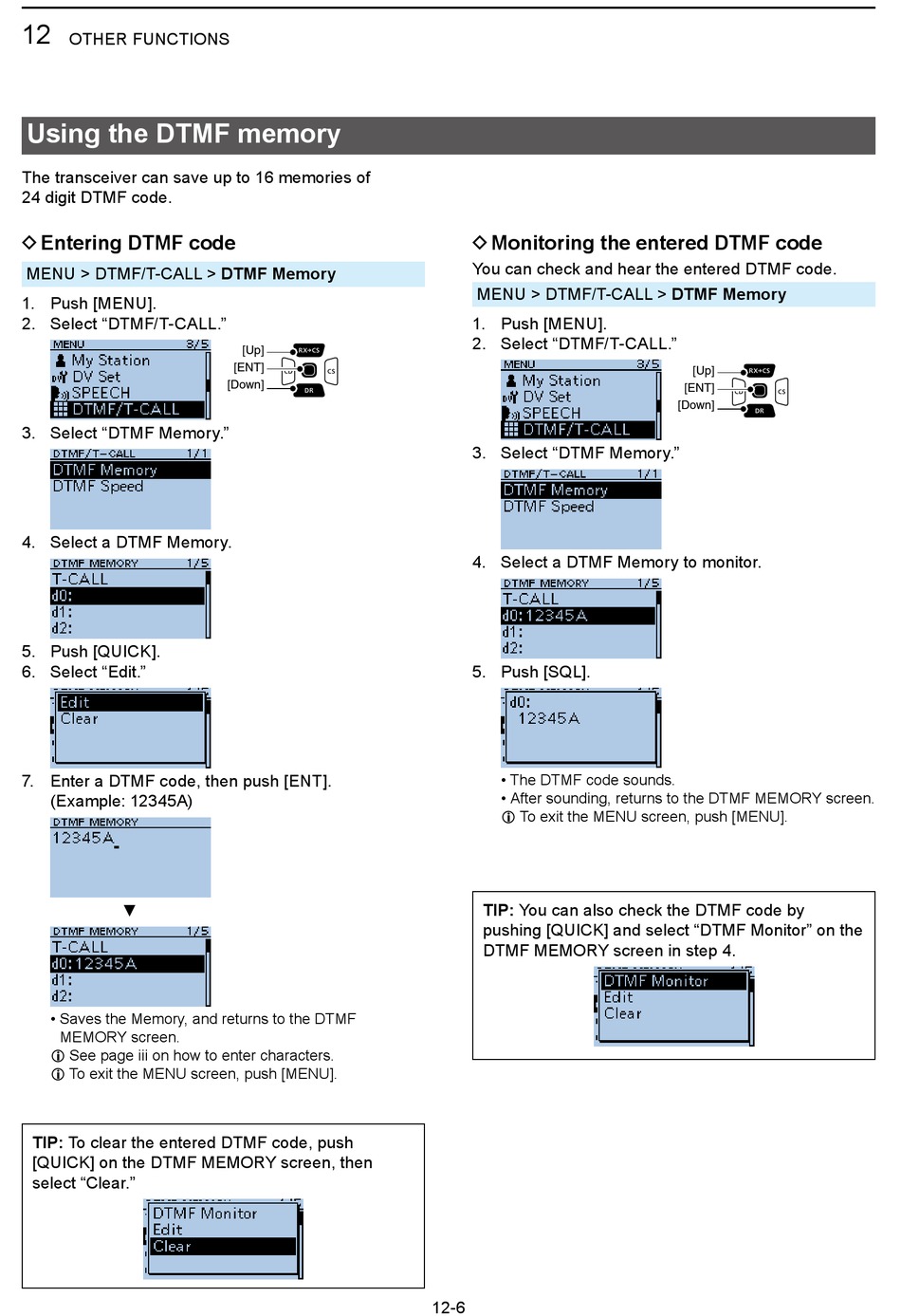

Using the DTMF memory

The transceiver can save up to 16 memories of
24 digit DTMF code�

D Entering DTMF code

MENU > DTMF/T-CALL > DTMF Memory
1� Push [MENU]�
2� Select "DTMF/T-CALL�"
3� Select "DTMF Memory�"
4� Select a DTMF Memory�
5� Push [QUICK]�
6� Select "Edit�"
7� Enter a DTMF code, then push [ENT]�
(Example: 12345A)
▼
• Saves the Memory, and returns to the DTMF
MEMORY screen�
L See page iii on how to enter characters�
L To exit the MENU screen, push [MENU].
TIP: To clear the entered DTMF code, push
[QUICK] on the DTMF MEMORY screen, then
select "Clear�"
[Up]
[ENT]
[Down]

D Monitoring the entered DTMF code

You can check and hear the entered DTMF code�
MENU > DTMF/T-CALL > DTMF Memory
1� Push [MENU]�
2� Select "DTMF/T-CALL�"
3� Select "DTMF Memory�"
4� Select a DTMF Memory to monitor�
5� Push [SQL]�
• The DTMF code sounds�
• After sounding, returns to the DTMF MEMORY screen�
L To exit the MENU screen, push [MENU].
TIP: You can also check the DTMF code by
pushing [QUICK] and select "DTMF Monitor" on the
DTMF MEMORY screen in step 4�
12-6
[Up]
[ENT]
[Down]
