6
FUNCTIONS FOR TRANSMIT

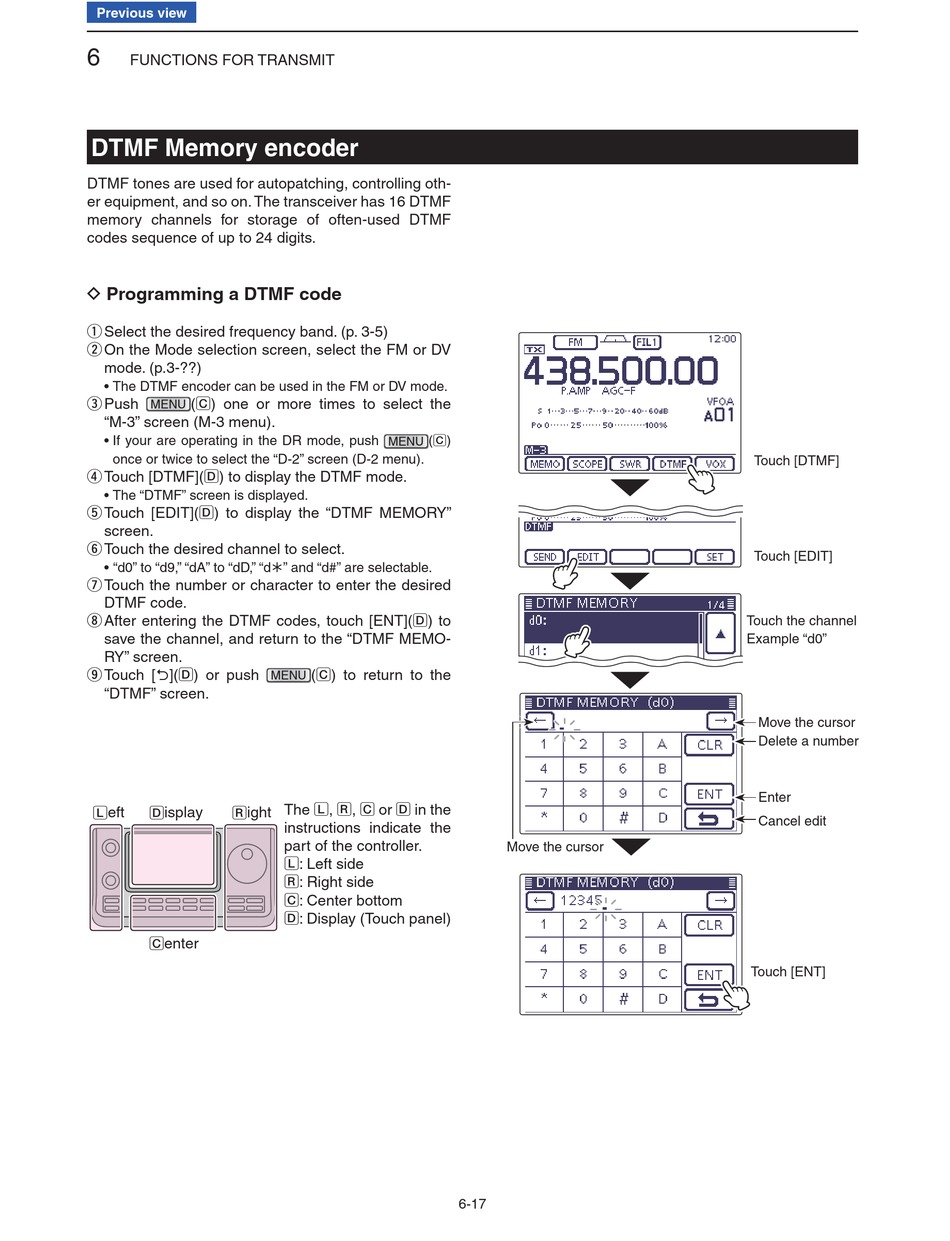

DTMF Memory encoder

DTMF tones are used for autopatching, controlling oth-
er equipment, and so on. The transceiver has 16 DTMF
memory channels for storage of often-used DTMF
codes sequence of up to 24 digits.
D
Programming a DTMF code
q
Select the desired frequency band. (p. 3-5)
w
On the Mode selection screen, select the FM or DV
mode. (p.3-??)
• The DTMF encoder can be used in the FM or DV mode.
e
Push (C) one or more times to select the
MENU
"M-3" screen (M-3 menu).
• If your are operating in the DR mode, push
once or twice to select the "D-2" screen (D-2 menu).
r D) to display the DTMF mode.
Touch [DTMF](
• The "DTMF" screen is displayed.
t D) to display the "DTMF MEMORY"
Touch [EDIT](
screen.
y
Touch the desired channel to select.
• "d0" to "d9," "dA" to "dD," "d½" and "d#" are selectable.
u
Touch the number or character to enter the desired
DTMF code.
i
After entering the DTMF codes, touch [ENT](
save the channel, and return to the "DTMF MEMO-
RY" screen.
o 2](D) or push
Touch [
"DTMF" screen.
L eft D isplay R ight
C enter
(C)
MENU
D) to
(C) to return to the
MENU
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
Move the cursor
6-17
Touch [DTMF]
Touch [EDIT]
Touch the channel
Example "d0"
Move the cursor
Delete a number
Enter
Cancel edit
Touch [ENT]
