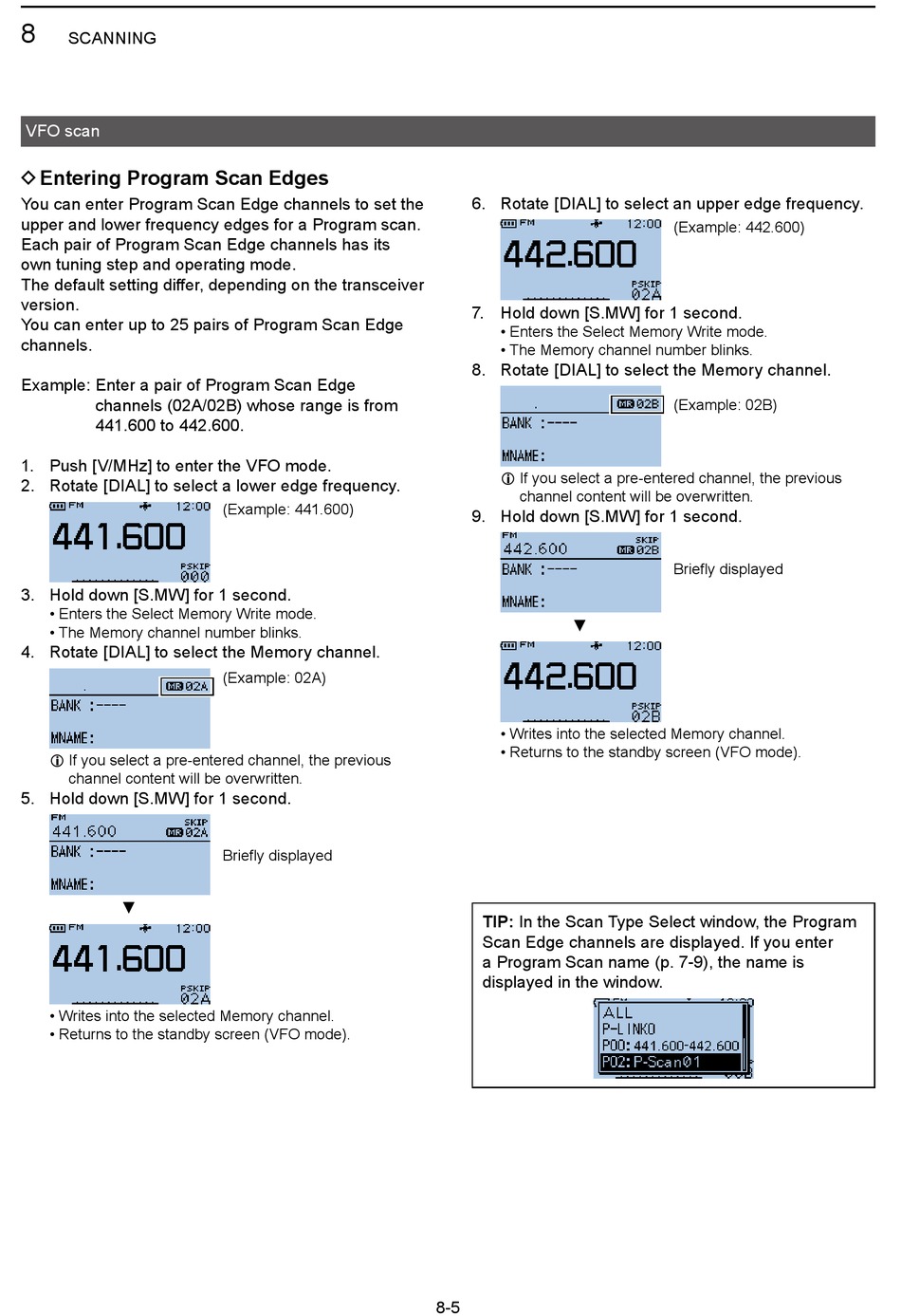

Icom ID-31A PLUS Advanced Manual page 124

8
SCANNING
VFO scan
D Entering Program Scan Edges
You can enter Program Scan Edge channels to set the
upper and lower frequency edges for a Program scan
Each pair of Program Scan Edge channels has its
own tuning step and operating mode
The default setting differ, depending on the transceiver
version
You can enter up to 25 pairs of Program Scan Edge
channels
Example: Enter a pair of Program Scan Edge
channels (02A/02B) whose range is from
441600 to 442600
1 Push [V/MHz] to enter the VFO mode
2 Rotate [DIAL] to select a lower edge frequency
3 Hold down [SMW] for 1 second
• Enters the Select Memory Write mode
• The Memory channel number blinks
4 Rotate [DIAL] to select the Memory channel
L If you select a pre-entered channel, the previous
channel content will be overwritten
5 Hold down [SMW] for 1 second
▼
• Writes into the selected Memory channel
• Returns to the standby screen (VFO mode)
(Example: 441600)
(Example: 02A)
Briefly displayed
6 Rotate [DIAL] to select an upper edge frequency
7 Hold down [SMW] for 1 second
• Enters the Select Memory Write mode
• The Memory channel number blinks
8 Rotate [DIAL] to select the Memory channel
L If you select a pre-entered channel, the previous
channel content will be overwritten
9 Hold down [SMW] for 1 second
▼
• Writes into the selected Memory channel
• Returns to the standby screen (VFO mode)
TIP: In the Scan Type Select window, the Program
Scan Edge channels are displayed If you enter
a Program Scan name (p 7-9), the name is
displayed in the window
8-5
(Example: 442600)
(Example: 02B)
Briefly displayed
