11
MENU SCREEN

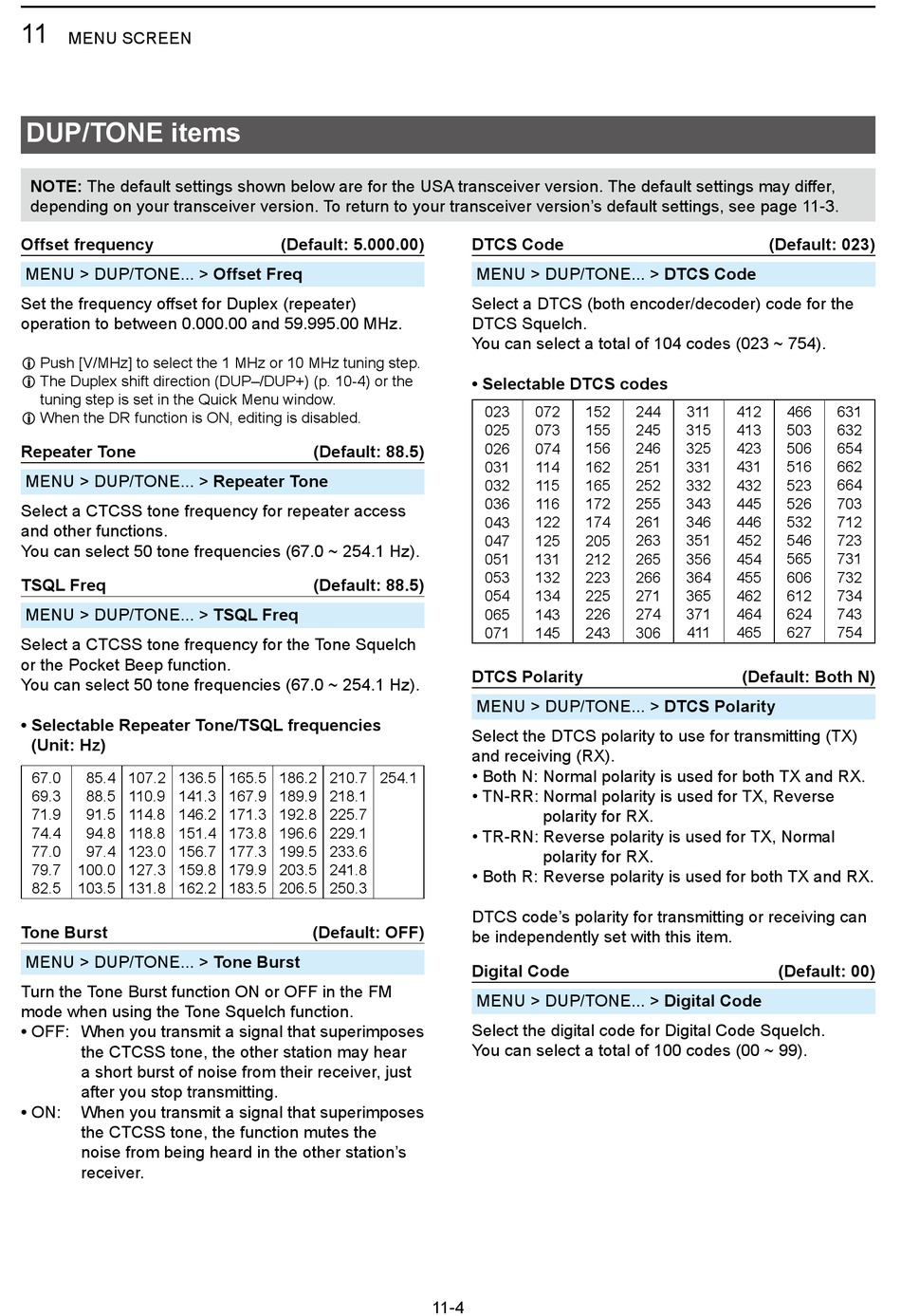

DUP/TONE items

NOTE: The default settings shown below are for the USA transceiver version� The default settings may differ,
depending on your transceiver version� To return to your transceiver version's default settings, see page 11-3�
Offset frequency
MENU > DUP/TONE��� > Offset Freq
Set the frequency offset for Duplex (repeater)
operation to between 0�000�00 and 59�995�00 MHz�
L Push [V/MHz] to select the 1 MHz or 10 MHz tuning step�
L The Duplex shift direction (DUP–/DUP+) (p� 10-4) or the
tuning step is set in the Quick Menu window�
L When the DR function is ON, editing is disabled�
Repeater Tone
MENU > DUP/TONE��� > Repeater Tone
Select a CTCSS tone frequency for repeater access
and other functions�
You can select 50 tone frequencies (67�0 ~ 254�1 Hz)�
TSQL Freq
MENU > DUP/TONE��� > TSQL Freq
Select a CTCSS tone frequency for the Tone Squelch
or the Pocket Beep function�
You can select 50 tone frequencies (67�0 ~ 254�1 Hz)�
• Selectable Repeater Tone/TSQL frequencies
(Unit: Hz)
67�0 085�4 107�2 136�5
69�3 088�5 110�9 141�3
71�9 091�5 114�8 146�2
74�4 094�8 118�8 151�4
77�0 097�4 123�0 156�7
79�7 100�0 127�3 159�8
82�5 103�5 131�8 162�2
Tone Burst
MENU > DUP/TONE��� > Tone Burst
Turn the Tone Burst function ON or OFF in the FM
mode when using the Tone Squelch function�
• OFF: When you transmit a signal that superimposes
the CTCSS tone, the other station may hear
a short burst of noise from their receiver, just
after you stop transmitting�
• ON:
When you transmit a signal that superimposes
the CTCSS tone, the function mutes the
noise from being heard in the other station's
receiver�
(Default: 5.000.00)
(Default: 88.5)
(Default: 88.5)
165�5 186�2 210�7 254�1
189�9 218�1
167�9
171�3 192�8 225�7
196�6 229�1
173�8
177�3 199�5 233�6
203�5 241�8
179�9
183�5 206�5 250�3
(Default: OFF)
DTCS Code
MENU > DUP/TONE��� > DTCS Code
Select a DTCS (both encoder/decoder) code for the
DTCS Squelch�
You can select a total of 104 codes (023 ~ 754)�
• Selectable DTCS codes
152
023 072
025 073 155
156
026 074
031 114 162
165
032 115
036 116 172
174
043 122
047 125 205
212
051 131
053 132 223
054 134 225
065 143 226
071 145 243
DTCS Polarity
MENU > DUP/TONE��� > DTCS Polarity
Select the DTCS polarity to use for transmitting (TX)
and receiving (RX)�
• Both N: Normal polarity is used for both TX and RX.
• TN-RR: Normal polarity is used for TX, Reverse
polarity for RX�
• TR-RN: Reverse polarity is used for TX, Normal
polarity for RX�
• Both R: Reverse polarity is used for both TX and RX.
DTCS code's polarity for transmitting or receiving can
be independently set with this item�
Digital Code
MENU > DUP/TONE��� > Digital Code
Select the digital code for Digital Code Squelch�
You can select a total of 100 codes (00 ~ 99)�
11-4
(Default: 023)
244 311 412 466
245 315 413 503
246 325 423 506
251 331 431 516
252 332 432 523
255 343 445 526
261 346 446 532
263 351 452 546
265 356 454 565
266 364 455 606
271 365 462 612
274 371 464 624
306 411 465 627
(Default: Both N)
(Default: 00)
631
632
654
662
664
703
712
723
731
732
734
743
754
