CRANKSHAFT RUNOUT

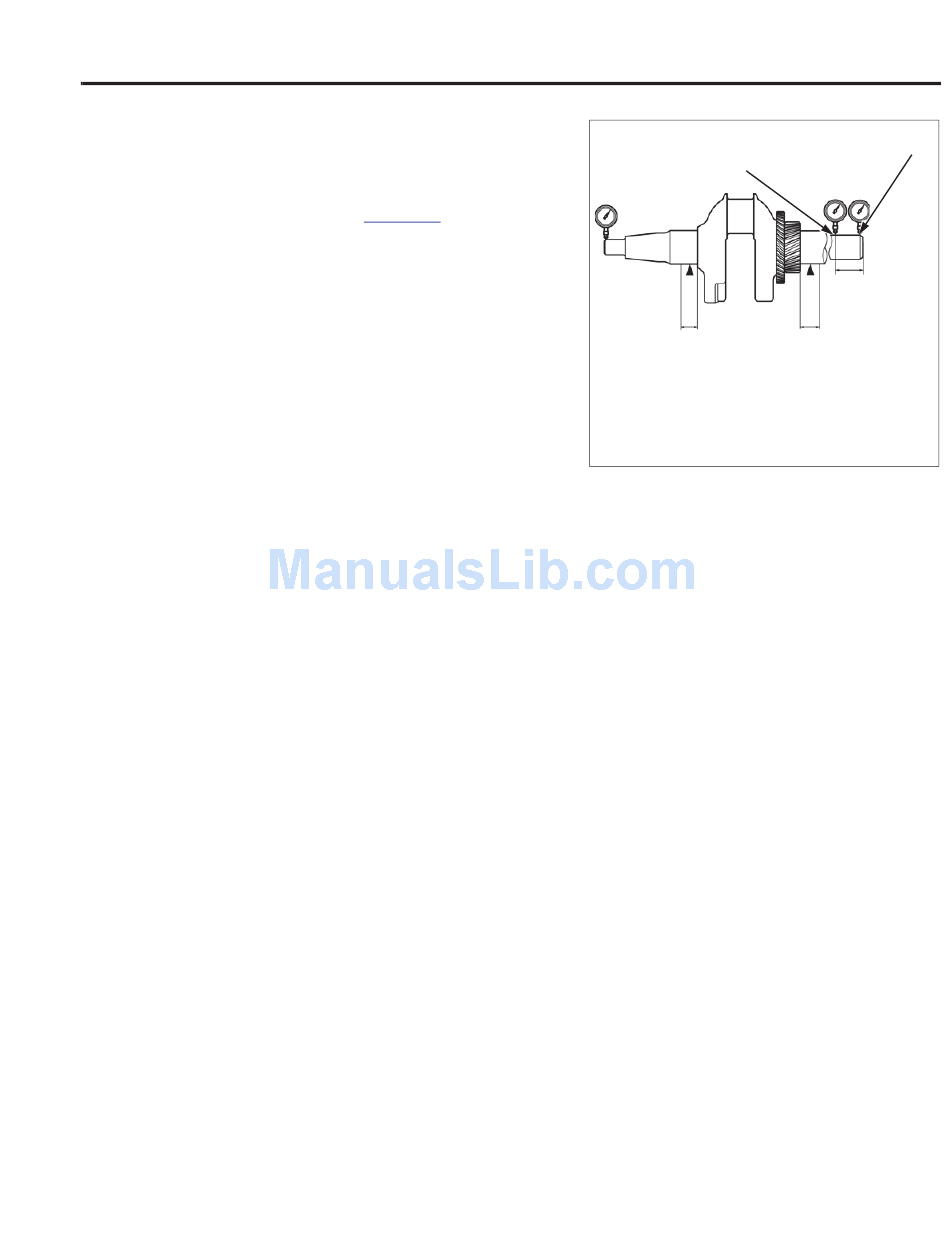

Set the crankshaft on V-blocks and measure the runout
using a dial indicator.
SERVICE LIMIT: 0.1 mm (0.003 in)
If the measured runout is more than the service limit,
replace the crankshaft (page 13-5).
EXCEPT L/P/W TYPE:
L/P/W TYPE ONLY:
MEASURE POINT
MEASURE POINT
16 mm GX240/270:
(0.6 in) 16 mm
(0.6 in)
GX340/390:
17 mm
(0.7 in)
CRANKCASE
GX240/270
L TYPE:
31 mm (1.2 in)
GX340/390
L TYPE:
36 mm (1.4 in)
P TYPE:
32 mm (1.3 in)
W TYPE:
24 mm (0.9 in)
