52
IBM TotalStorage SAN Volume Controller: Installation Guide
Note: You must install uninterruptible power supplies in pairs. There must be at
least two uninterruptible power supplies per cluster. A cluster can contain no
more than eight SAN Volume Controllers. Also, ensure that each UPS of a
pair is connected to a separate electrical input power source (if possible) to
reduce the chance of input power failure at both uninterruptible power
supplies.
Before you begin this task, refer to the customer's cable connection table in the IBM
TotalStorage SAN Volume Controller: Planning Guide to identify the UPS to which
this SAN Volume Controller is to be connected.
Perform the following steps to connect the SAN Volume Controller to the UPS 5115:
1. At the back of the SAN Volume Controller, plug a power cable into the power
1
connector
. See Figure 28.
1
5

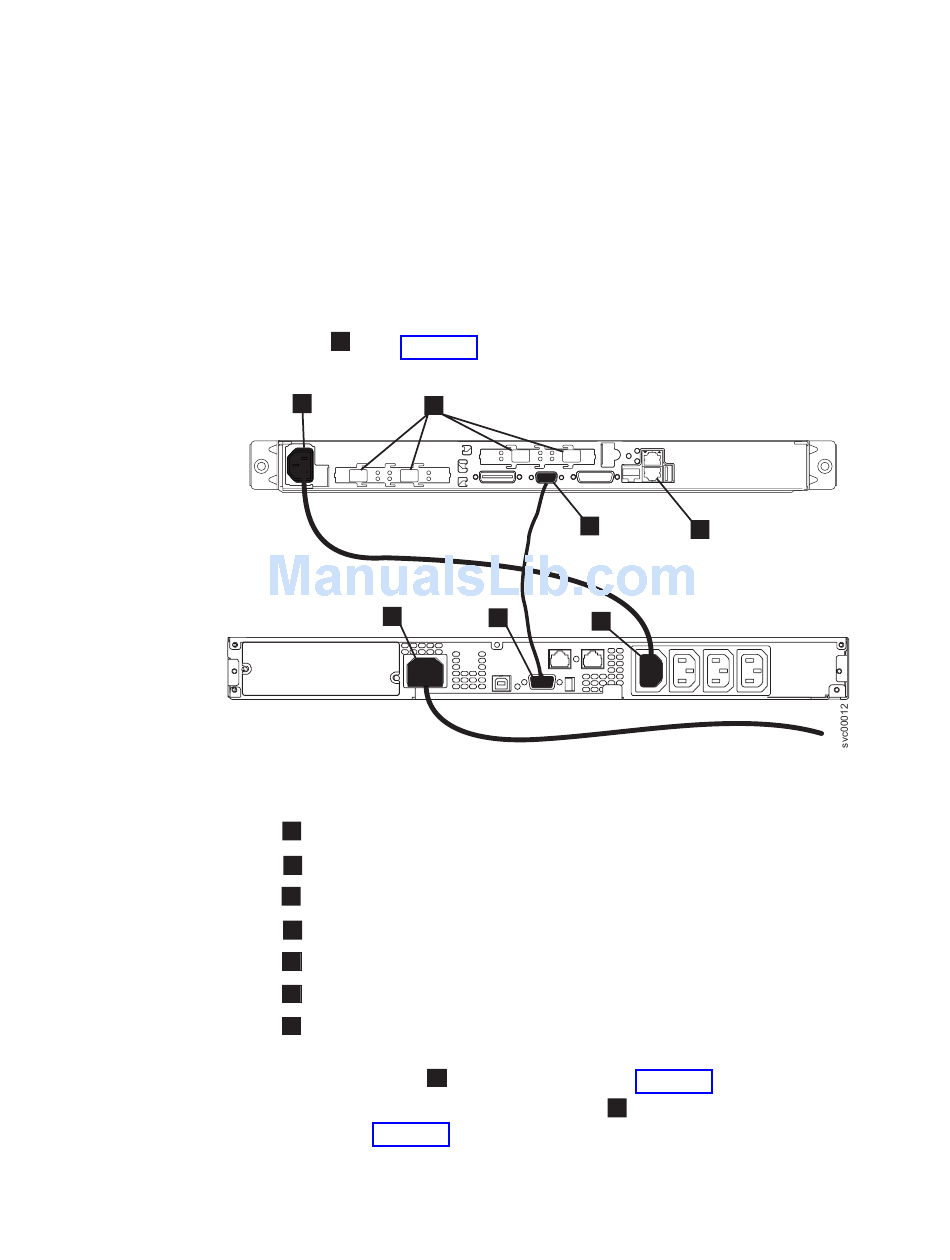

Figure 28. Connecting the SAN Volume Controller power cable to the uninterruptible power
supply
1
Power connector
2
Fibre channel ports
3
Serial connector
4
Ethernet ports
5
Main power connector
6
Communication port
7
Load segment 1 receptacle
2. Place the free end of the SAN Volume Controller power cable into the Load
segment 1 receptacle
3. Plug the signal cable into the serial connector
Controller. See Figure 28.
2
3
6
7
7
on the UPS 5115. See Figure 28.
4
3
located on the SAN Volume
