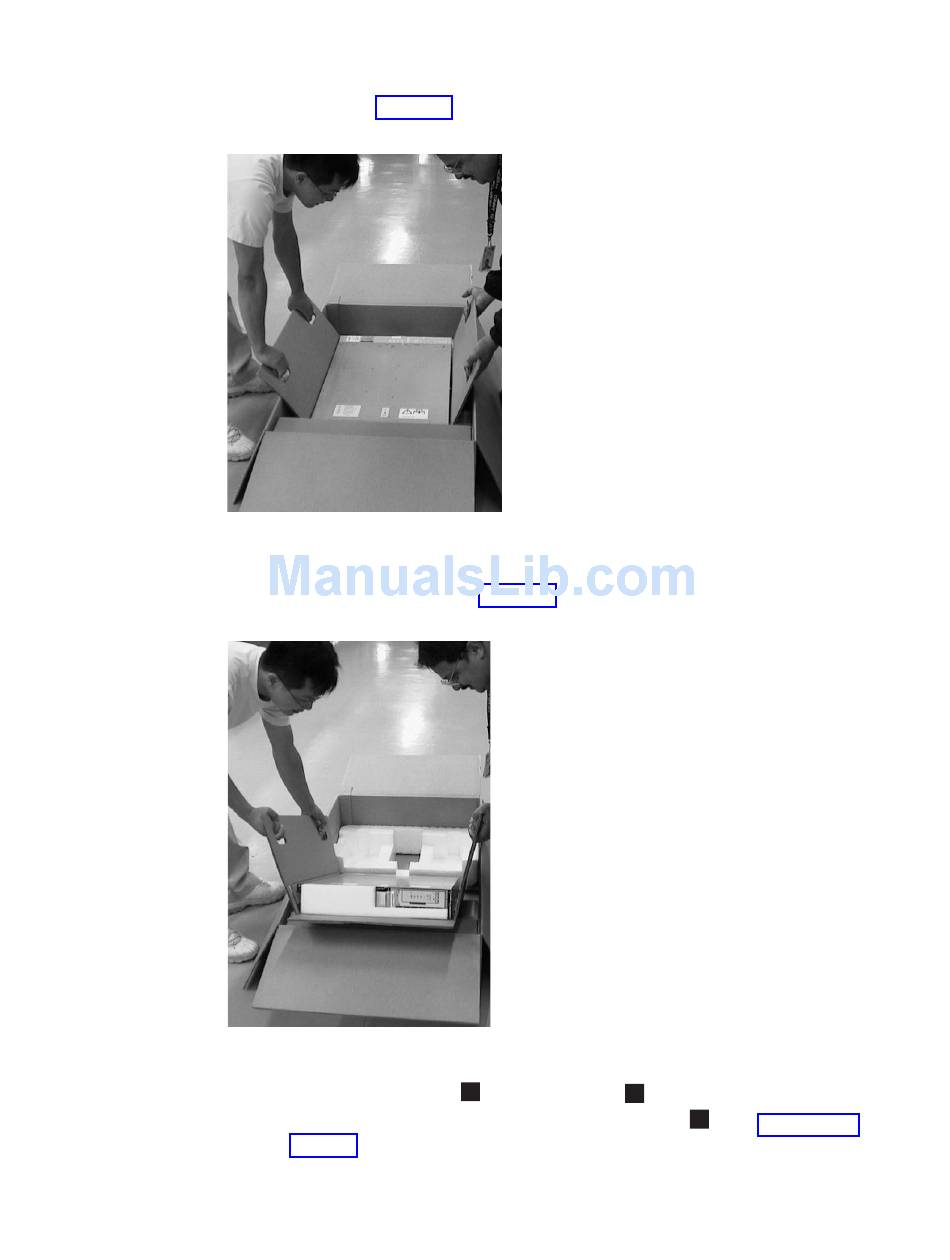

Figure 15. Opening the top of the uninterruptible power supply shipping carton
Figure 16. Sliding the uninterruptible power supply to the end of the carton.
42
IBM TotalStorage SAN Volume Controller: Installation Guide
a. Open the top of the UPS 5125 shipping carton. With the assistance of
another service representative, grip the flaps on either side of the UPS
5125. See Figure 15.
b. Slide the UPS 5125 to the end of the carton and rest its front edge on the
edge of the carton. See Figure 16.
c. Remove the two bolts
bracket. Next, remove the battery retaining bracket
page 43.
1
2
and additional nut
on the left side of the
3
. See Figure 17 on
