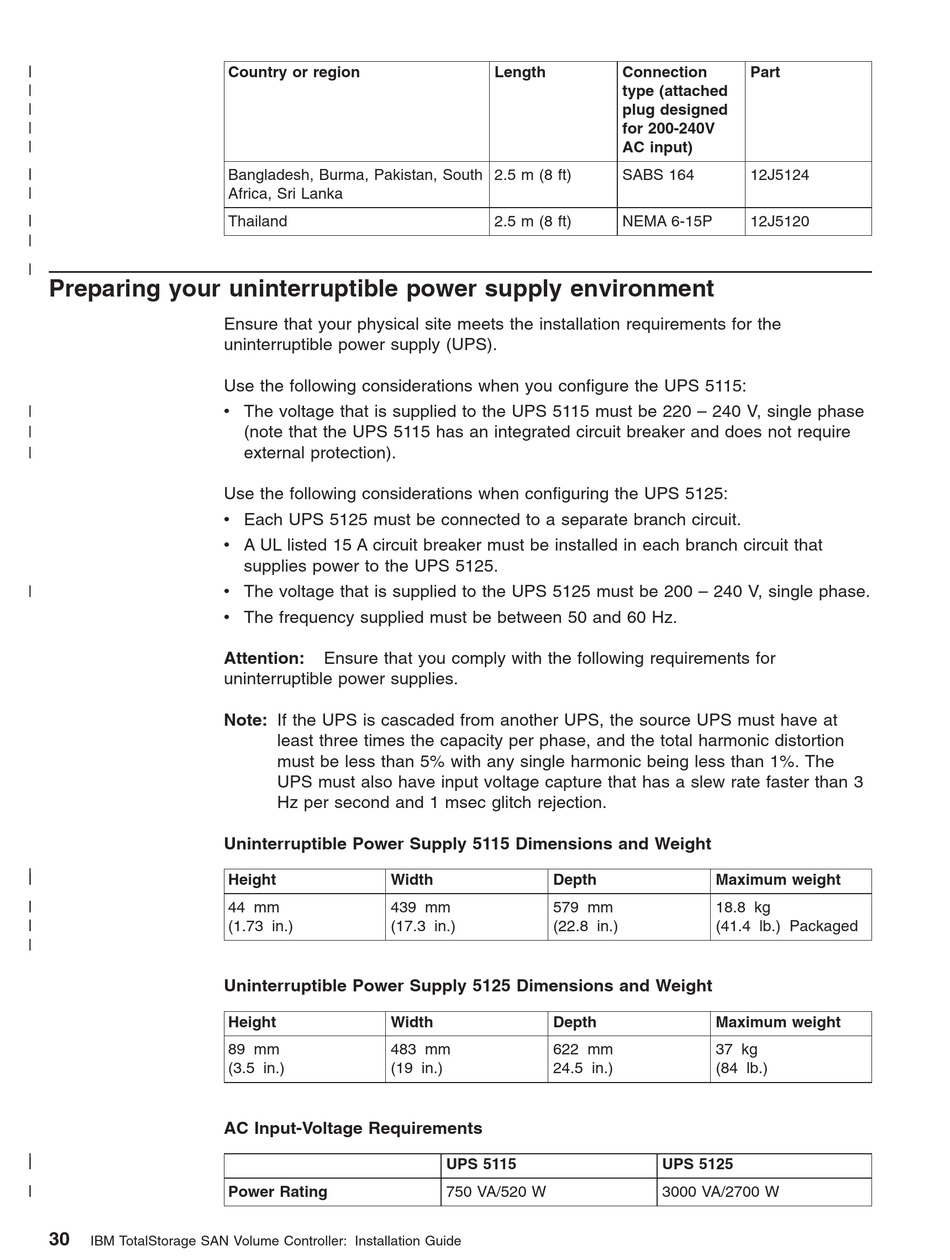

Preparing your uninterruptible power supply environment
|
|
|
|
| | | | |
|
|
|
|
|
|
|
|
|
| | | |
| | |
30
IBM TotalStorage SAN Volume Controller: Installation Guide
Country or region
Bangladesh, Burma, Pakistan, South
Africa, Sri Lanka
Thailand
Ensure that your physical site meets the installation requirements for the
uninterruptible power supply (UPS).
Use the following considerations when you configure the UPS 5115:
v The voltage that is supplied to the UPS 5115 must be 220 – 240 V, single phase
(note that the UPS 5115 has an integrated circuit breaker and does not require
external protection).
Use the following considerations when configuring the UPS 5125:
v Each UPS 5125 must be connected to a separate branch circuit.
v A UL listed 15 A circuit breaker must be installed in each branch circuit that
supplies power to the UPS 5125.
v The voltage that is supplied to the UPS 5125 must be 200 – 240 V, single phase.
v The frequency supplied must be between 50 and 60 Hz.
Attention:
Ensure that you comply with the following requirements for
uninterruptible power supplies.
Note: If the UPS is cascaded from another UPS, the source UPS must have at
least three times the capacity per phase, and the total harmonic distortion
must be less than 5% with any single harmonic being less than 1%. The
UPS must also have input voltage capture that has a slew rate faster than 3
Hz per second and 1 msec glitch rejection.
Uninterruptible Power Supply 5115 Dimensions and Weight
Height
Width
44 mm
439 mm
(1.73 in.)
(17.3 in.)
Uninterruptible Power Supply 5125 Dimensions and Weight
Height
Width
89 mm
483 mm
(3.5 in.)
(19 in.)
AC Input-Voltage Requirements
Power Rating
Length
Connection
type (attached
plug designed
for 200-240V
AC input)
2.5 m (8 ft)
SABS 164
2.5 m (8 ft)
NEMA 6-15P
Depth
579 mm
(22.8 in.)
Depth
622 mm
24.5 in.)
UPS 5115
750 VA/520 W
Part
12J5124
12J5120
Maximum weight
18.8 kg
(41.4 lb.) Packaged
Maximum weight
37 kg
(84 lb.)
UPS 5125
3000 VA/2700 W
