Controls and indicators for the uninterruptible power supply 5125
22
IBM TotalStorage SAN Volume Controller: Installation Guide
When the load segment 2 indicator is green, the UPS 5115 is running normally and
power is available to this segment.
See "Hardware for the uninterruptible power supply 5115" for the location of the
power outlets for this segment.
Related reference
"Controls and indicators for the uninterruptible power supply 5115" on page 19
All controls for the uninterruptible power supply 5115 are located on the front
panel assembly.

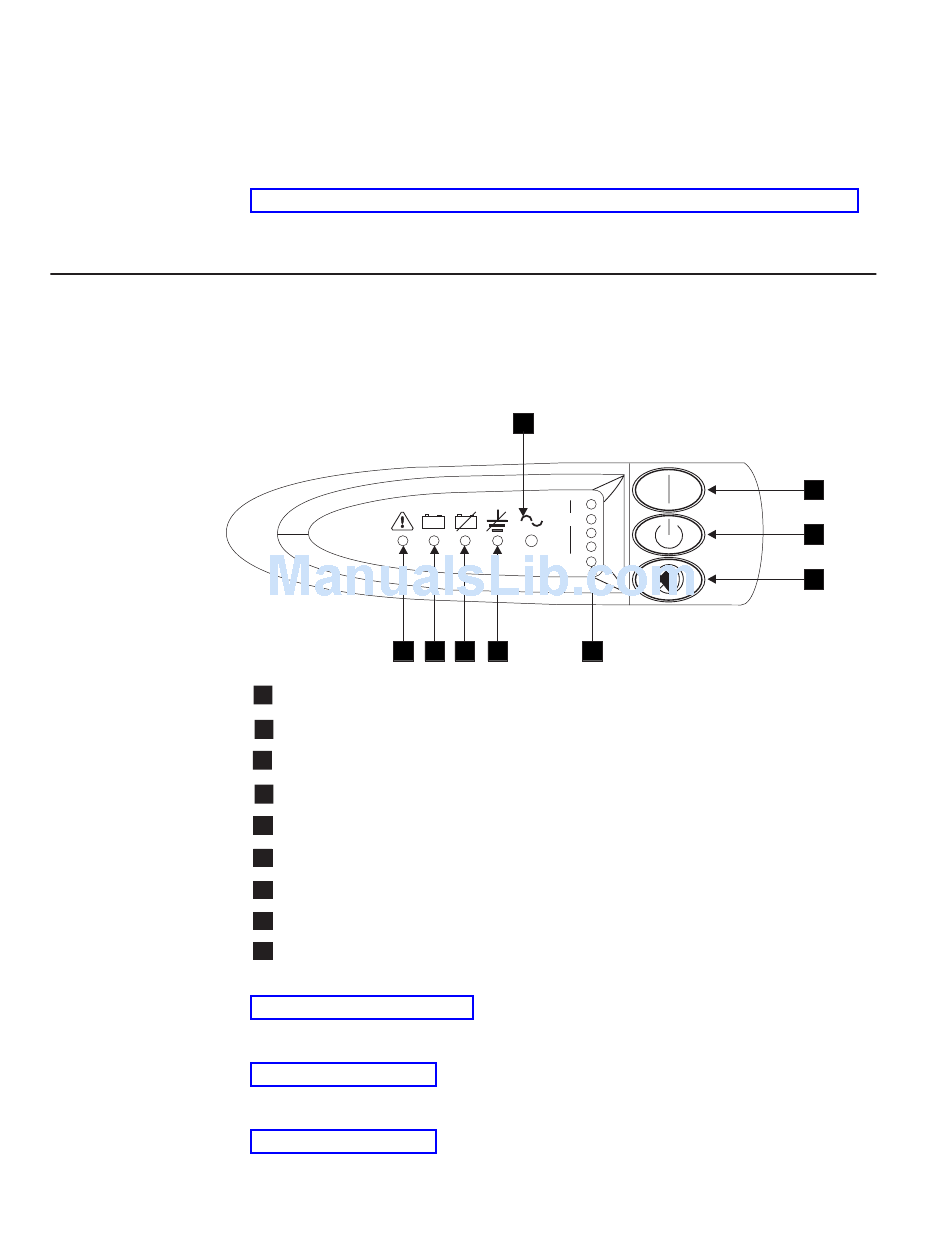

All controls for the uninterruptible power supply 5125 are located on the front panel
assembly.
9
1
Mode indicator
2
On button
3
Off button
4
Test and alarm reset button
5
Load-level indicators
6
Site wiring fault indicators
7
Battery service indicator
8
Battery mode indicator
9
General alarm indicator
Related reference
"Mode indicator" on page 23
The mode indicator provides status information on the uninterruptible power
supply (UPS) 5125.
"On button" on page 23
The on button turns on the main power to the uninterruptible power supply
(UPS) 5125.
"Off button" on page 24
The off button turns off the main power to the uninterruptible power supply
(UPS) 5125.
1
100%
+ -
+ -
+ -
+ -
25%
8
7
6
5
2
3
4
