38
IBM TotalStorage SAN Volume Controller: Installation Guide
CAUTION:
To avoid any hazard from the rack tipping forward when devices are installed,
observe all safety precautions for the rack into which you are installing the
device.
Once all of the prerequisites have been completed, you can start the installation
process.
Perform the following steps to install the UPS 5115 in the rack:
1. Open the top of the UPS 5115 shipping carton. Grip the flaps on either side of
the UPS 5115.
2. Lift the UPS 5115 clear of the shipping carton and place it on a flat, stable
surface.
3. On each side of the UPS 5115, attach the long end of a mounting bracket
the UPS 5115 using four of the supplied M3 × 6 screws

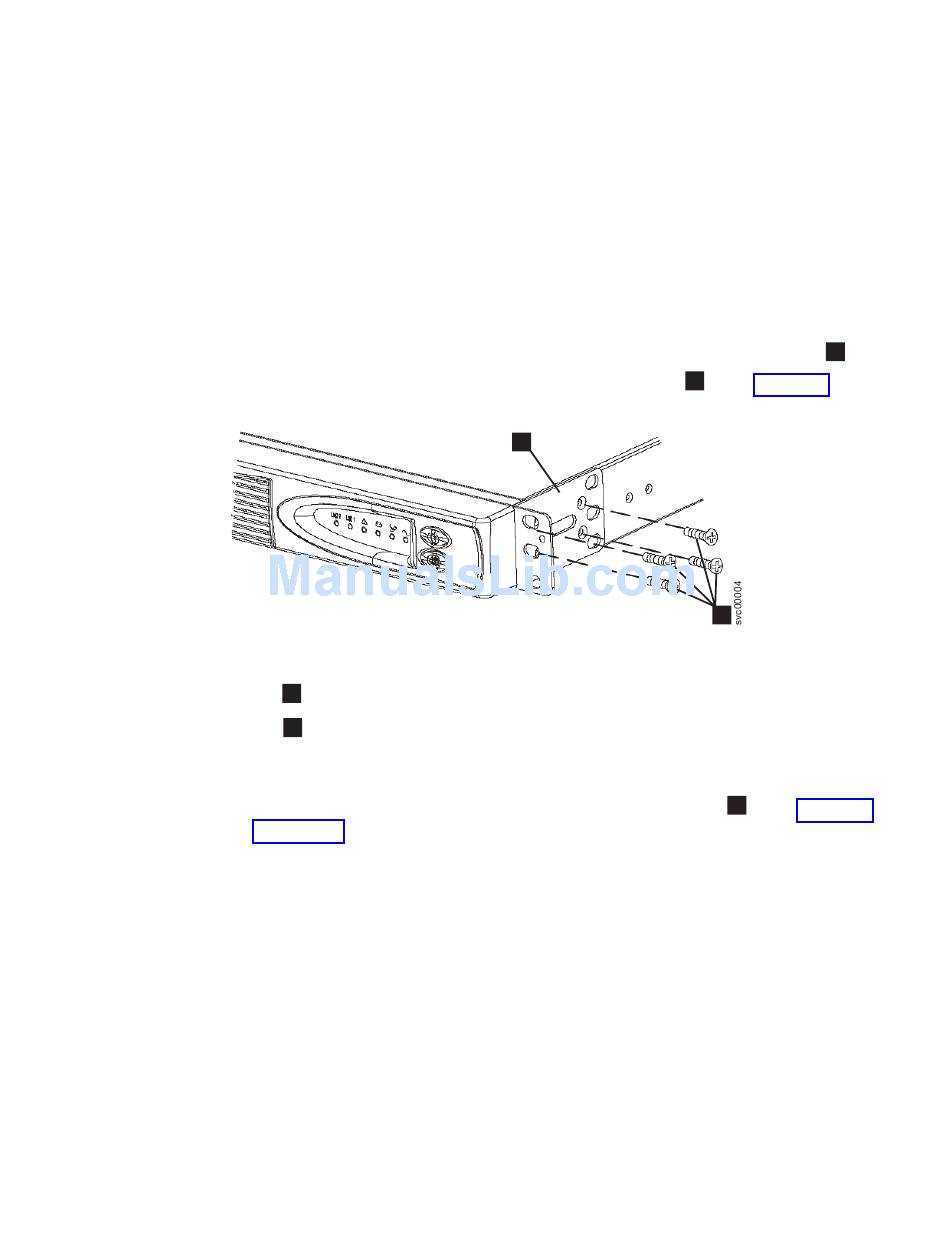

Figure 11. Attaching the mounting bracket to the uninterruptible power supply 5115
1
Mounting bracket
2
M3 × 6 screws
4. Stand at the front of the rack and place the back of the UPS 5115 onto the
support rails, and then slide the UPS 5115 into the rack.
5. At the front of the UPS 5115, install the two mounting screws
on page 39
2
1
1
to
. See Figure 11.
2
1
. See Figure 12
