Chapter 6
J14 (Head R)
Pin Number Signal name
41 H0-E-DATA-8-OD
42 H0-F-HE-10
43 H0-F-DATA-11-EV
44 H0-F-DATA-8-EV
45 H0-D-DATA-6-EV
46 H0-C-DIA2
47 H0-C-DATA-5-EV
48 H0-B-DIA1
49 H0-A-HE-0
50 H0-B-DATA-2-OD
51 H0-B-DATA-3-OD
52 H0-C-DATA-4-OD
53 GND
54 GND
55 GND
56 H0-F-DATA-11-OD
57 H0-E-DATA-9-EV
58 GND
59 H0-D-DATA-6-OD
60 H0-C-HE-5
61 H0-B-HE-3
62 H0-A-DIA1
63 H0-A-DATA-1-OD
64 GND
65 GND
66 GND
67 GND
68 H0-F-DATA-10-OD
69 H0-F-DIA1
70 H0-D-HE-7
71 GND
72 H0-CLK
73 H0-LT
74 H0-B-DATA-2-EV
75 H0-A-DATA-0-OD
76 GND
77 GND
78 GND

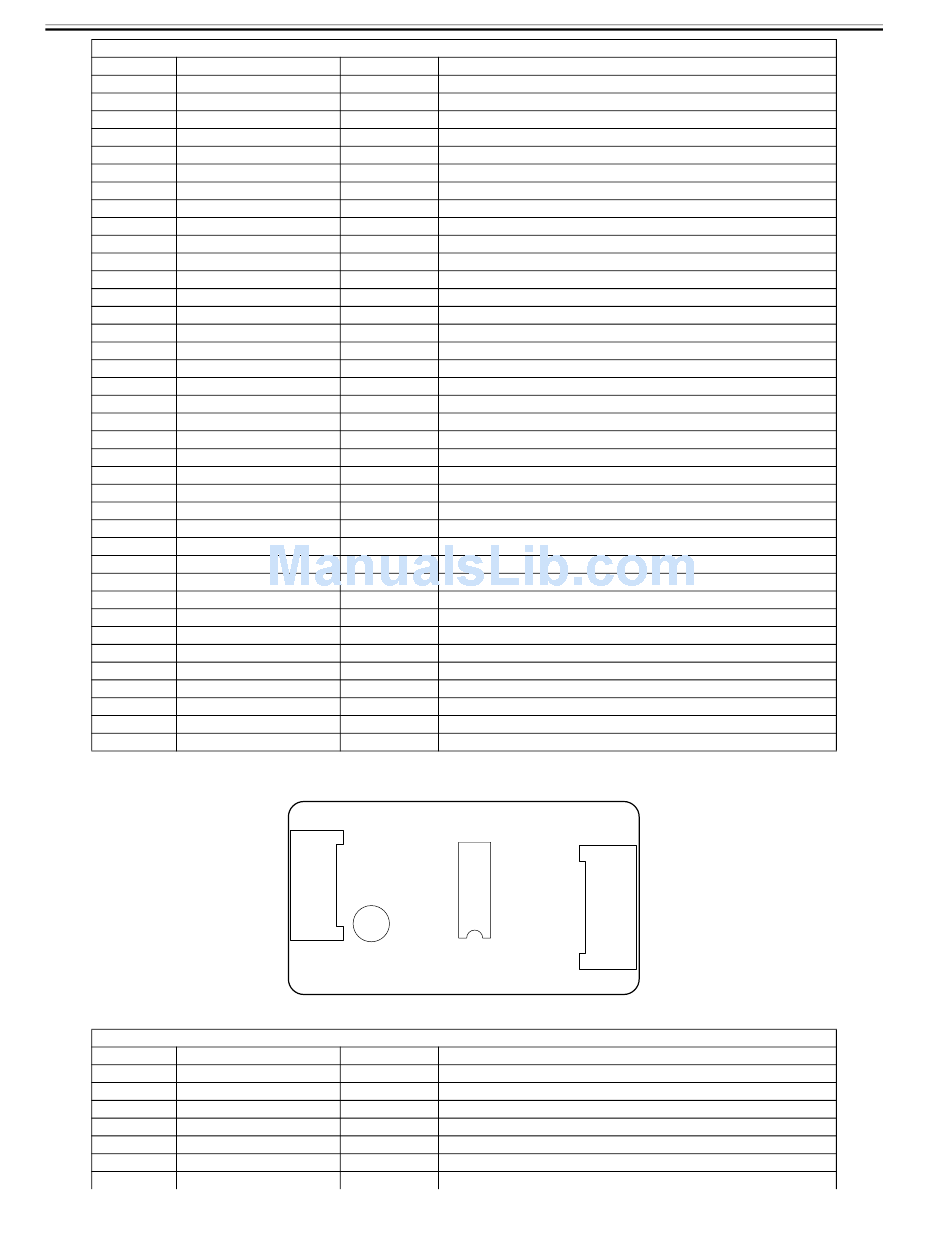

6.2.3 Cutter driver PCB

J1 (Connect to main board)
Pin Number Signal name
1 GND
2 CUTTER_PHS
3 CUTTER_ENB
4 CUTTER_CLK
5 CUTTER_DAT
6 CUTTER_STB
7 /CUTTER_SLEEP
6-20
IN/OUT Function
OUT Odd head R data signal 8(E)
OUT Head R heat enable signal 10(F)
OUT Even head R data signal 11(F)
OUT Even head R data signal 8(F)
OUT Even head R data signal 6(D)
IN Head R DI sensor signal 2(C)
OUT Even head R data signal 5(C)
IN Head R DI sensor signal 1(B)
OUT Head R heat enable signal 8(E)
OUT Odd head R data signal 2(B)
OUT Odd head R data signal 3(B)
OUT Odd head R data signal 4(C)
- GND
- GND
- GND
OUT Odd head R data signal 11(F)
OUT Even head R data signal 9(E)
- GND
OUT Odd head R data signal 6(D)
OUT Head R heat enable signal 5(C)
OUT Head R heat enable signal 8(E)
IN Head R DI sensor signal 1(A)
OUT Odd head R data signal 1(A)
- GND
- GND
- GND
- GND
OUT Odd head R data signal 10(F)
IN Head R DI sensor signal 1(F)
OUT Head R heat enable signal 7(D)
- GND
OUT Head R data clock signal
OUT Head R data latch signal
OUT Even head R data signal 2(B)
OUT Odd head R data signal 0(A)
- GND
- GND
- GND
J1
F-6-3
T-6-39
IN/OUT Function
- GND
IN Cutter motor driver phase signal
IN Cutter motor driver enable signal
IN Cutter motor driver clock signal
IN Cutter motor driver data signal
IN Cutter motor driver strobe signal
IN Cutter motor driver sleep signal
J2
0013-3763
