* Make adjustments with the carriage lock released.
* Make adjustments with the tube disconnected from the tube guide.

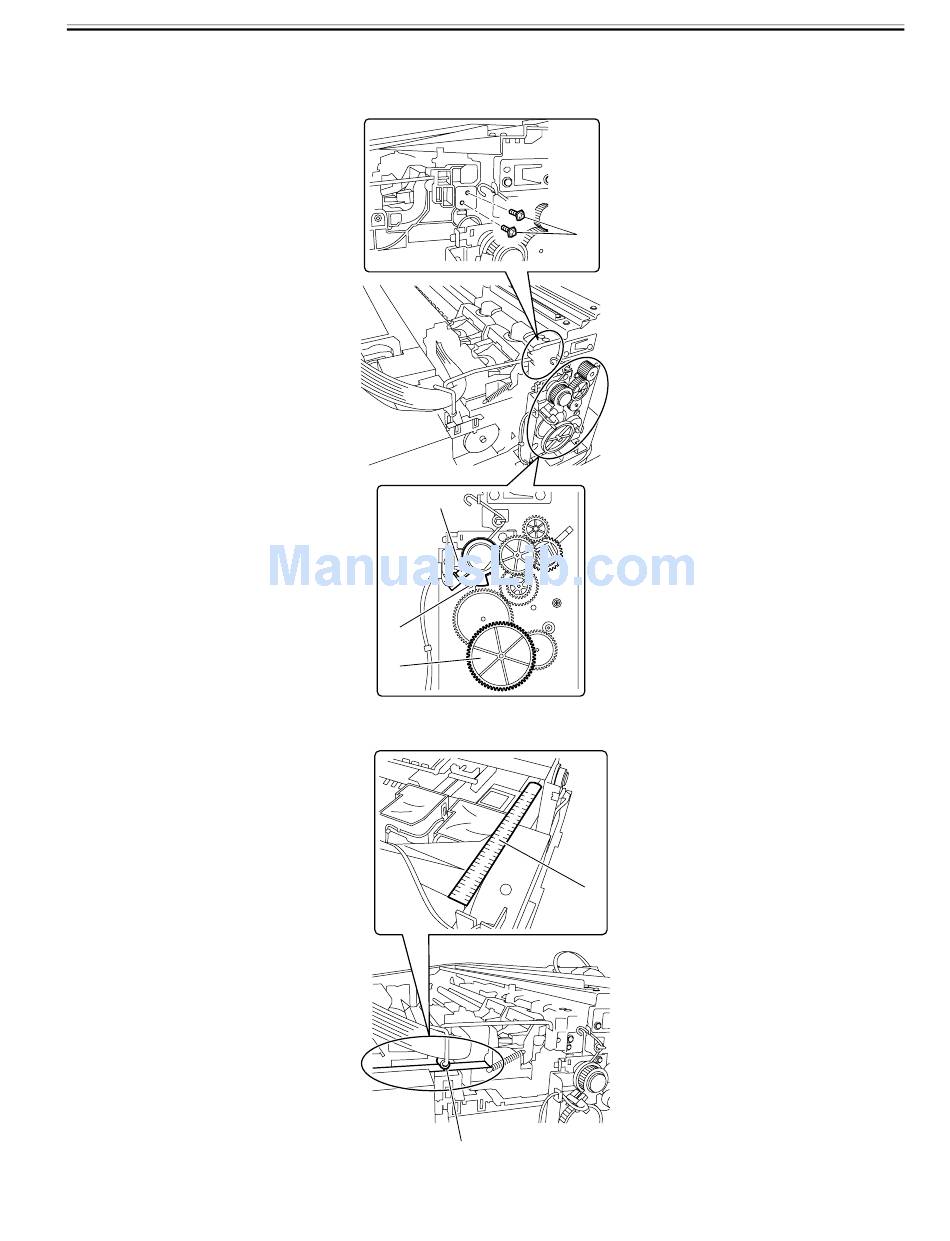

(1) Loosen the two screws[1]
(2) Turn the gear[2] until the lift cam flag[3] reaches the position shown below.
* Bottom position where the sensor[4] light is blocked by the flag (lowest position to which the carriage unit descends)
(3) Place the scale[5] on the mist fan as shown below, adjust the wire guide height so that the wire roller[6] touches the top surface of the scale, and then tighten
the screw loosened in step (1).
* To prevent the wire roller from being disengaged, install the right cover with the carriage moved onto the platen.
